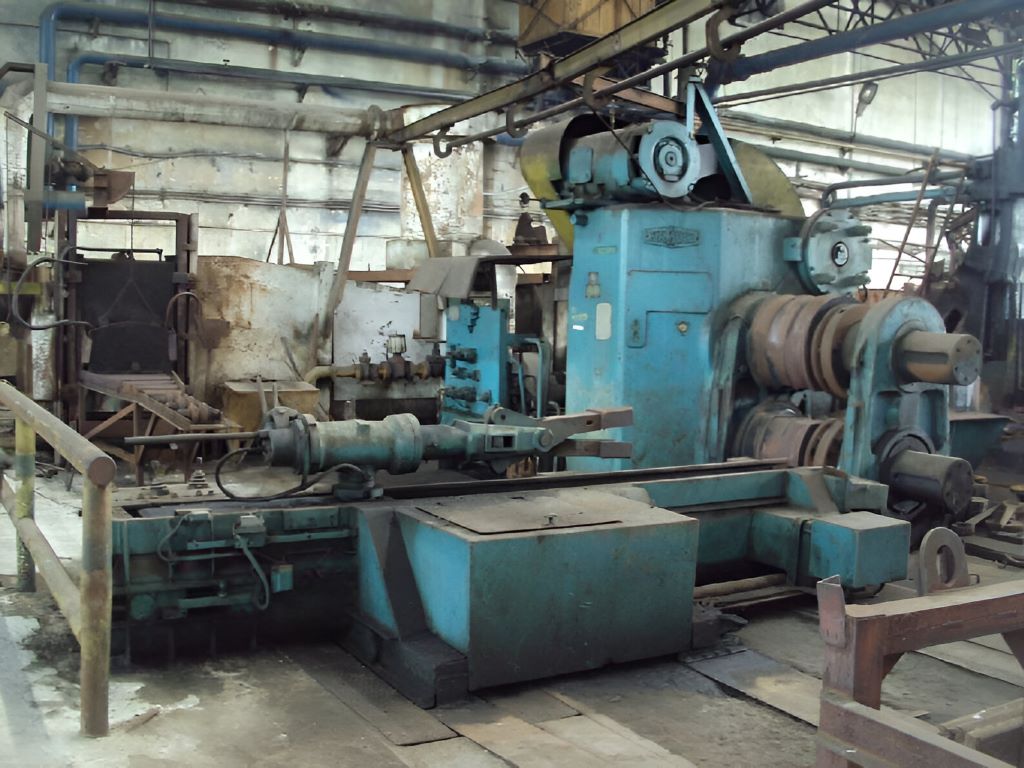

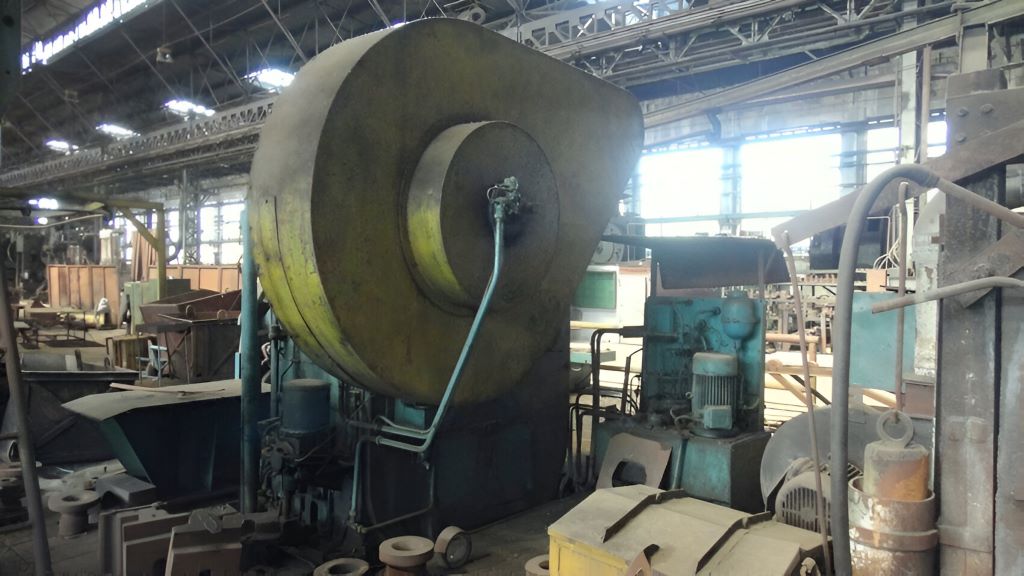

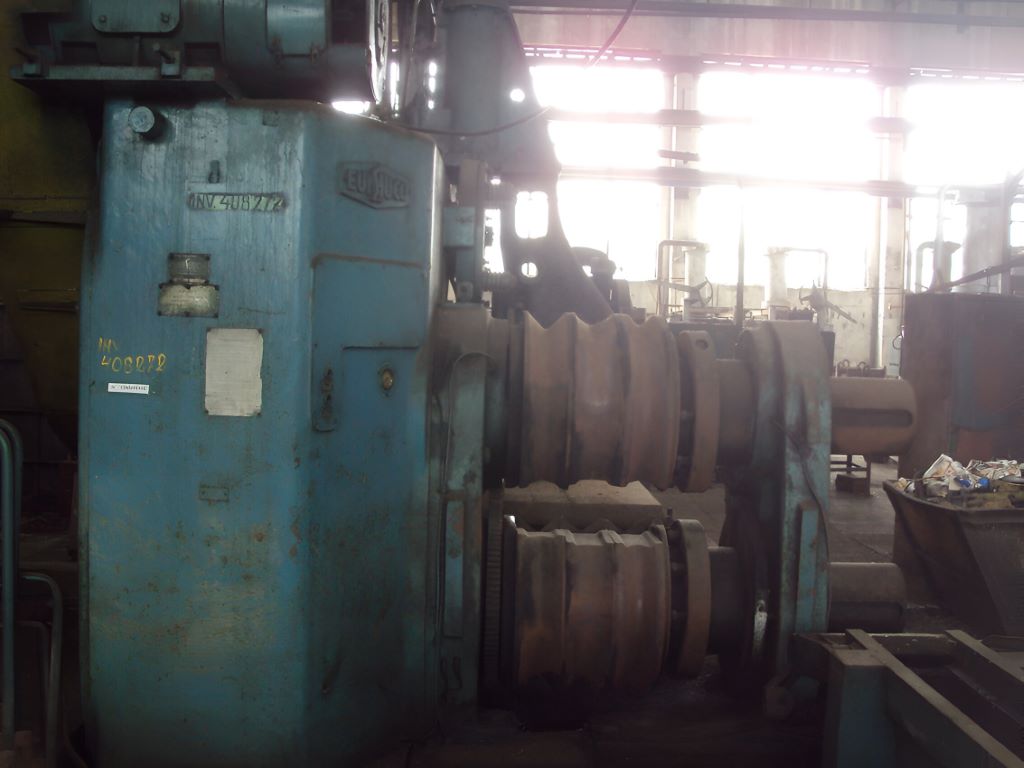

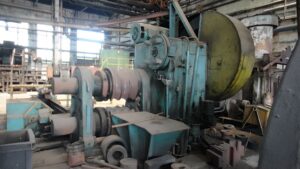

Schmiedewalze Eumuco RW3
Technische Daten (EN) -
Schmiedewalze Eumuco RW3 (ID: S88719)
| Type | Forging roll |

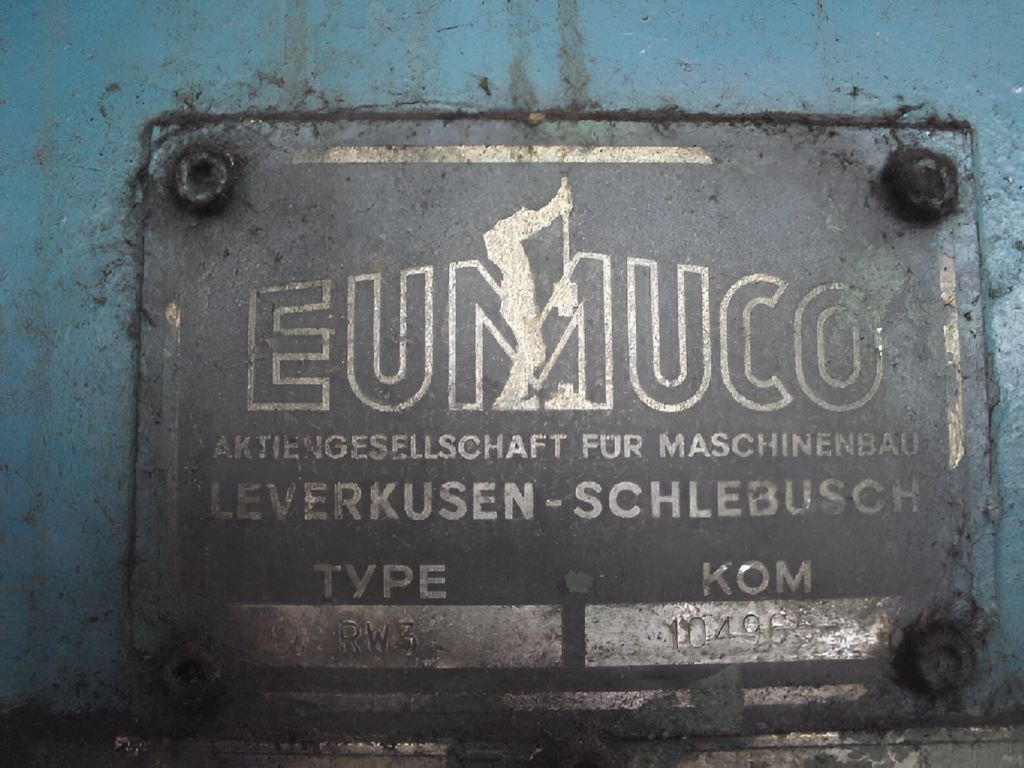

| Manufacturer | Eumuco |
| Model | RW3 |
| Year of manufacture | 1978 |
| Diameter of Rolling Segments | 800 mm |
| Width of Rollers (inner / outer) | 340 mm / 760 mm |
| Max. Rolling Length (inner / outer) | 1240 mm / 1920 mm |
| Roll Adjustment | 25 mm |
| Speed of the Rollers (1/min RPM) | 30 |
| Max. Thickness of Input Material | 150 mm |
| Drive Motor Power | 85 kW |
| Electrics | 380 V |
| Automatic Manipulator | |
| Drive way X | 1500 mm |
| Drive way Y | 2400 mm |
| Turning radius, turning tower | min. 120 deg |
| Turning radius pinch | 360 deg |
| Billet Length | 286-1680 mm |
| Billet Diameter | 57-120 mm |
| Billet Weight | 200 kg. |
