Freiformschmiedepresse Seonam 2500 MT - 2500 ton
Technische Daten (EN) -

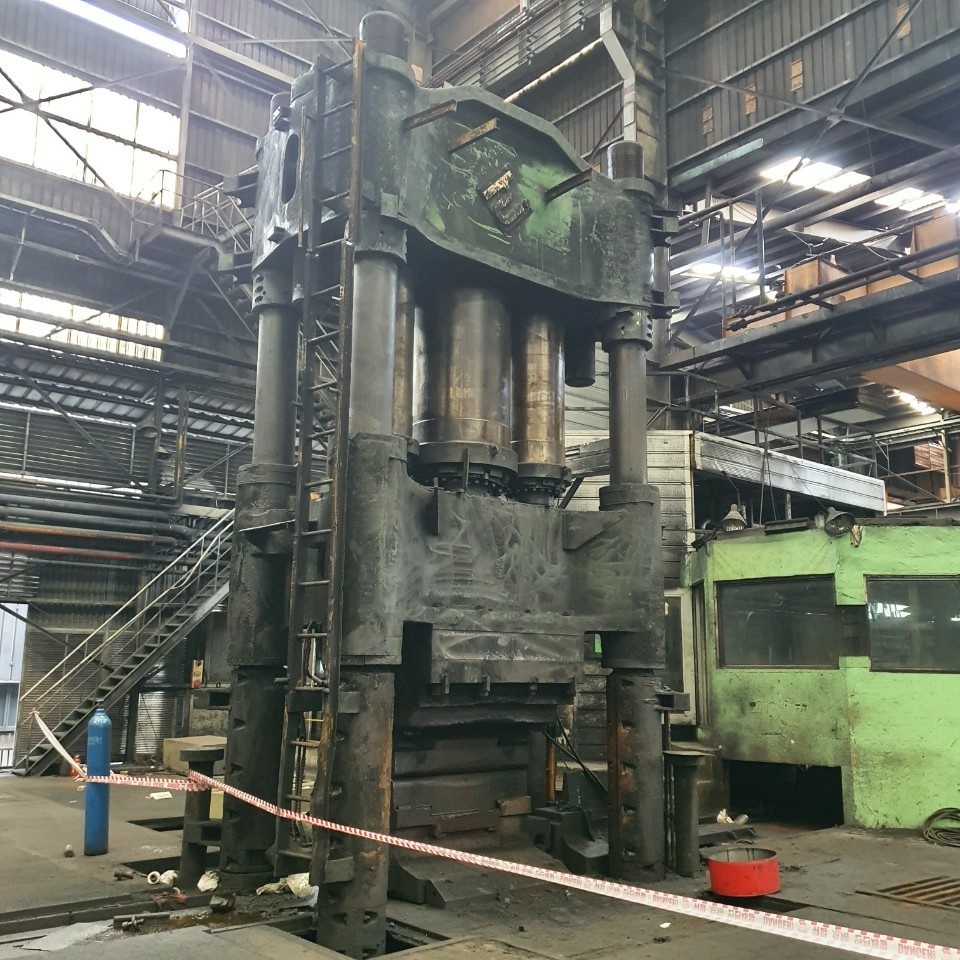

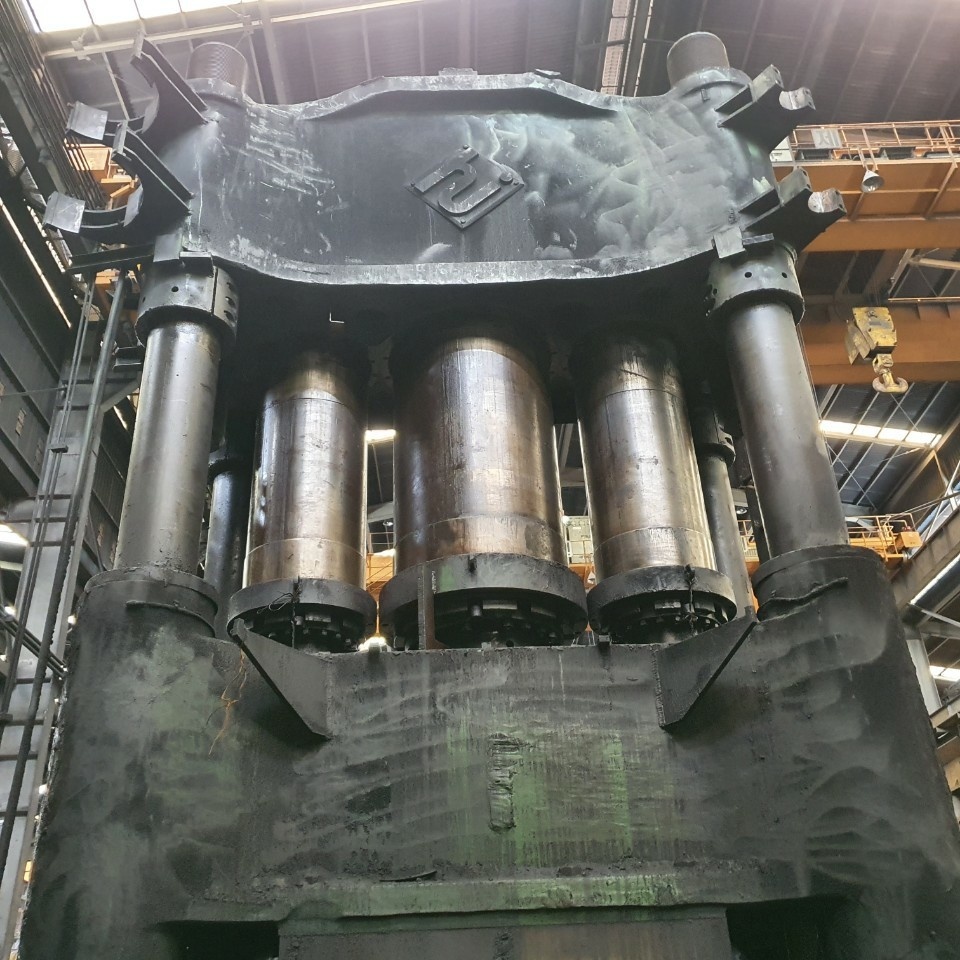

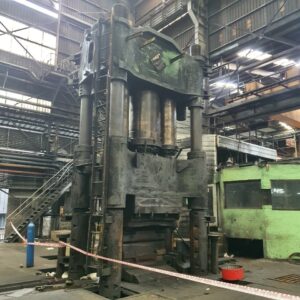

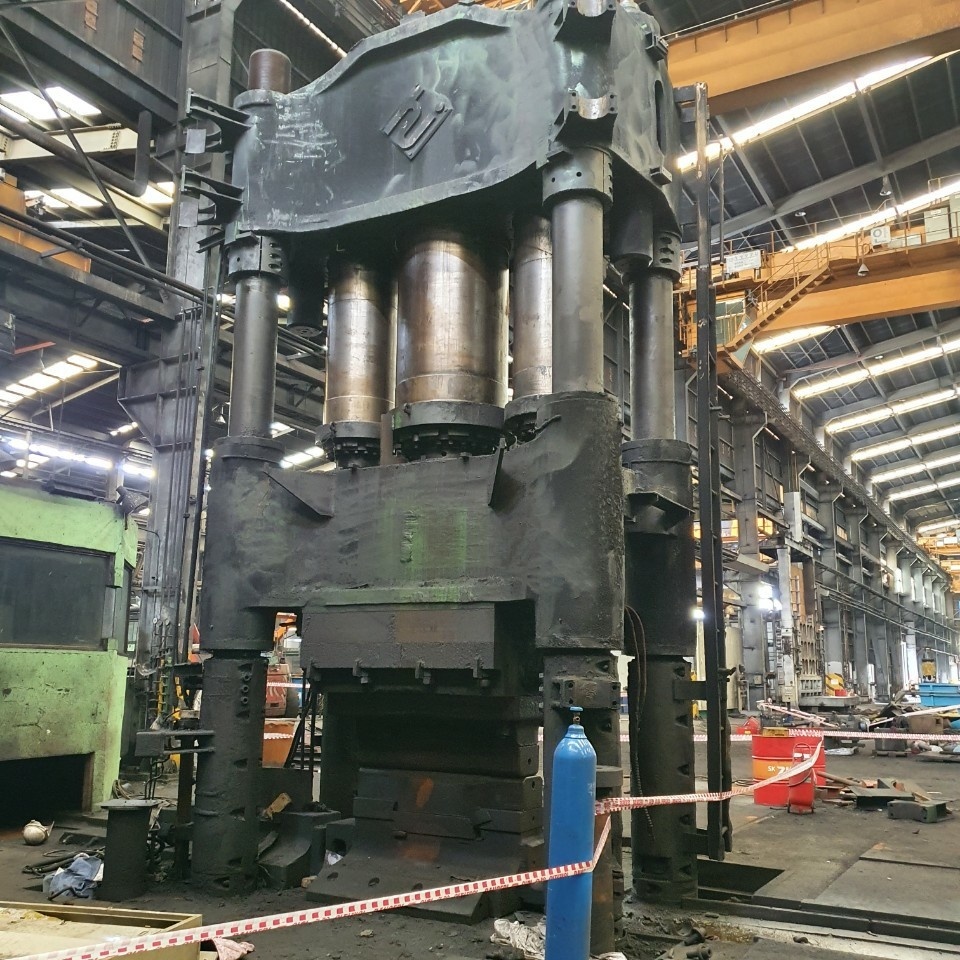

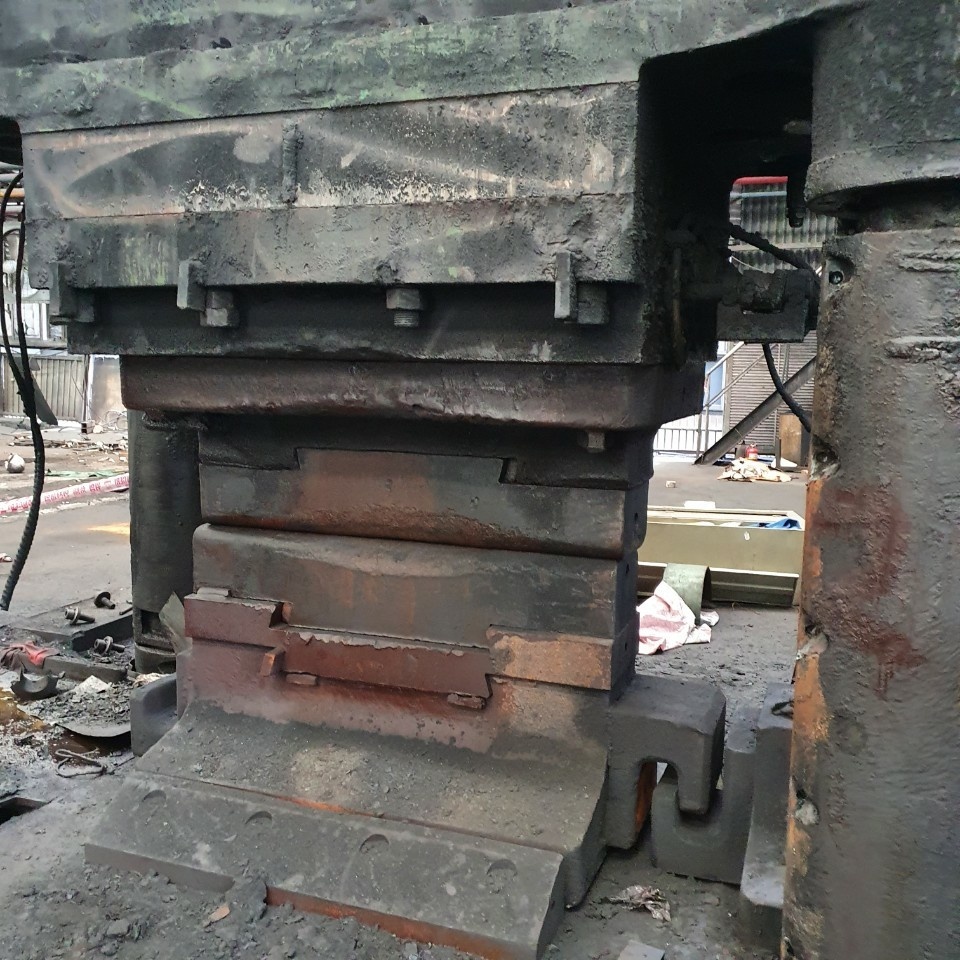

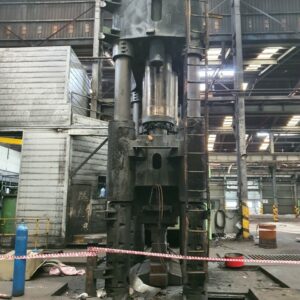

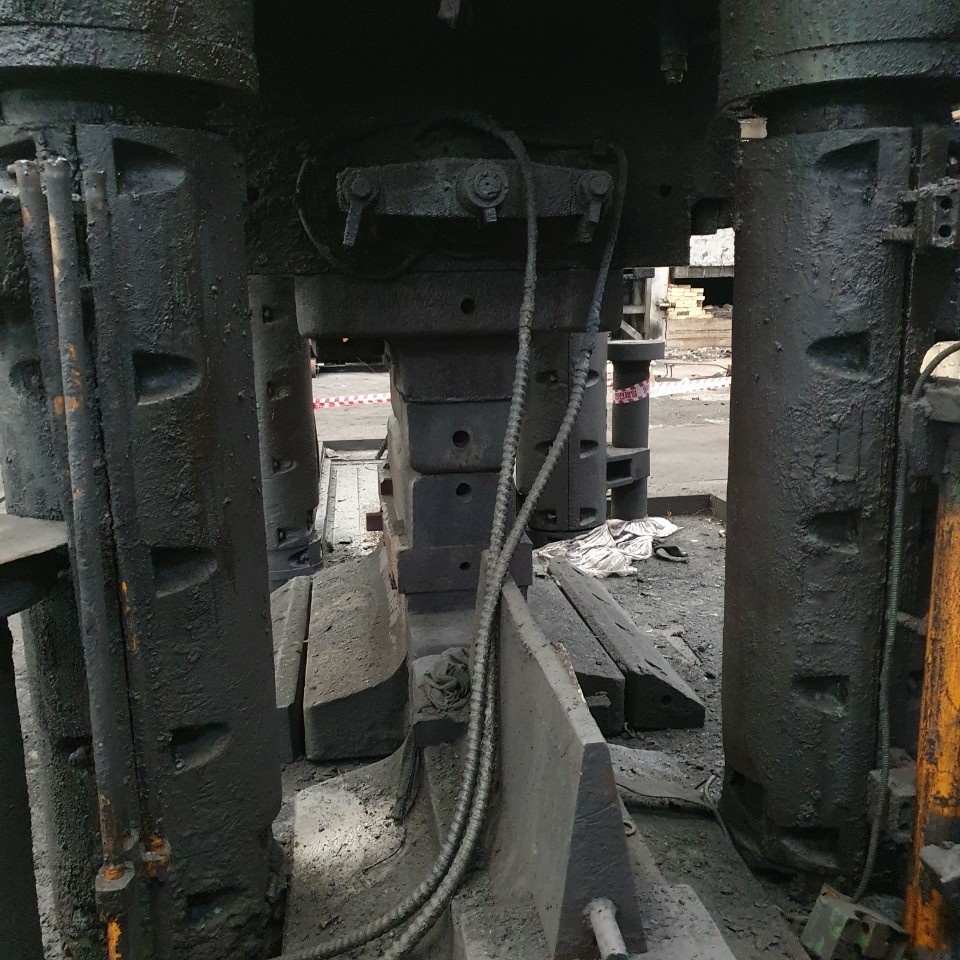

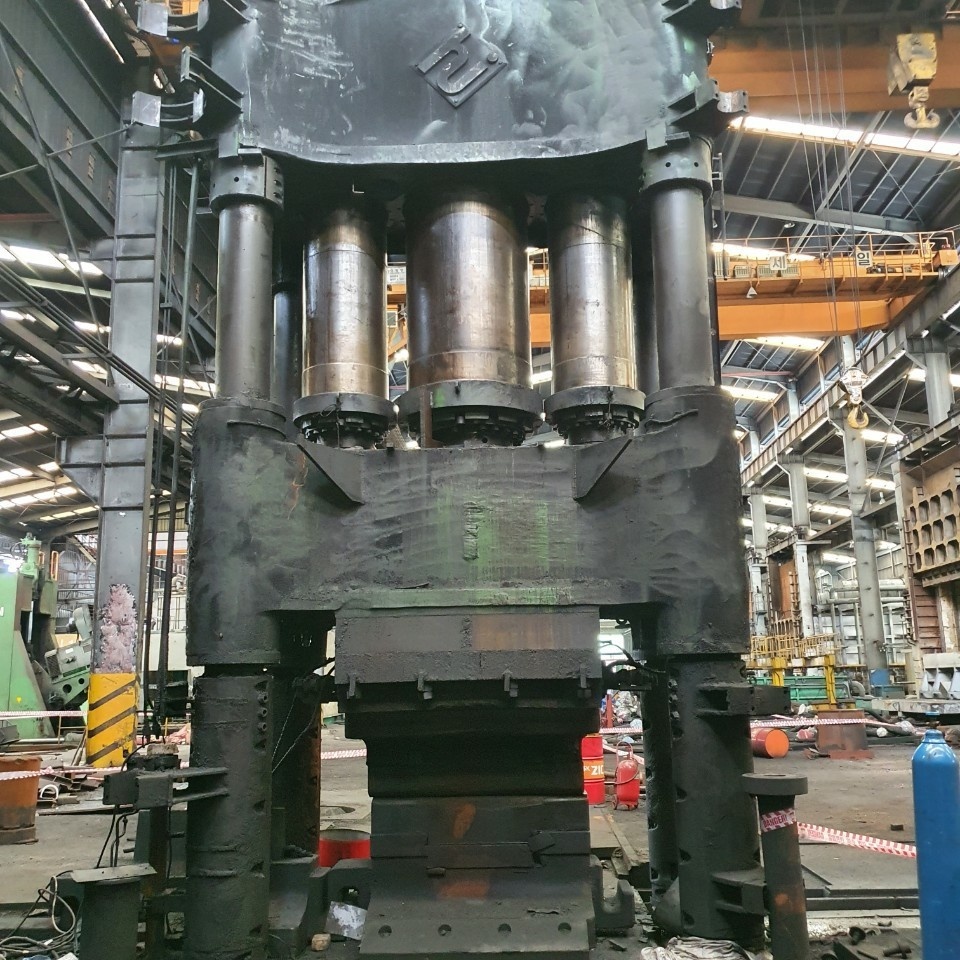

Freiformschmiedepresse Seonam 2500 MT - 2500 ton (ID: 76302)
| Type | Open die forging press |
| Manufacturer | Seonam |
| Model | 2500 MT |
| Year of manufacture | 2006 |
| Capacity | 2500 ton |
| Stroke | 1500 mm |
| Daylight | 2400 mm |
| Moving Bolter | 2200 x 4050 mm |
| Column | 390 mm x 4 |
| Column distance | 3250 mm |
| Front inside distance | 2730 mm |
| Side distance | 1650 mm |
| Side inside distance | 1180 mm |
| Approaching speed | 100 mm/sec |
| Forging speed | 67/29 mm/sec |
| Return speed | 300 mm/sec |
| Hydraulic main motor | 185 kw x 5 |
| Press weight | 250 ton |
