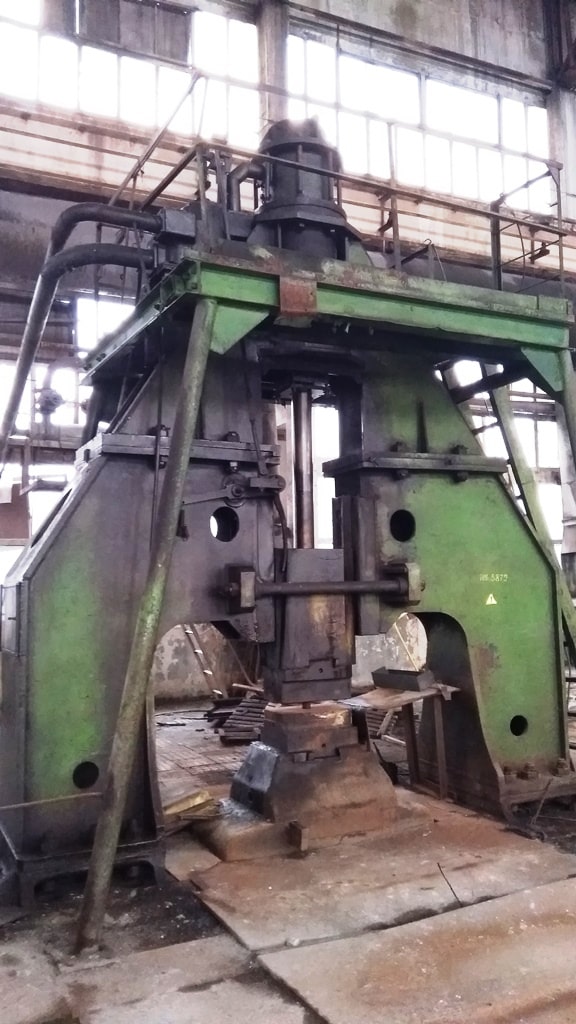

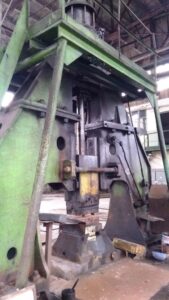

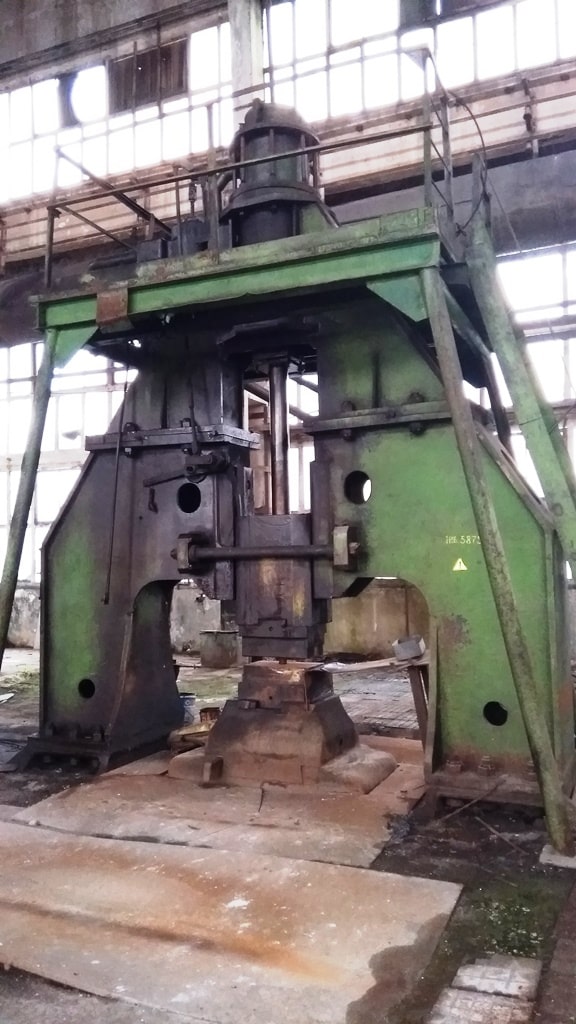

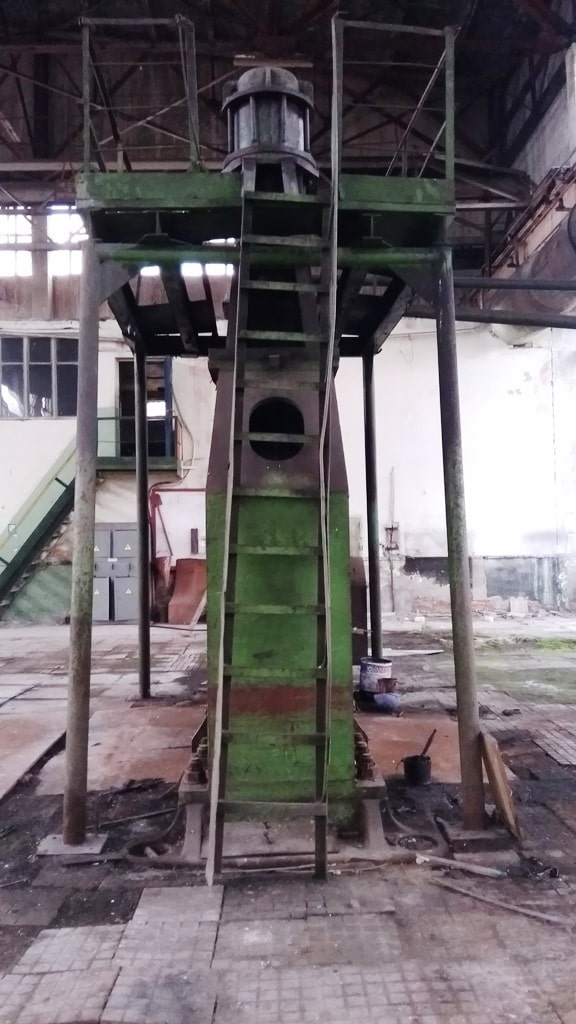

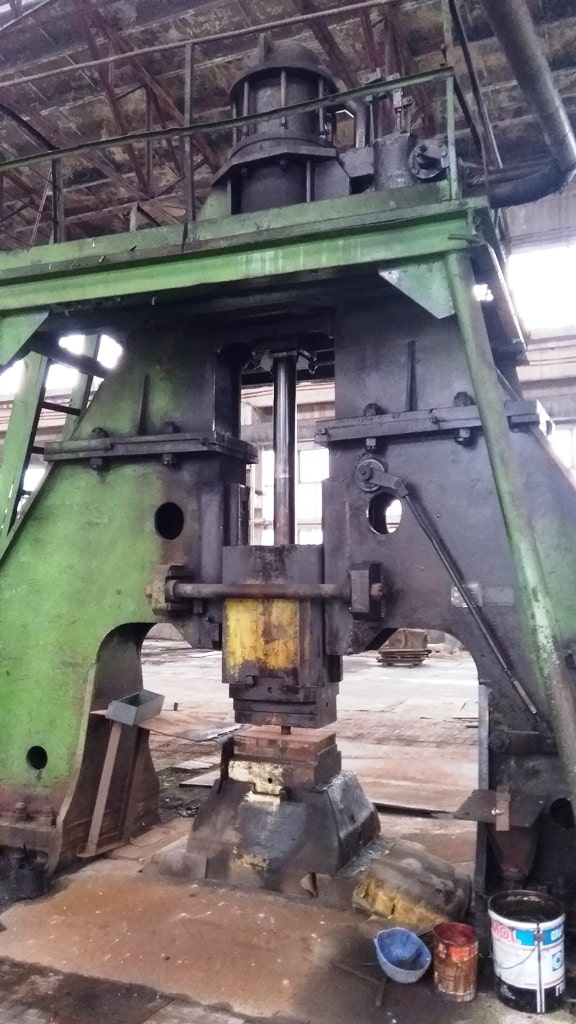

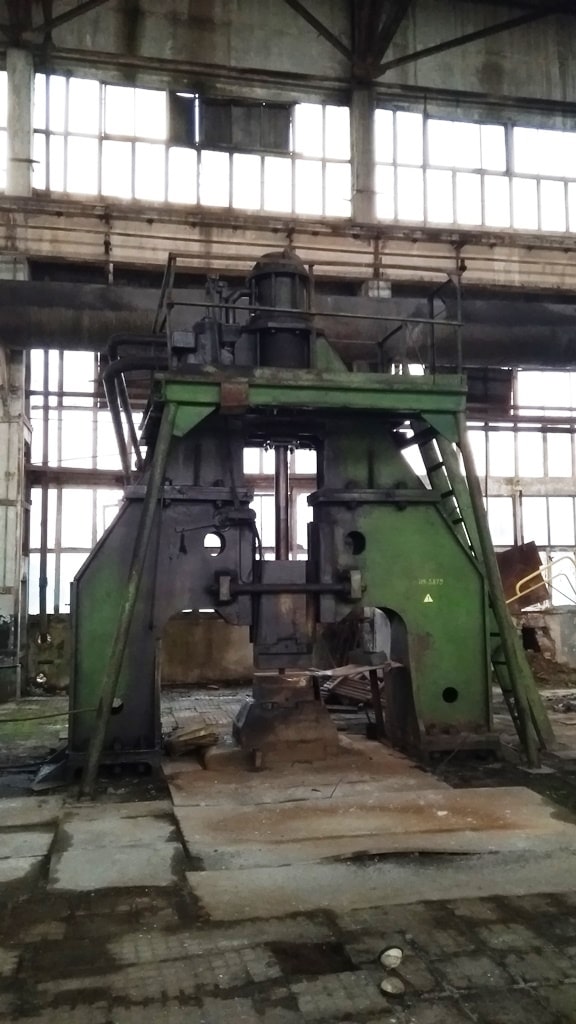

Freiformschmiedehammer TMP Voronezh M1343A - 2 ton
Technische Daten (EN) -
Freiformschmiedehammer TMP Voronezh M1343A - 2 ton (ID: 75364)
| Type | Open die forging hammer |
| Manufacturer | TMP Voronezh |
| Model | M1343A |
| Nominal mass of the falling parts | 2 tons |
| Impact energy | 50 kj |
| Max number of blows per 1 minute | 56 |
| Distance clear between columns | 2360 mm |
| Working zone daylight | 530 mm |
| Bottom die impression to floor distance | 750 mm |
| Die impression size | 530 x 300 mm |
| Steam pressure | 0,7-0.9 MPa |
| Compressed air pressure | 0.6-0.8 MPA |
| Overall dimensions | 4900 x 1930 x 5000 mm |
| Mass (less anvil block) | 20.1 tons |
| Mass of anvil block | 30 tons |
