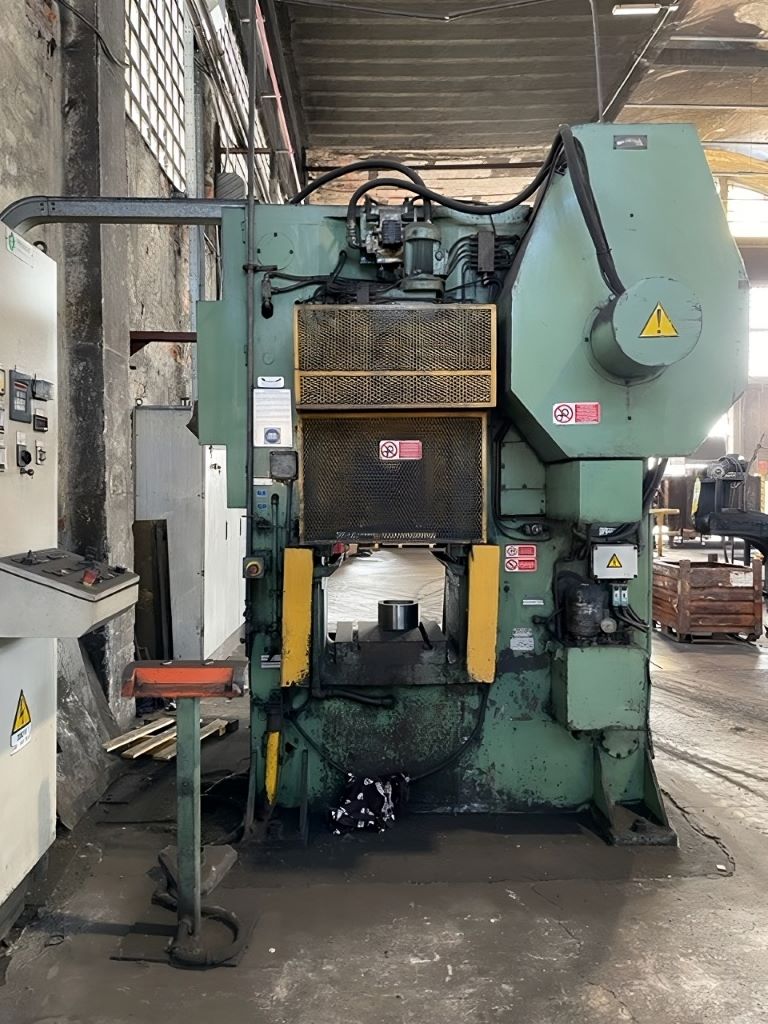

Kniehebelpresse Barnaul KB8336 - 400 ton
Technische Daten (EN) -
Kniehebelpresse Barnaul KB8336 - 400 ton (ID: 76151)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8336 |
| Maximum force | 400 ton |
| Table dimensions | 500 × 500 mm |
| Ram stroke | 130 mm |
| Number of strokes per minute | 50 |
| Distance between a plate under a stamp and slider | 375 mm |
| Adjustment of the distance between the bolster plate and the slide | 12 mm |
| Dimensions | |
| Weight | 9100 Kg |
| Length | 2120 mm |
| Width | 1435 mm |
| Height | 2860 mm |
