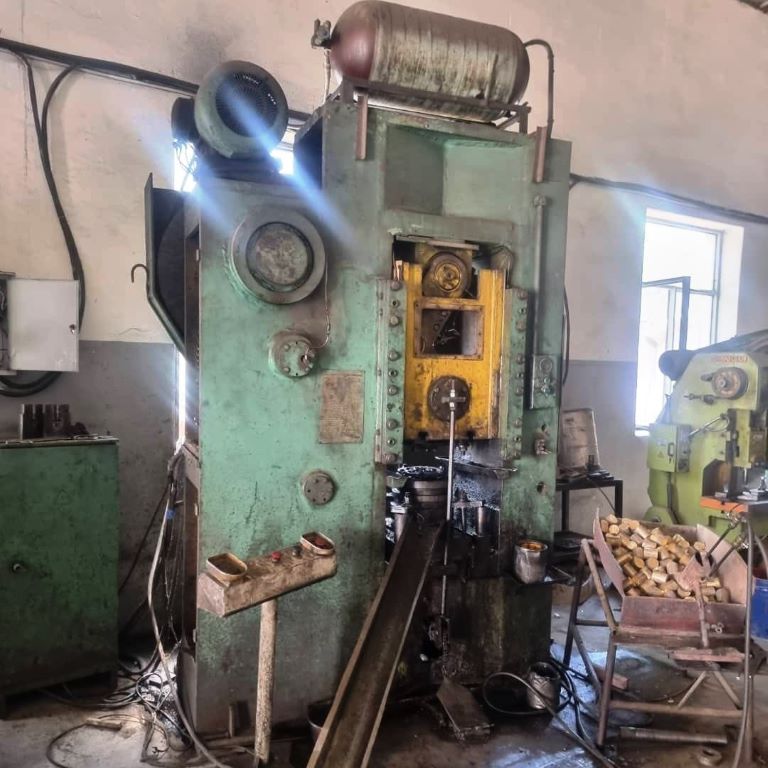

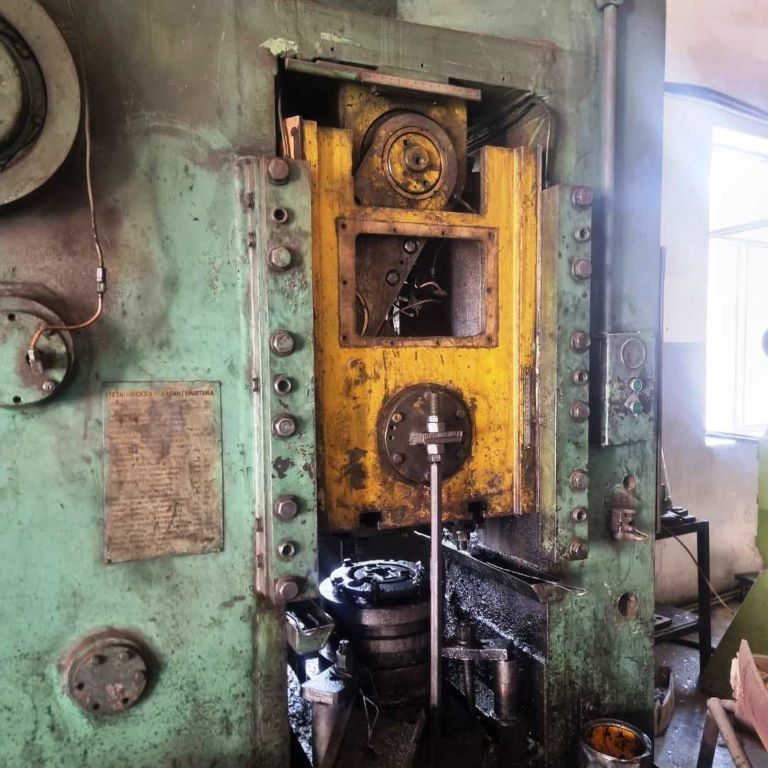

Kniehebelpresse Barnaul KB8336 - 400 ton
Technische Daten (EN) -
Kniehebelpresse Barnaul KB8336 - 400 ton (ID: 76350)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8336 |
| Pressing force | 400 ton |
| Stroke | 130 mm |
| SPM | 50 |
| Distance between a plate under a stamp and slider | 375 mm |
| Adjustment of the distance between the bolster plate and the slide | 12 mm |
| Table size | 500 x 500 mm |
| Voltage | 50 Hz, 380 V |
| Motor capacity | 12 kW |
| Machine dimensions | 1940 x 1240 x 2800 mm |
| Total weight | 8425 kg |
