Hydraulischer Schmiedehammer Beche KGH 1.6 - 16 kJ

Dabrox Inserat ID: 76505

Fordern Sie detaillierte Informationen zu diesem Angebot an:
- Verfügbarkeit, Preis
- Zahlungs-/Lieferbedingungen
- Technische Daten, Zustand, Fotos usw

* Pflichtfelder

Technische Daten (EN) -

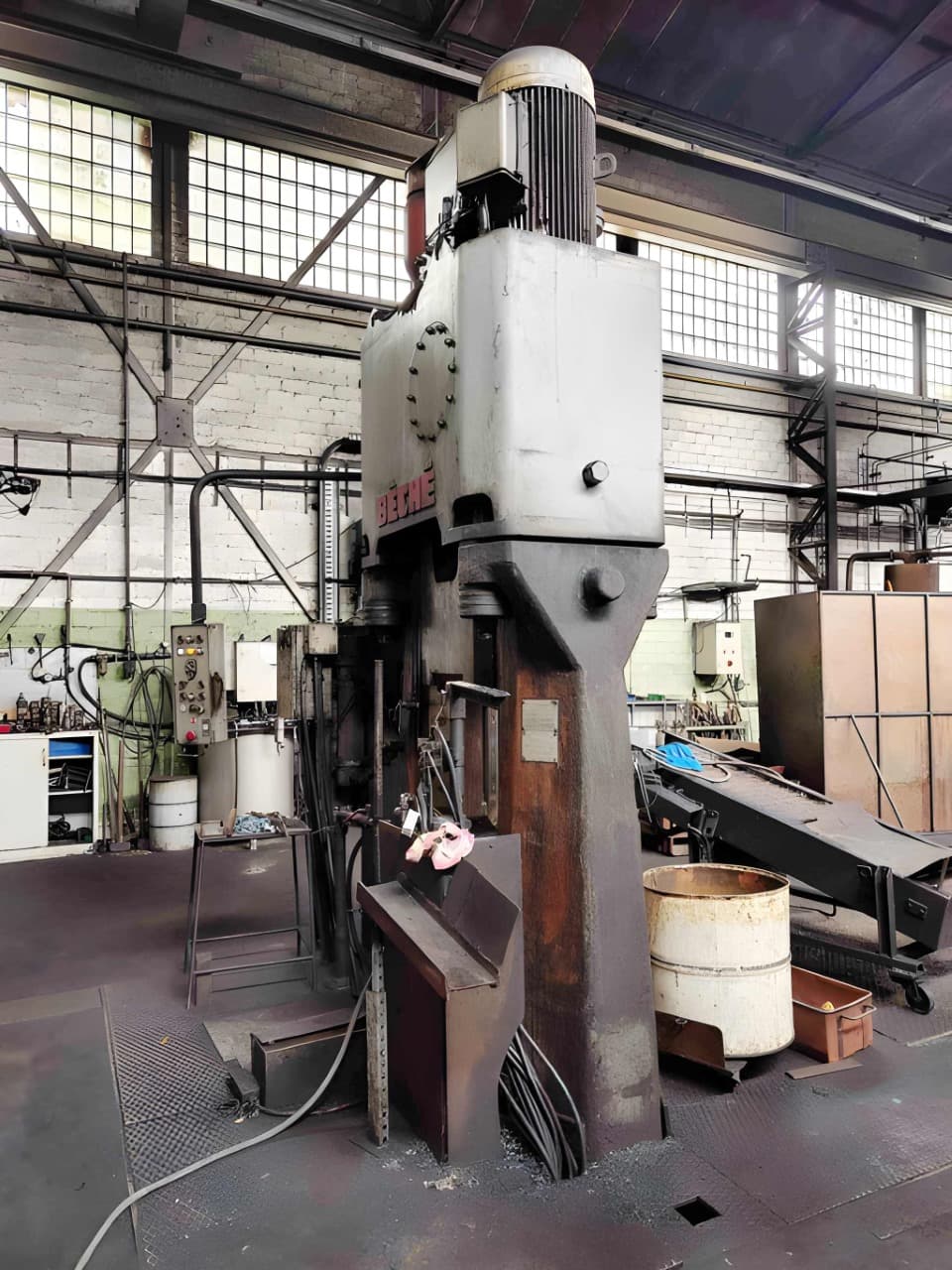

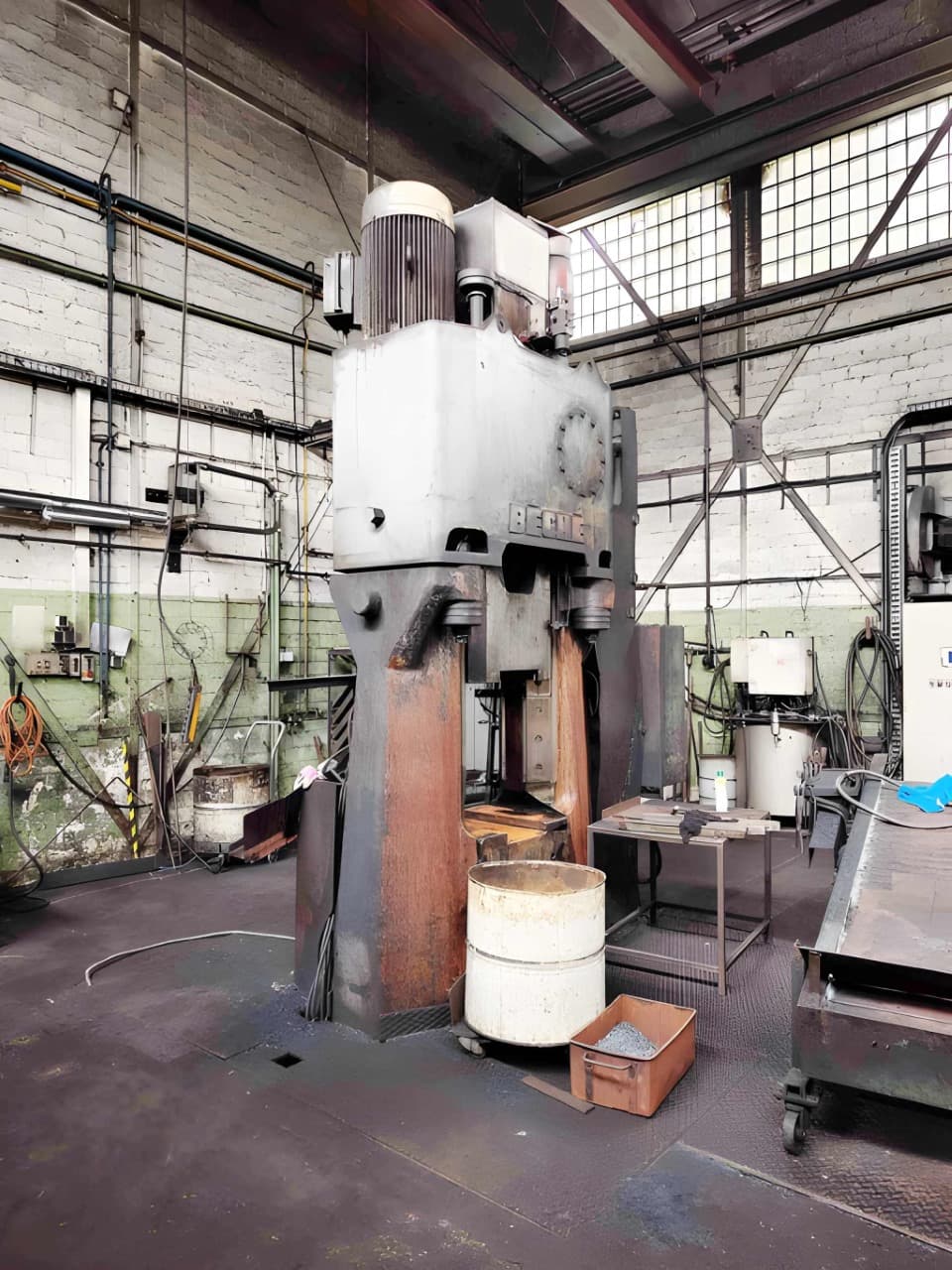

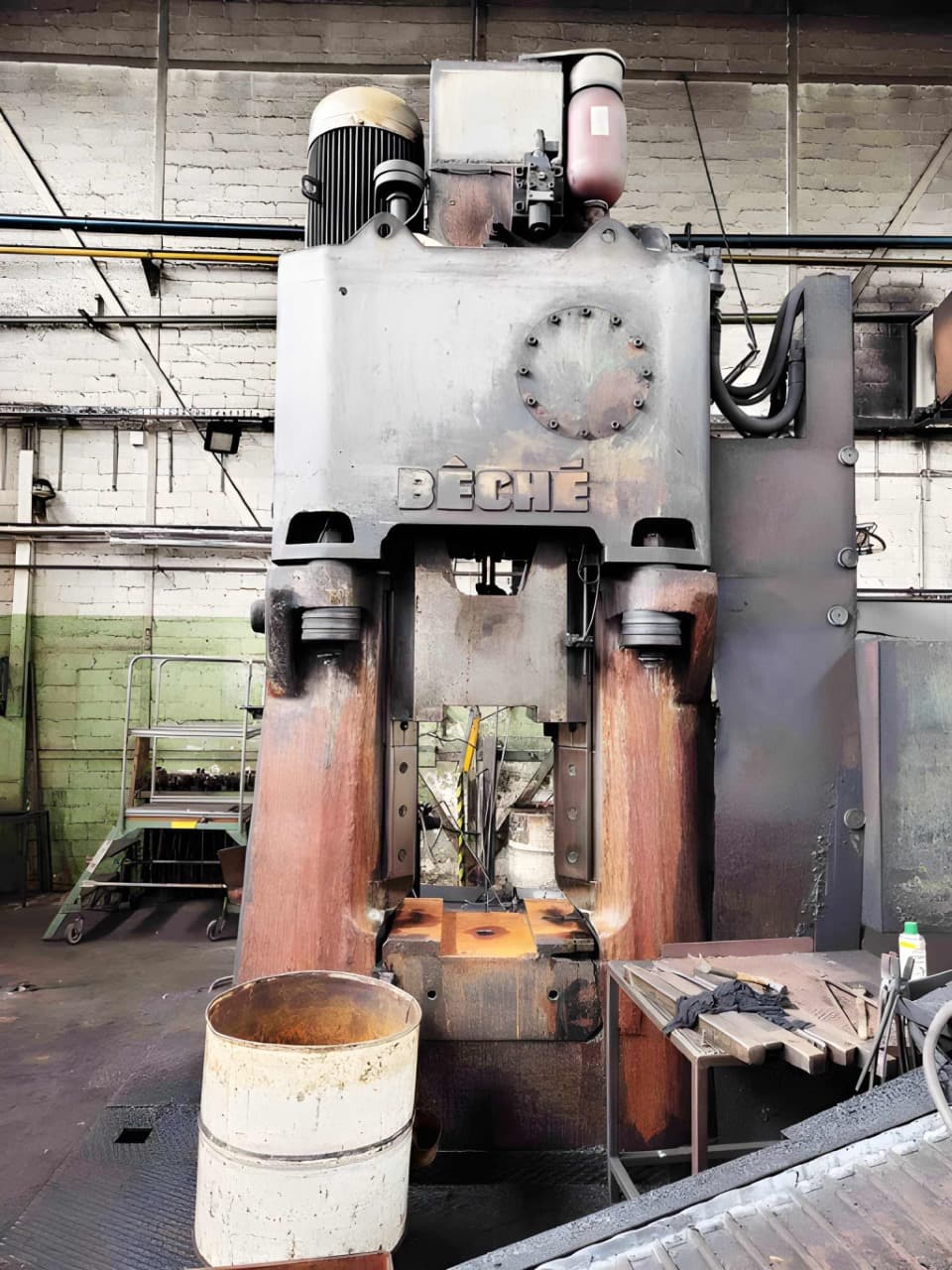

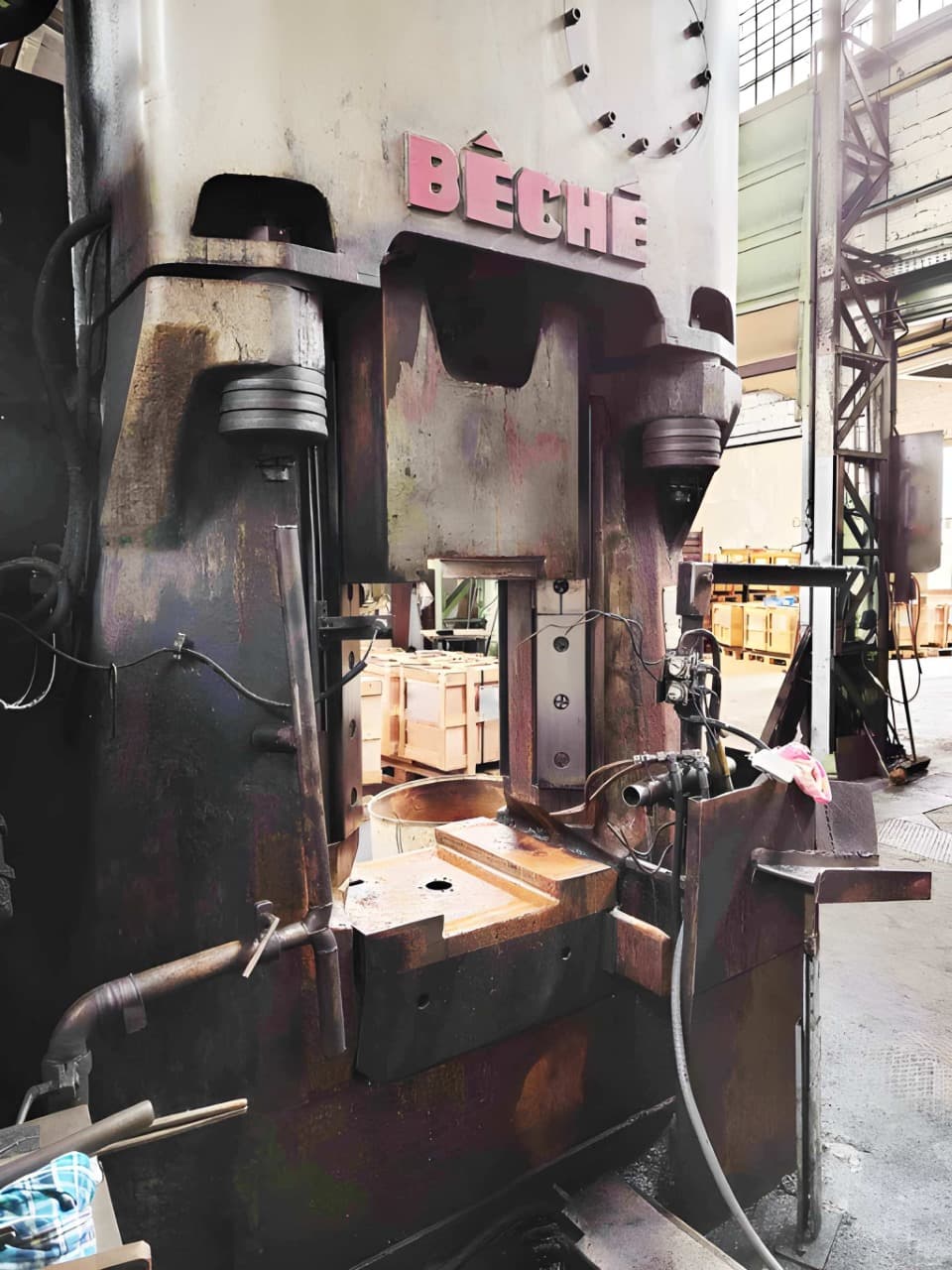

Hydraulischer Schmiedehammer Beche KGH 1.6 - 16 kJ (ID: 76505)

TypeHydraulic forging hammer
ManufacturerBeche
ModelKGH 1.6
Impact energy16 kJ
BPM continuous at full load32–38
BPM max122
Final ram velocity5,1 m/s
Main drive pump flow rate187,5 l/min
Circulation pump flow rate120 l/min
Oil capacity in drive head550 l
Clear width between guides520 mm
Working height to upper edge of insert750 mm
Ram depth470 mm
Insertion depth550 mm
Die height minimum120 mm
Die height maximum320 mm
Overall dimensions1485 x 825 x 4552 mm
Foundation dimensions3350 x 3300 mm
Total weight23200 kg
