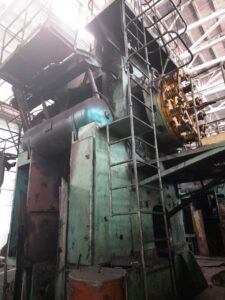

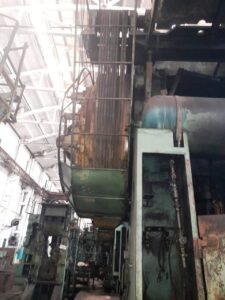

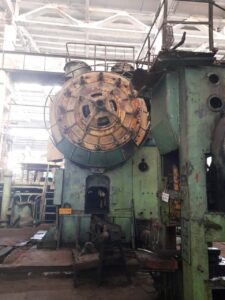

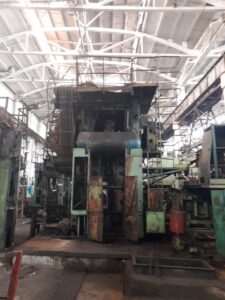

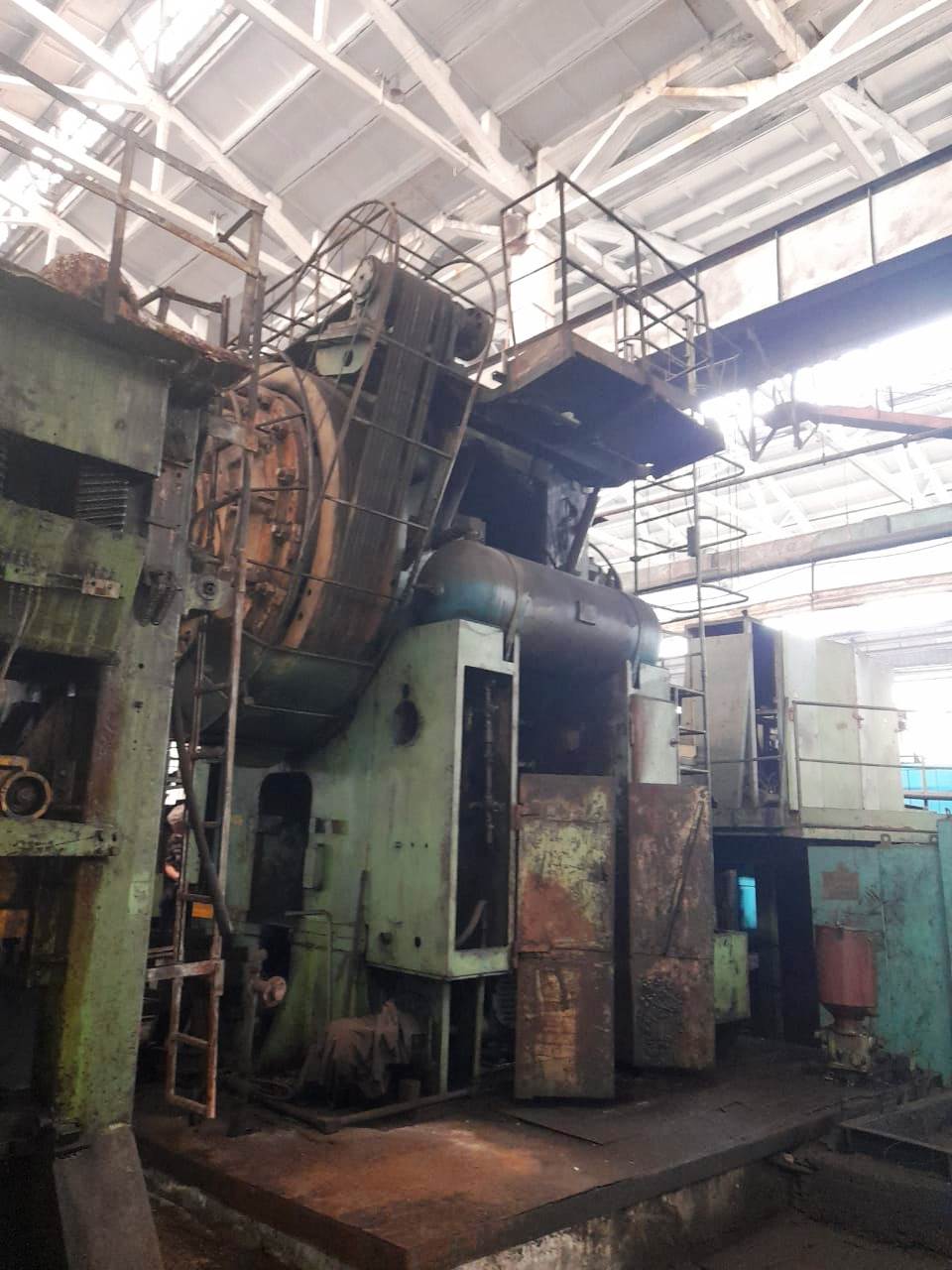

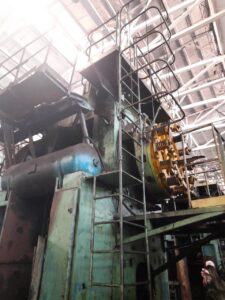

Gesemkschmiedepresse TMP Voronezh AKKB8042 - 1600 ton
Technische Daten (EN) -
Gesemkschmiedepresse TMP Voronezh AKKB8042 - 1600 ton (ID: 75921)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | AKKB8042 |
| Year of manufacture | 1986 |
| Capacity | 1600 ton |
| Slide stroke | 300 mm |
| Number of continuous strokes per 1 min | 85 |
| Number of single strokes per 1 min | 16 |
| Die height (slide and adjustment in bottom position) | 660 mm |
| Adjustment | 10 mm |
| Dimensions of the table | |
| — Left-to-right | 1050 mm |
| — Front-to-back | 1200 mm |
| Dimensions of the slide | |
| — Left-to-right | 894 mm |
| — Front-to-back | 944 mm |
| Dimensions of side windows in the press uprights | |
| — Height | 710 mm |
| — Width | 630 mm |
| Overall dimensions of the press | |
| — Left-to-right | 4850 mm |
| — Front-to-back | 3810 mm |
| — Height above the floor level | 5570 mm |
| Weight of the press | 120 ton |
