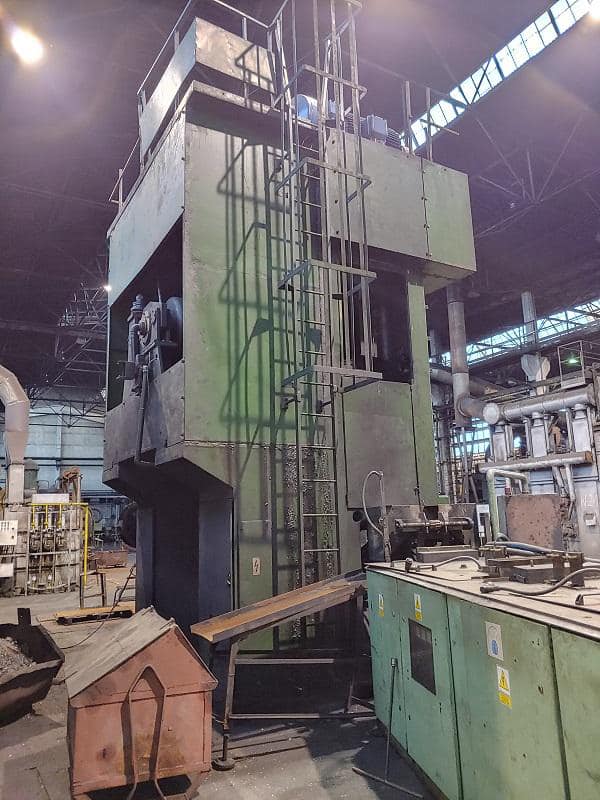

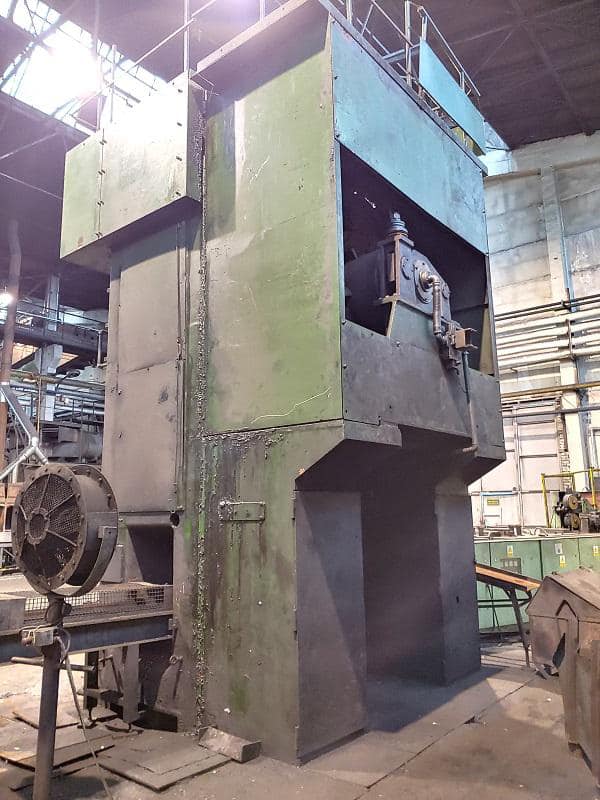

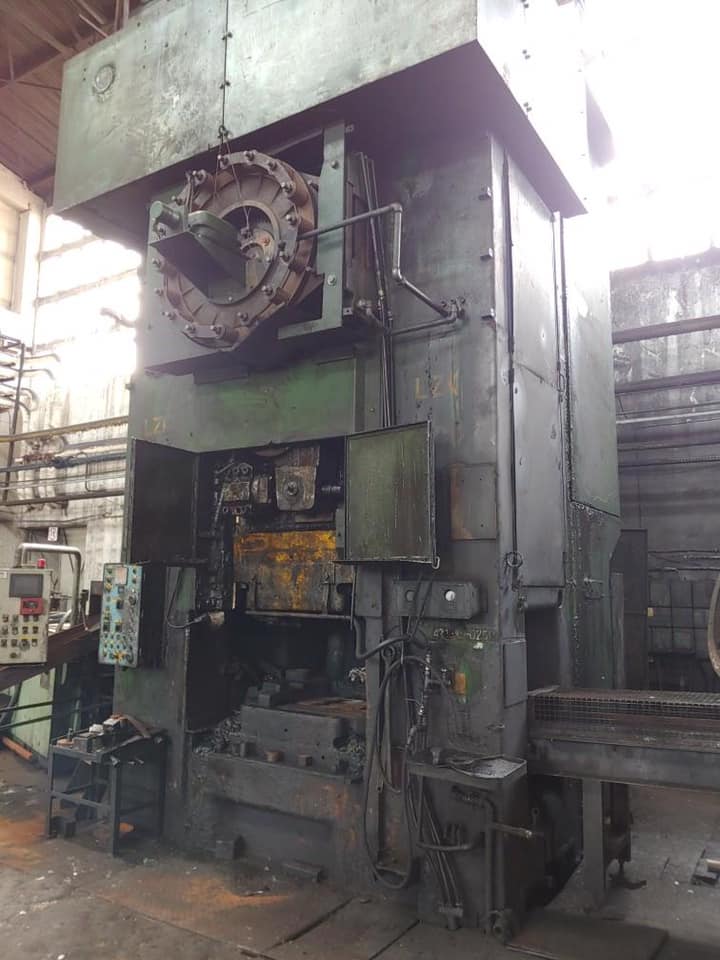

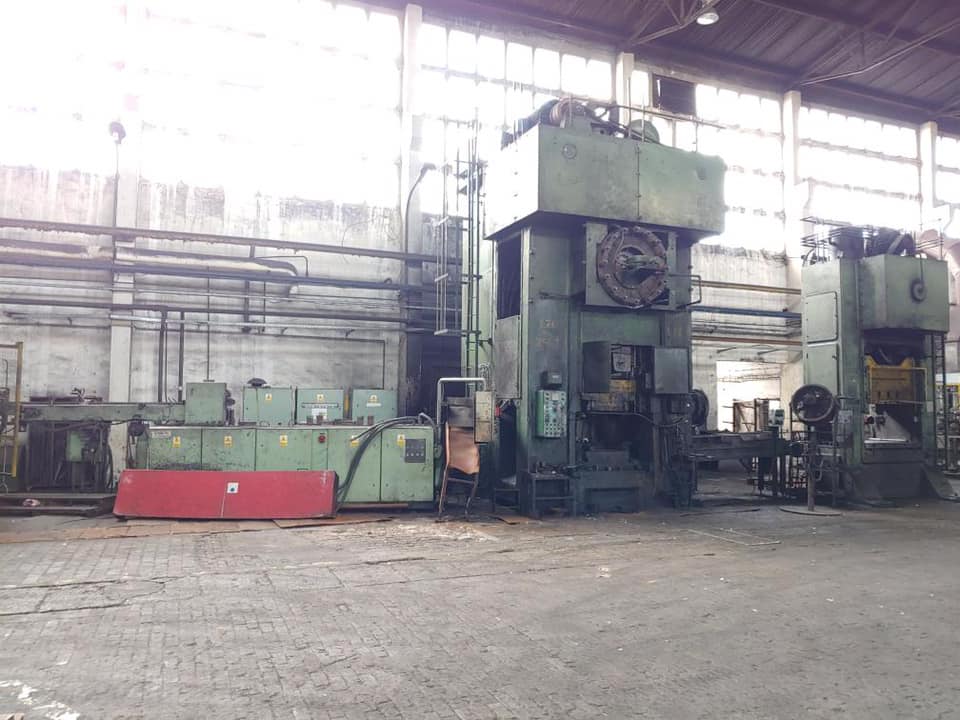

Gesemkschmiedepresse Smeral LZK 2500 P - 2500 ton
Technische Daten (EN) -
Gesemkschmiedepresse Smeral LZK 2500 P - 2500 ton (ID: 75493)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LZK 2500 P |
| Build year | 1981 |
| Nominal force | 2500 ton |
| Closed height | 1410 mm |
| Ram stroke | 320 mm |
| Number of ram strokes 1/min | 65 |
| Number of working ram strokes 1/min | 28 |
| Table dimensions (width x depth) | 1340 x 1400 mm |
| Ram dimensions (width x depth) | 1320 x 1100 mm |
| Ram adjustment | 10 mm |
| Electric motor power | 130 kW |
| Height of press above floor | 6710 mm |
| Press dimensions | 7390 x 4000 x 4055 mm |
| Press weight | 145 ton |
