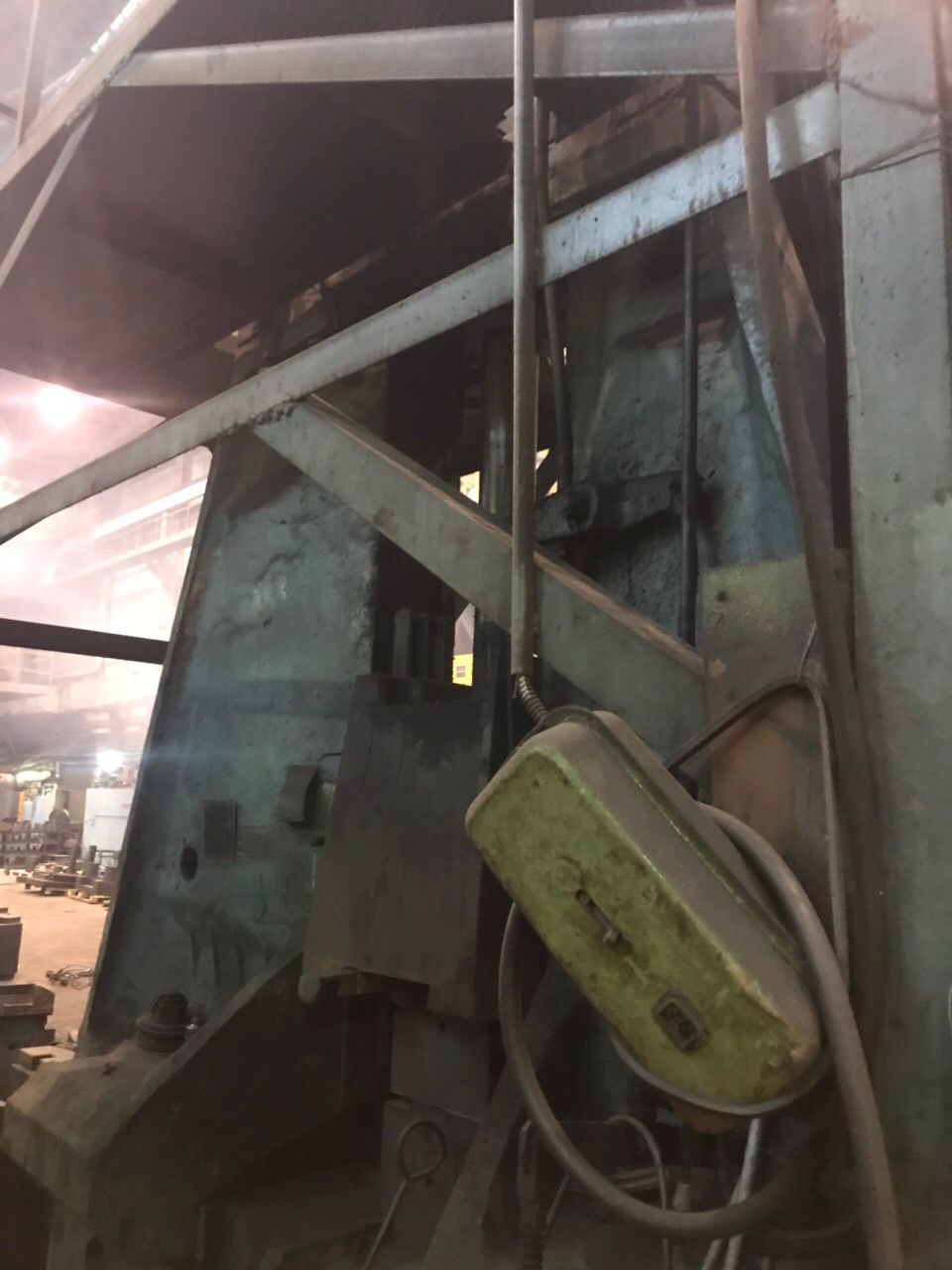

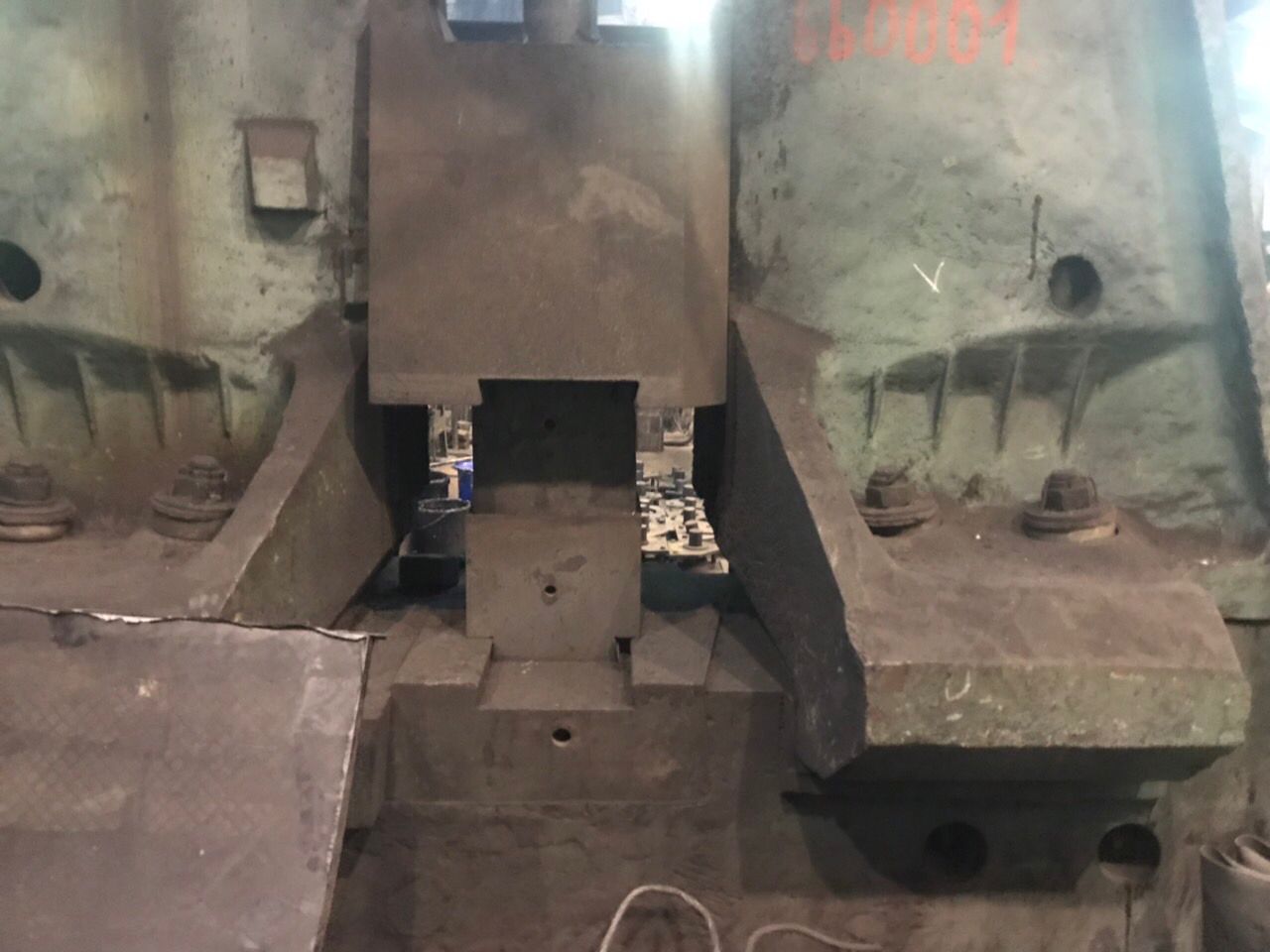

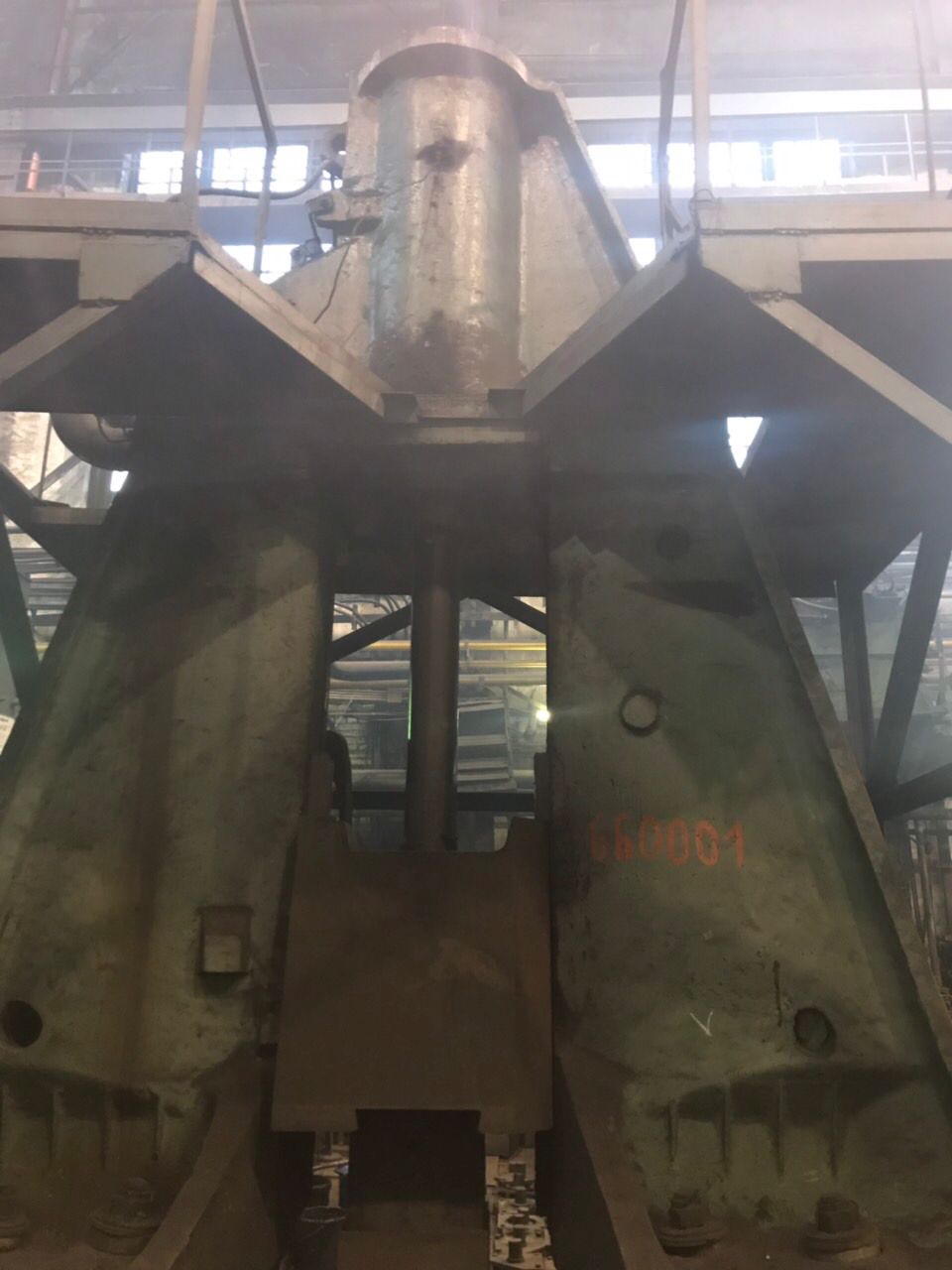

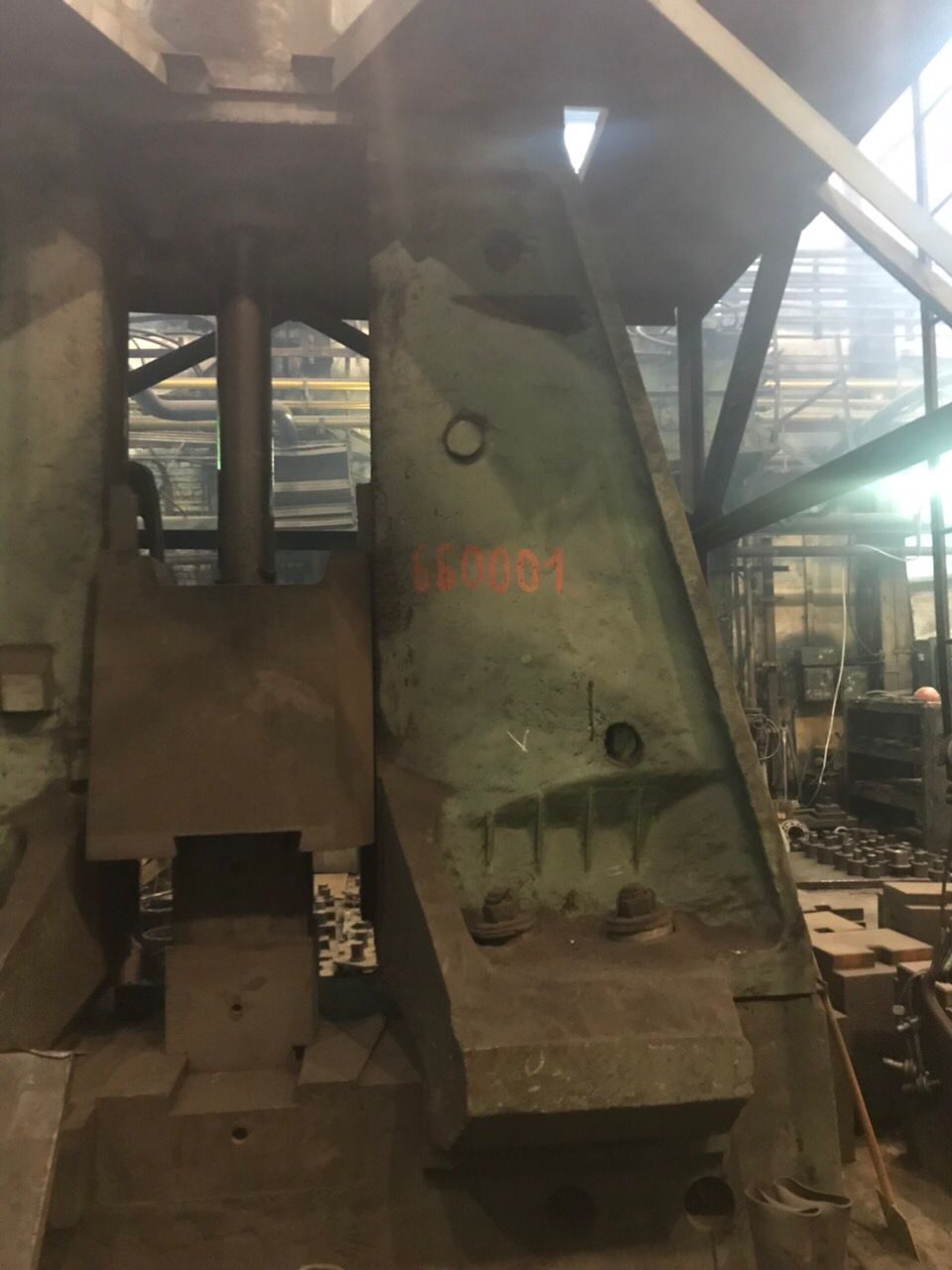

Schmiedehammer VoronezhPress MV2145 - 3 ton
Technische Daten (EN) -
Schmiedehammer VoronezhPress MV2145 - 3 ton (ID: 75931)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | MV2145 |
| Nominal weight of falling parts | 3150 kg |
| Energy of impact | 80 kJ |
| The greatest number of impacts in a minute | 72 |
| Distance between directing to light | 710 mm |
| The least height of a stamp without a shaft | 340 mm |
| The size of the mandrel (from front to rear) | 750 mm |
| The size of the stamp-holder (from front to rear) | 1000 mm |
| Superfluous pressure pair or air | 6-7 kilo-force/cm2 |
| Machine overall dimensions | |
| — length | 3400 mm |
| — width | 1900 mm |
| — height | 5450 mm |
| Weight of a hammer | 88 000 kg |
