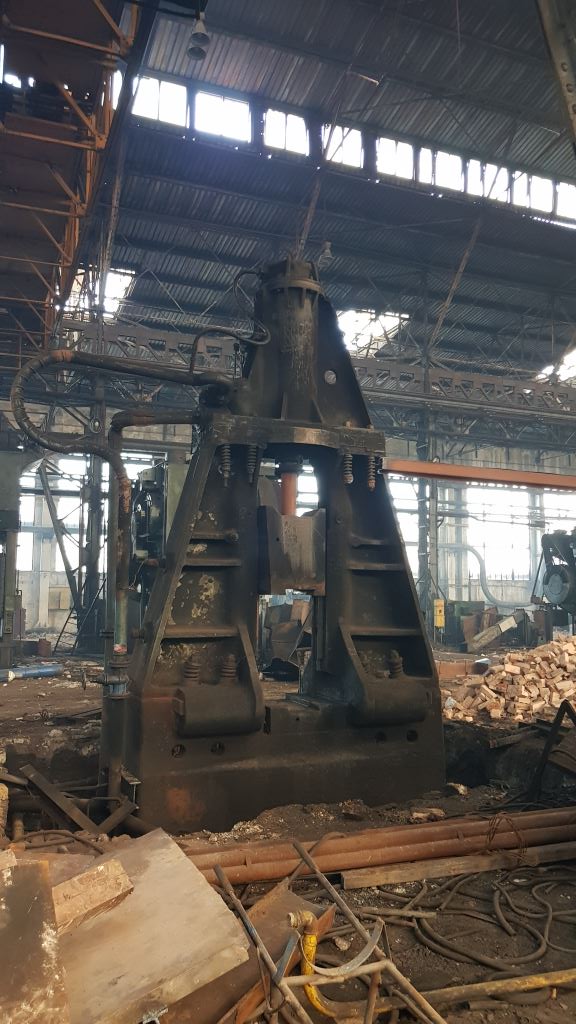

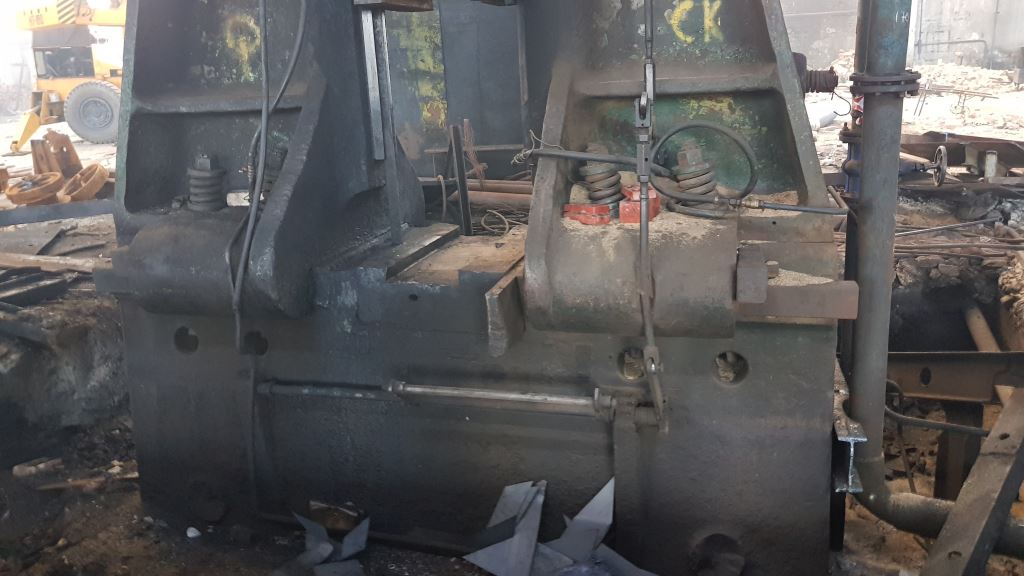

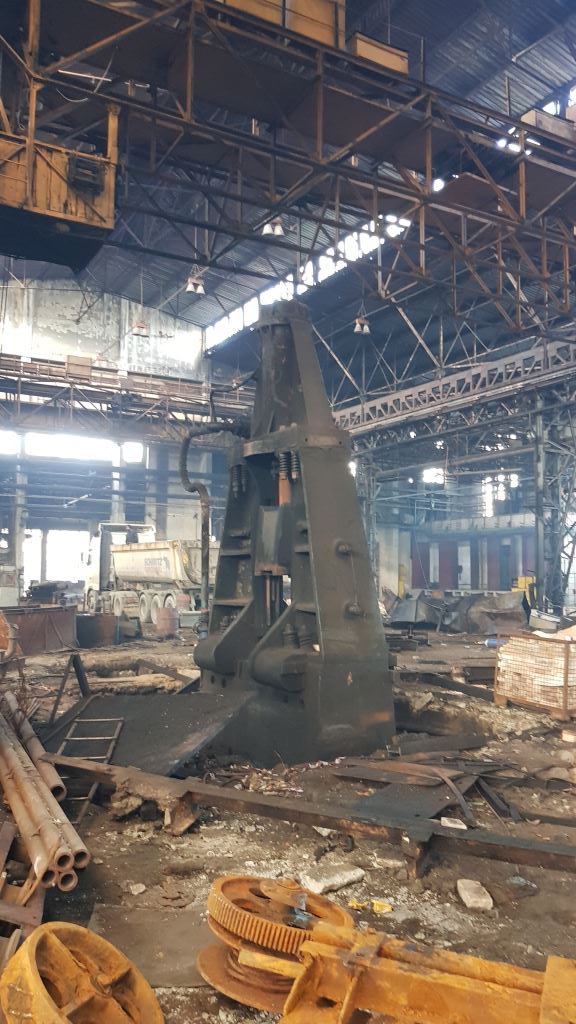

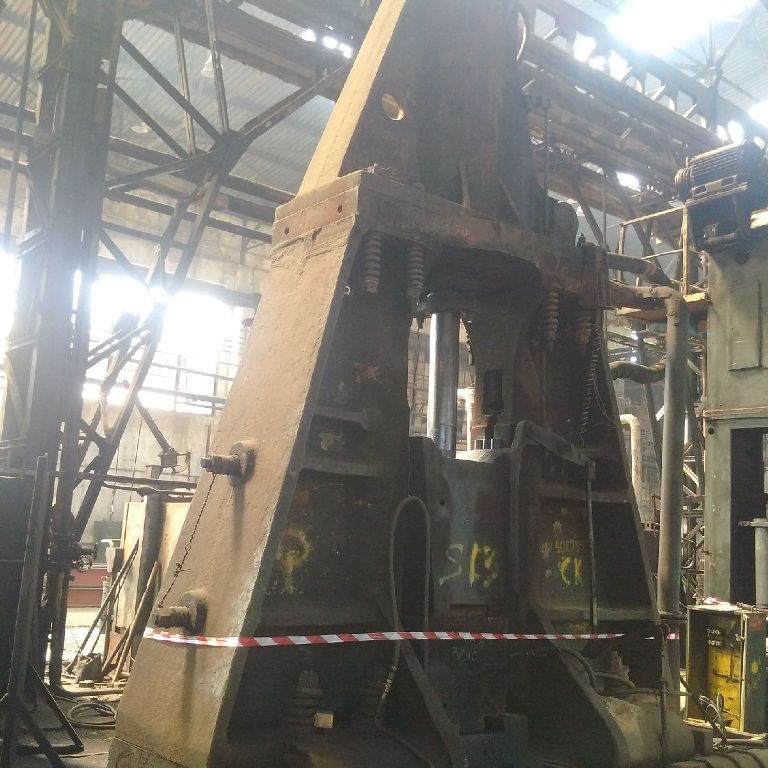

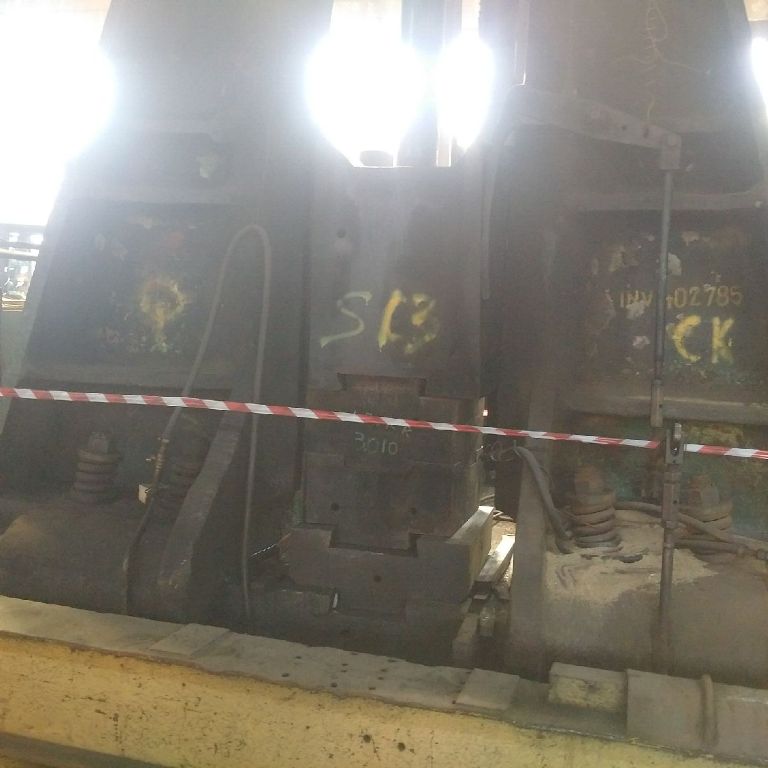

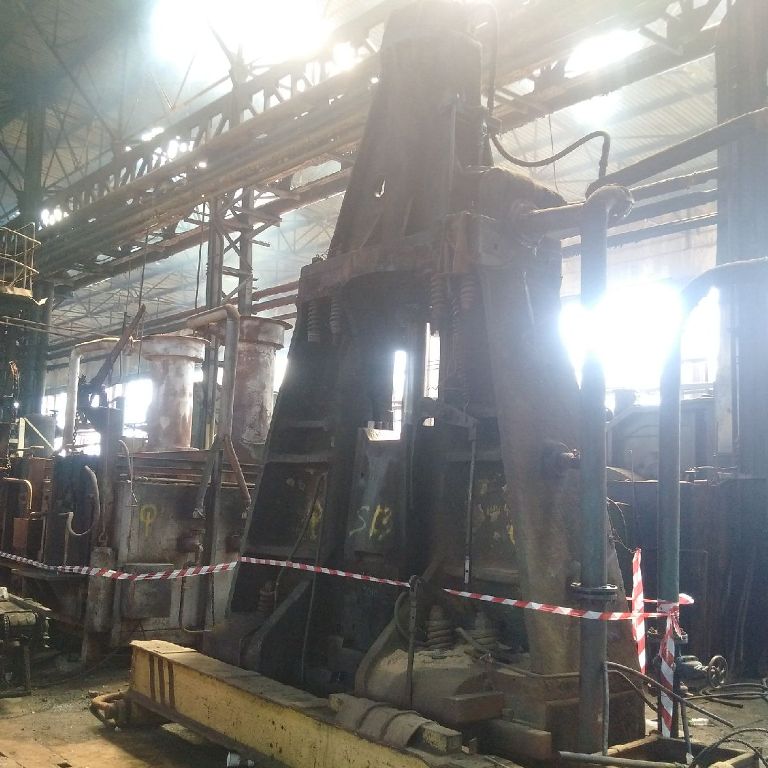

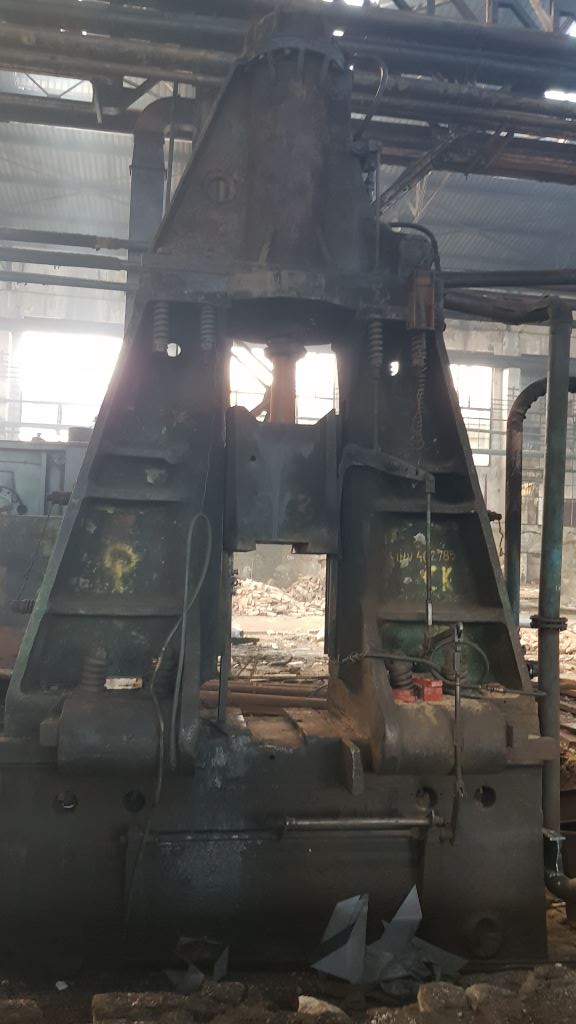

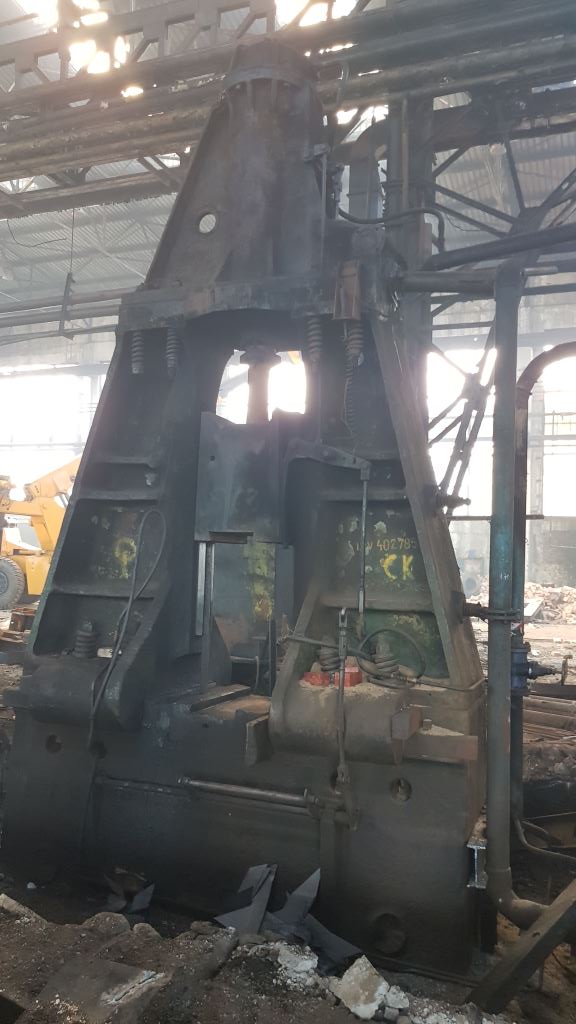

Schmiedehammer TMP Voronezh M2145 - 3 ton
Technische Daten (EN) -
Schmiedehammer TMP Voronezh M2145 - 3 ton (ID: 75197)
| Type | Forging hammer |
| Manufacturer | TMP Voronezh |
| Model | M2145 |
| Nominal mass of drop parts | 3150 kg |
| Rated striking energy | 80 KJ |
| Max. no. of blows/min. | 56 |
| Ram stroke | 1250 mm |
| Uprights distance | 710 mm |
| Ram dimensions | 750 mm |
| Die holder | 1000 mm |
| Min. die holder to ram distance | 340 mm |
| Steam/air pressure | 0.7-0.9 MPa |
| Mass (less anvil block) | 25 tons |
| Mass of anvil block | 63 tons |
