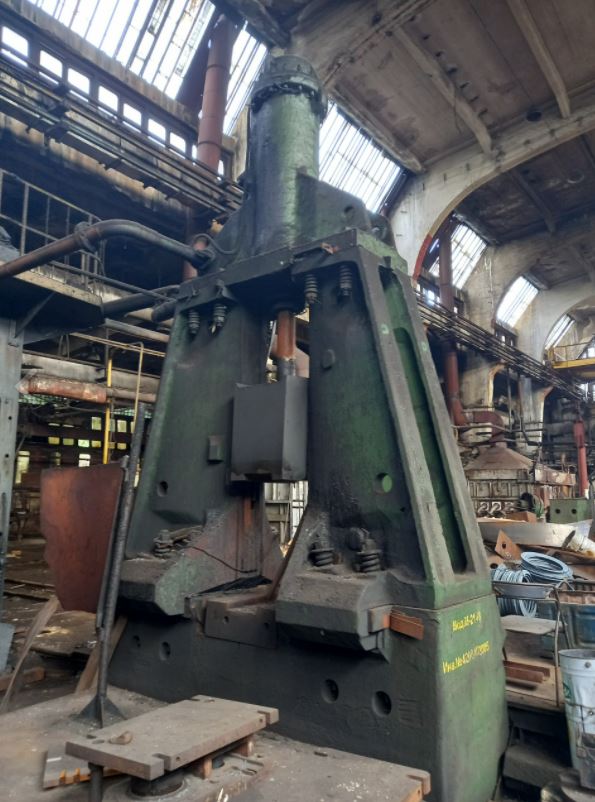

Schmiedehammer TMP Voronezh M2143 - 2 ton
Technische Daten (EN) -
Schmiedehammer TMP Voronezh M2143 - 2 ton (ID: 75960)
| Type | Forging hammer |
| Manufacturer | TMP Voronezh |
| Model | M2143 |
| Capacity | 2 ton |
| Impact energy | 50 kJ |
| Max. no. of blows per min | 70 |
| Max. ram stroke | 1200 mm |
| Distance clear between guides | 600 mm |
| Ram front-to-back dimensions | 670 mm |
| Die holder front-to-back dimensions | 900 mm |
| Bottom die impression-to-floor distance | 800 mm |
| Min. die holder-to-ram distance | 260 mm |
| Steam (air) pressure | 0.6 — 0.8 MPa |
| Overall dimensions | 3650 x 1660 x 5310 mm |
| Total weight | 50 ton |
