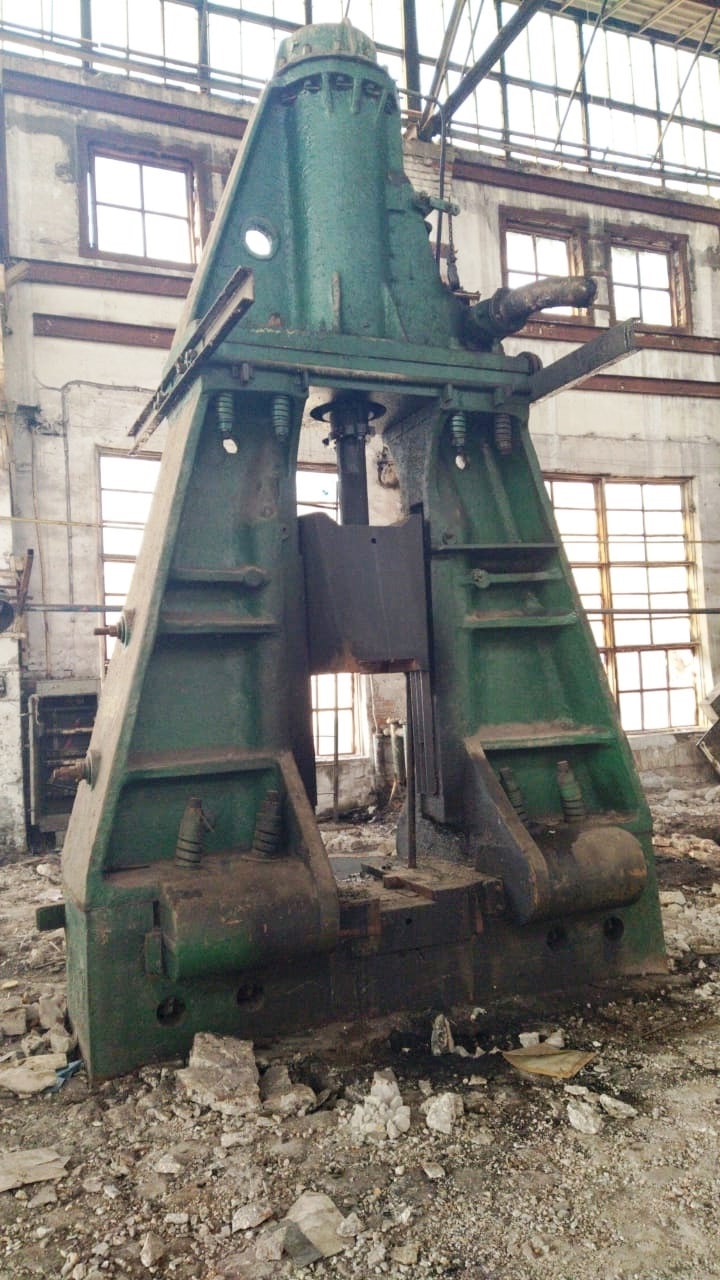

Schmiedehammer VoronezhPress M213 - 3 ton
Technische Daten (EN) -

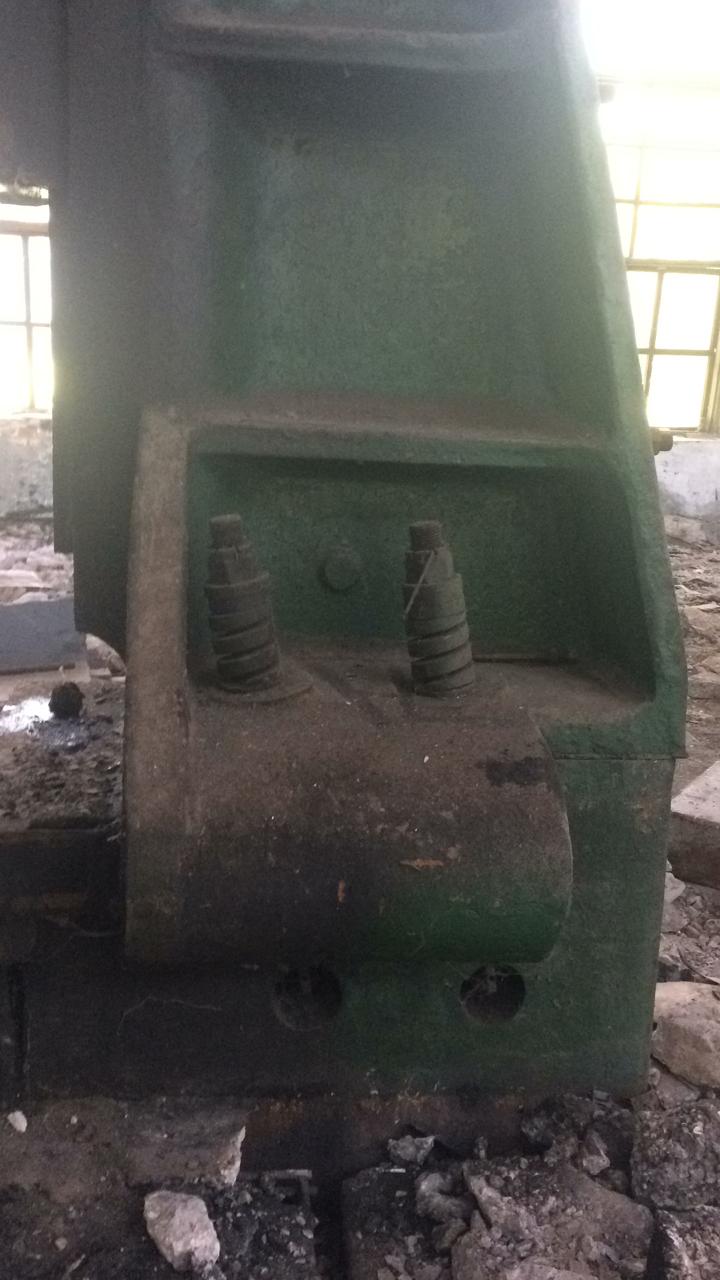

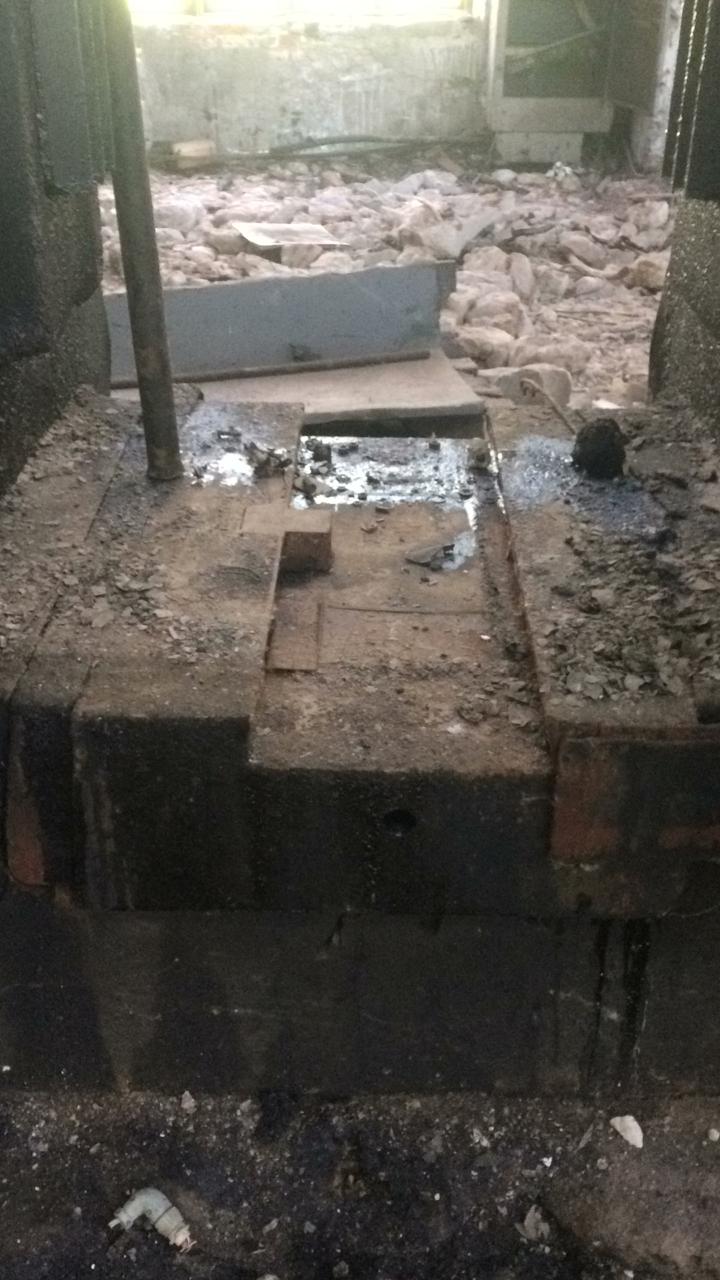

Schmiedehammer VoronezhPress M213 - 3 ton (ID: 75640)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | M213 |
| Nominal mass of drop parts | 3150 kg |
| Rated striking energy | 80 kJ |
| Max. no. of blows/min. | 56 |
| Ram stroke | 1250 mm |
| Uprights distance | 710 mm |
| Ram dimensions | 750 mm |
| Die holder | 1000 mm |
| Min. die holder to ram distance | 340 mm |
| Steam/air pressure | 0.7 — 0.9 MPa |
| Dimensions | 3820 x 1800 x 5240 mm |
| Mass (less anvil block) | 25 tons |
| Mass of anvil block | 63 tons |
