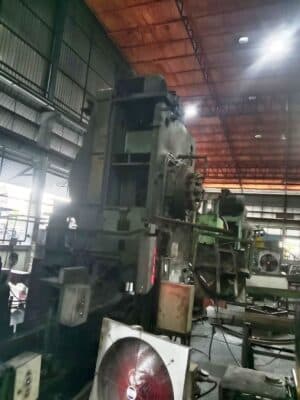

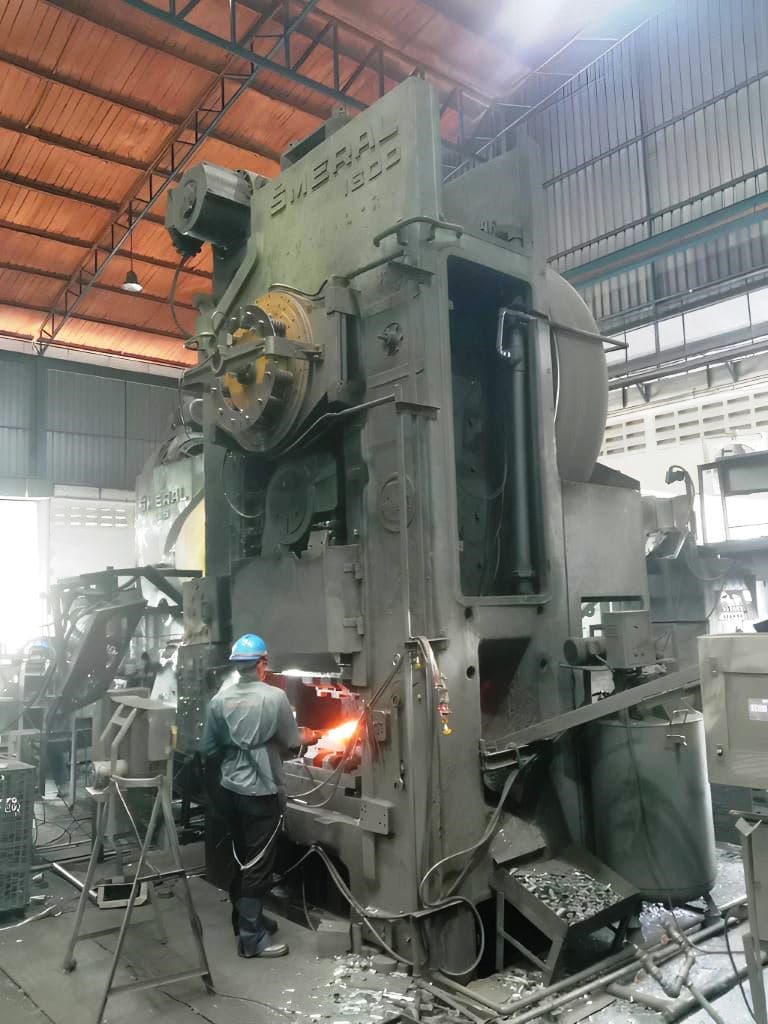

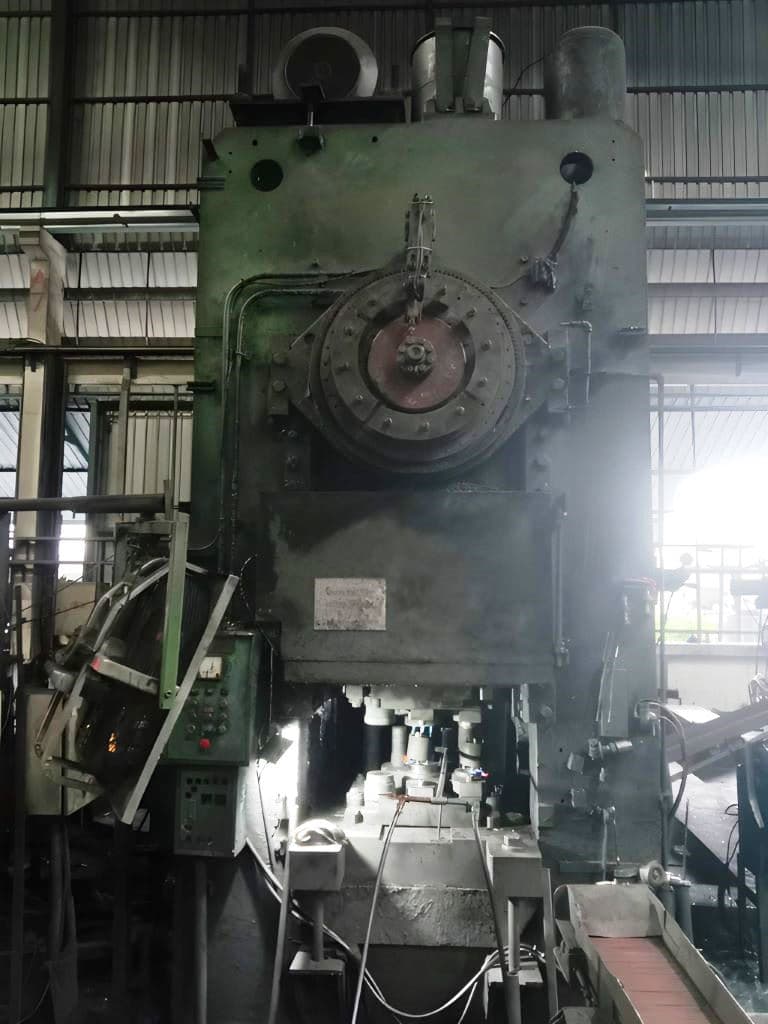

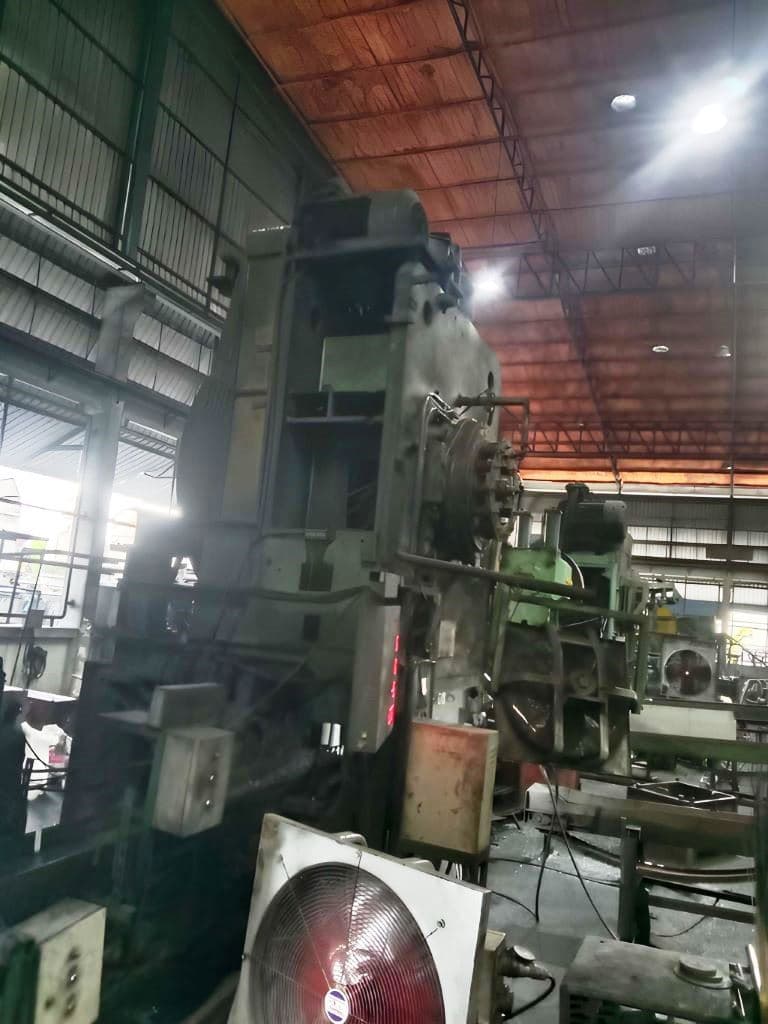

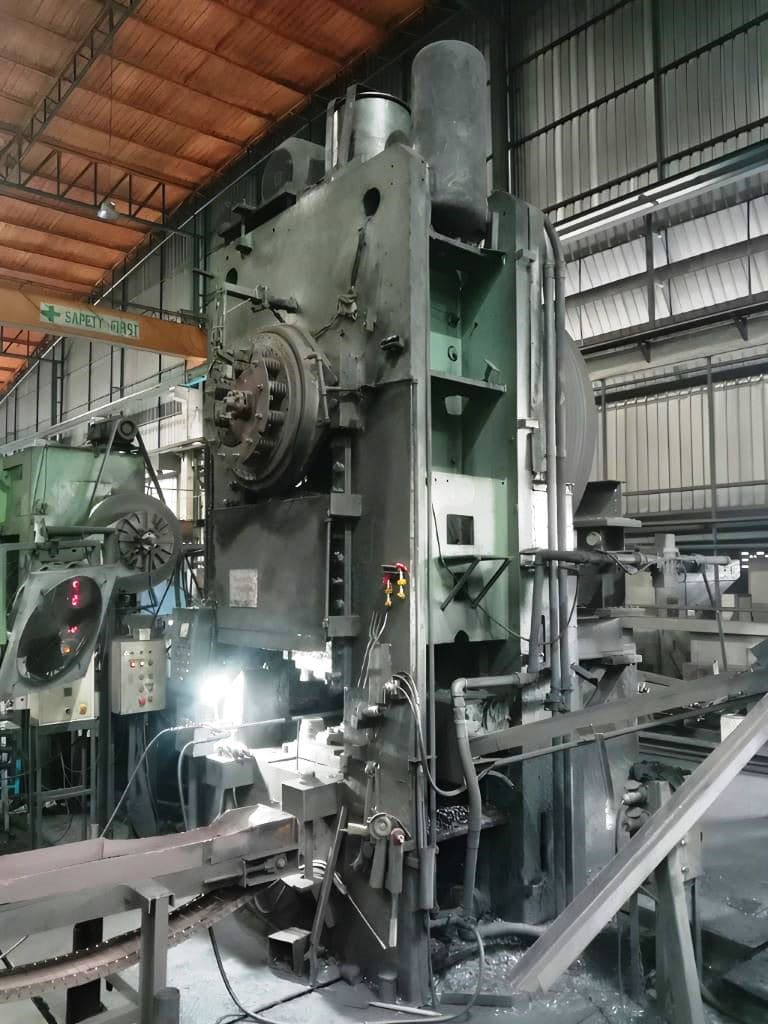

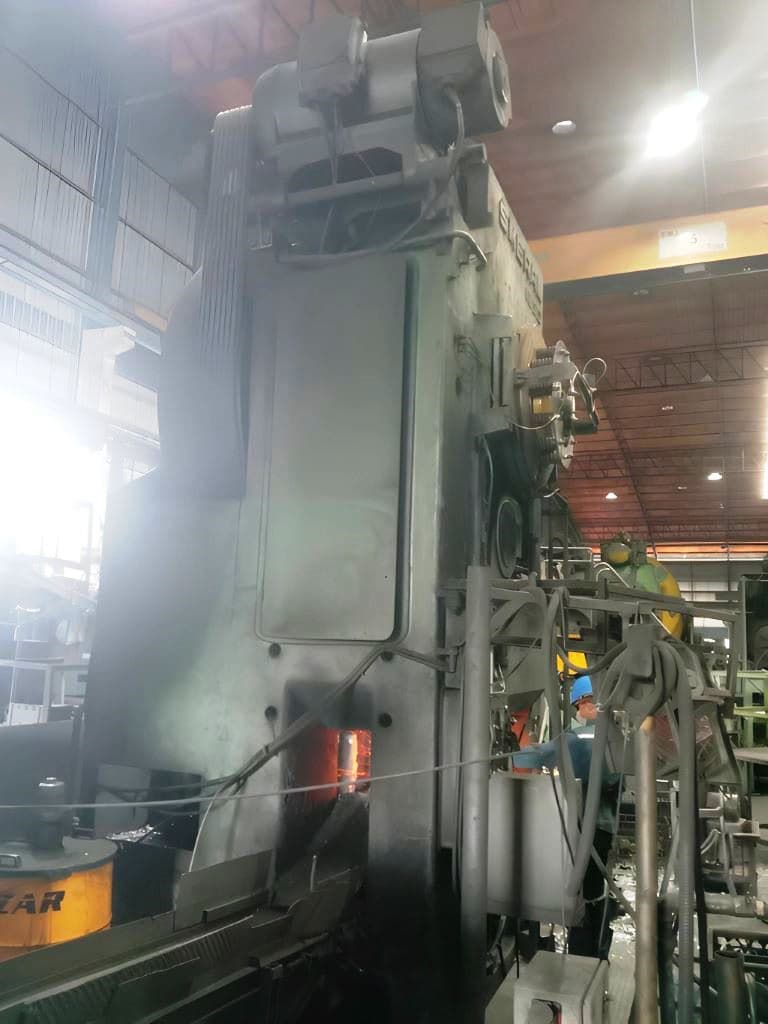

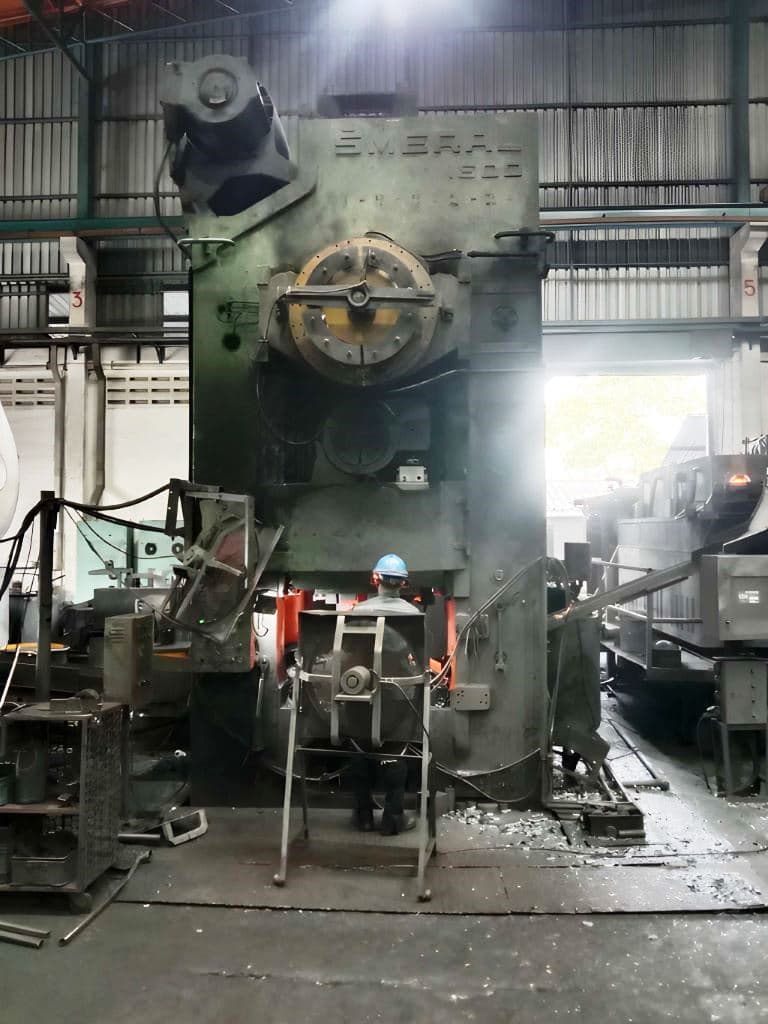

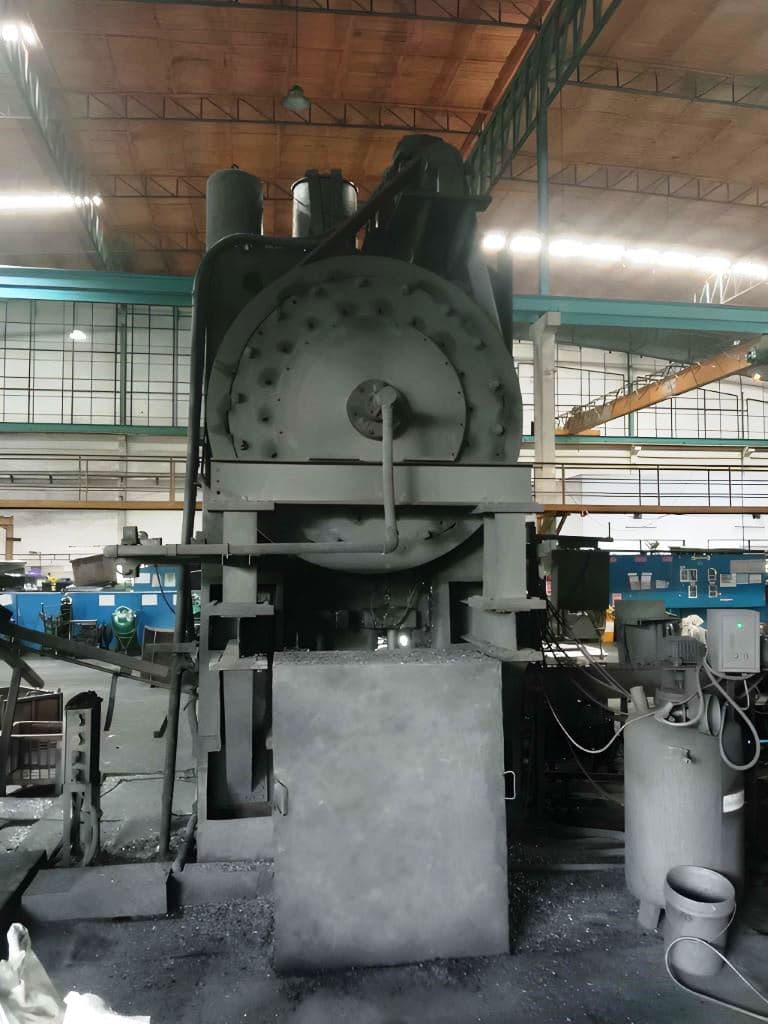

Gesemkschmiedepresse Smeral LZK 1600 P - 1600 ton

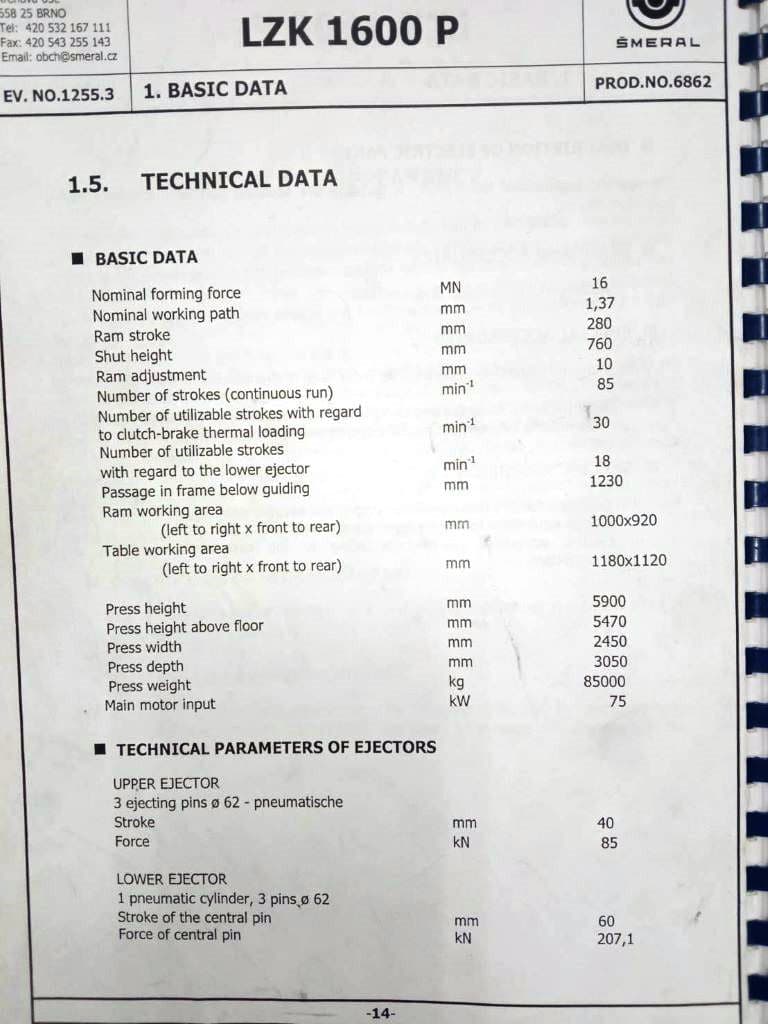

Technische Daten (EN) -
Gesemkschmiedepresse Smeral LZK 1600 P - 1600 ton (ID: S91312)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LZK 1600 P |
| Nominal force | 1600 ton |
| SPM (Max.) | 85 |
| SPM (considering clutch-brake thermal load) | 30 |
| SPM (recommended operating strokes/min) | 18 |
| Nominal ram stroke | 1370 mm |
| Working stroke (slide travel) | 280 mm |
| Shut height (at BDC, between bolster and ram) | 760 mm |
| Ram adjustment | 10 mm |
| Frame window clearance (under guides) | 1230 mm |
| Ram working area (L–R x F–B) | 1000 x 920 mm |
| Bolster working area (L–R x F–B) | 1180 x 1120 mm |
| Total press height | 5900 mm |
| Height above floor level | 5470 mm |
| Press width | 2450 mm |
| Press depth | 3050 mm |
| Press weight (approx.) | 85000 kg |
| Main drive motor power | 75 kW |
