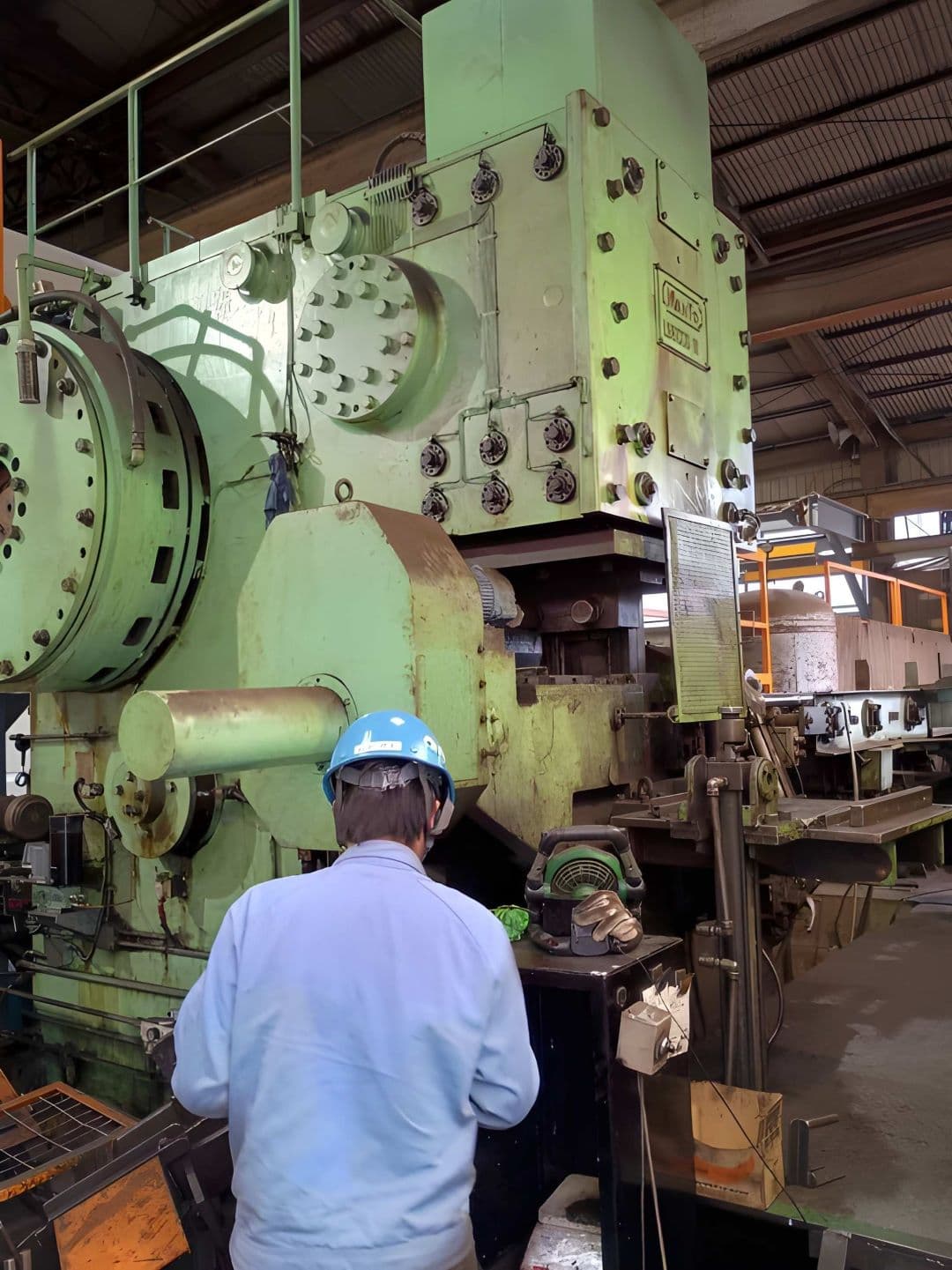

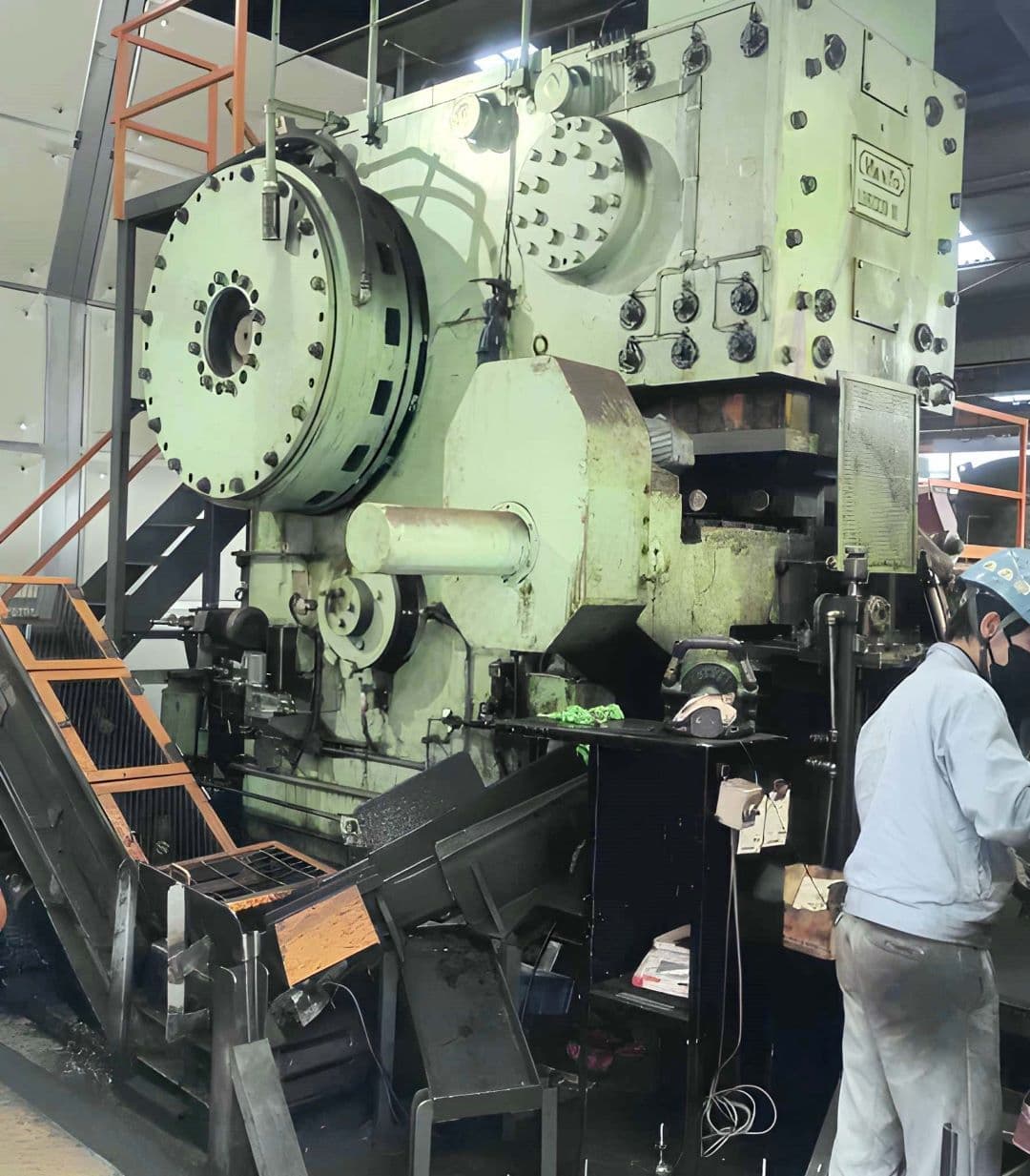

Knüppelschere Manyo LBS1000 - 1000 ton
Technische Daten (EN) -
Knüppelschere Manyo LBS1000 - 1000 ton (ID: 76452)
| Type | Billet shear |
| Manufacturer | Manyo |
| Model | LBS1000 |
| Year of manufacture | 1985 |
| Capacity | 1000 ton |
| Stroke | 140 mm |
| SPM | 35 |
| Clutch | Air friction type |
| Brake | Air friction disc |
| Main Motor | 75 kW × 6P |
| Required Air Pressure | 5-6 kg/cm² |
| Total Machine Weight | 65 ton |
| Cutting Die Specifications | |
| Cutting Method | Shearing type |
| Cutting Shape | Upper blade / lower blade |
| Cutting Diameter (max) | 140 mm |
| Cutting Length (max) | 400 mm |
| Cutting Length (min) | 125 mm |
| Ejector | 1.5 kW × 4P x 1/20 |
| Feeding Device Specifications | |
| Model | LAF–1000 |
| Feed Speed | 130 pieces/min (≈ 20 m/min) |
| Feed Drive Motor | 3.7 kW × 4P |
| Feed Reduction Ratio | 1/20 |
| Feed Length | 1500 mm |
| Material Table Dimensions (H × W × L) | 1100 x 3050 x 5000 mm |
| Material Table Load Capacity (max) | 20 ton |
| Required Air Pressure | 5–6 kg/cm |
