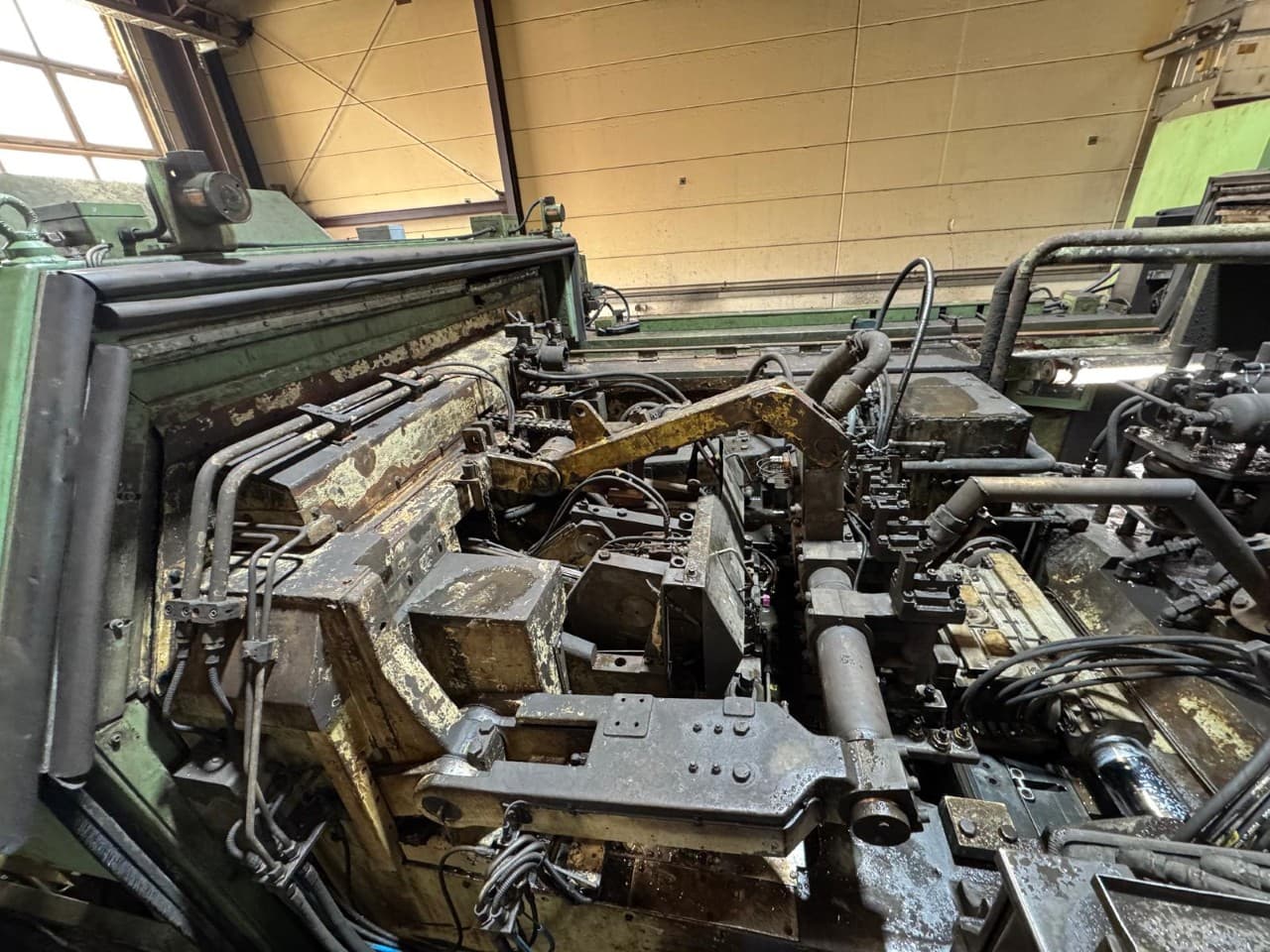

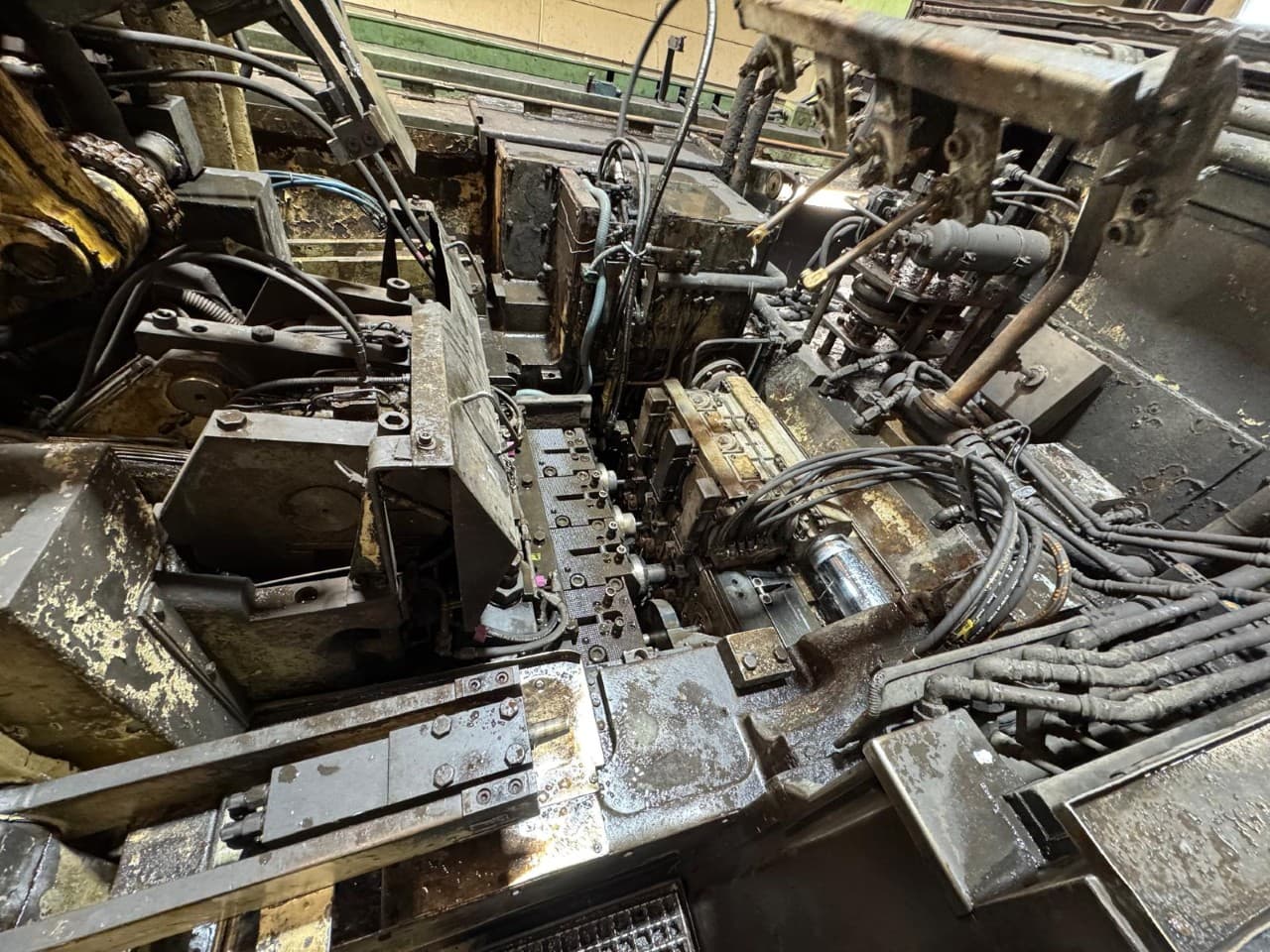

Automatische Schmiedemaschine Hatebur AMP30 - 230 ton
Technische Daten (EN) -
Automatische Schmiedemaschine Hatebur AMP30 - 230 ton (ID: 76458)
| Type | Automatic forging machine |
| Manufacturer | Hatebur |
| Model | AMP30 |
| Press Capacity | 230 ton |
| Forming section | 3 |
| Max outer diameter of piece | 64 mm |
| Max OD for Combi blanks | 55 mm |
| Main ram stroke | 160 mm |
| Power of induction heating installation | 800 kW |
| Bar diameter | 19-40 mm |
| Cutting width | 22-72 mm |
| Weight of pieces | 50-700 gr |
| Stroke | 70-120 min |
| Main motor | 56 kW |
| Weight of the machine | 35.8 ton |
