Spezifikationen (EN) - TMP Voronezh KG2540 A (ID: S84976)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | KG2540 A |
| Year | 1990 |
| Maximum force | 1000 tons |
| Slider stroke length | 400 mm |
| Unattainable-course | 12 mm |
| Number of courses of a slider per minute | 20 rpm |
| Number of single turn-on | 15 rpm |
| The closed height | 730 mm |
| Adjustment | 200 mm |
| Under-forging plate | |
| — From left to right | 1250 mm |
| — From front to rear | 1250 mm |
| — Thickness | 260 mm |
| Slider overall dimensions | 1200 x 1460 mm |
| Aperture in a table | 800 x 800 mm |
| Window dimensions in cheeks | 1260 x 780 mm |
| Course of a rigid pusher in a slider | 70 mm |
| Force of a rigid pusher in a slider ton-force | 50 |
| Main electric motor power | 90 kW |
| Course of pneumatic pillow | 160 mm |
| Force of pushing out of a pneumatic pillow ton-force | 40 |
| Hydro-pneumatic pillow | |
| — Working course | 125 mm |
| — Force of pushing out ton-force | 12 |
| — Force of a clip ton-force | 125 |
| Press overall dimensions | 4310 x 3870 x 6790 mm |
| Press weight | 77100 kg |

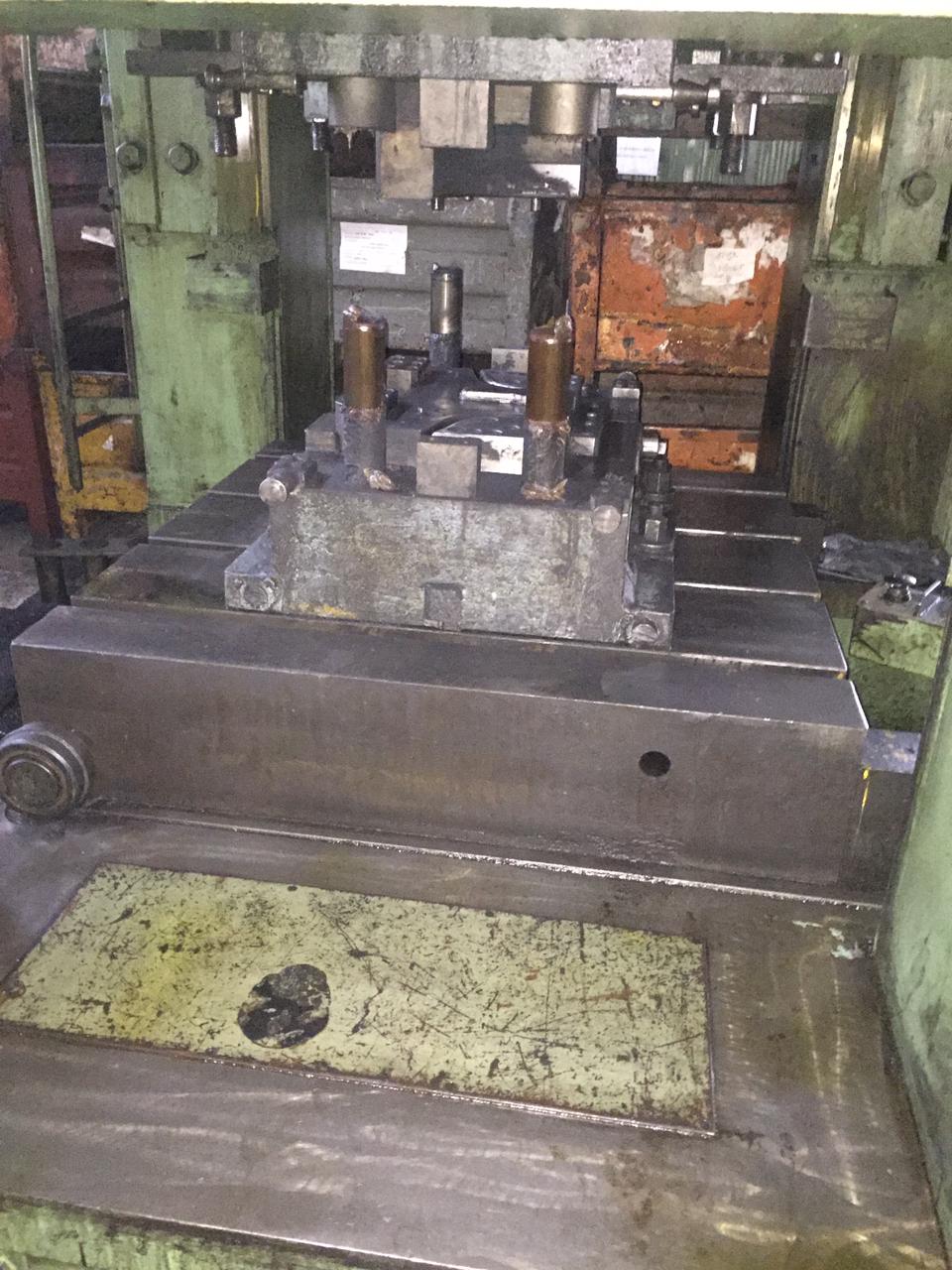

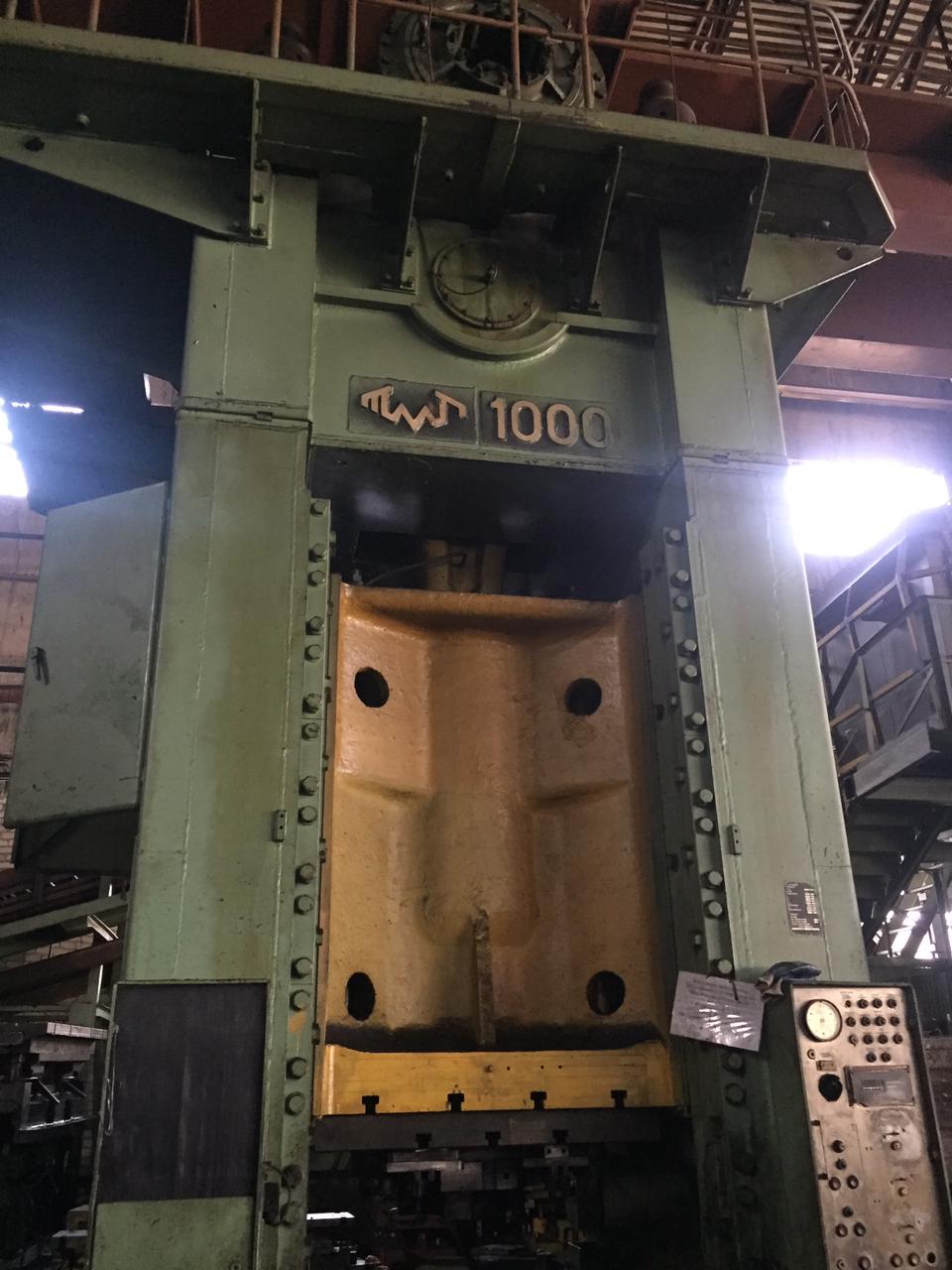

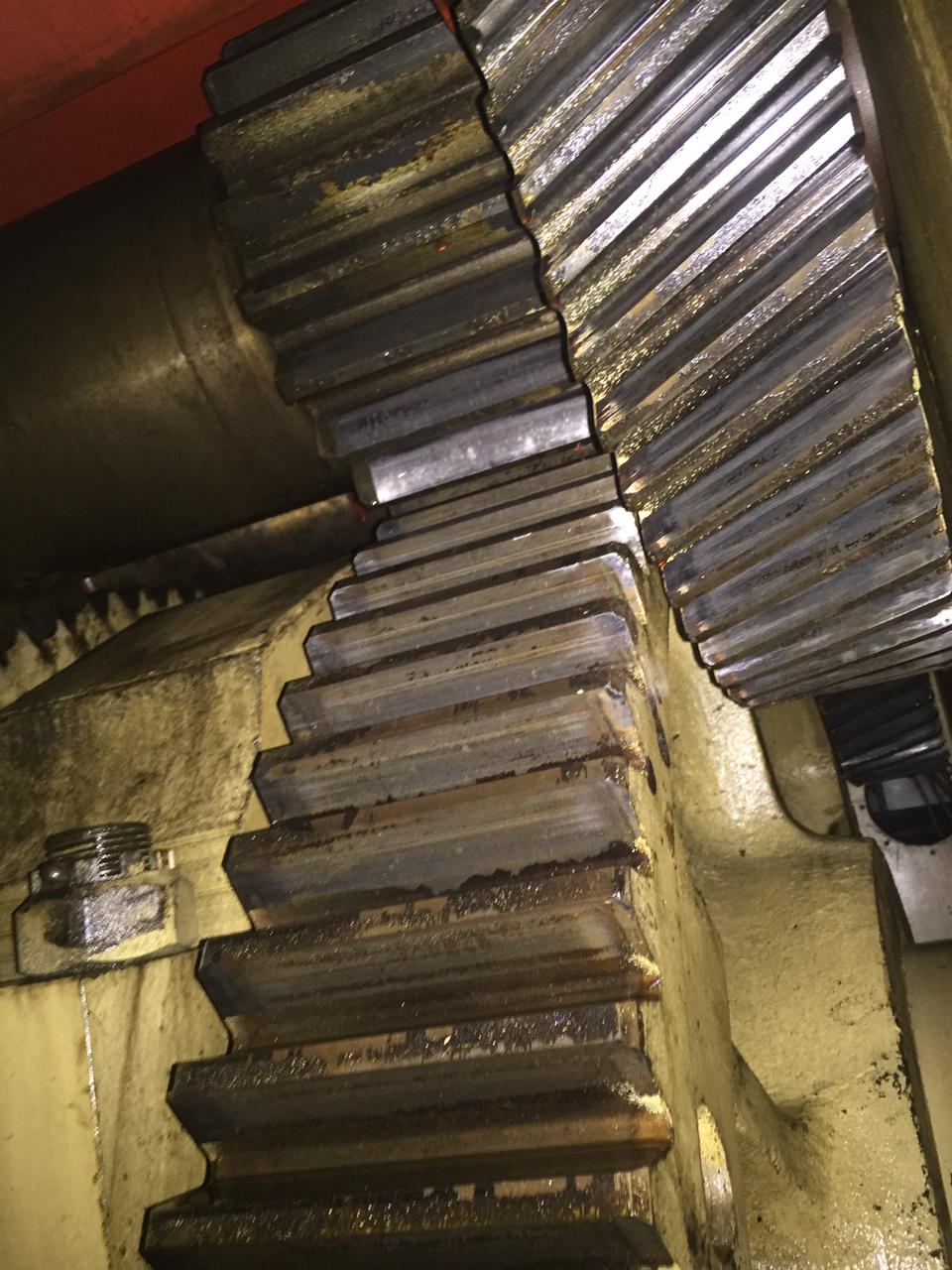

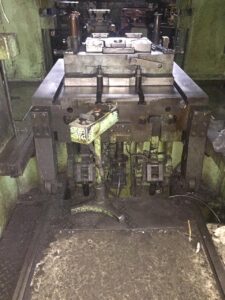

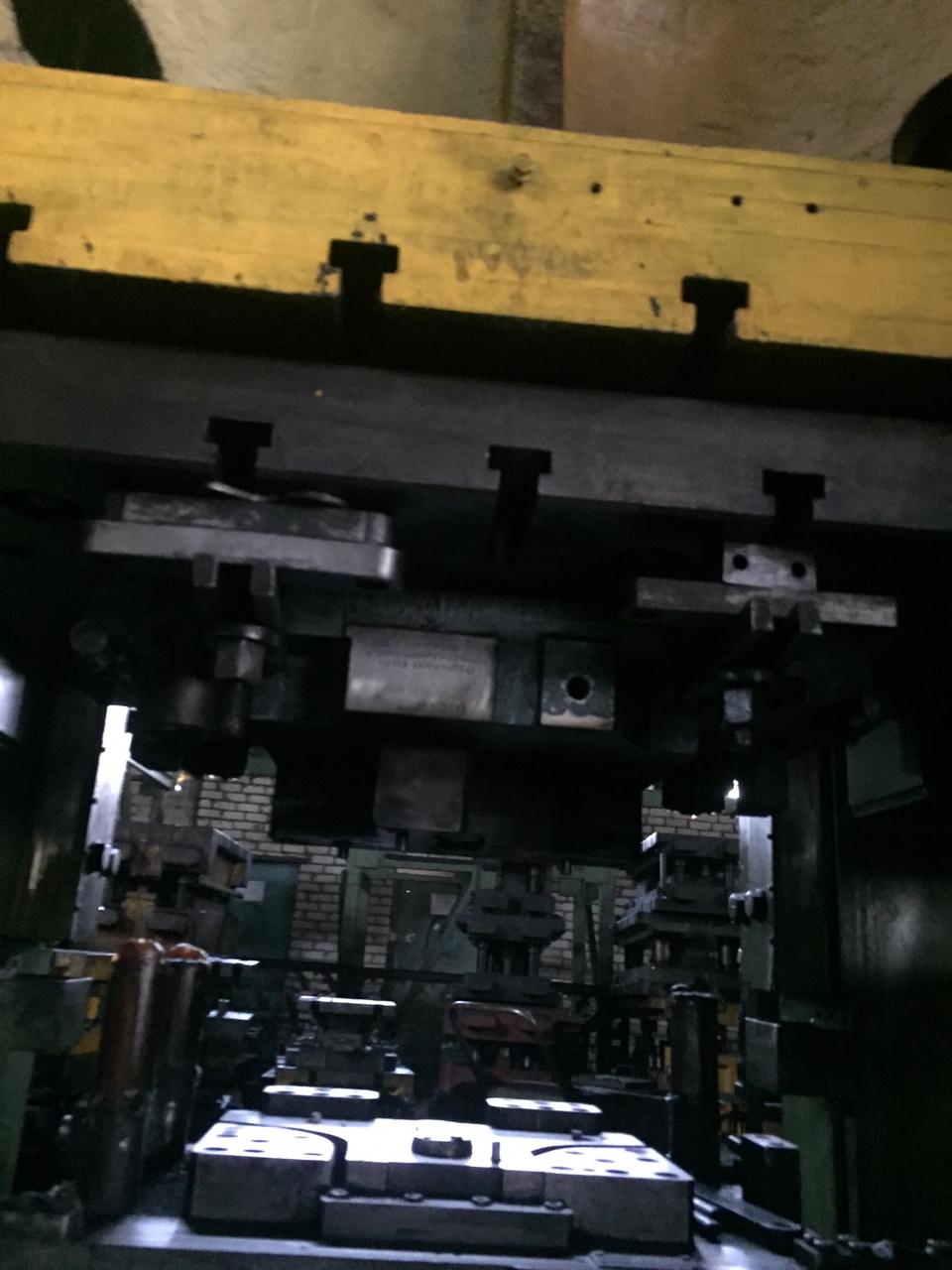

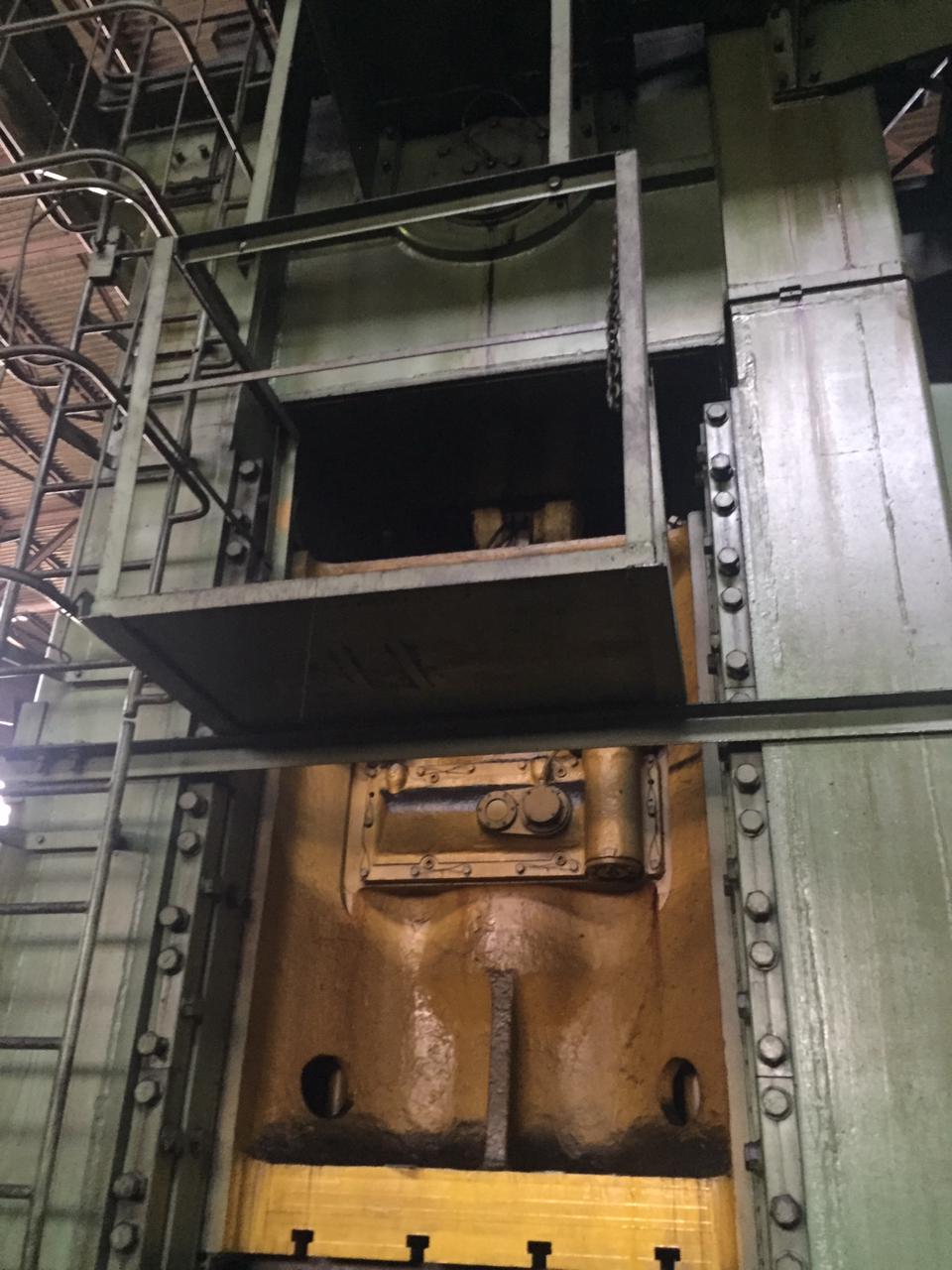

Fotos - TMP Voronezh KG2540 A (ID: S84976)
Kommerzielles Angebot (Verkauf) - Abgratpresse TMP Voronezh KG2540 A - 1000 ton (ID:S84976). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
