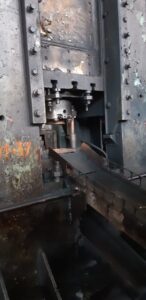

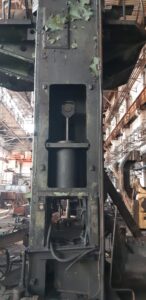

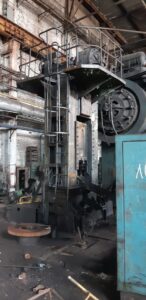

Abgratpresse TMP Voronezh KB9534 - 250 ton
Technische Daten (EN) - Abgratpresse TMP Voronezh KB9534 - 250 ton (ID: 75659)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | KB9534 |
| Capacity | 250 tons |
| Ram stroke | 320 mm |
| Ram continuous stroke number per minute | 32 |
| Ram single stroke number per minute | 24 |
| Ram size | 650 x 650 mm |
| Table size | 800 x 800 mm |
| Aperture in table | 500 x 500 mm |
| Max. distance between bolster and ram | 390 mm |
| Adjustment | 140 mm |
| Bolster size | 850×850 |
| Bolster thickness | 140 mm |
| Main motor | 27 kW |
| Dimensions | |
| Length | 3260 mm |
| Width | 2970 mm |
| Height | 5180 mm |
| Machine weight | 25800 kg |
