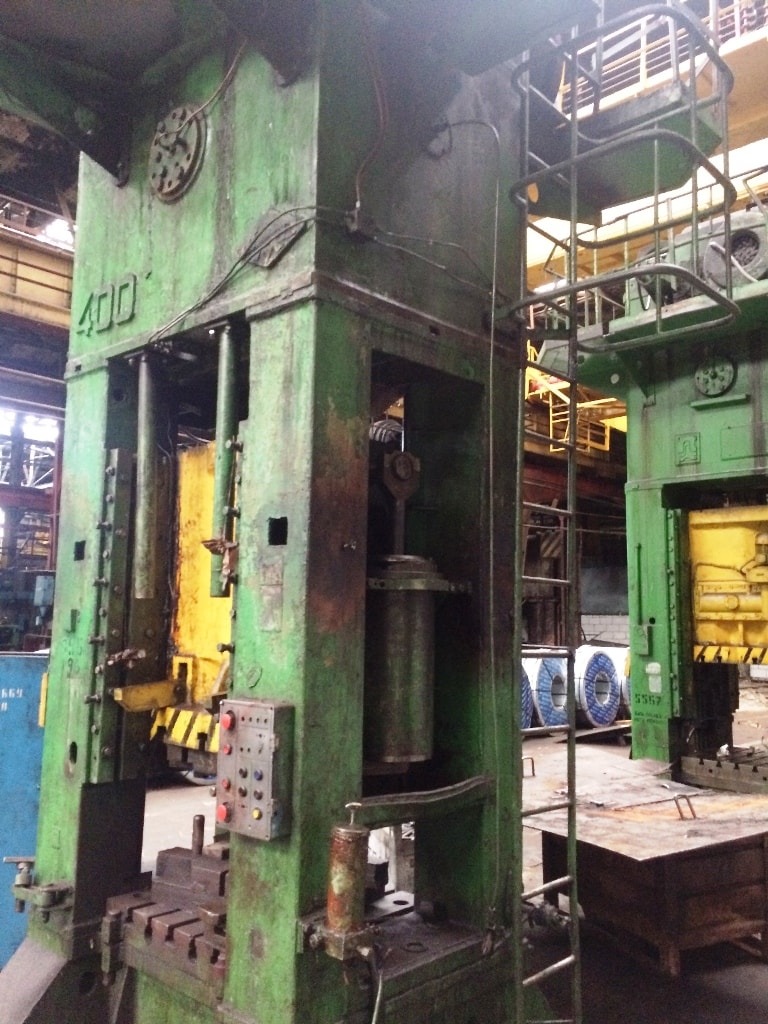

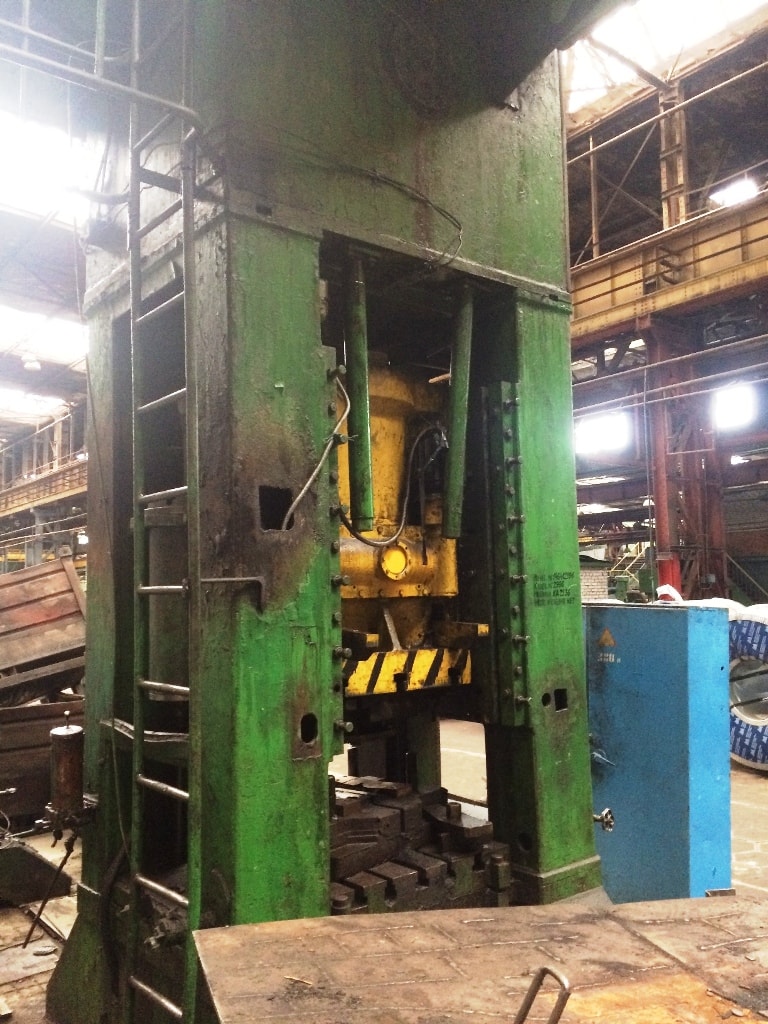

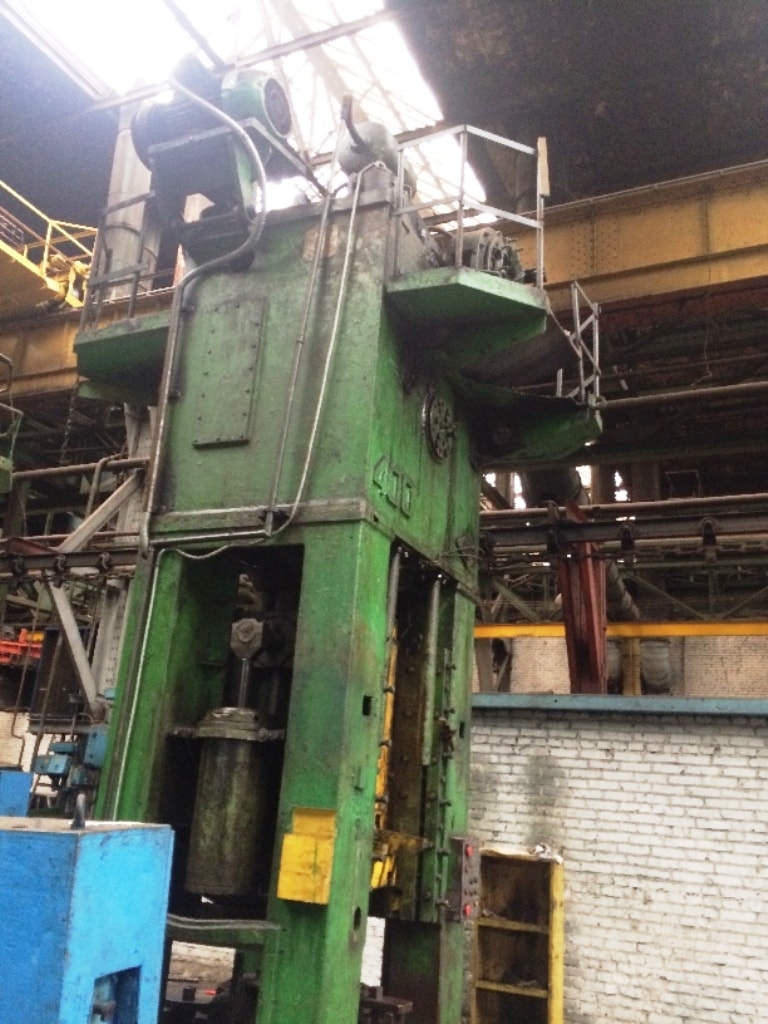

Abgratpresse TMP Voronezh KB2536 - 400 ton
Technische Daten (EN) - Abgratpresse TMP Voronezh KB2536 - 400 ton (ID: 75703)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | KB2536 |
| Year of manufacture | 1986 |
| Capacity | 400 tons |
| Slider stroke length | 250 mm |
| Slider stroke length to lower position | 12 mm |
| Slider strokes per minute | 25 |
| Number of single turn-on | 19 |
| Shut height | 510 mm |
| Adjustment | 160 mm |
| The sizes of a under-forging plate | 1000 mm |
| Table overall dimensions | |
| From front to rear | 1000 mm |
| From left to right | 1000 mm |
| Slider overall dimensions | 800 x 800 mm |
| Total power of electric motors | 43,3 kW |
| Press overall dimensions | |
| Length | 3470 mm |
| Width | 3140 mm |
| Height | 5940 mm |
| Weight | 36.5 tons |
