Spezifikationen (EN) - TMP Voronezh K2542 (ID: 75641)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K2542 |
| Made in | Russia |
| Maximum force | 1600 ton |
| Slider stroke length | 400 mm |
| Unattainable-course | 12 mm |
| Number of courses of a slider per minute | 16 rpm |
| Number of single turn-on | 12 rpm |
| The closed height | 870 mm |
| Adjustment | 220 mm |
| Under-forginig plate | |
| From left to right | 1600 mm |
| From front to rear | 1600 mm |
| Thickness | 650 mm |
| Slider overall dimensions | 1600 x 1600 mm |
| Aperture in a table | 1000 x 1000 mm |
| Window dimensions in cheeks | 1650 x 1650 mm |
| Course of a rigid pusher in a slider | 100 mm |
| Force of a rigid pusher in a slider ton-force | 80 |
| Main electric motor power | 110 kW |
| Course of pneumatic pillow | 160 mm |
| Force of pushing out of a pneumatic pillow ton-force | 71 |
| Hydropneumatic pillow | |
| Working course | 250 mm |
| Force of pushing out ton-force | 25 |
| Force of a clip ton-force | 250 |
| Press overall dimensions | 4670 x 4670 x 8110 mm |
| Press weight | 140 ton |

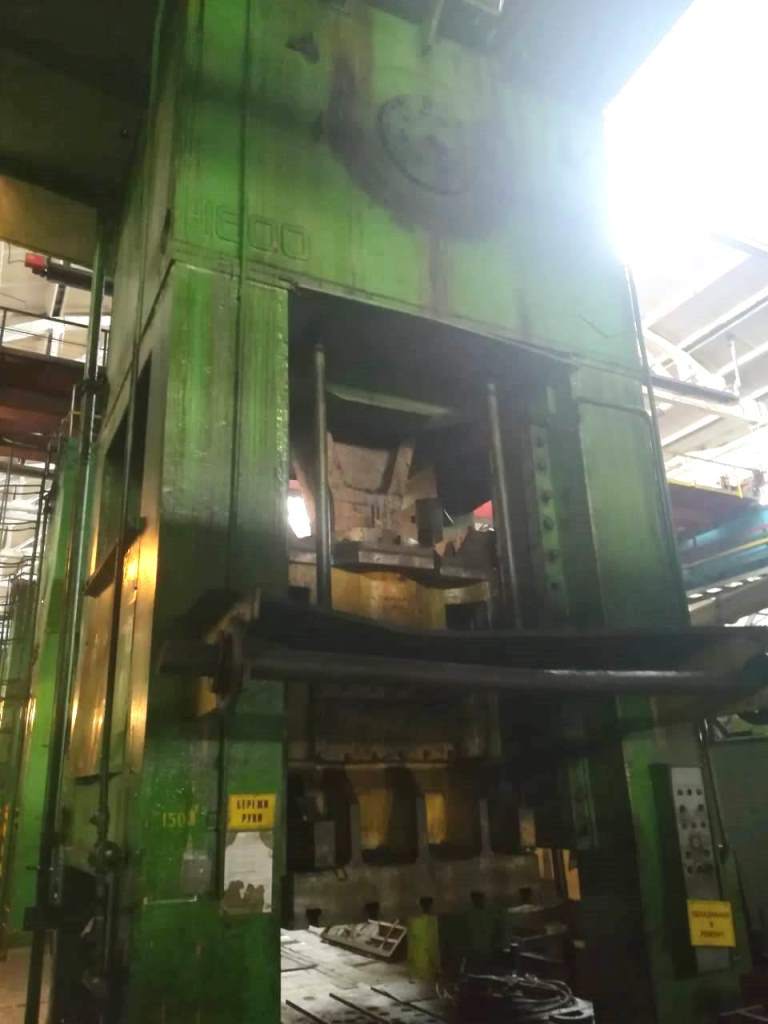

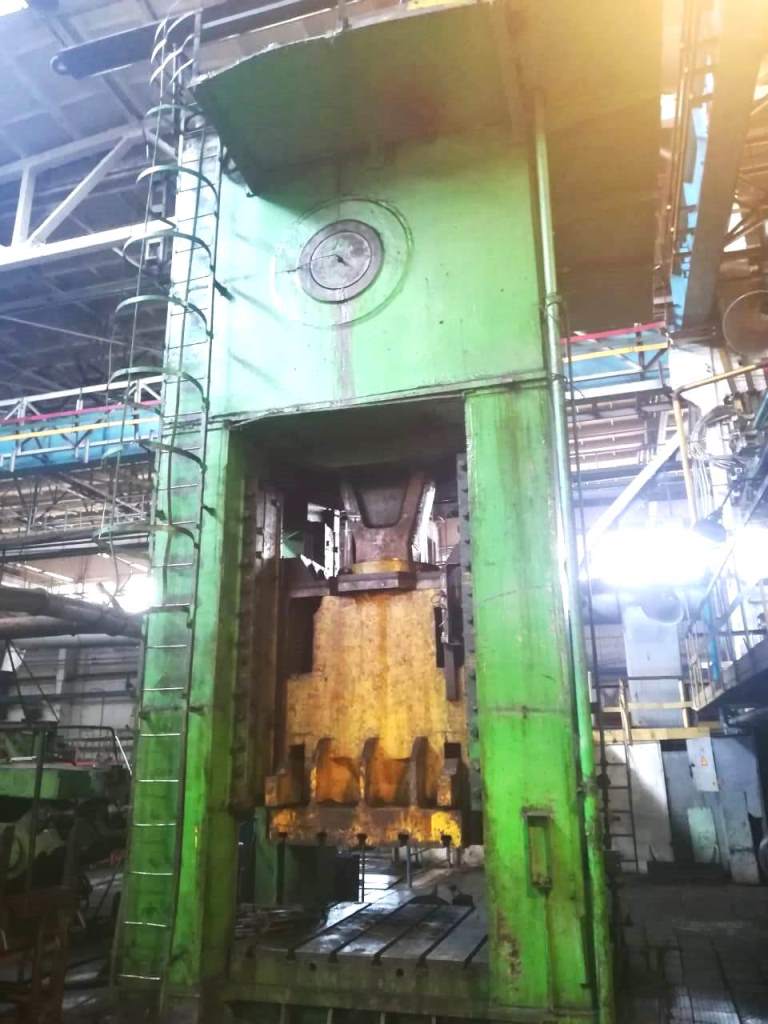

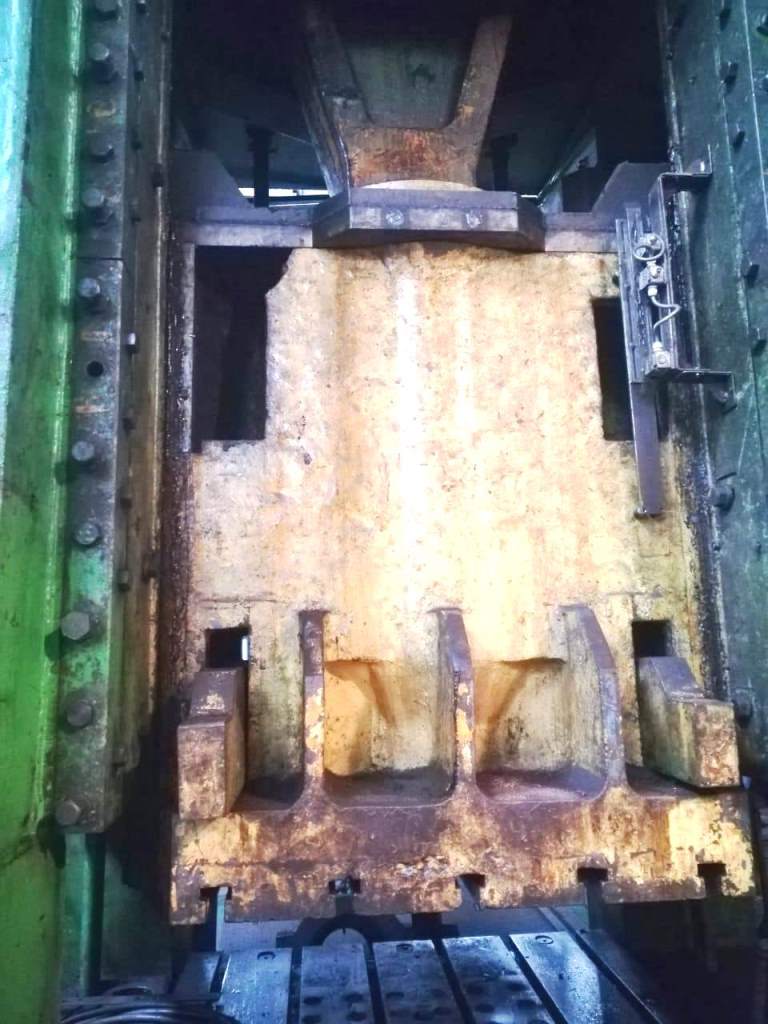

Fotos - TMP Voronezh K2542 (ID: 75641)
Kommerzielles Angebot (Verkauf) - Abgratpresse TMP Voronezh K2542 - 1600 ton (ID:75641). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
