Spezifikationen (EN) - TMP Voronezh K04.150.242 (ID: 75857)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K04.150.242 |
| YOM | 1982 |
| Maximum force | 1600 tons |
| Slider stroke length | 400 mm |
| Unattainable-course | 12 mm |
| Number of courses of a slider per minute | 16 rpm |
| Number of single turn-on | 12 rpm |
| The closed height | 870 mm |
| Adjustment | 220 mm |
| Under-forging plate | |
| — from left to right | 1600 mm |
| — from front to rear | 1600 mm |
| — thickness | 650 mm |
| Slider overall dimensions | 1600 x 1600 mm |
| Aperture in a table | 1000×1000 mm |
| Window dimensions in cheeks | 1650 x 1650 mm |
| Course of a rigid pusher in a slider | 100 mm |
| Force of a rigid pusher in a slider ton-force | 80 |
| Main electric motor power | 110 kW |
| Course of pneumatic pillow | 160 mm |
| Force of pushing out of a pneumatic pillow ton-force | 71 |
| Hydropneumatic pillow | |
| — working course | 250 mm |
| — force of pushing out ton-force | 25 |
| — force of a clip ton-force | 250 |
| Press overall dimensions | 4670 x 4670 x 8110 mm |
| Press weight | 140 tons |

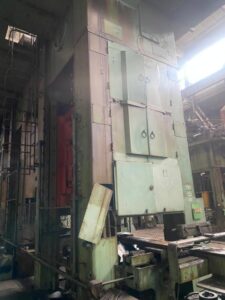

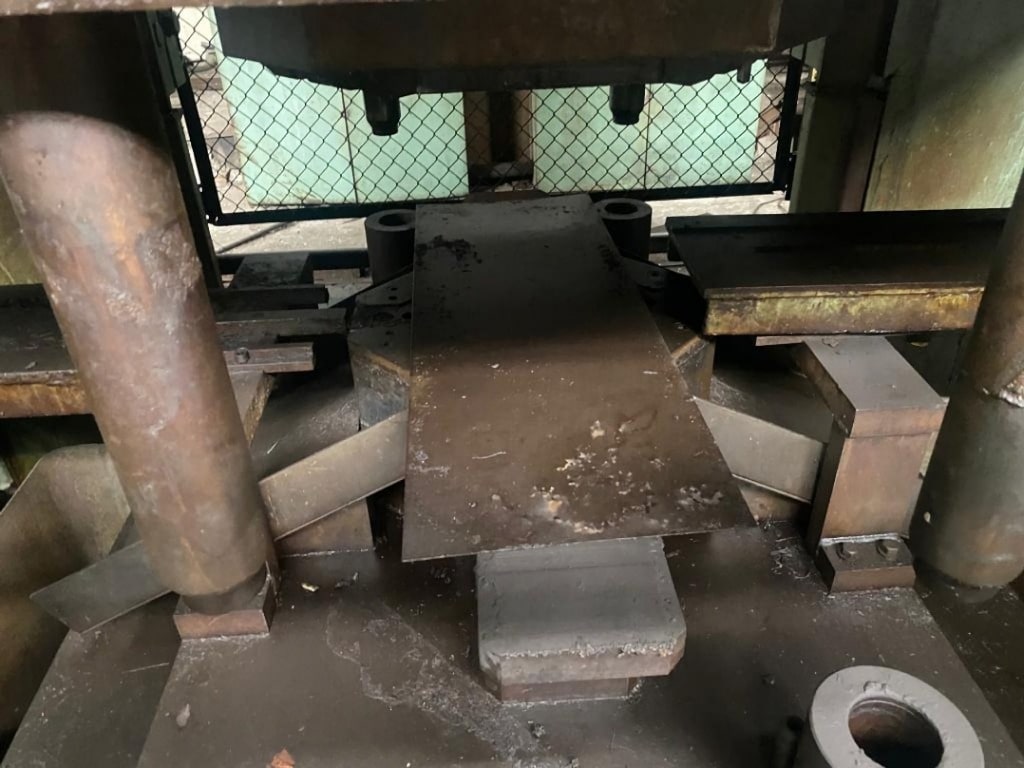

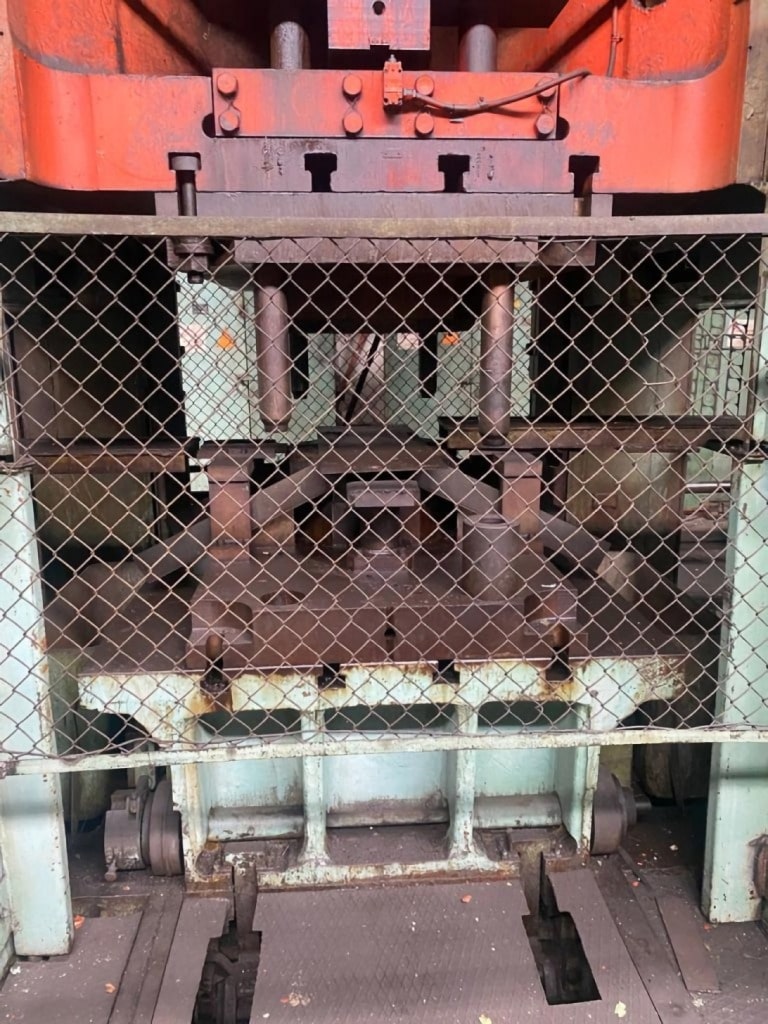

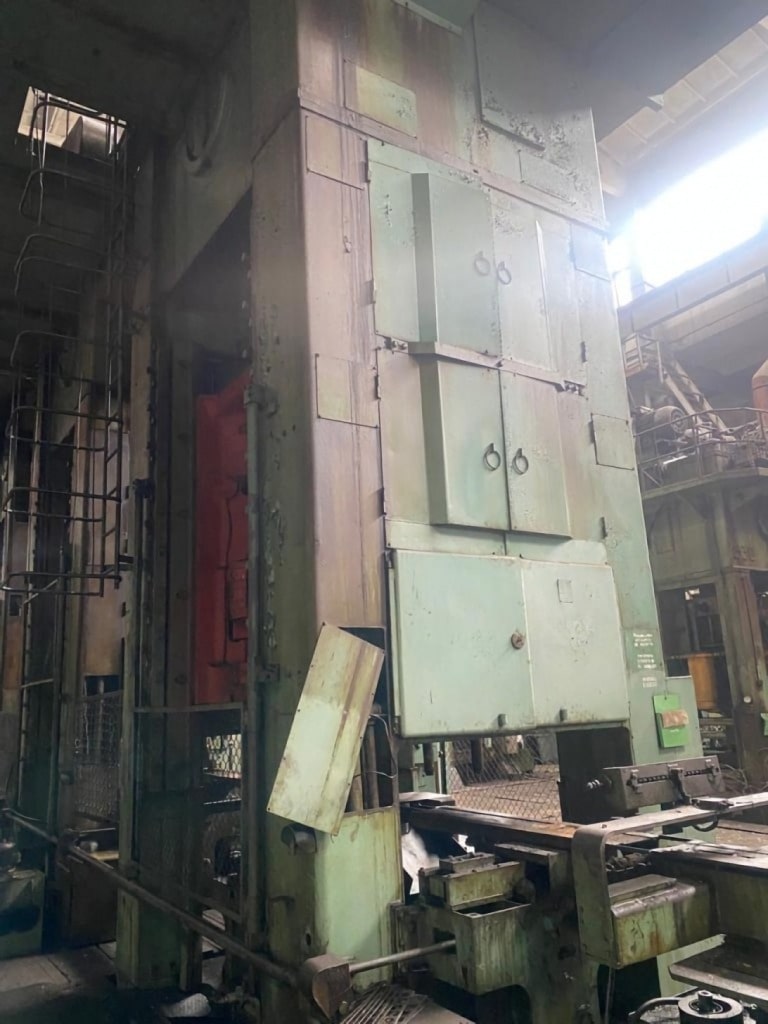

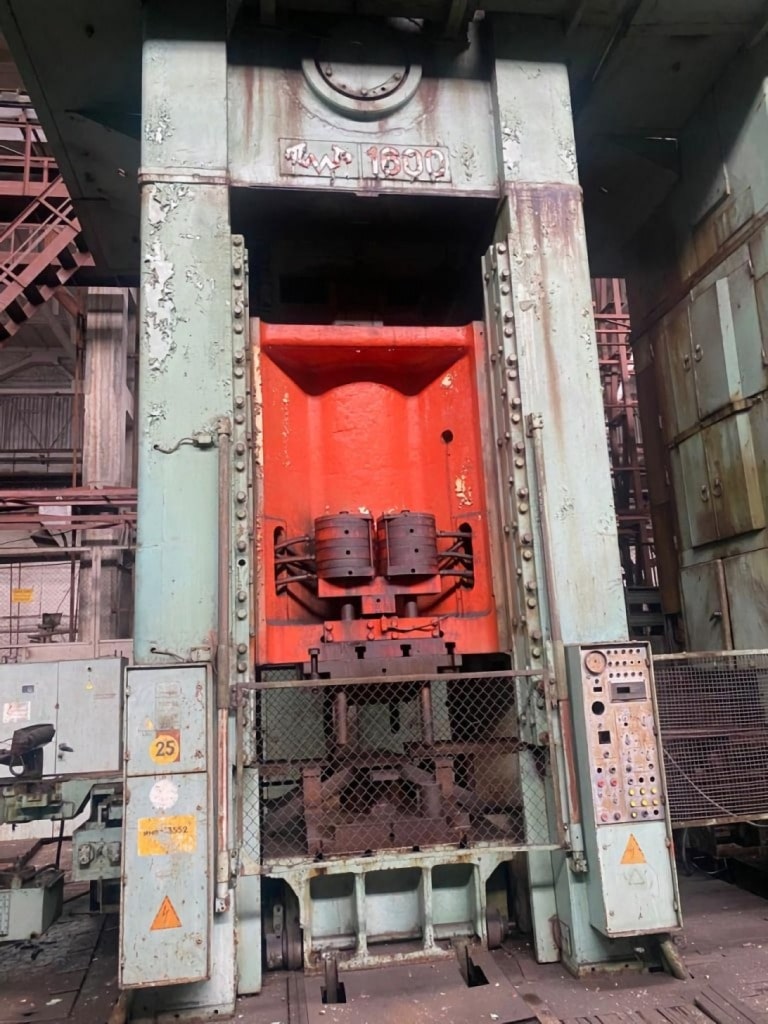

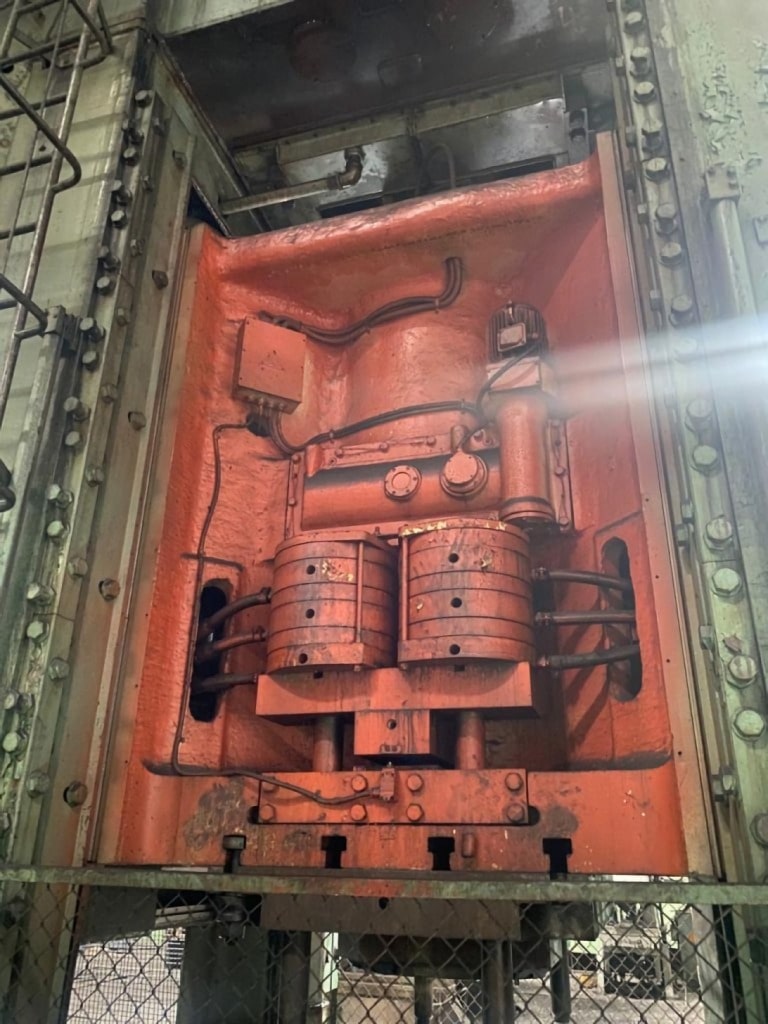

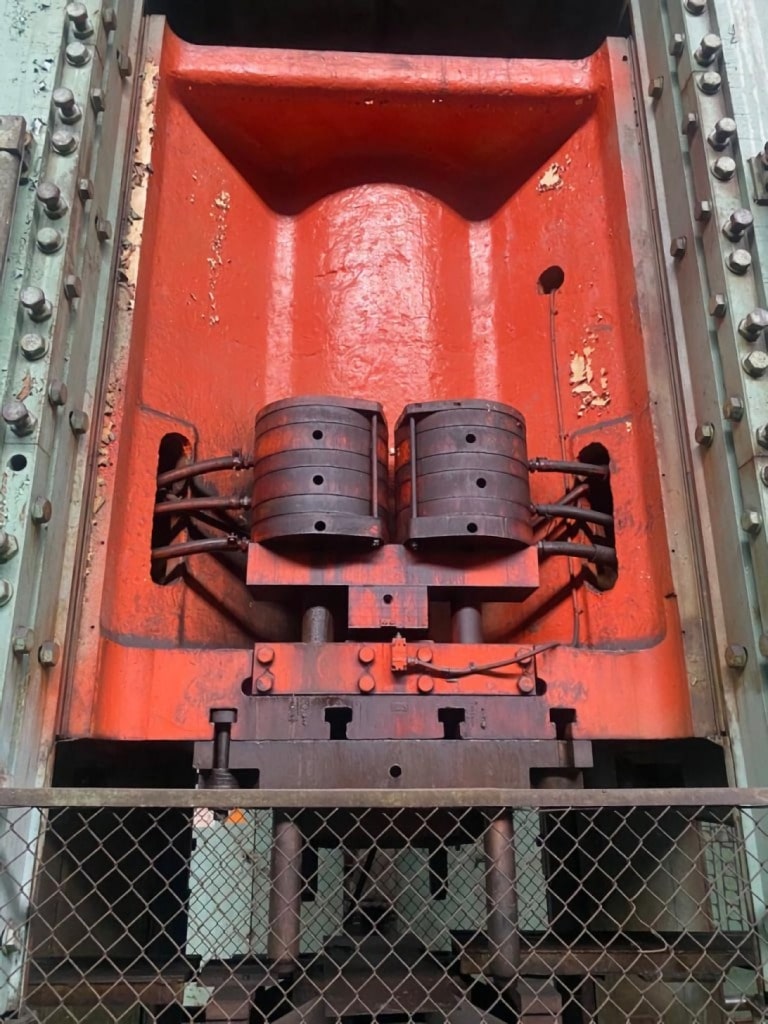

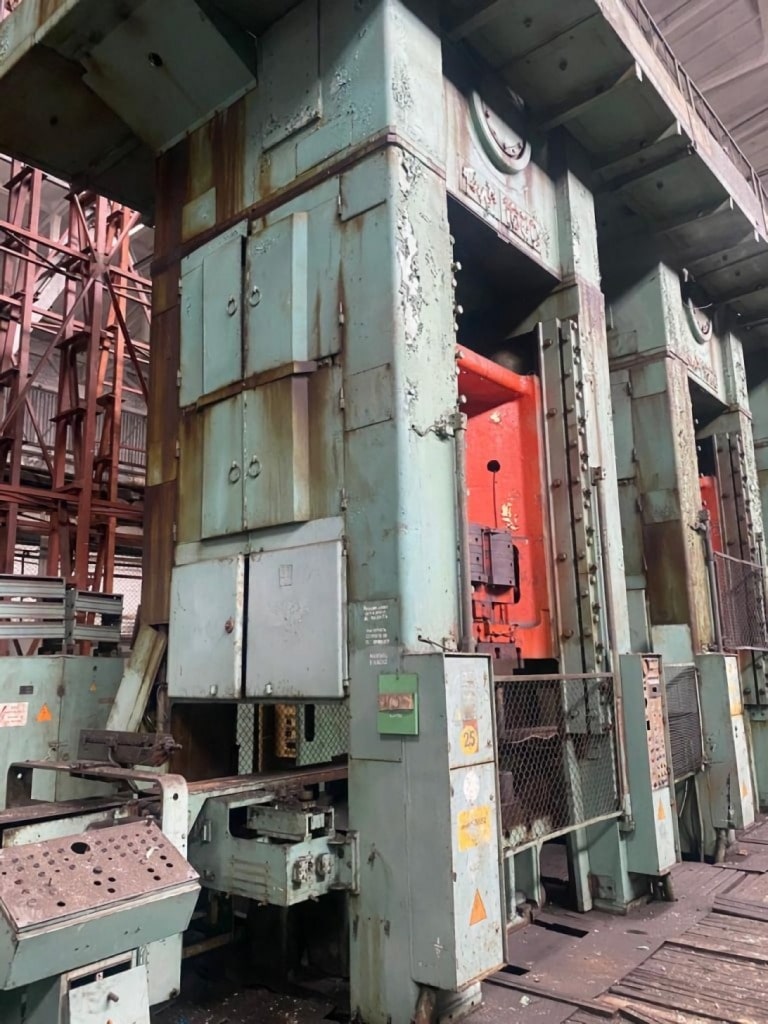

Fotos - TMP Voronezh K04.150.242 (ID: 75857)
Kommerzielles Angebot (Verkauf) - Abgratpresse TMP Voronezh K04.150.242 - 1600 ton (ID:75857). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
