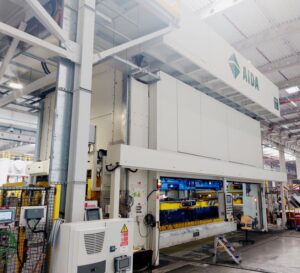

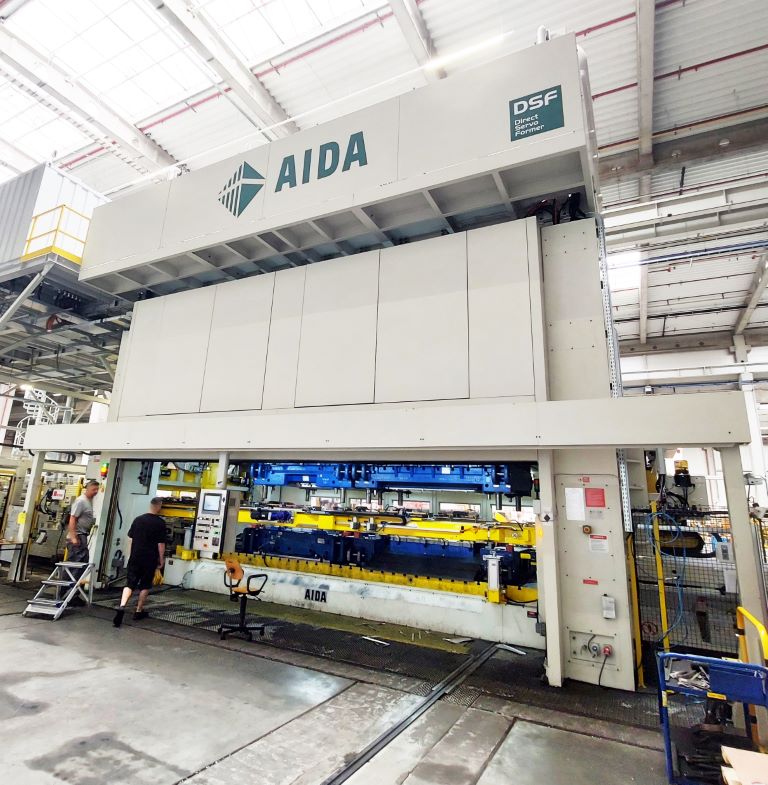

Spezifikationen (EN) - Aida DSF-TE4-20000-730-250 (ID: 76378)
| Type | Stamping press |
| Manufacturer | Aida |
| Model | DSF-TE4-20000-730-250 |
| Year of manufacture | 2022 |
| Nominal press force | 2000 ton |
| Energy at 15 spm | 630 kJ |
| Energy at 28 spm | 390 kJ |
| Strokes per minute | |
| — full-revolution mode | 3–28 |
| — endulum mode (at max. feed 105 mm) | 3–50 |
| Slide stroke | 800 mm |
| Slide adjustment | 400 mm |
| Maximum distance between slide and press table | 1200 mm |
| Clearance between uprights | 7580 mm |
| Slide dimensions | 7300 × 2500 mm |

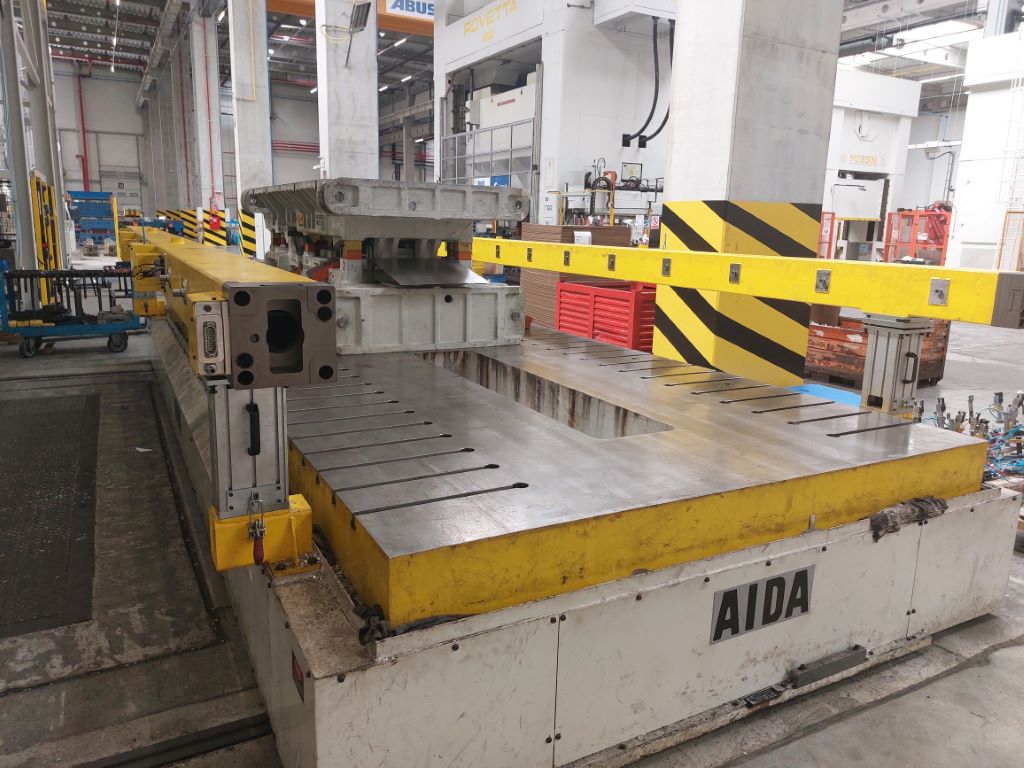

| Table dimensions | 7300 × 2500 mm |
| Distance between side columns (front–back opening) | 3650 mm |
| Main motor power | 2 × 750 kW |
| Slide-adjustment motor power | 30 kW |
| Maximum upper die weight | 35000 kg |
| Normal slide rest position | Top Dead Centre |
| Total stopping time at 15 strokes/min | 799 ms |
| Safety distance | 1278 mm |
| Safety brake pressure | 105 bar |
| Power supply (three-phase) | 400 V, 50 Hz |
| Minimum pneumatic supply pressure | 5.5 bar |

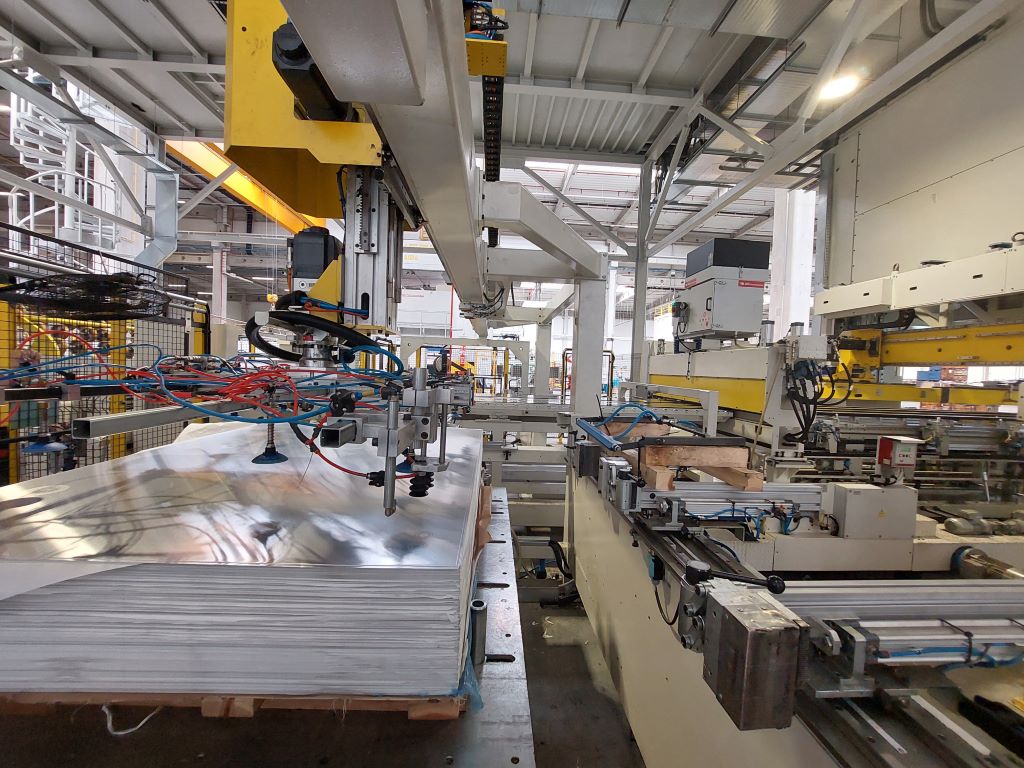

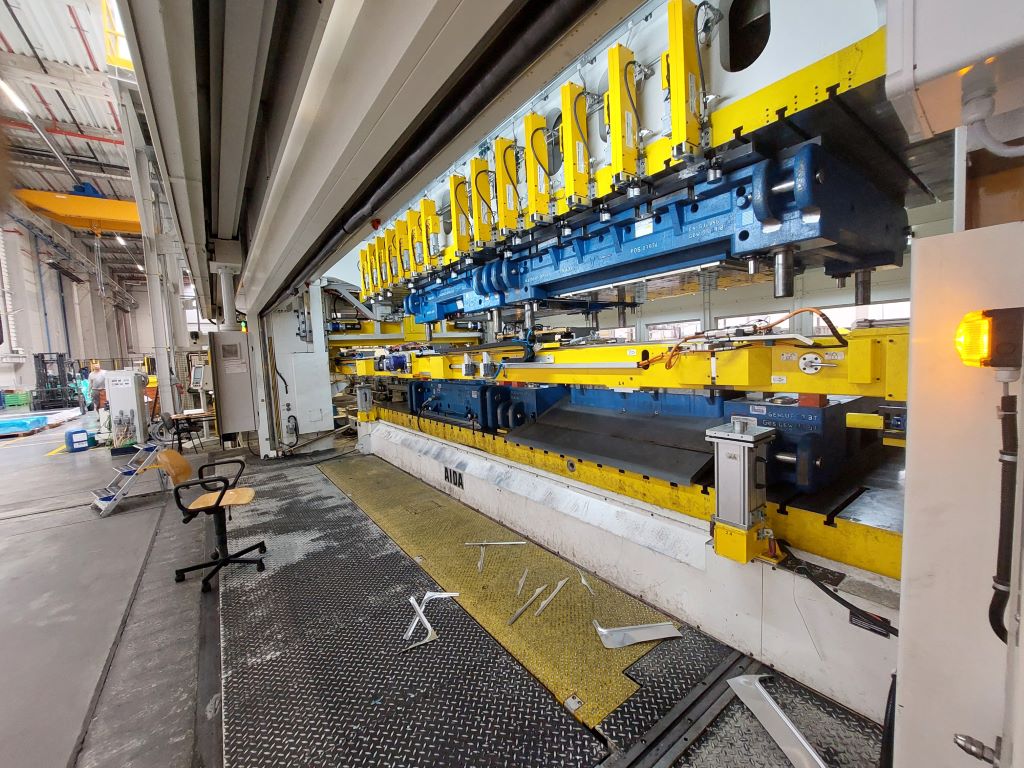

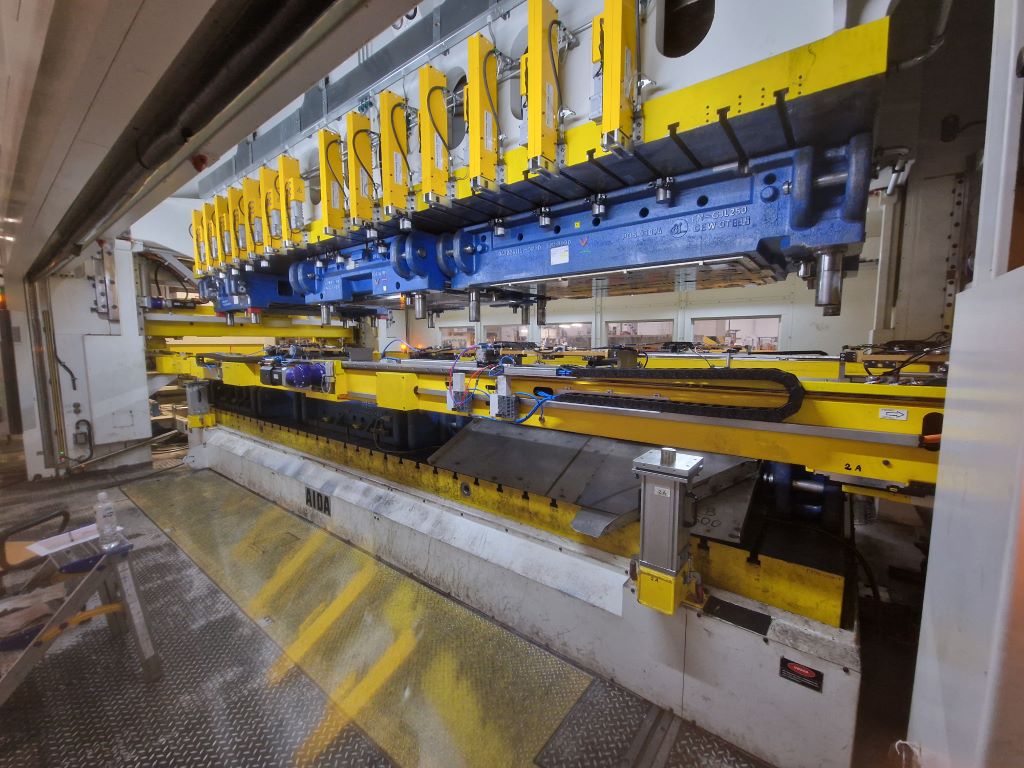

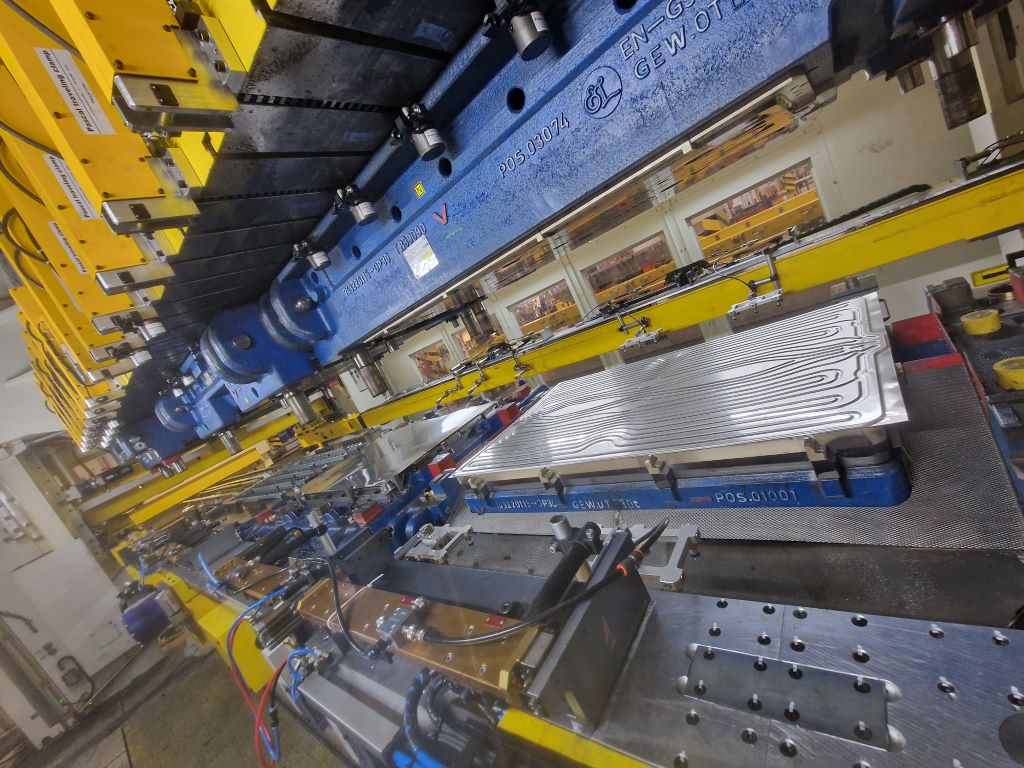

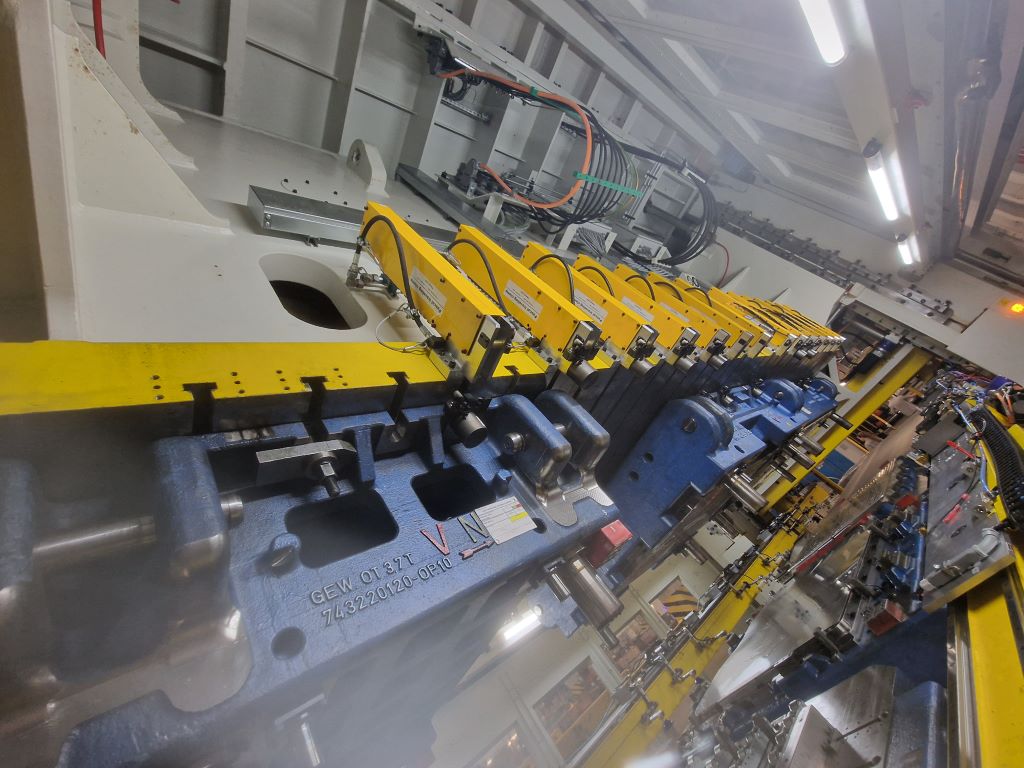

| Transfer system | |
| Transfer stroke, forward (adjustable) | 0–1200 mm |
| Opening/closing stroke for each side (bar travel, adjustable) | 0–1020 mm |
| Lift stroke (adjustable) | 0–350 mm |
| Internal clearance between bars in closed position | 700 mm |
| Maximum opening between bars (bars fully open) | 2740 mm |
| Bar section dimensions | 220 × 220 mm |
Fotos & Video - Aida DSF-TE4-20000-730-250 (ID: 76378)
Kommerzielles Angebot (Verkauf) - Blechumformung Presse Aida DSF-TE4-20000-730-250 - 2000 ton (ID:76378). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
