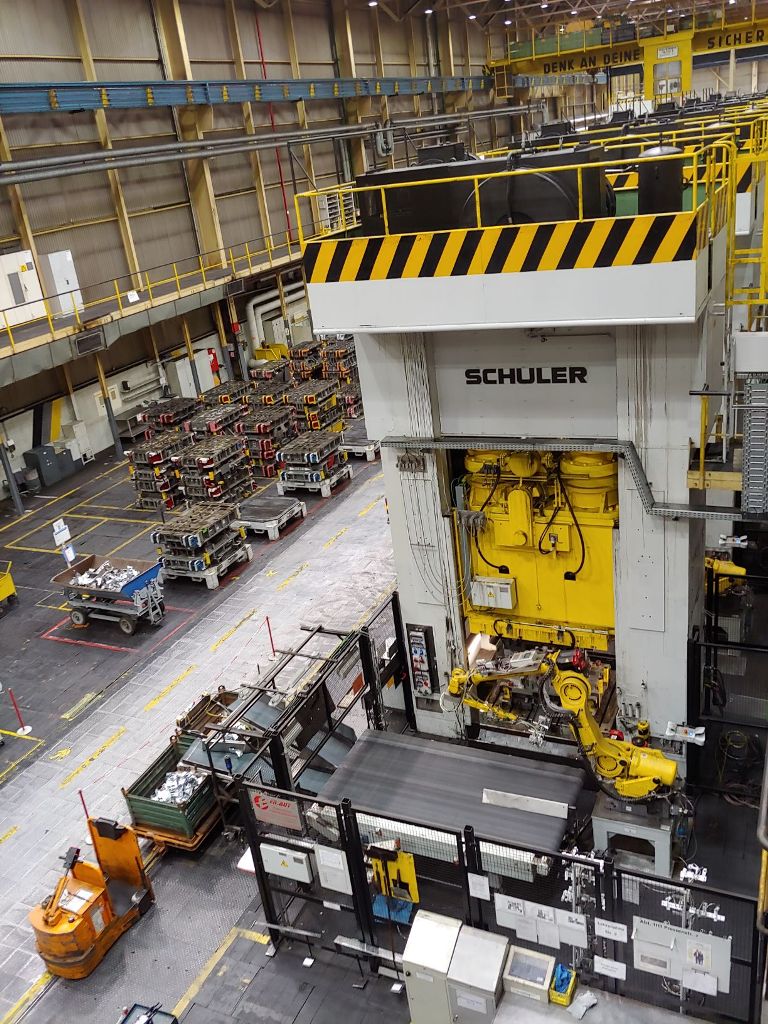

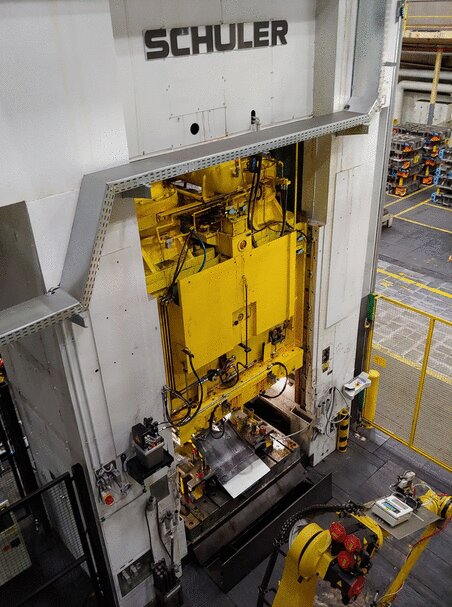

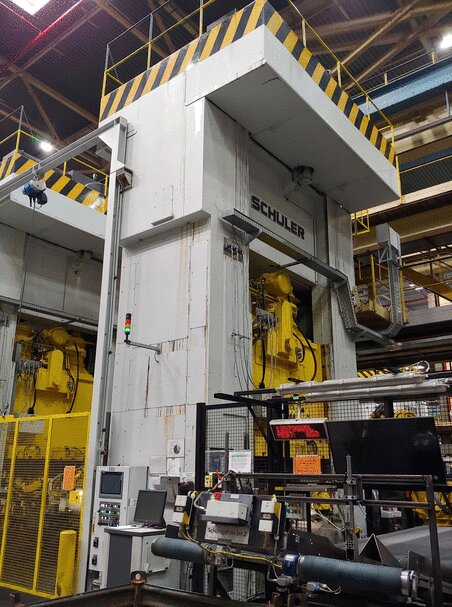

Umformpresse Schuler 800 MT - 800 ton
Technische Daten (EN) - Umformpresse Schuler 800 MT - 800 ton (ID: 75100)
| Type | Stamping press |
| Manufacturer | Schuler |
| Model | 800 MT |
| Force | 800 Ton (30 mm) |
| Stroke | 600 mm |
| Stroke/min. | 20 |
| Slide regulation | 400 mm |
| Daylight | 800 mm |
| Table | 2.000 mm x 1.600 mm |
| Main motor force | 160 KW |
| Slide Cushion | |
| Force | 65 Ton |
| Stroke | 150 mm |
| Table cushion | |
| Force | 130 Ton |
| Stroke adjustment | 0 – 200 mm |
