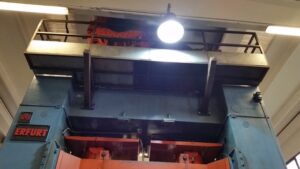

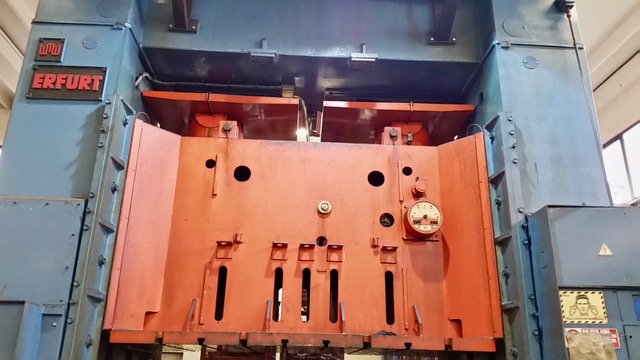

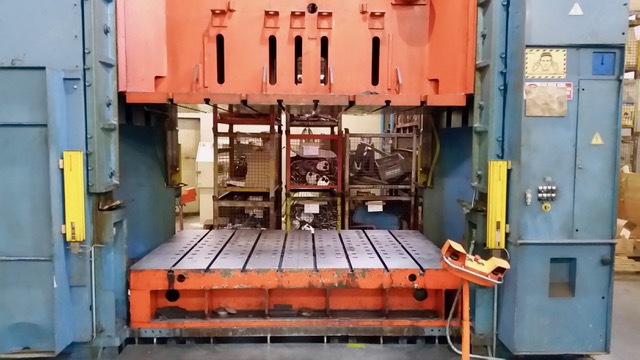

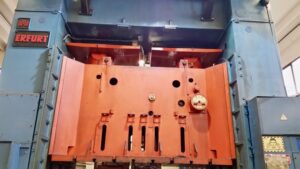

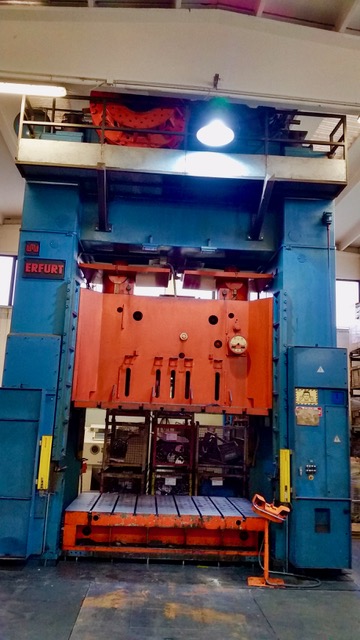

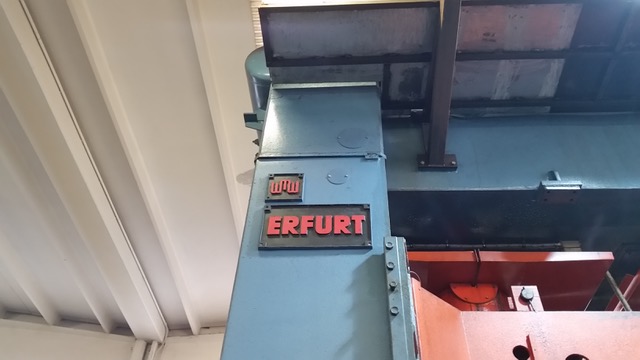

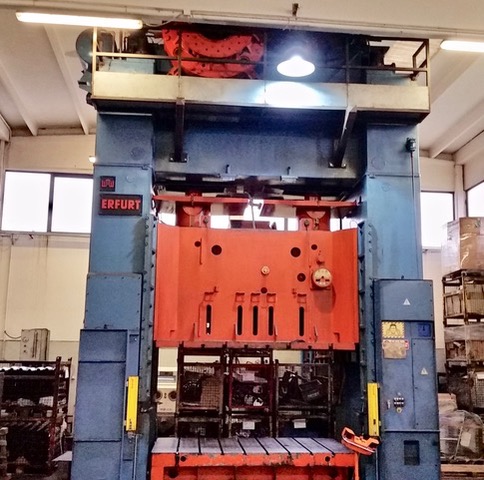

Umformpresse Erfurt PKZZ IV 500.1 FS - 500 ton
Technische Daten (EN) - Umformpresse Erfurt PKZZ IV 500.1 FS - 500 ton (ID: 75475)
| Type | Stamping press |
| Manufacturer | Erfurt |
| Model | PKZZ IV 500.1 FS |
| Capacity | 500 ton |
| Slide stroke | 500 mm |
| Strokes in 1 min. | 20 |
| Hydraulic overload | yes |
| Shut height | 1400 mm |
| Slide adjustment | 500 mm |

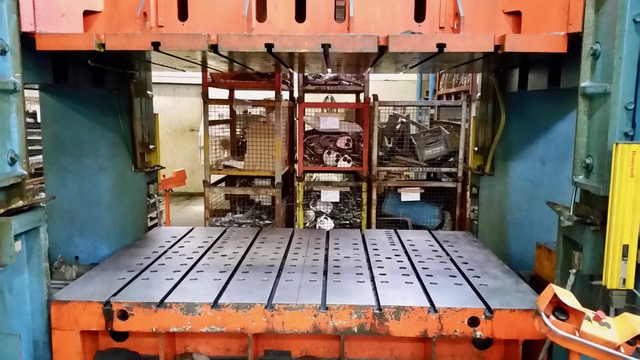

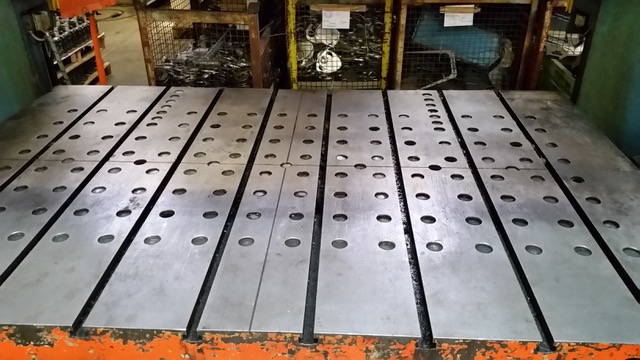

| Bed size | 2800 x 1800 mm |
| Moving bolster front to back | yes |
| Slide area | 2800 x 1700 mm |
| Upright opening | 1550 x 1120 (h) mm |
| Bed cushion stroke | 200 mm |
| Bed cuschion — capacity | 100 ton |
| Power of main motor | 75 kw |
| Press weight approximate | 140 ton |
