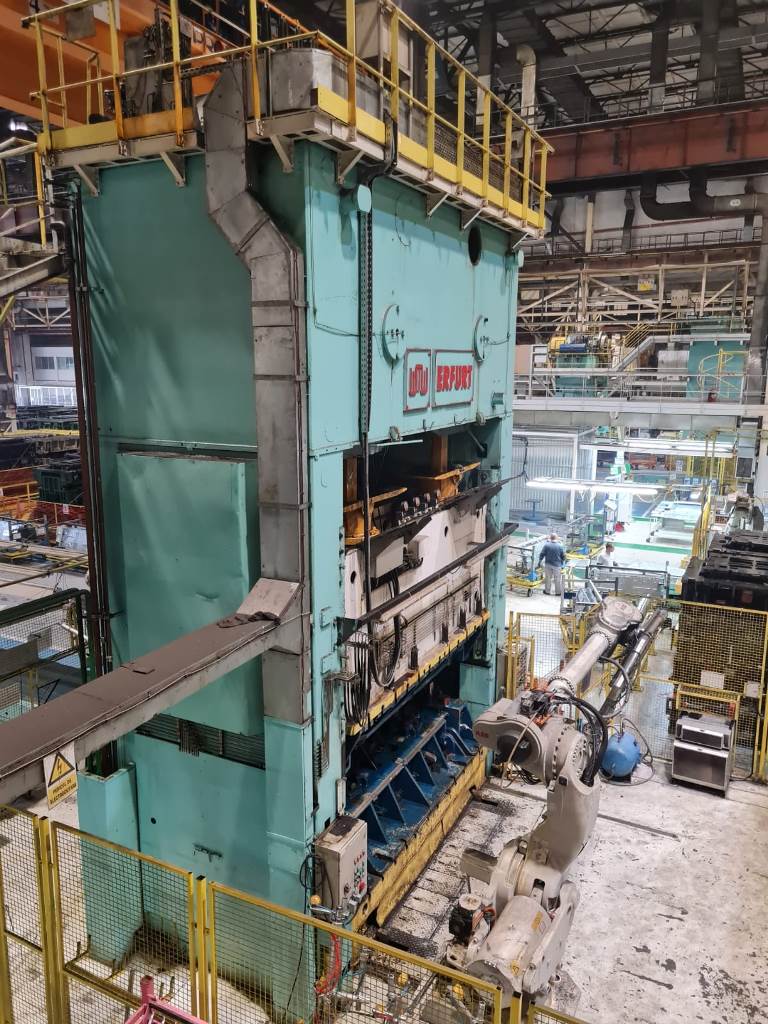

Umformpresse Erfurt PKZV 800 - 800 ton
Technische Daten (EN) - Umformpresse Erfurt PKZV 800 - 800 ton (ID: 76073)
| Type | Stamping press |
| Manufacturer | Erfurt |
| Model | PKZV 800 |
| Maximum force of slide | 800 ton |
| Stroke rate | 17 / min |
| Stroke of slide | 500 mm |
| Adjustability of slide | 500 mm |
| Maximum distance between | 1700 mm |
| Width between columns | 4000 mm |

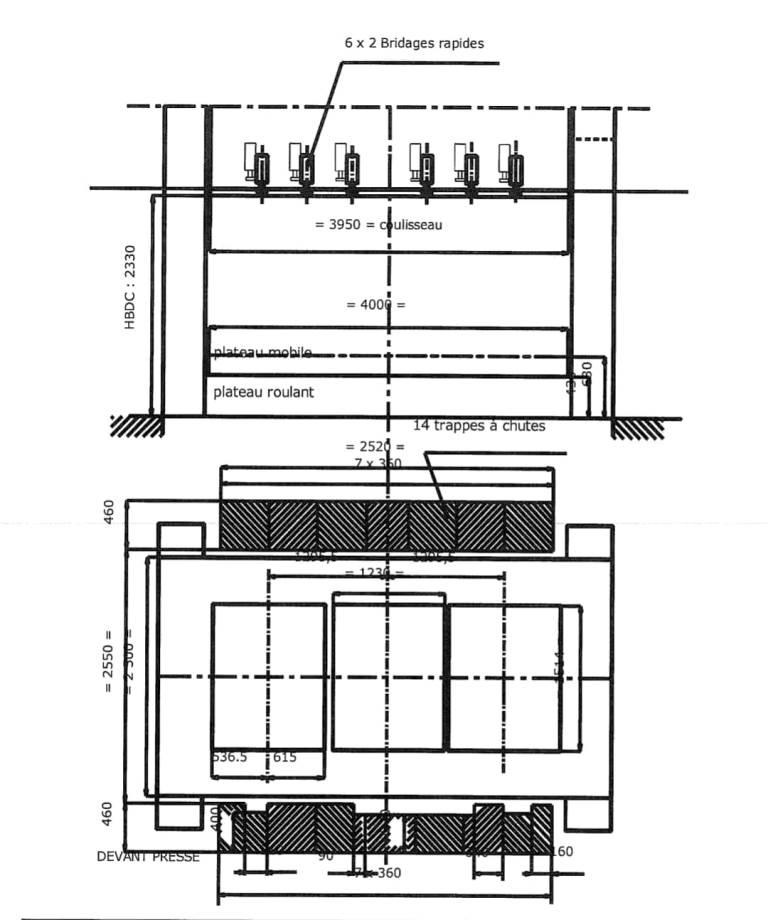

| Slide area | 3950 x 2500 mm |
| Bed area | 4000 x 2500 mm |
| Opening in bed | 3520 x 1520 mm |
| Main motor power | 90 kW |
| Counter pressure of cushion (in bed) | 1600 kN |
| Height above ground | 8400 mm |
| Machine weight | 170 ton |
