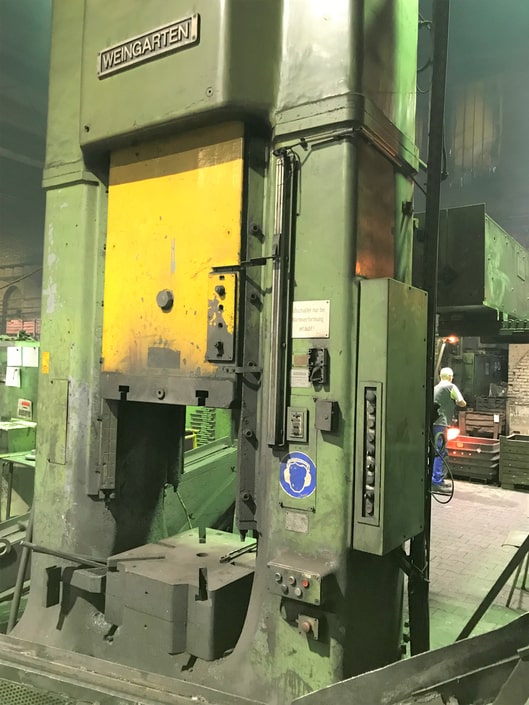

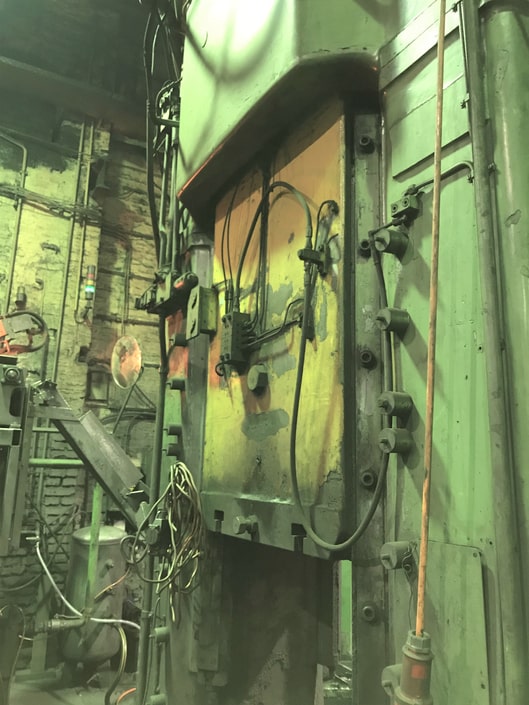

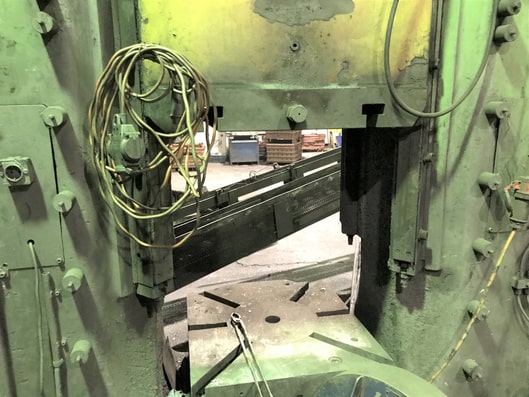

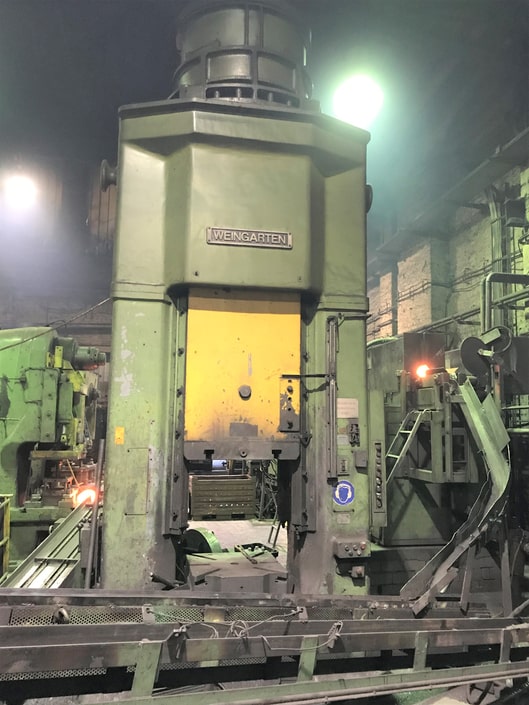

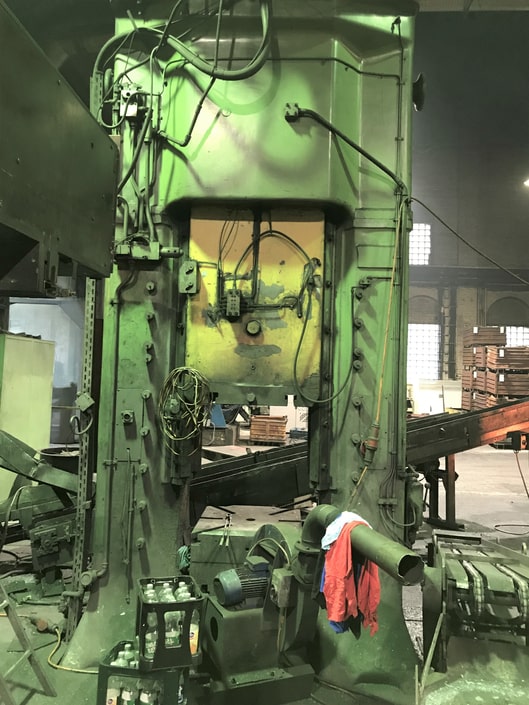

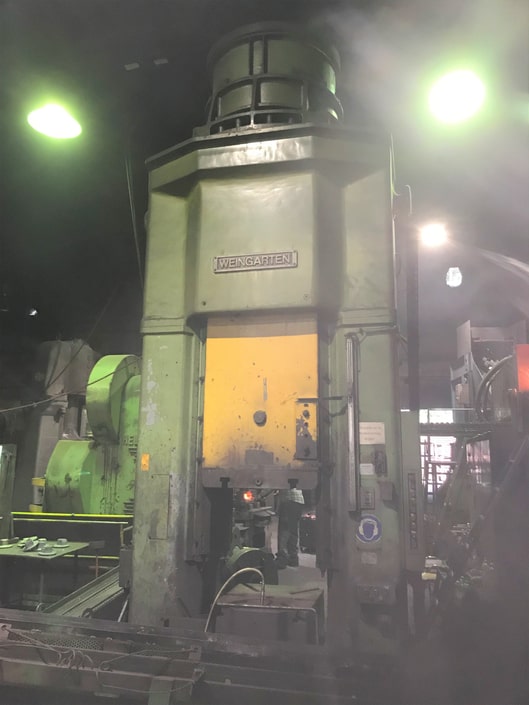

Spindelpresse Weingarten PS 300 - 1400 ton
Technische Daten (EN) - Spindelpresse Weingarten PS 300 - 1400 ton (ID: 75410)
| Type | Screw press |
| Manufacturer | Weingarten |
| Model | PS 300 |
| Pressing capacity | 600 nominal / 1400 max. ton |
| Opening between the stands | 770 mm |
| Height above floor | 5500 mm |
| Stroke per minute | 33-45 (22 usable) |
| Stroke | 160 — 480 mm |
| Table size (lxb) | 700 x 800 mm |
| Ram size (lxb) | 700 x 800 mm |
| Daylight | 670 — 1150 mm |
| Total power consumption | 75 kW |
| Total weight | 38.200 |
