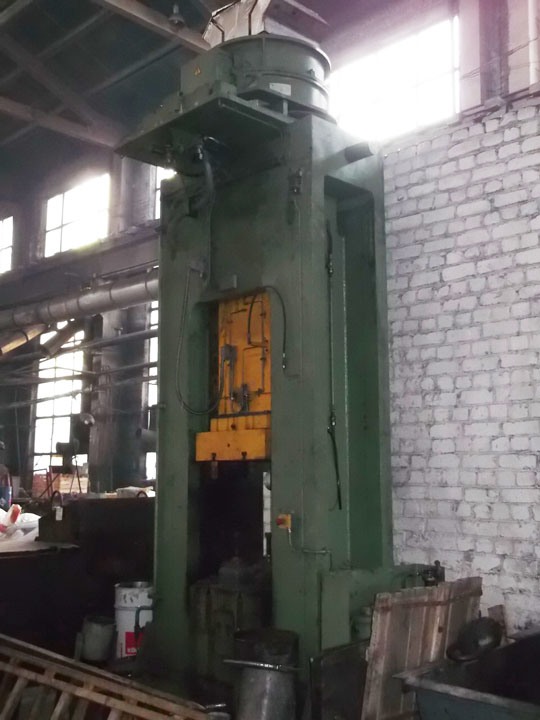

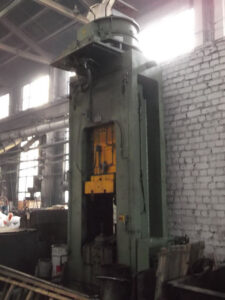

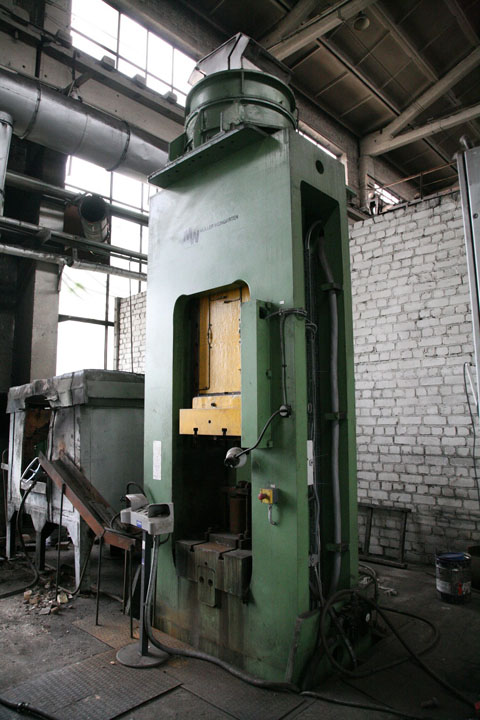

Spindelpresse Weingarten PA 225 - 800 ton
Technische Daten (EN) - Spindelpresse Weingarten PA 225 - 800 ton (ID: S84944)
| Type | Screw press |
| Manufacturer | Weingarten |
| Model | PA 225 |
| Year | 2009 |
| Pressing force | 800 ton |
| Thrower force (additionally for 10% of strokes) | 1000 ton |
| Spindle diameter | 225 mm |
| Max. stroke | 440 mm |
| Min. stroke | 230 mm |
| Number of strokes | 21 |
| Distance between table and slide | 500 mm |
| Width under guides | 800 mm |
| Width between guides | 700 mm |
| Table | 810 x 700 mm |
| Slide | 680 x 700 mm |
| Table opening | 90 mm |
| Main motor power | 28 kW |
| Fan motor power | 1 kW |
| Press height above floor level | 4750 mm |
| Press weight | 20 tons |
