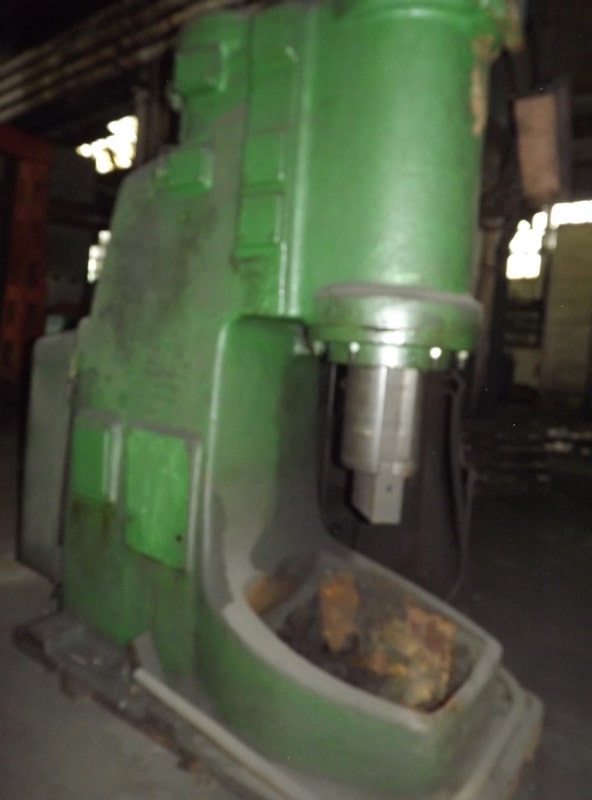

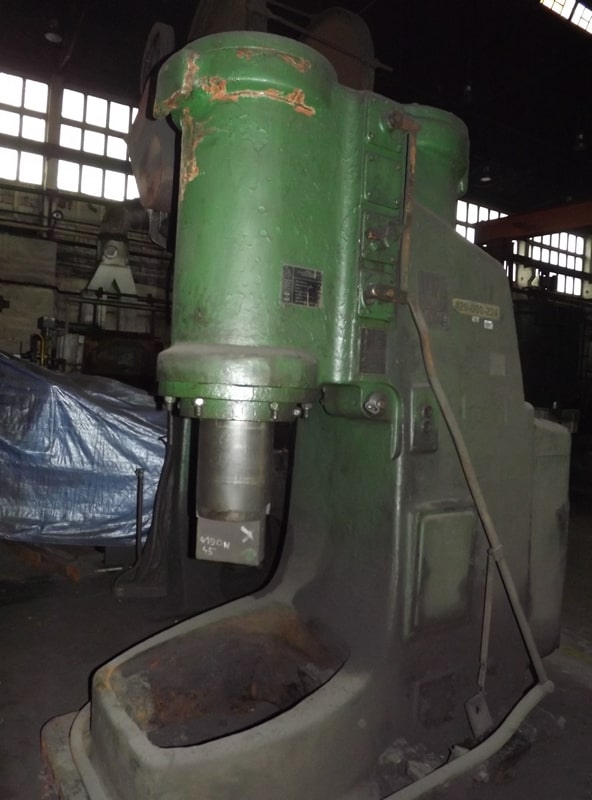

Freiformschmiedehammer Kalinin MB4134 - 250 kg
Technische Daten (EN) - Freiformschmiedehammer Kalinin MB4134 - 250 kg (ID: 75423)
| Type | Open die forging hammer |
| Manufacturer | Kalinin |
| Model | MB4134 |
| Nominal weight of falling parts | 250 kg |
| Energy of impact | 6,2 Kj |
| The greatest number of impacts in a minute | 150 |
| Ram axis-to-frame distance | 420 mm |
| Working zone daylight | 450 mm |
| Die impression size | 210 x 80 mm |
| Lower die impression-to-floor distance | 750 mm |
| Optimum workpiece cross-sectional dimensions | |
| square | 90 mm |
| rounded | 105 mm |
| Main electric motor power | 22 kW |
| Weight of a hammer with an anvil-block | 7900 kg |
