Mechanische Presse Smeral LKO 500 S - 500 ton

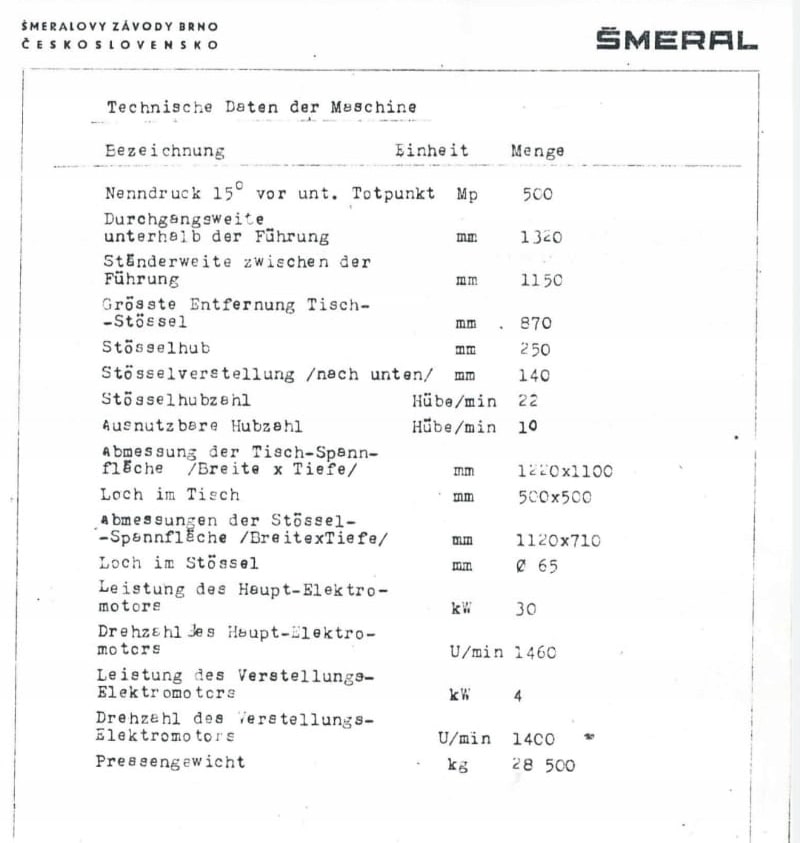

Technische Daten (EN) - Mechanische Presse Smeral LKO 500 S - 500 ton (ID: 75362)
| Type | Mechanical press |
| Manufacturer | Smeral |
| Model | LKO 500 S |
| Capacity | 500 ton |
| Passage width below the guide | 1320 mm |
| Distance between the guides | 1150 mm |
| Maximum distance table-ram | 87O mm |
| Ram stroke | 270 mm |
| Ram adjustment | 140 mm |
| Table size | 1220 x 1100 mm |
| Hole in table | 500 x 500 mm |
| Ram surface | 1120 x 710 mm |
| Hole in plunger | 65 mm |
| Electric motor | 30 kW |
| Dimensions | |
| Length | 3100 mm |
| Width | 2200 mm |
| Height | 5320 mm |
| Weight | 28500 kg |
