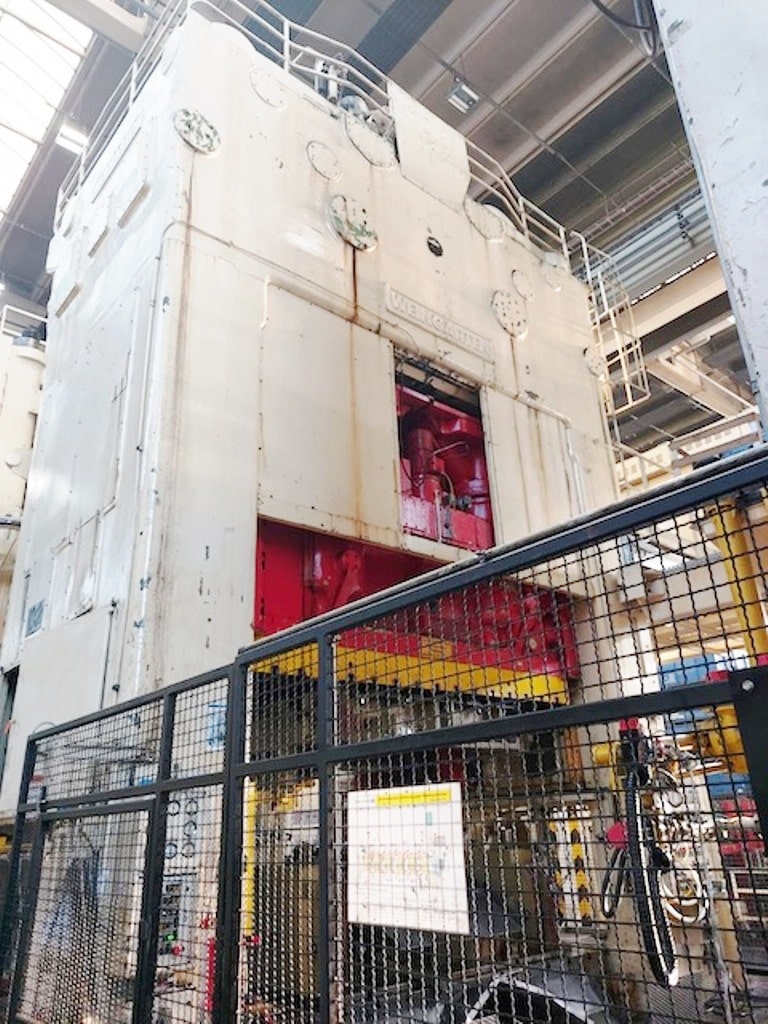

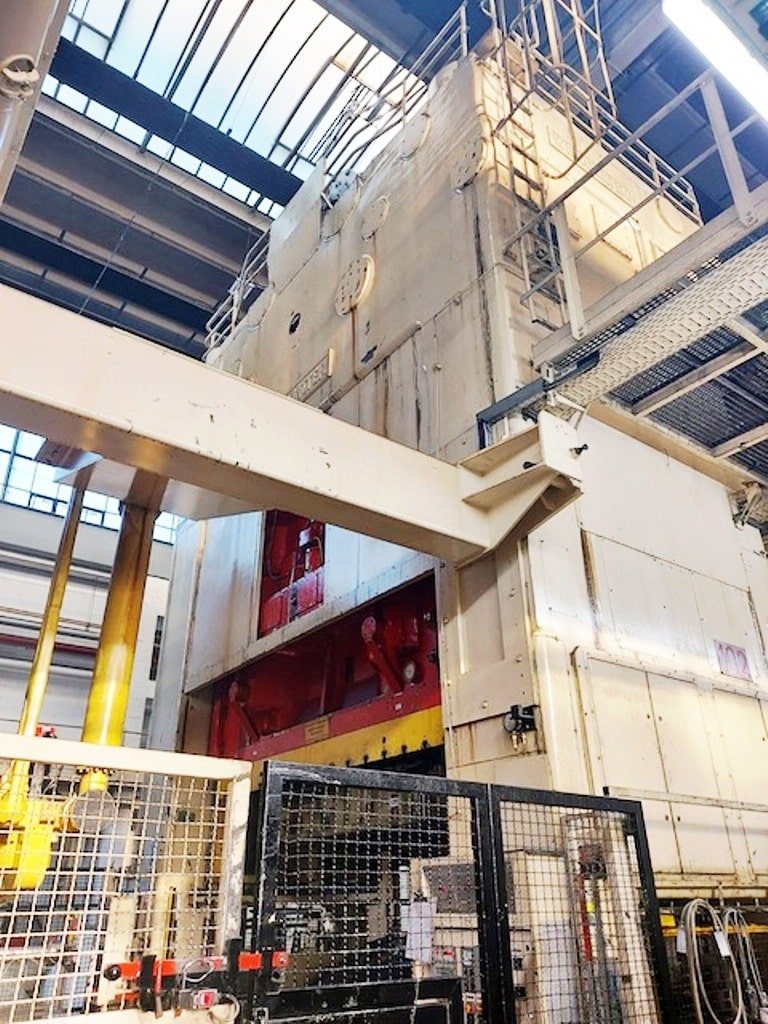

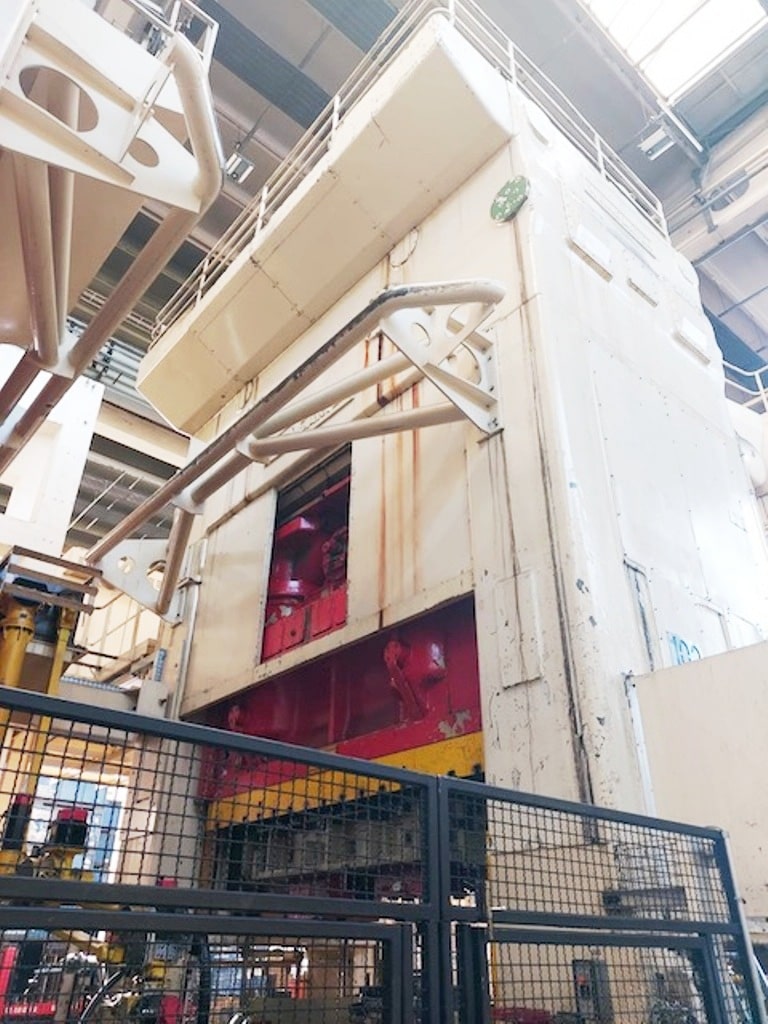

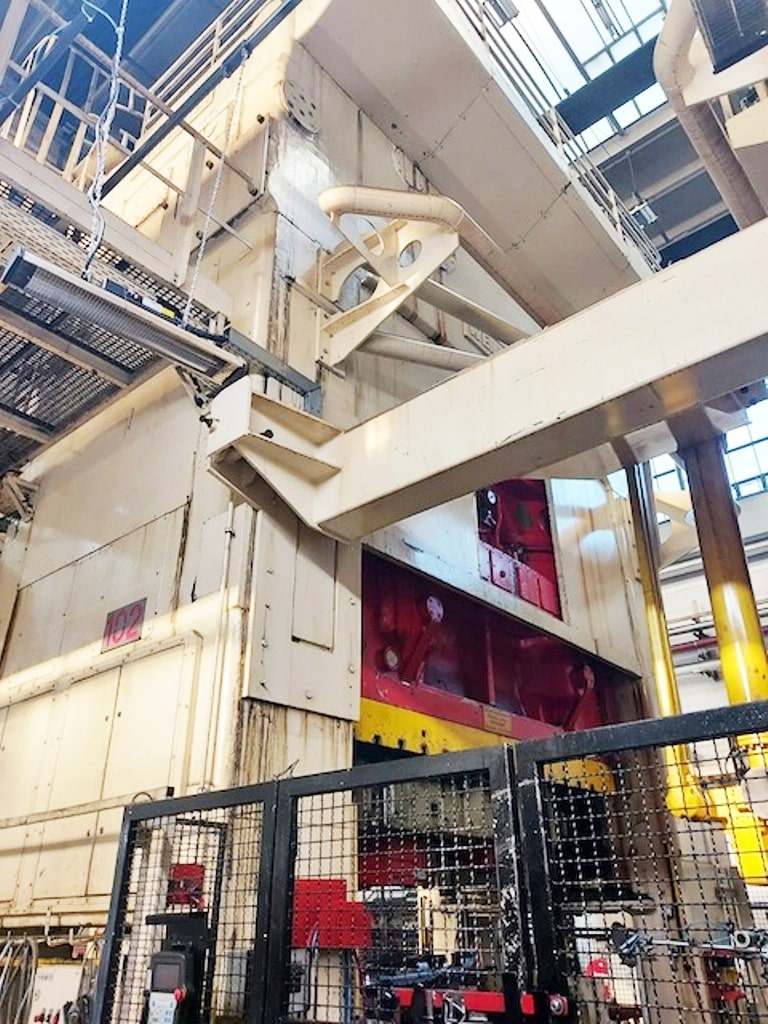

Umformpresse Muller Weingarten VK 1800.42.85 - 1000 ton
Technische Daten (EN) - Umformpresse Muller Weingarten VK 1800.42.85 - 1000 ton (ID: 75821)
| Type | Stamping press |
| Manufacturer | Muller Weingarten |
| Model | VK 1800.42.85 |
| Construction year | 1963 |
| Pressure total | 1800 ton |
| Ram stroke | 850 mm |
| Ram adjustment | 350 mm |
| Shut height (stroke down, adjustment up) | 1500 mm |
| Free frontal opening L-R | 4200 mm |
| Table surface area | 4000 x 2200 mm |
| Ram surface area | 4000 x 2200 mm |
| Cushion capacity in table | 2 x 144 ton |
| Cushion stroke | 300 mm |
| Number of strokes | 146 s.p.m. |
| No. of moving bolster | 1 |
| Required power | 160 kW |
| Weight of machine approx. | 450 ton |
