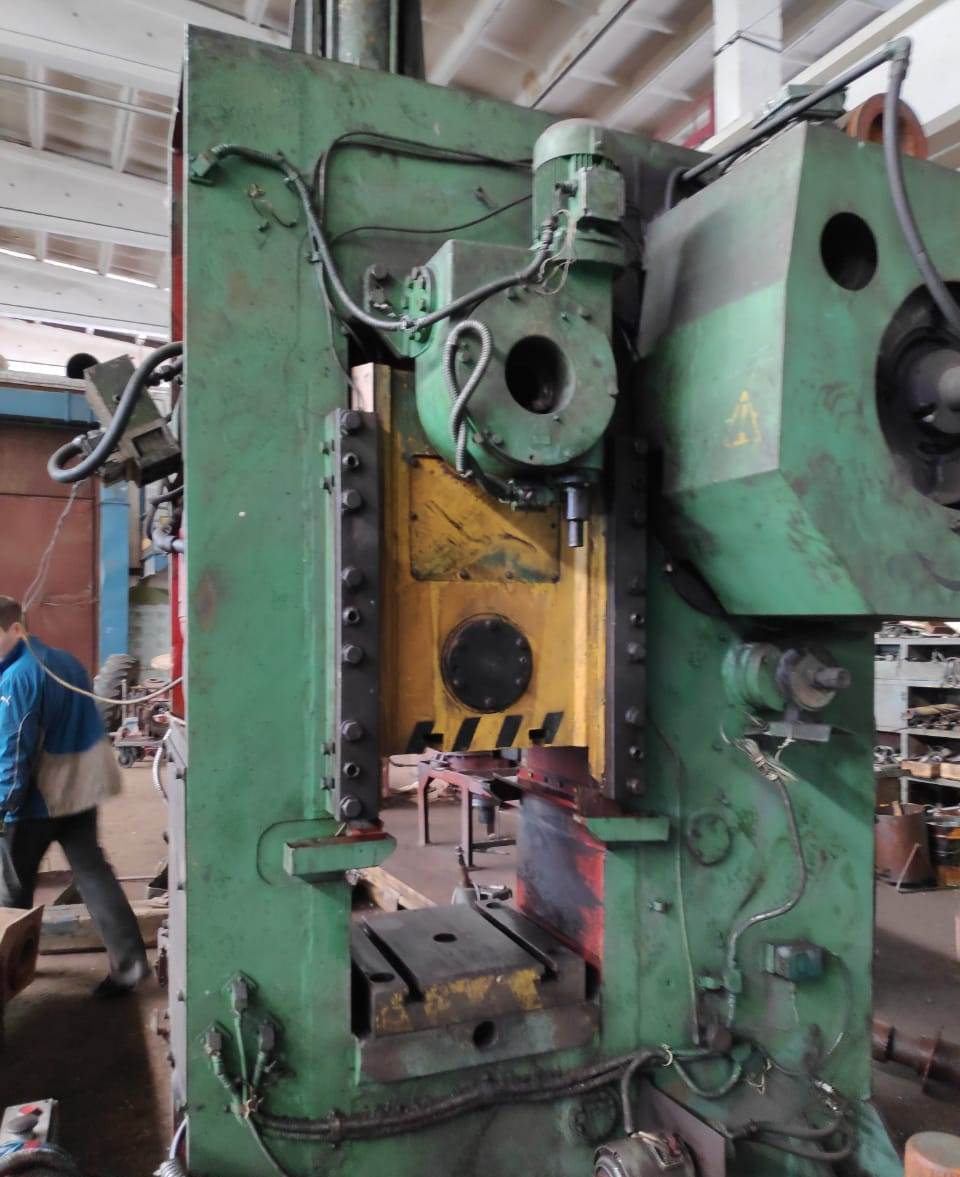

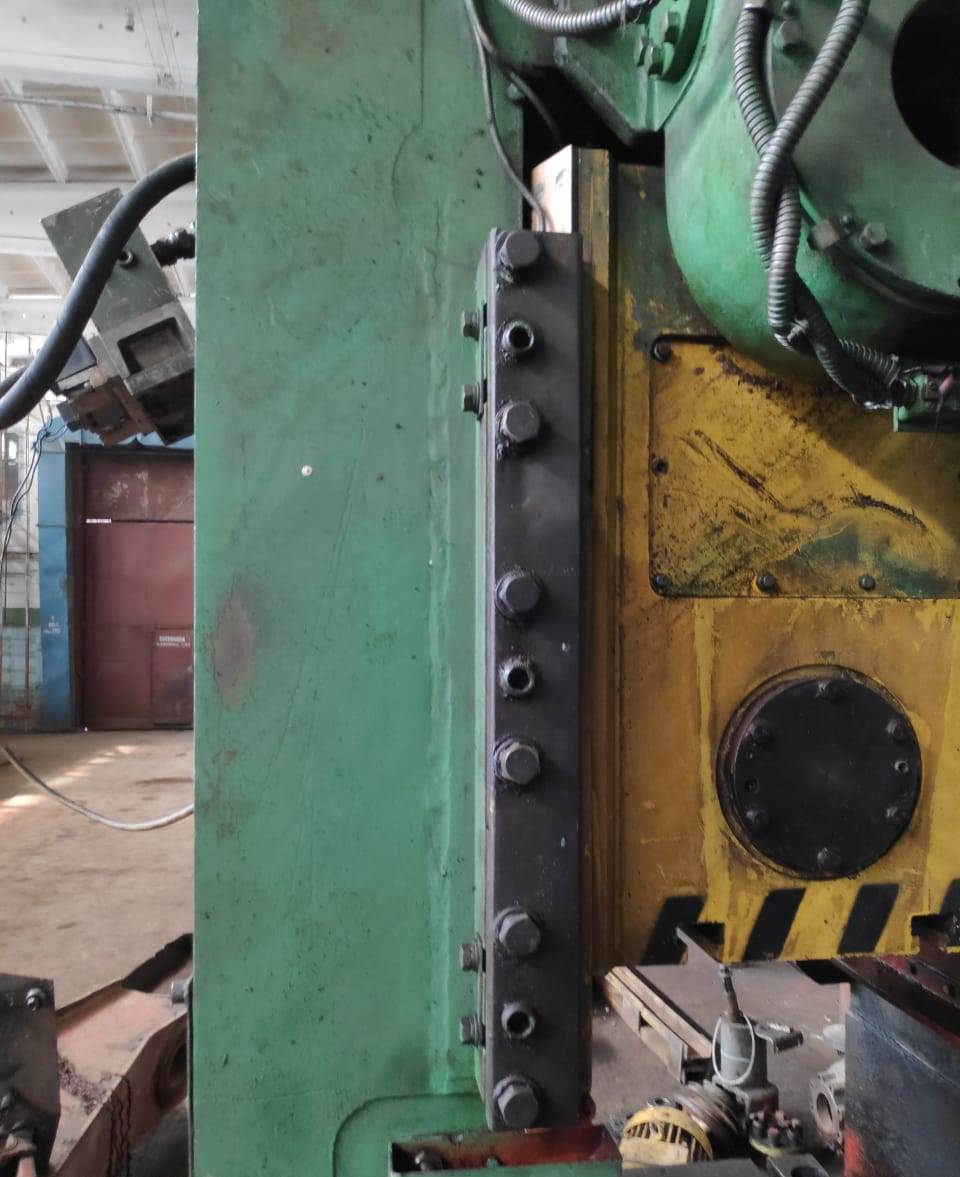

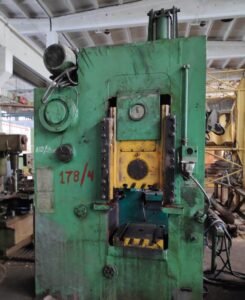

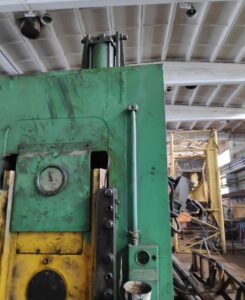

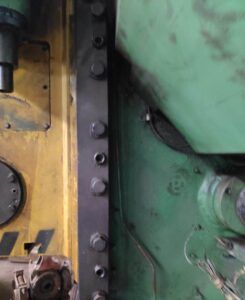

Kniehebelpresse Barnaul KB8336 - 400 ton
Technische Daten (EN) - Kniehebelpresse Barnaul KB8336 - 400 ton (ID: 75144)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KB8336 |
| Maximum force | 400t |
| Table dimensions | 500×500 mm |
| Ram stroke | 130 mm |
| Number of strokes per minute | 50 |
| Distance between a plate under a stamp and slider | 375 mm |
| Adjustment of the distance between the bolster plate and the slide | 12 mm |
| Dimensions | |
| Weight | 8425 Kg |
| Length | 1,940 m |
| Width | 1,240 m |
| Height | 2,800 m |
| Voltage | 50 Hz 380 V |
| Motor capacity | 12 kW |
