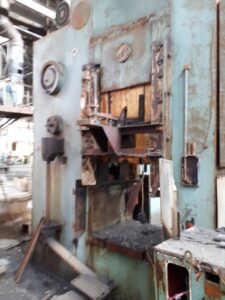

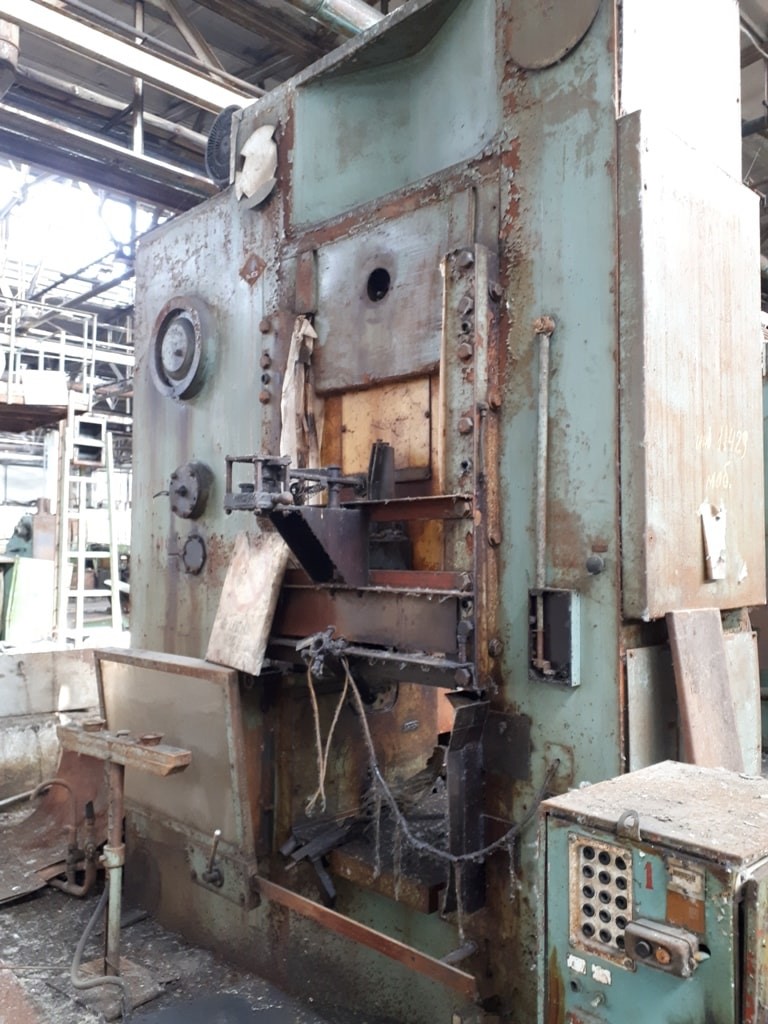

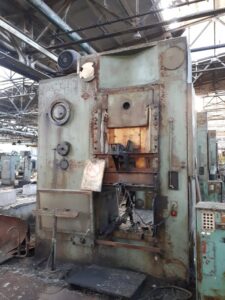

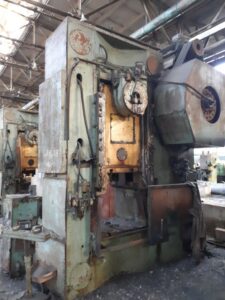

Kaltfließpresse Barnaul KB0034 - 250 ton
Technische Daten (EN) - Kaltfließpresse Barnaul KB0034 - 250 ton (ID: 75148)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | KB0034 |
| Rated capacity on the slide | 250 ton |
| Slide stroke | 200 mm |
| Frequency of the continuous strokes of the slide | 40/1 min |
| Max single-stroke engagements | 20/1 min |
| Adjustment of the tool’s height | 16 mm |
| Maximum tools shut-height | 490 mm |
| Dimensions of the bolster plate | |
| Left-to-right | 800 mm |
| Front-to-back | 800 mm |
| Overall dimensions | 2950 x 1950 x 4090 mm |
| Total weight | 21500 kg |
