Spezifikationen (EN) - Barnaul AC5100 (ID: 75193)
| Type | Cold extrusion press |
| Manufacturer | Barnaul |
| Model | AC5100 |
| Capacity of press | 4000 kN |
| Slide stroke | 240 mm |
| Frequency of continuous press strokes per minute | 25 |
| Number of single press strokes per minute | 16 |
| Press stroke path till its extreme position, where it develops capacity of press | 36 mm |
| Distance between die bed and press slide in its lower position with up position of adjustment | 750 mm |
| Dimension of distance adjustment between the bed and press slide | 16 mm |
| Slide stroke | 240 mm |
| Proportions of bed | |
| From left to right | 1000 mm |
| From the front to back | 1250 mm |
| Proportions of press slide | |
| From left to right | 900 mm |
| From the front to back | 940 mm |
| Thickness of die bed | 160 mm |
| Overhead ejection stroke | 16 mm |
| Overhead ejection force | 160 kN |
| Inferior ejection stroke | 140 mm |
| Inferior ejection force | 500 kN |
| Rigidity | 3600 kN |
| Overall dimensions of press | |
| From left to right | 2260 mm |
| From the front to back | 2500 mm |
| Height | 4365 mm |
| Height of press above the floor | 4400 mm |
| Mass of press without base and electric equipment | 36510 kg |

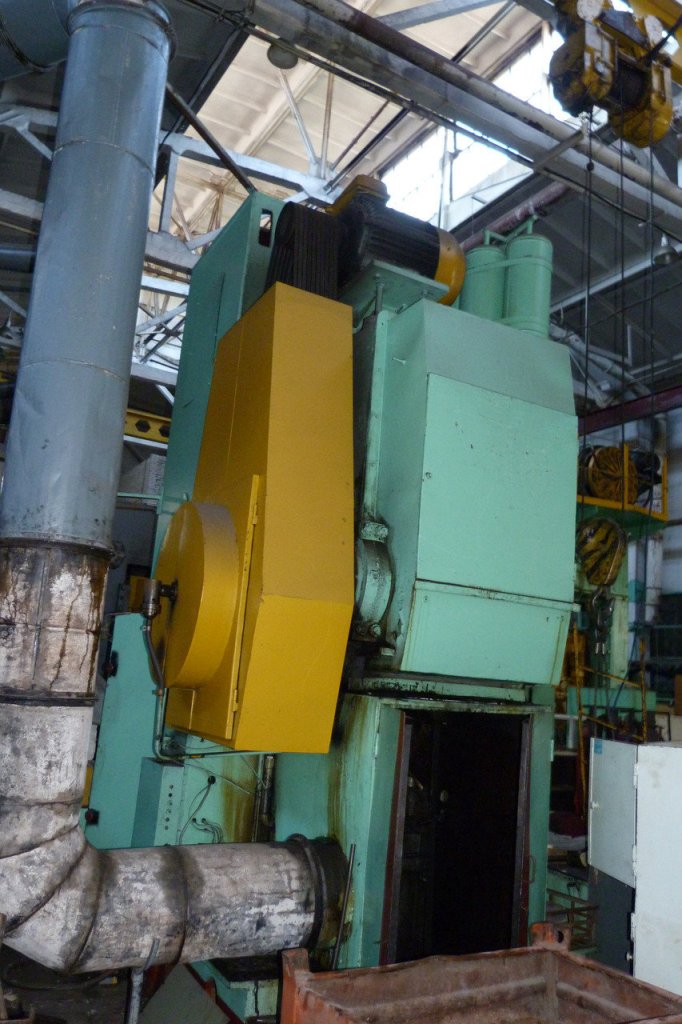

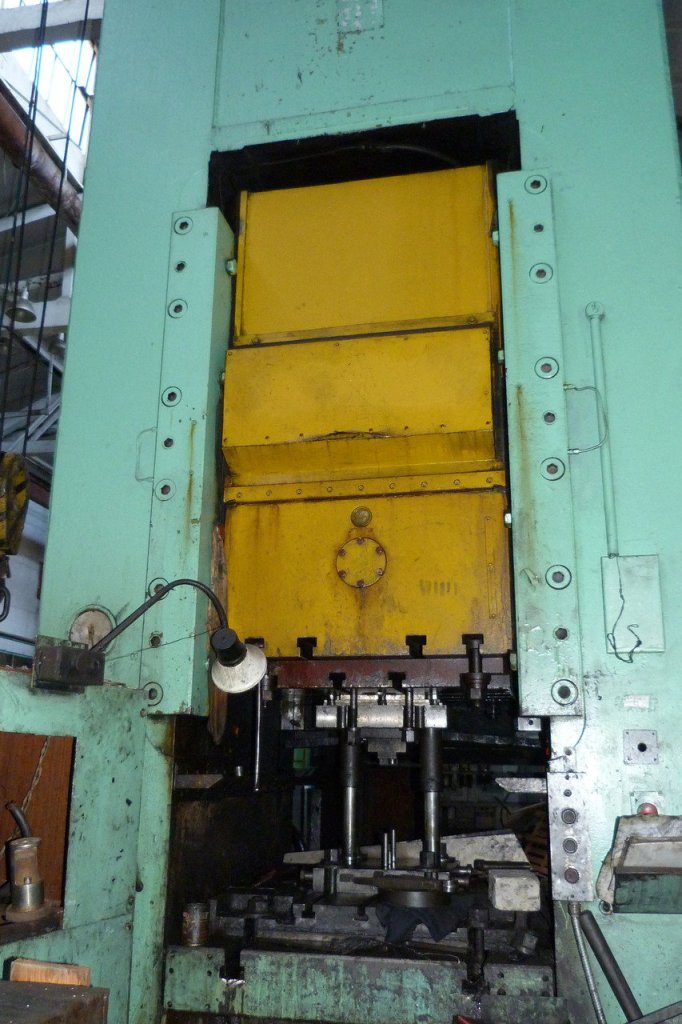

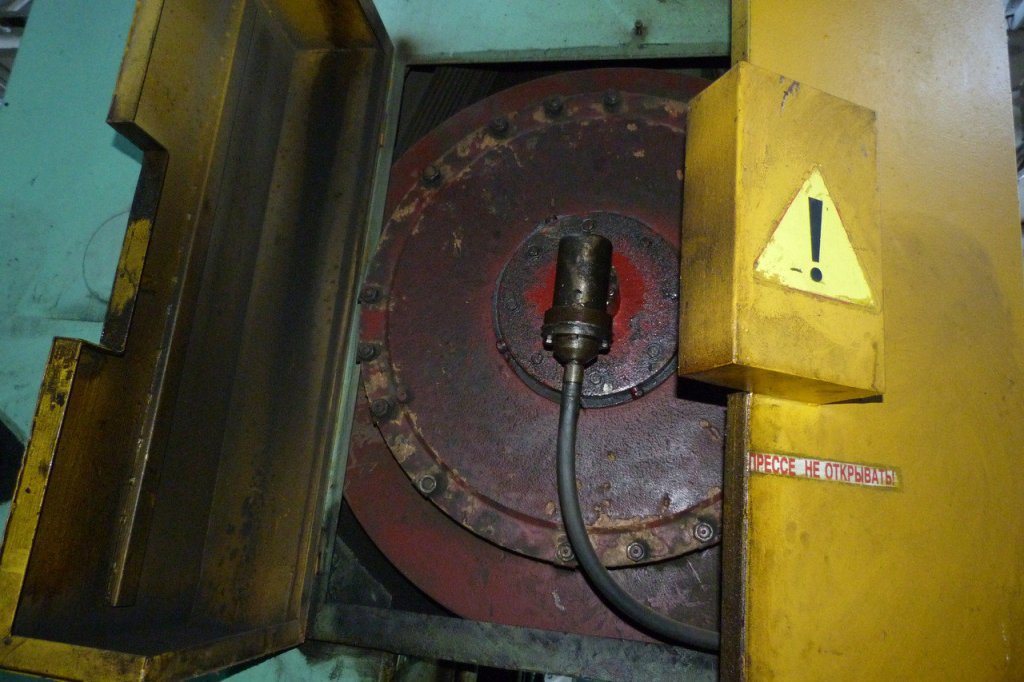

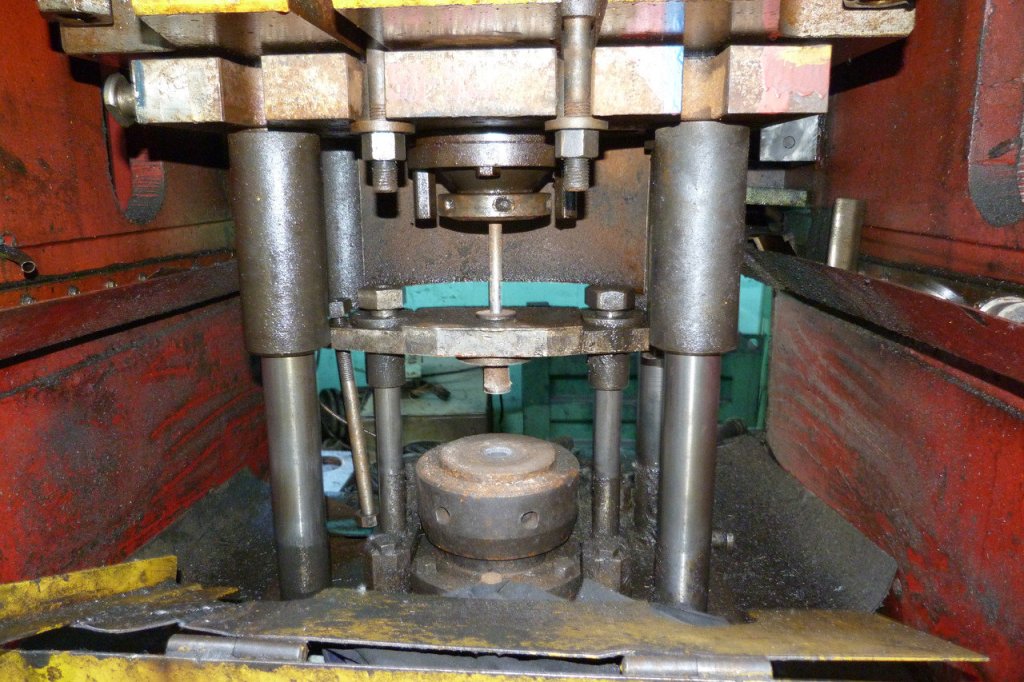

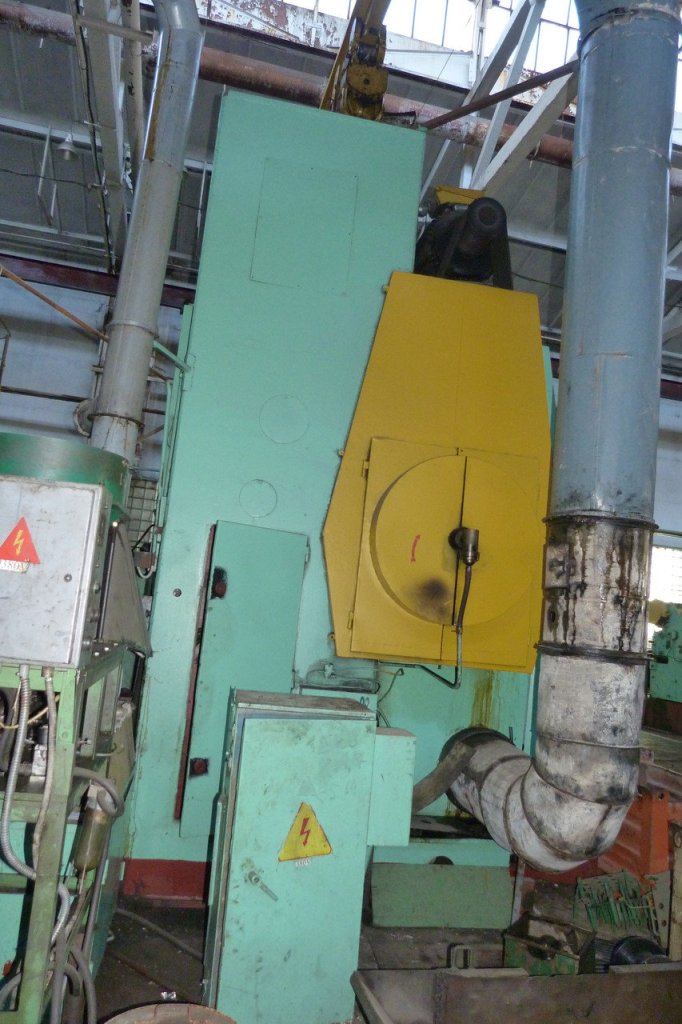

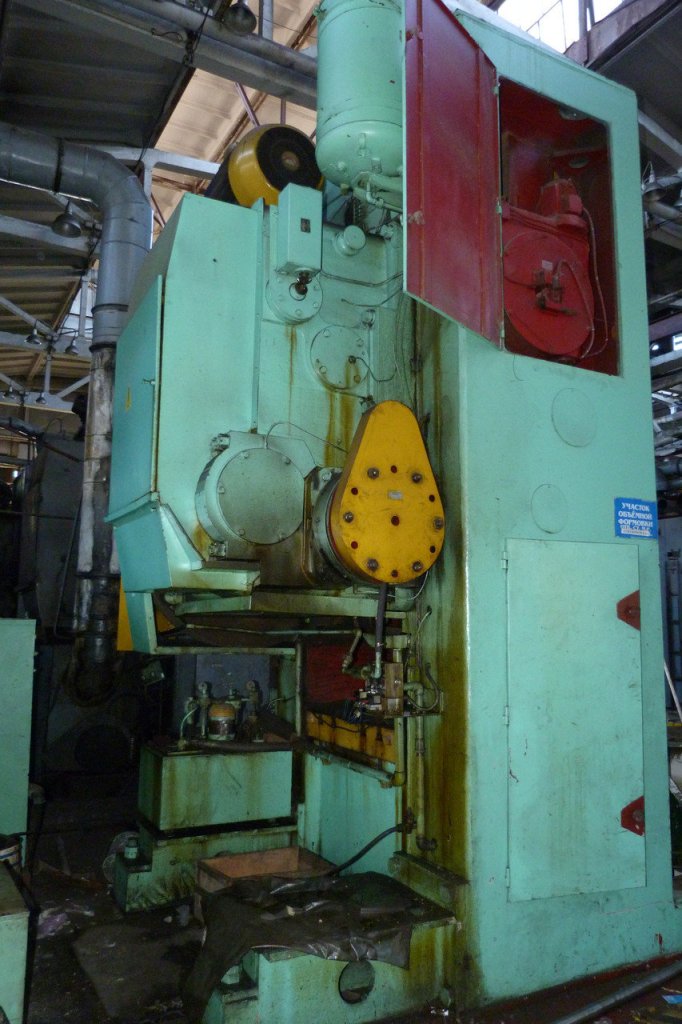

Fotos - Barnaul AC5100 (ID: 75193)
Kommerzielles Angebot (Verkauf) - Kaltextrusion Presse Barnaul AC5100 - 400 ton (ID:75193). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
