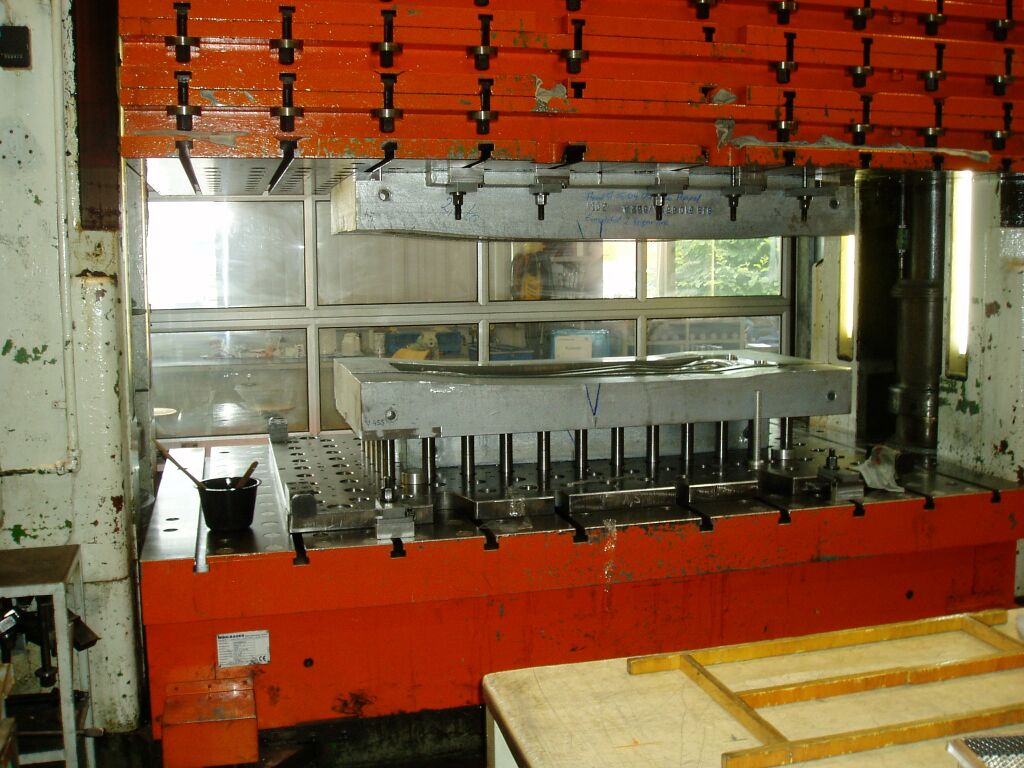

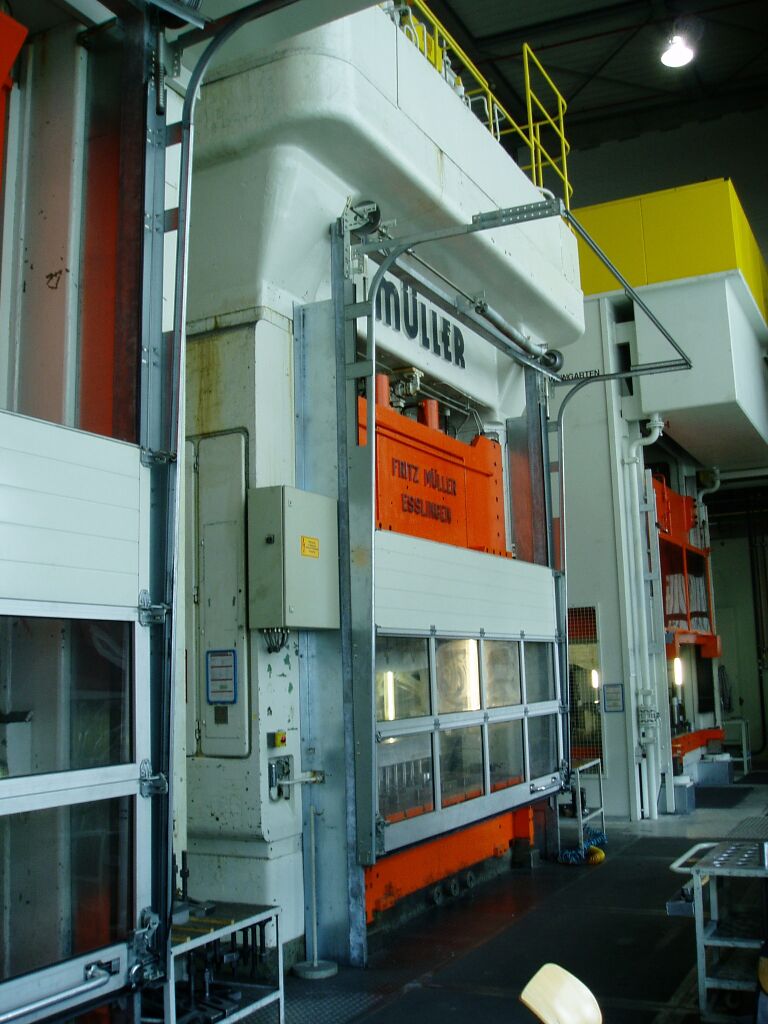

Hydraulische Presse Muller ZE 630-32.3.1 - 630 ton
Technische Daten (EN) - Hydraulische Presse Muller ZE 630-32.3.1 - 630 ton (ID: 75873)
| Type | Hydraulic press |
| Manufacturer | Muller |
| Model | ZE 630-32.3.1 |
| Year | 1961 |
| Pressure | 630 ton |
| Slide stroke | 900 |
| Pass through width | 3240 mm |
| Dayligth | 1800 mm |
| Die cushion stroke | 400 mm |
| Die cushion capacity | 250 ton |
| Table-size | 3200 x 1900 mm |
| Clamping surface ram | 3200 x 1600 mm |
| Height over floor | 7000 mm |
| Work speed | 16-24 mm/sec |
| Rapid traverse — up | 400 mm/sec |
| Rapid traverse — down | 250 mm/sec |
