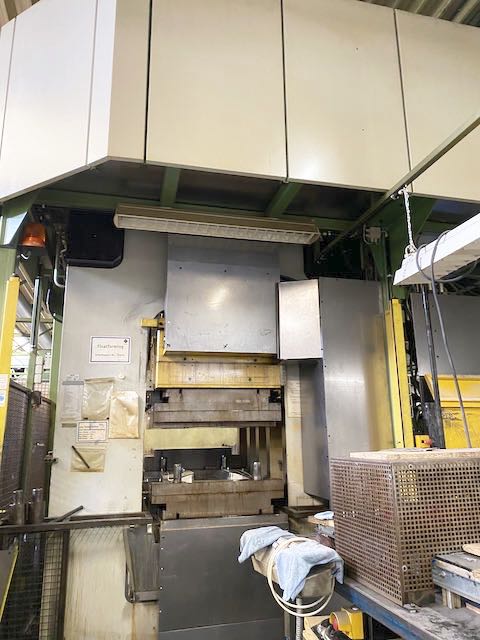

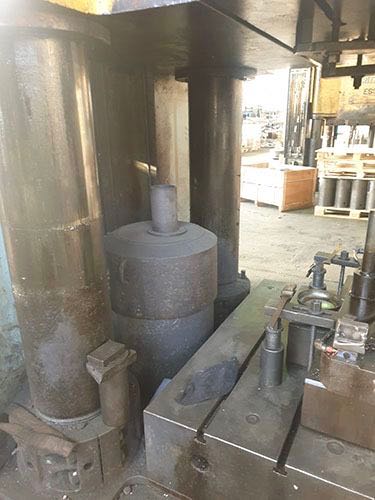

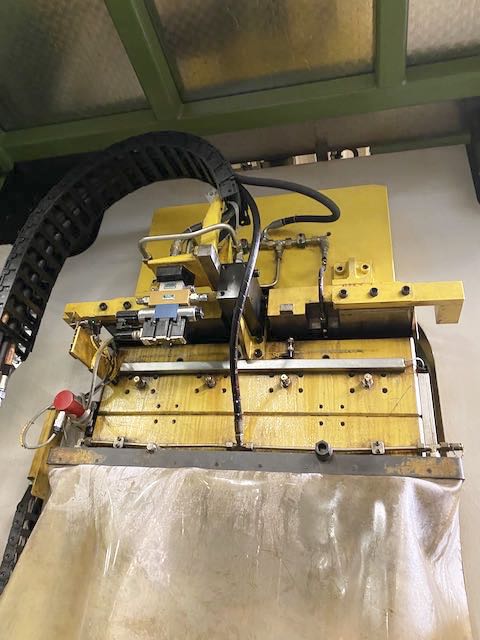

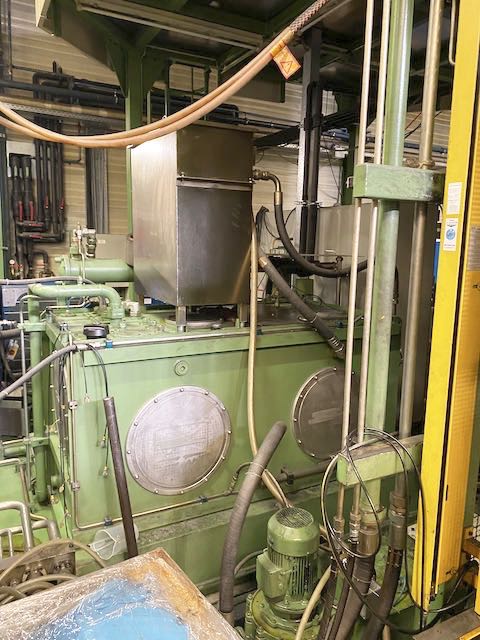

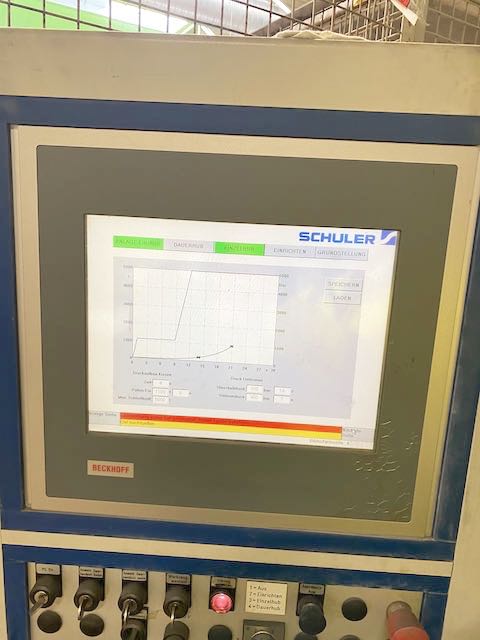

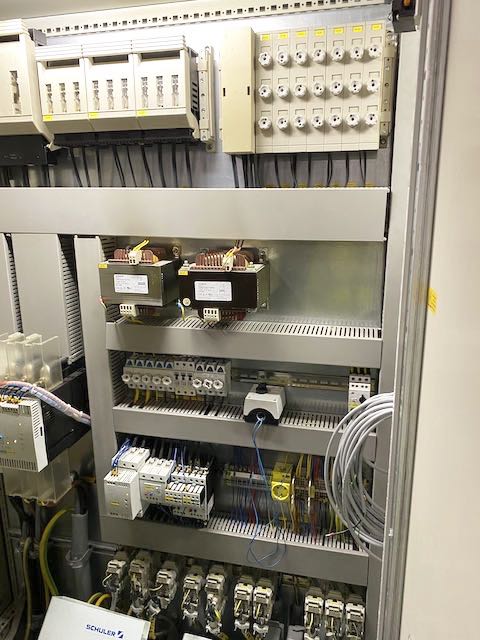

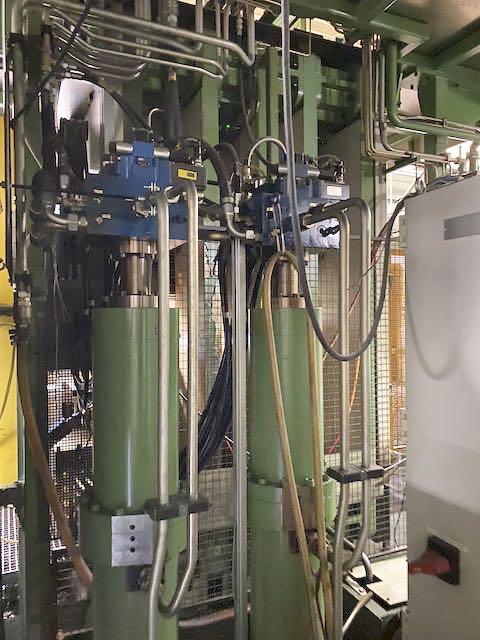

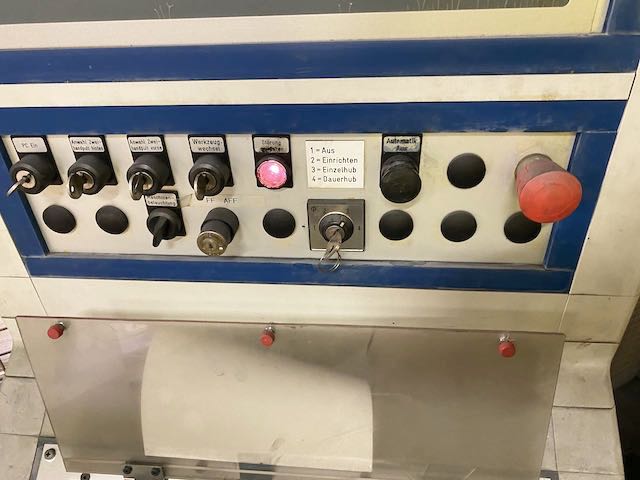

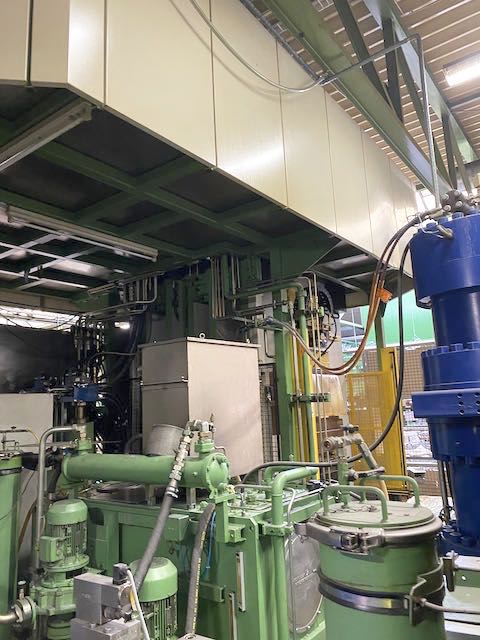

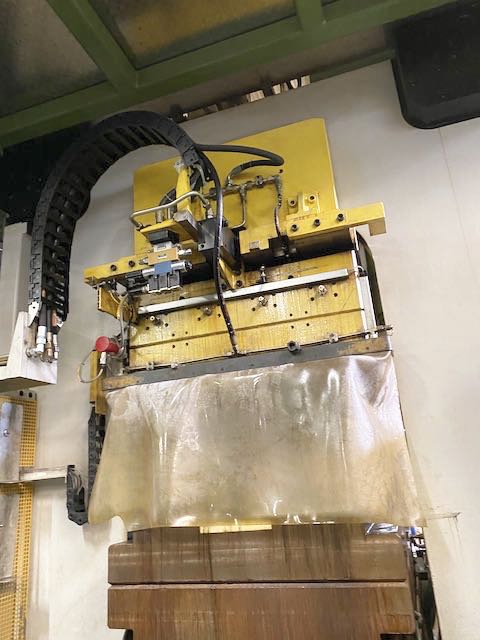

Hydraulische Presse Schuler SHPS 50000 - 5000 ton
Technische Daten (EN) - Hydraulische Presse Schuler SHPS 50000 - 5000 ton (ID: 75831)
| Type | Hydraulic press |
| Manufacturer | Schuler |
| Model | SHPS 50000 |
| Capacity | 5000 ton |
| Table surface area | 2000 x 1000 mm |
| Ram surface area | 2000 x 1000 mm |
| Die height | 495 mm |
| Stroke length ram | 500 mm |
| Stroke length cushion (up) | 10 mm |
| Stroke length cushion (down) | 10 mm |
| Closing speed | 400 mm / sec |
| Working speed | 2,5 mm / sec |
| Retraction speed | 400 mm / sec |
| Die Weight total | 8 kg |
| Upper tool weight max. | 4000 kg |
| Required power | 220 kW |
| Total power | 350 A |
| Oil volume | 3.75 l |
| Weight of machine approx. | 73 ton |
