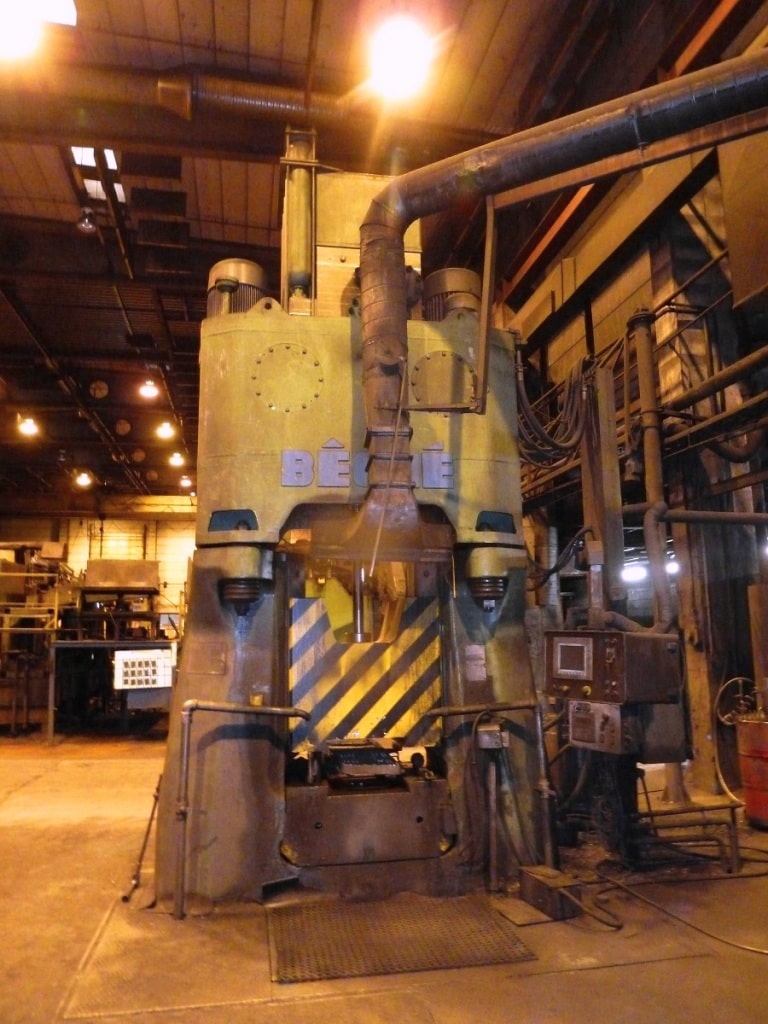

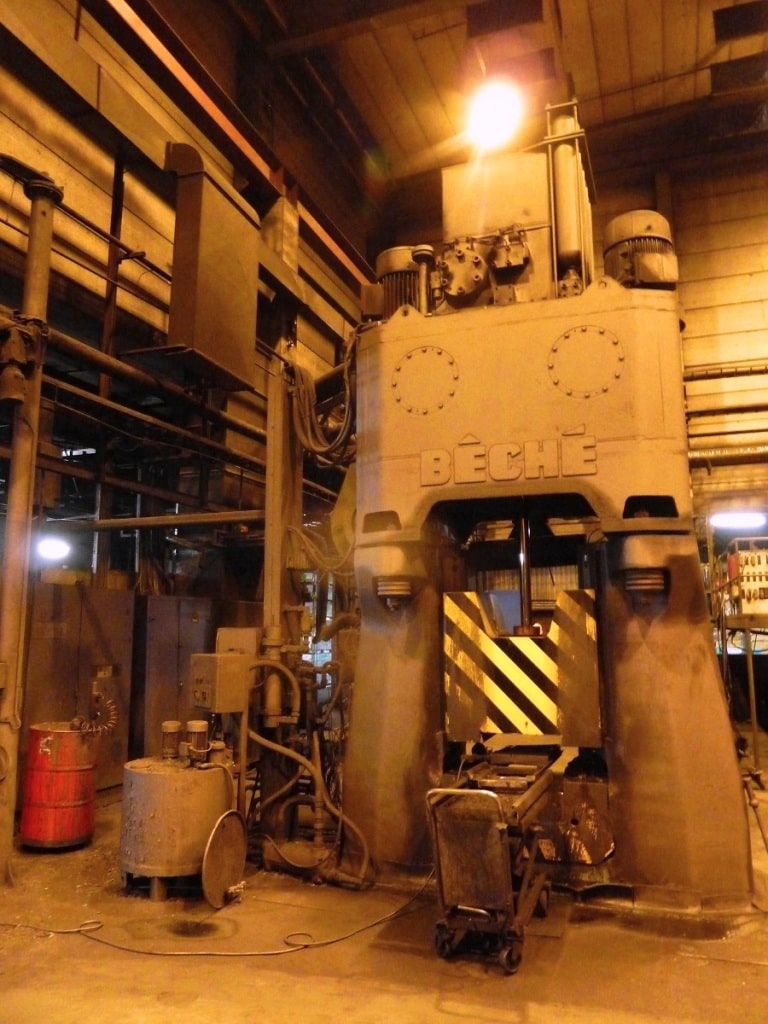

Hydraulischer Schmiedehammer Beche KGM 6.3 - 69 kJ
Technische Daten (EN) - Hydraulischer Schmiedehammer Beche KGM 6.3 - 69 kJ (ID: S76487)
| Type | Hydraulic forging hammer |
| Manufacturer | Beche |
| Model | KGM 6.3 |
| YOM | 1994 |
| Work capacity max | 63 kJ |
| Strokes per minute | 98 |
| Stroke | 805 mm |
| Max. space between bolster and ram | 1015 mm |
| Dies height | max. 465 mm, min. 210 mm |
| Total length | 7030 mm |
| Height above floor | 5655 mm |
| Deep under floor | 1375 mm |
| Total weight | 94 tons |
| Anvil weight | 89 tons |
