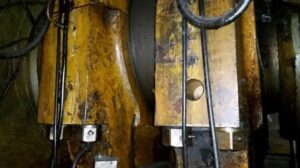

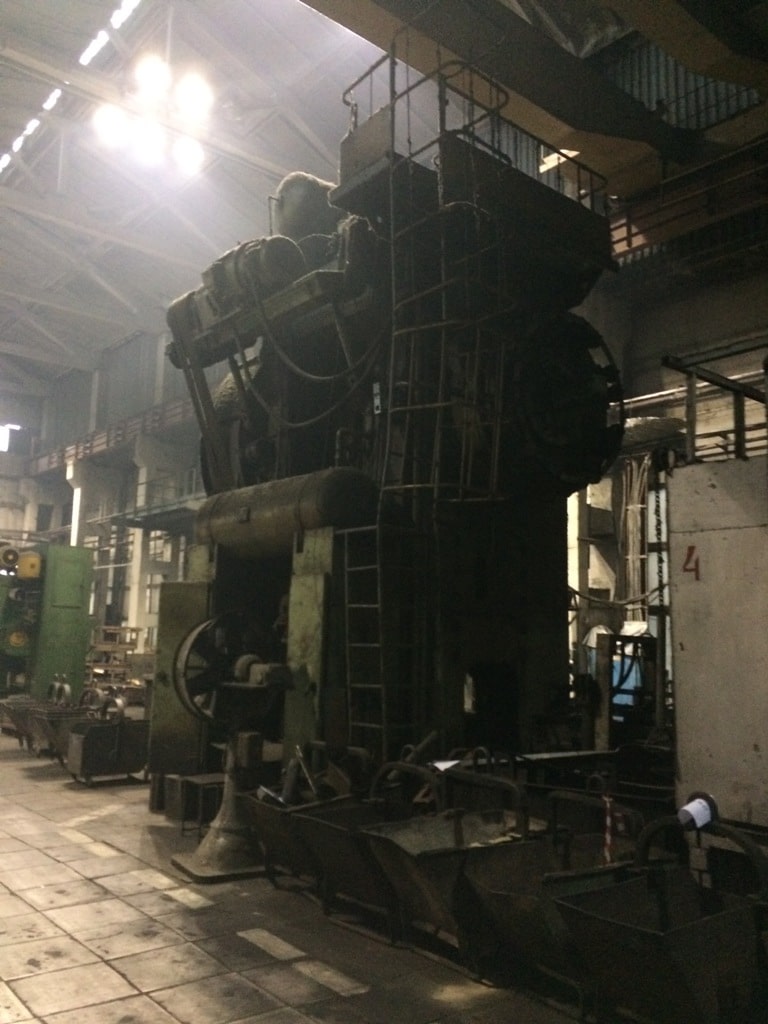

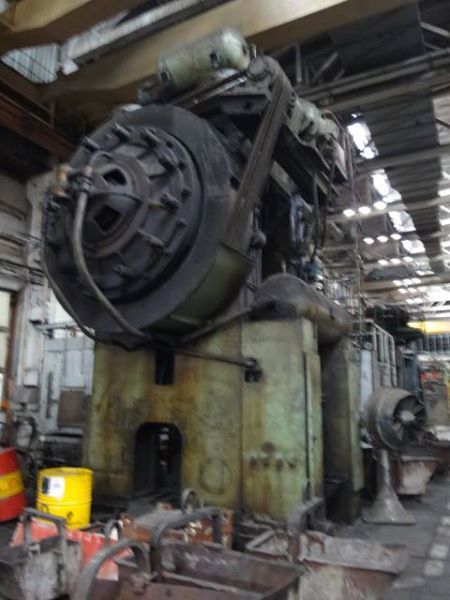

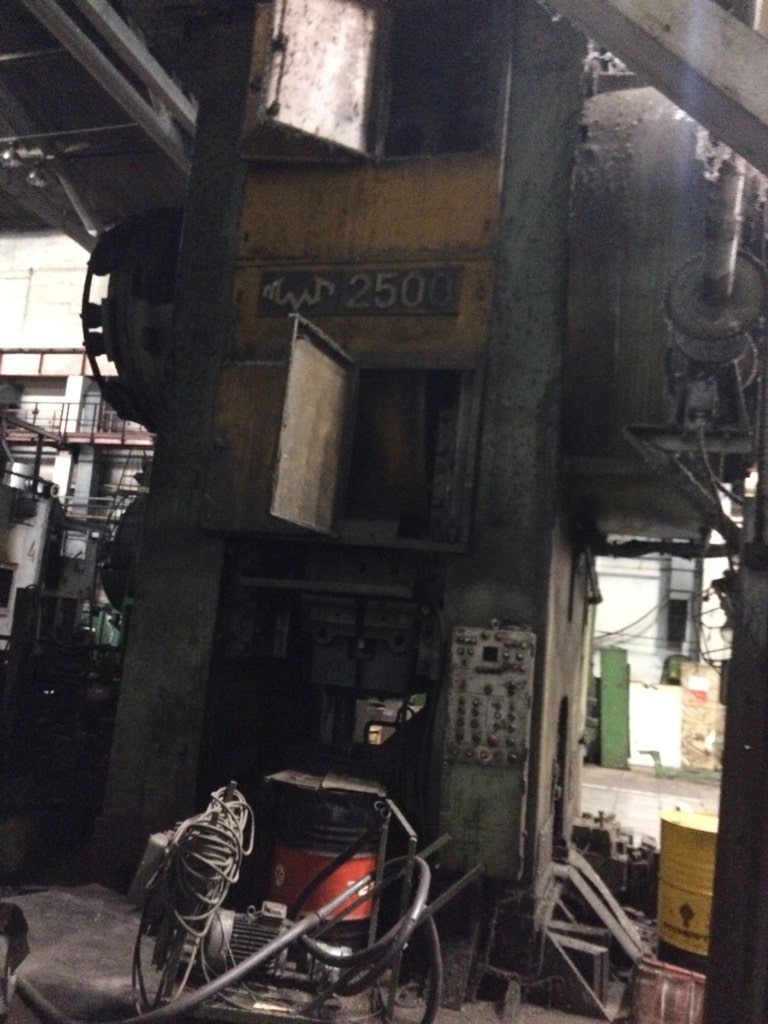

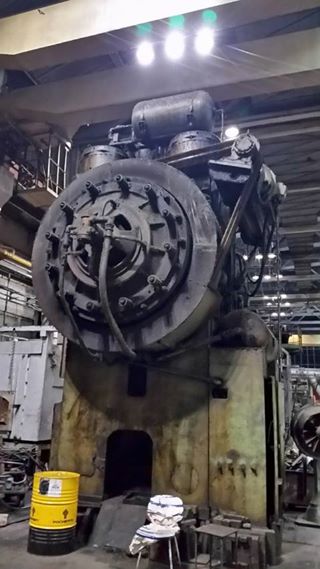

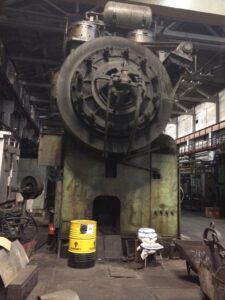

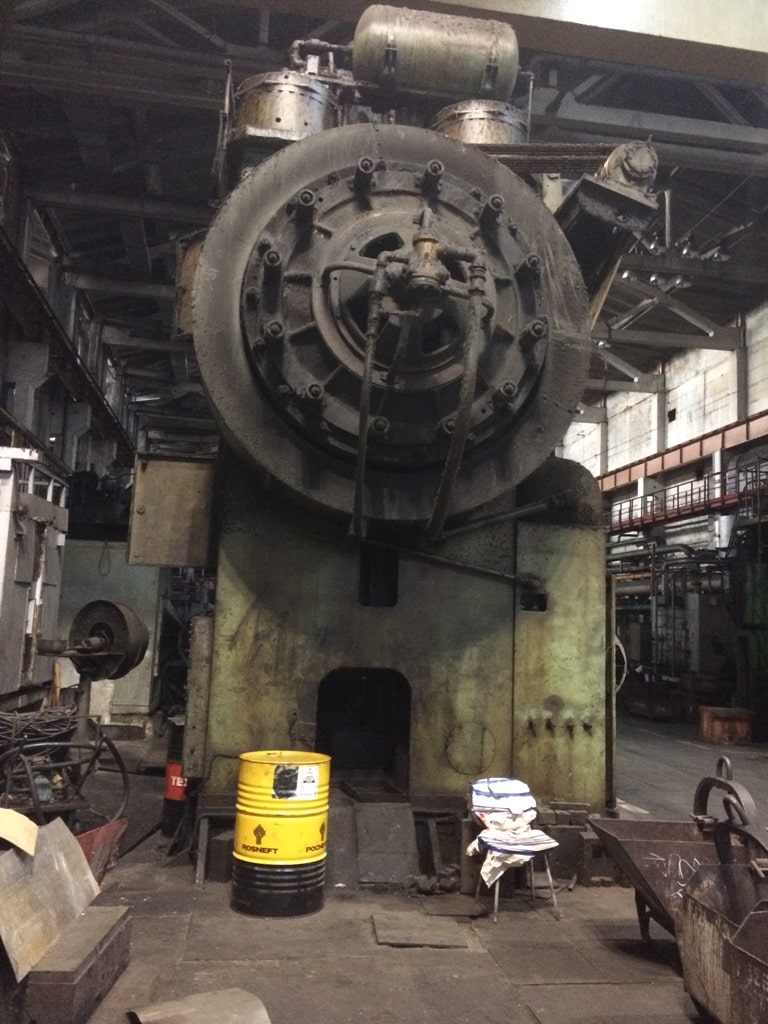

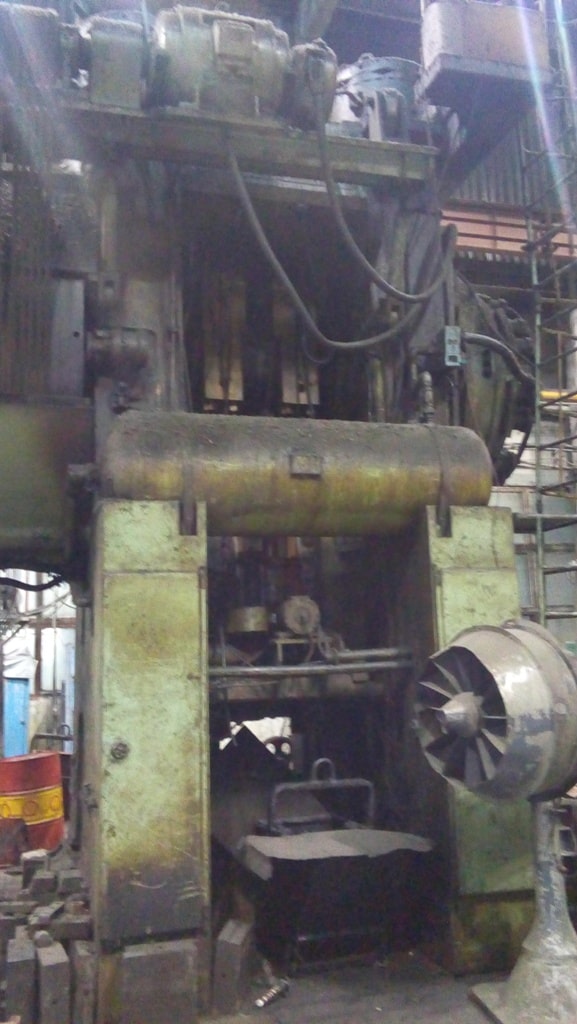

Gesemkschmiedepresse TMP Voronezh KB8544 - 2500 ton
Technische Daten (EN) - Gesemkschmiedepresse TMP Voronezh KB8544 - 2500 ton (ID: 75349)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KB8544 |
| Maximum force ton-force | 2500 ton |
| Slider stroke length | 350 mm |
| Number of courses of a slider per minute | 70 |
| Adjustment of a table on height | 10 mm |
| Maximum distance between table and slider (in lower position of slider) | 1000 mm |
| Size of a course of the top three-position pusher | 20/40/60 mm |
| Size of a course of the bottom on-off pusher | 80 mm |
| Table overall dimensions: from left to right from front to rear | 1280 x 1400 mm |
| Slider overall dimensions: from left to right from front to rear | 1090 x 1150 mm |
| The sizes of windows in racks: height width | 1100 x 950 mm |
| Distance between racks in light | 1320 mm |
| Main electric motor power | 110 kW |
| Machine overall dimensions length width height | 5700 x 4375 x 8000 mm |
