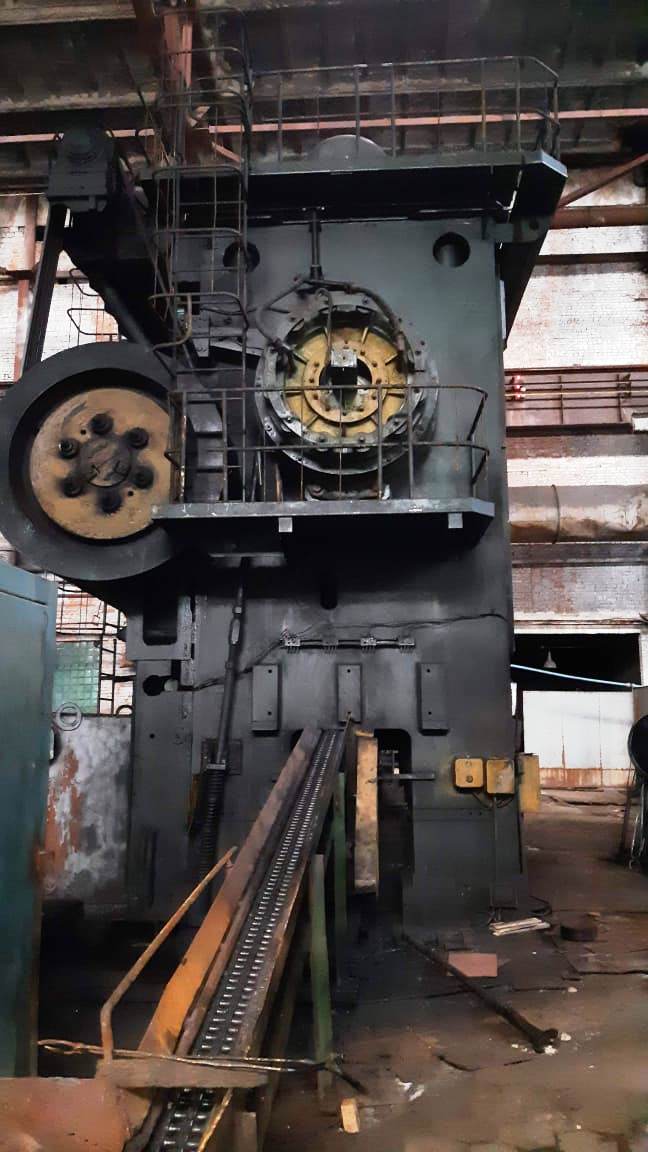

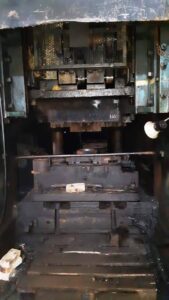

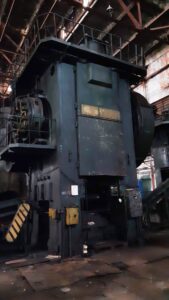

Spezifikationen (EN) - TMP Voronezh KB8046 (ID: S82505)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KB8046 |
| Rated capacity of the press | 4000 ton |
| Stroke of the slide | 400 mm |
| Number of slide strokes, 1 min. | |
| Continuous | 50 |
| Single | 14 |
| Minimal distance between table and upper plate of the slide in its extreme lower position | 1200 mm |
| Value of adjustable distance between table and the slide | 10 mm |
| Lower ejector in the table | |
| Number of positions | 2 |
| Stroke value | |
| Mechanical | 20 mm |
| Pneumatic | 50 mm |
| Force per one pusher | |
| Mechanical | 200 kN |
| Pneumatic | 13 kN |
| Dimensions of the table (bolster plate) | |
| Left to right | 1680 mm |
| Front to back | 1620 mm |
| Dimensions of the slide, not less | |
| Left to right | 1470 mm |
| Front to back | 2000 mm |
| Distance between the uprights in the light | 1770 mm |
| Dimensions of openings in the press uprights | |
| Width | 1040 mm |
| Height | 1100 mm |
| Dimensions of the press | |
| Left to right | 6628 mm |
| Font to back | 5700 mm |
| Height of the press above floor level | 7830 mm |
| Weight of the press | 359000 kg |
Kommerzielles Angebot (Verkauf) - Schmiedepresse TMP Voronezh KB8046 - 4000 ton (ID:S82505). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
