Spezifikationen (EN) - TMP Voronezh KB8042 (ID: 75759)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | KB8042 |
| Capacity | 1600 tons |
| Slide stroke | 300±1 mm |
| Number of continuous slide strokes per minute | at least 85 |
| Number of single slide strokes per minute | no more than 16 |
| Distance between table and bolster slide plate in its lowest position | 660 mm |
| Size of distance adjustment between table and slide | 10±1 mm |
| Upper ejector | |
| Stroke | 40±3 mm |
| Force | at least 63 kN |
| Lower ejector | |
| Stroke | 32±2 mm |
| Force | at least 100 kN |
| Table dimensions | |
| Left-to-right | 1050 mm |
| Front-to-back | 1200 mm |
| Slide dimensions | |
| Left-to-right | 860 mm |
| Front-to-back | 910 mm |
| Size of windows in press columns | |
| Height | at least 710 mm |
| Width | at least 630 mm |
| Press dimensions | |
| Left-to-right | 4850±48 mm |
| Front-to-back | 3515±35 mm |
| Height of the press above floor | 5570±50 mm |
| Number of motors on the press | 3 |
| Main drive electric motor | |
| Power | 90 kW |
| Rotation frequency | 720 rpm |
| Electric motor of adjustment mechanism of closed height | |
| Power | 5,5 kW |
| Rotation frequency | 735 rpm |
| Press weight | 115667 kg |

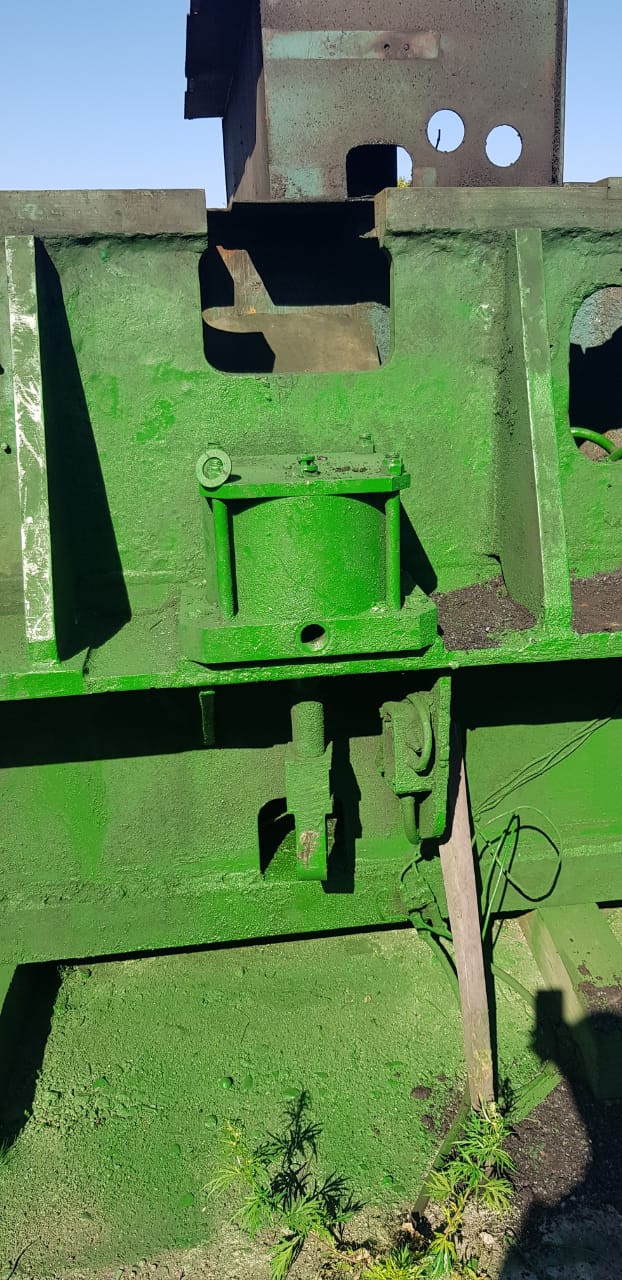

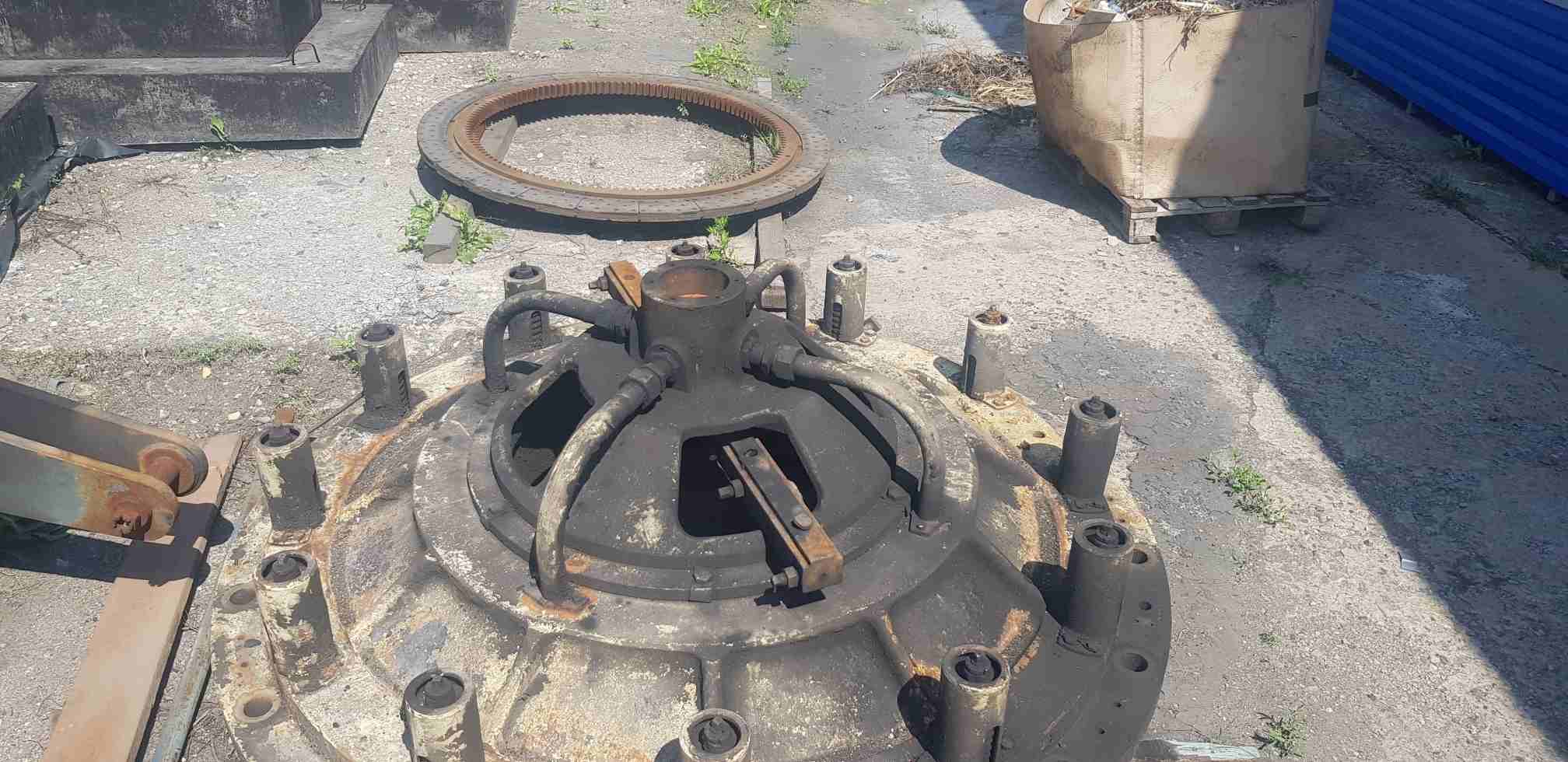

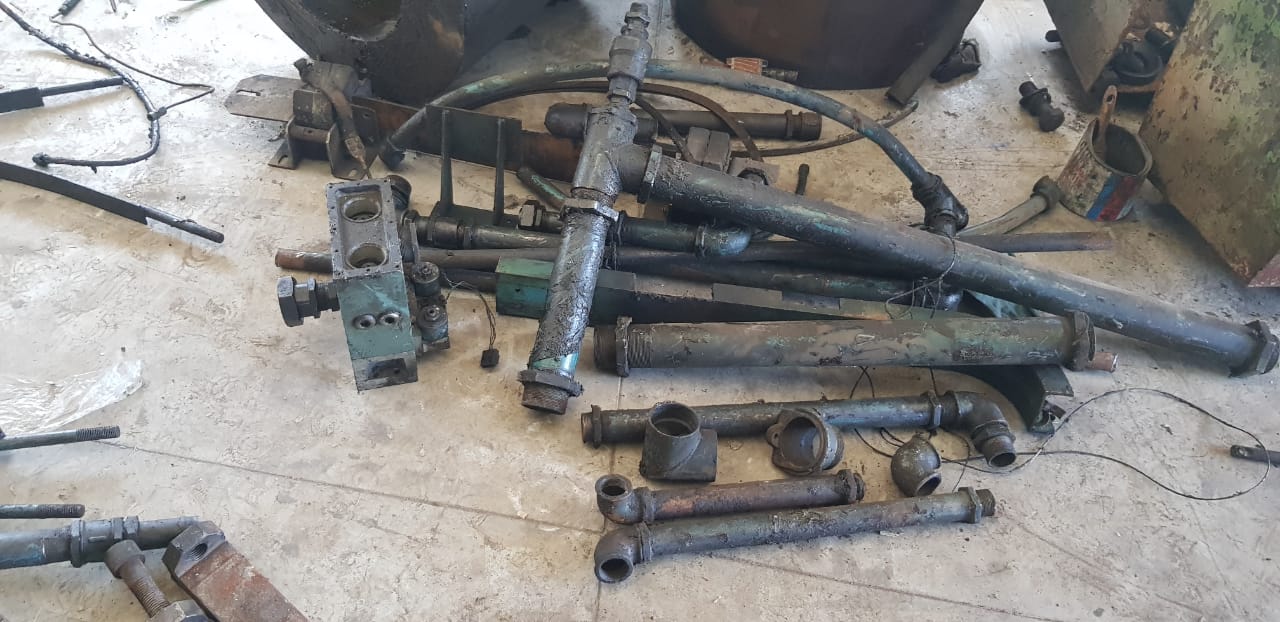

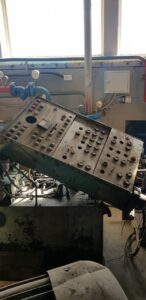

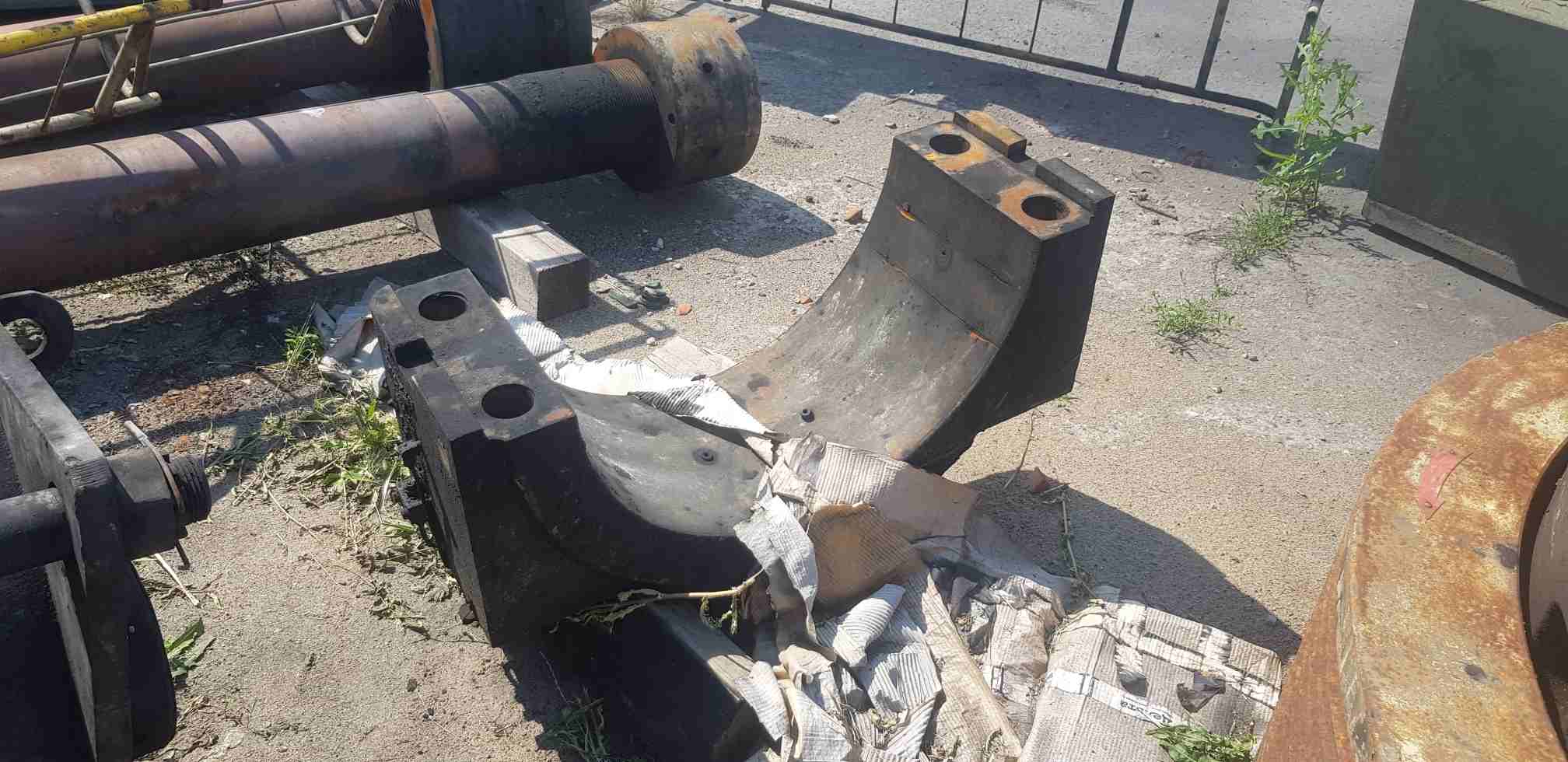

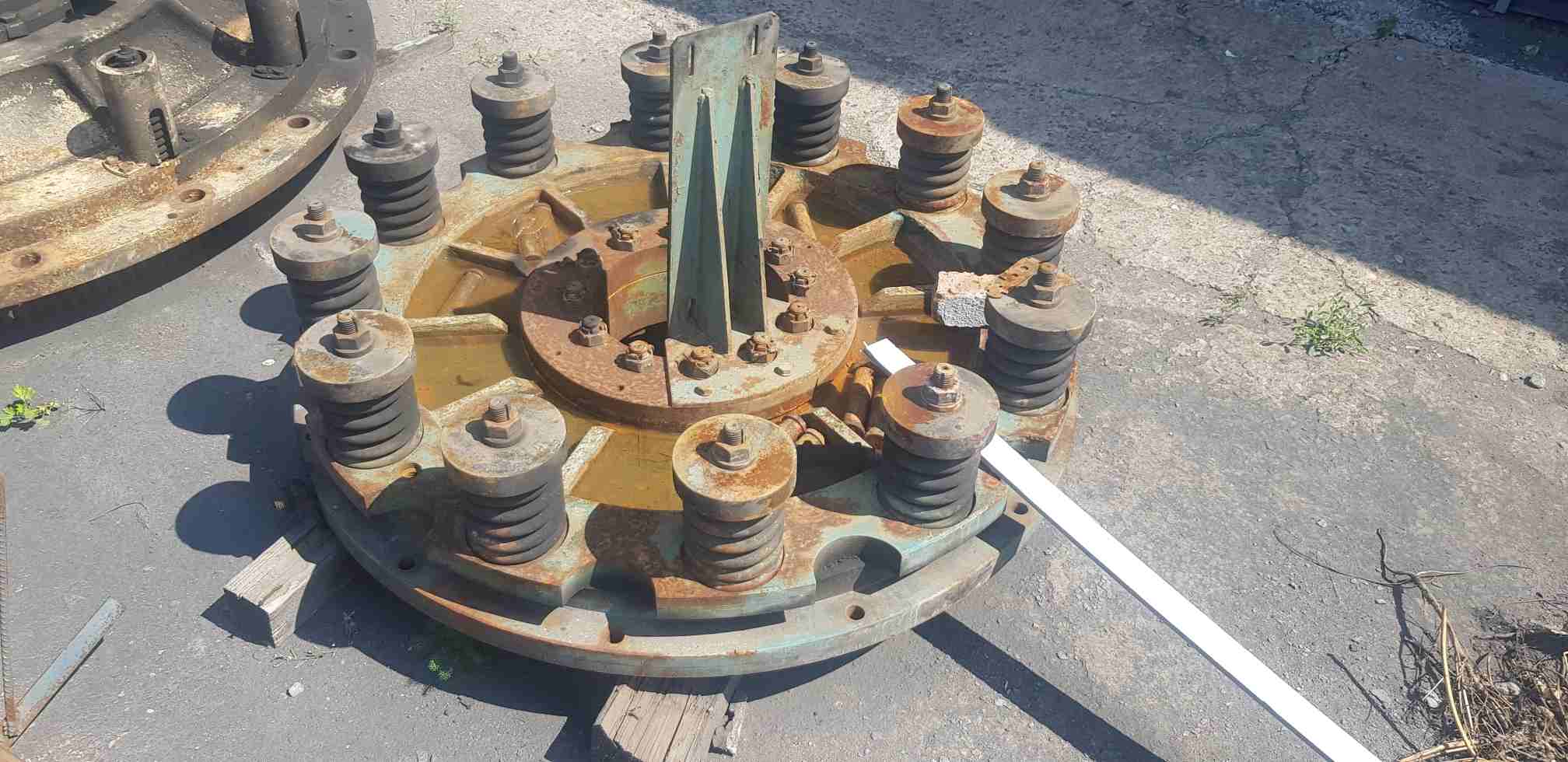

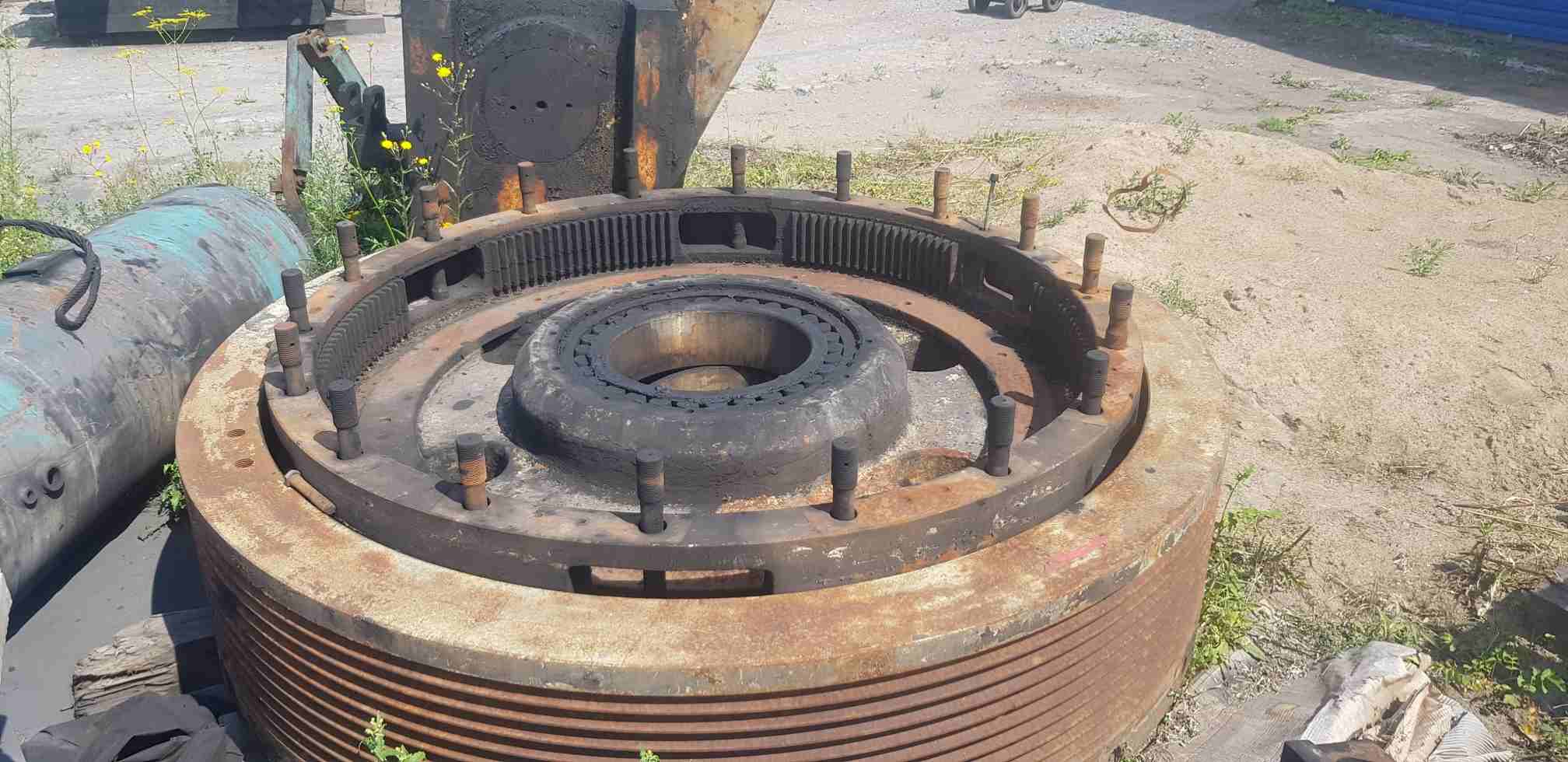

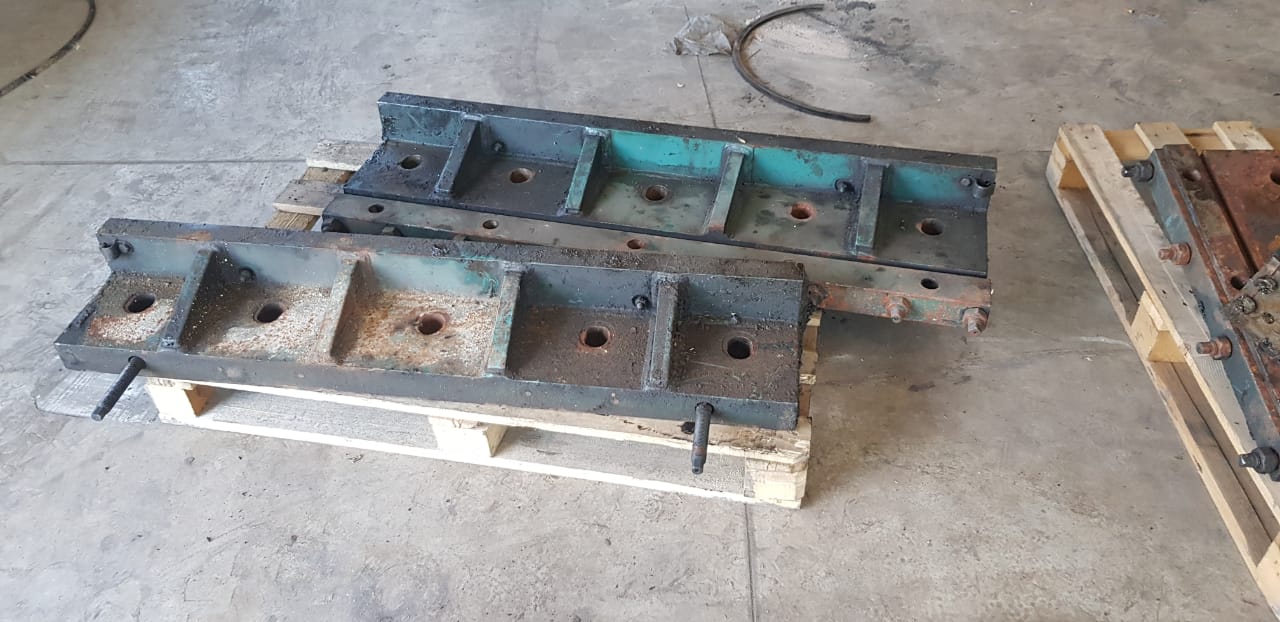

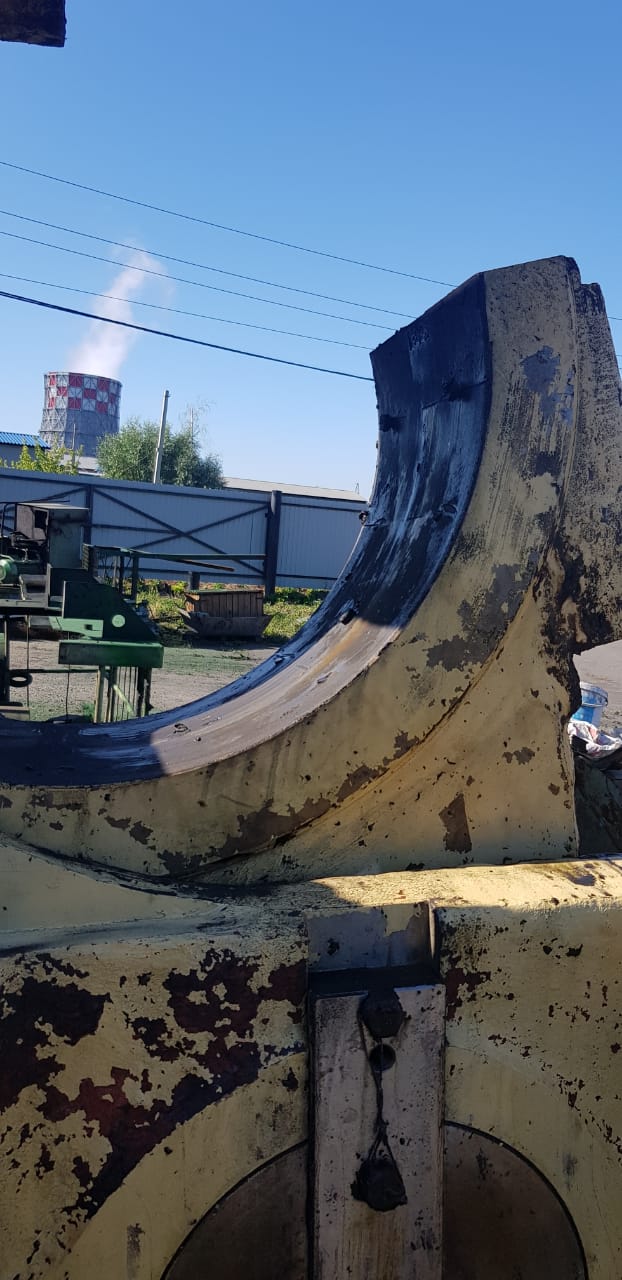

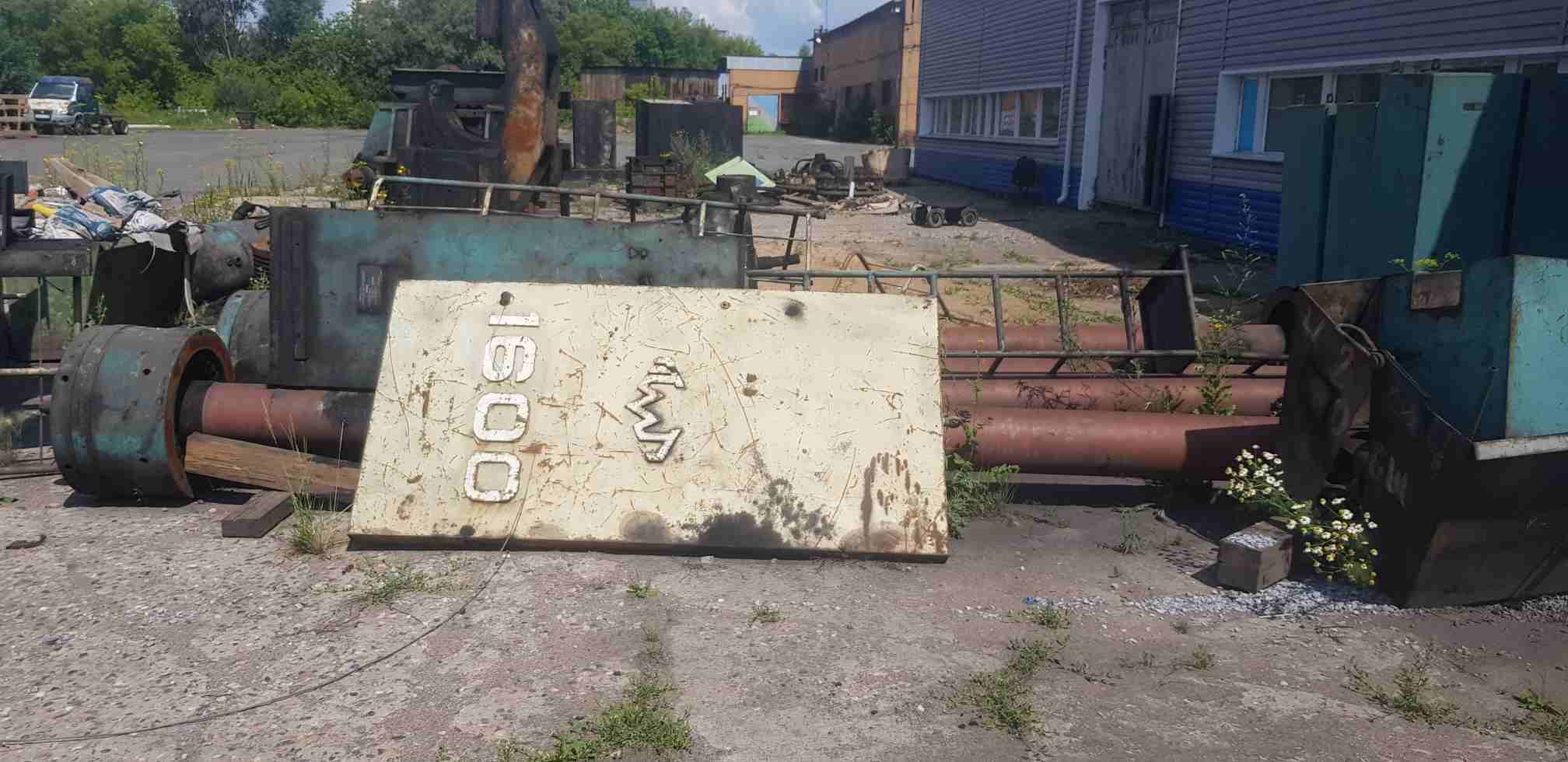

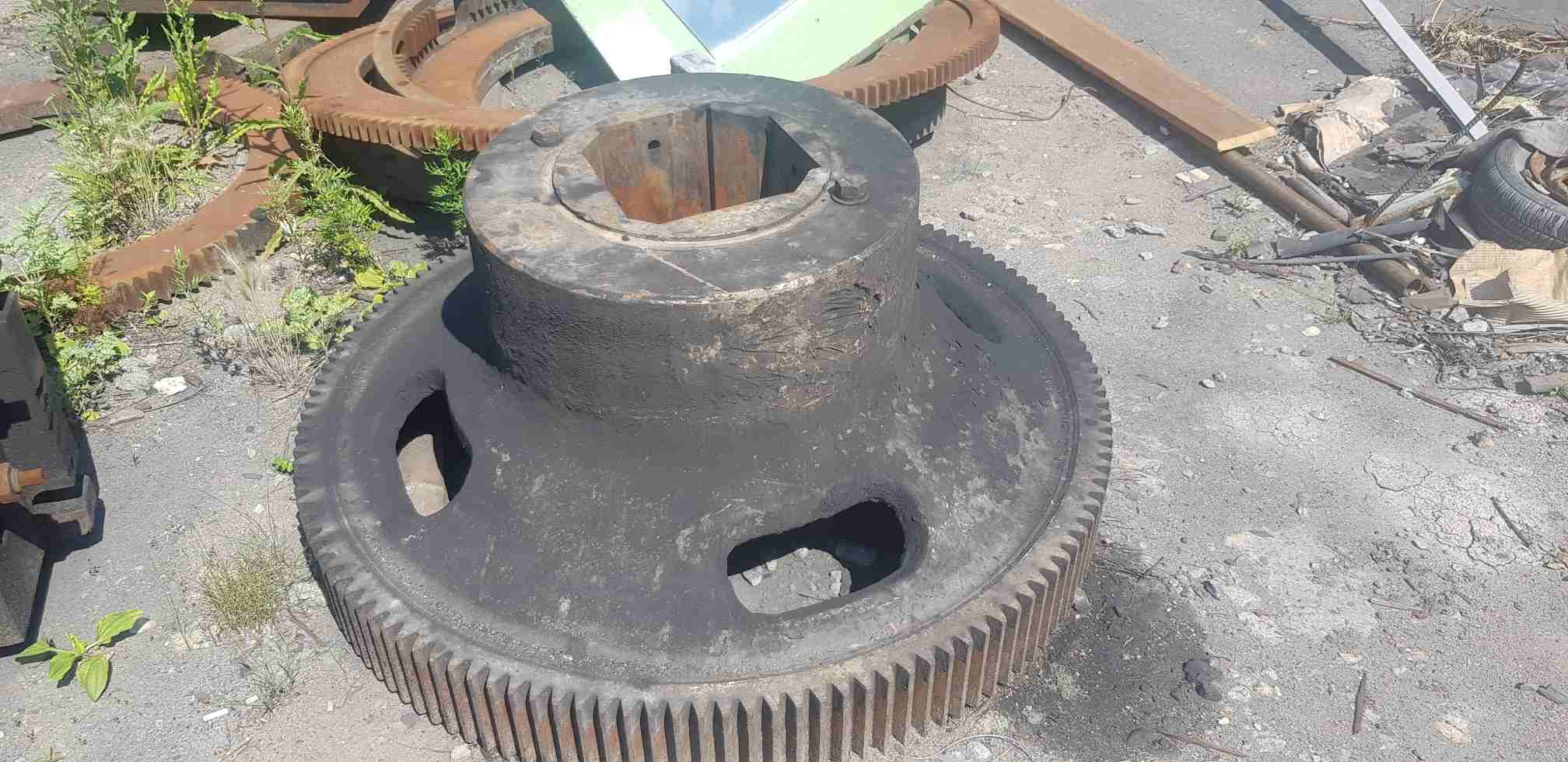

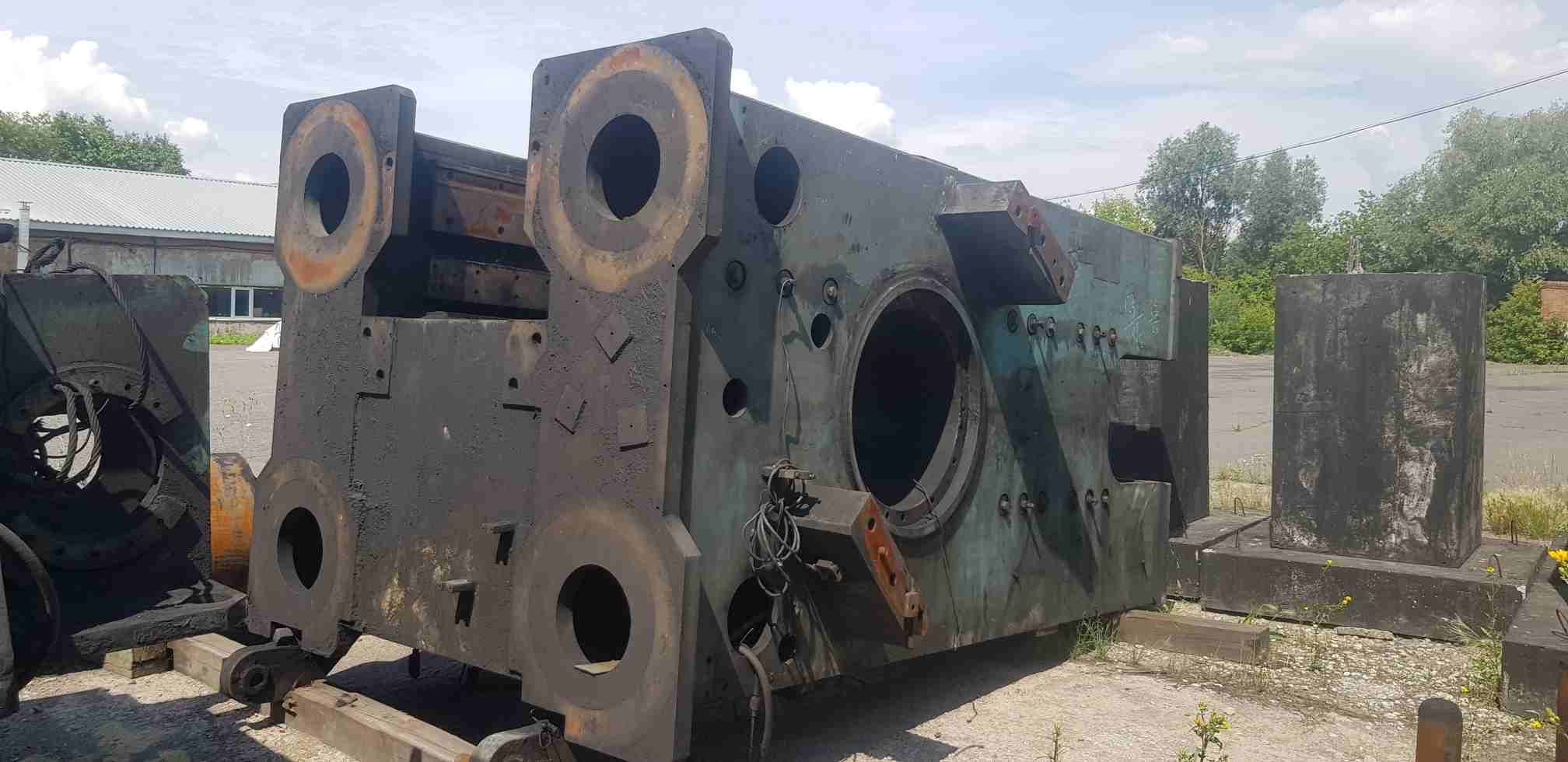

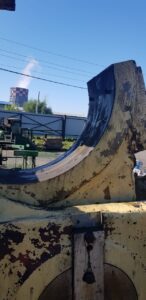

Fotos - TMP Voronezh KB8042 (ID: 75759)
Kommerzielles Angebot (Verkauf) - Schmiedepresse TMP Voronezh KB8042 - 1600 ton (ID:75759). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
