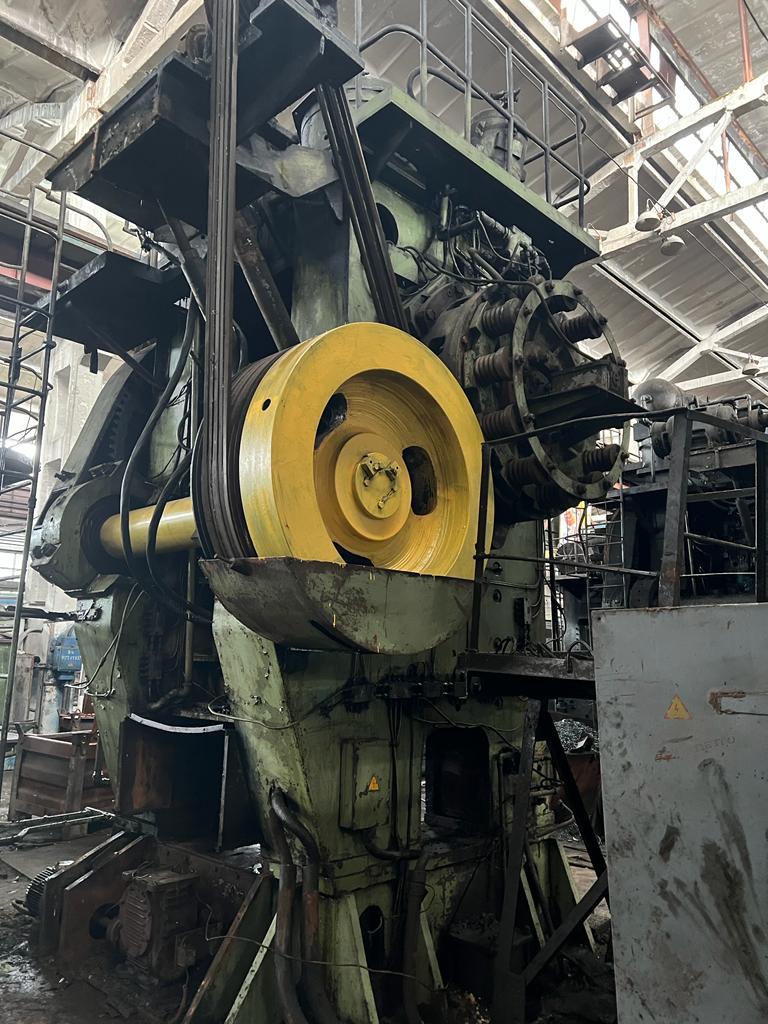

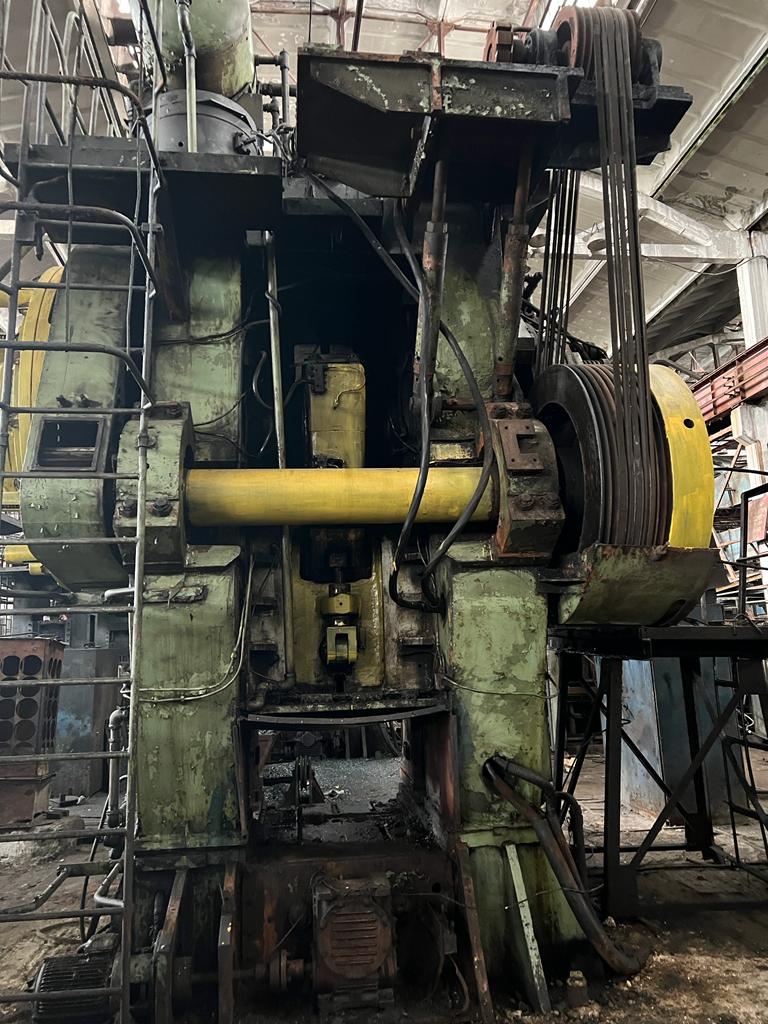

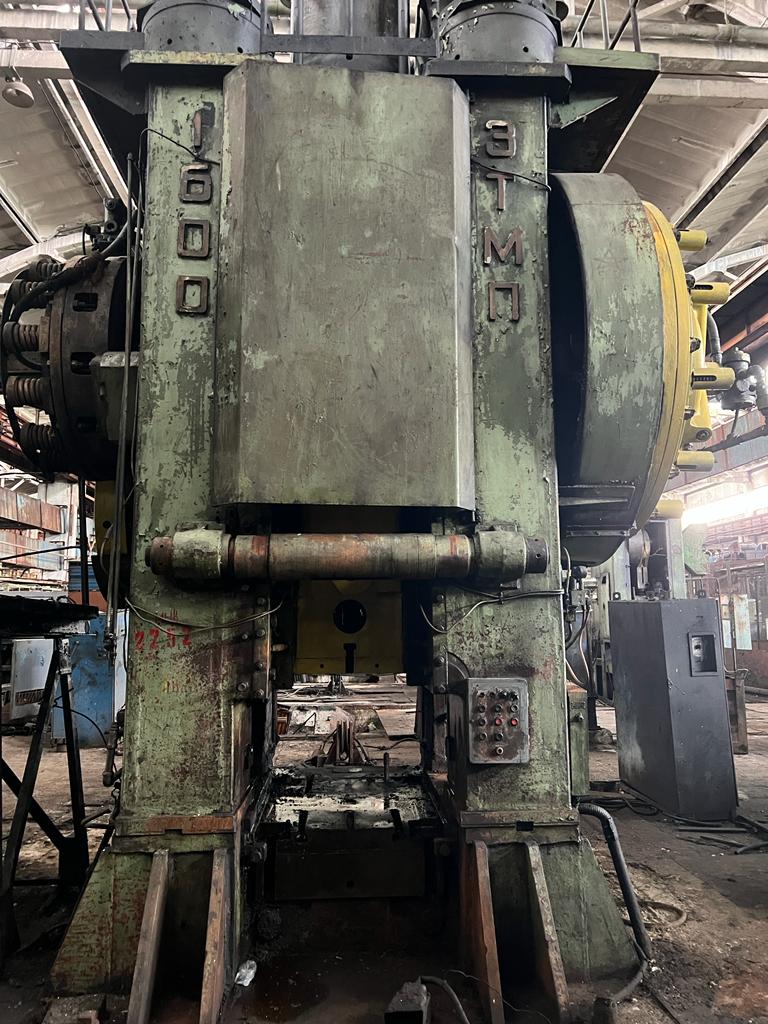

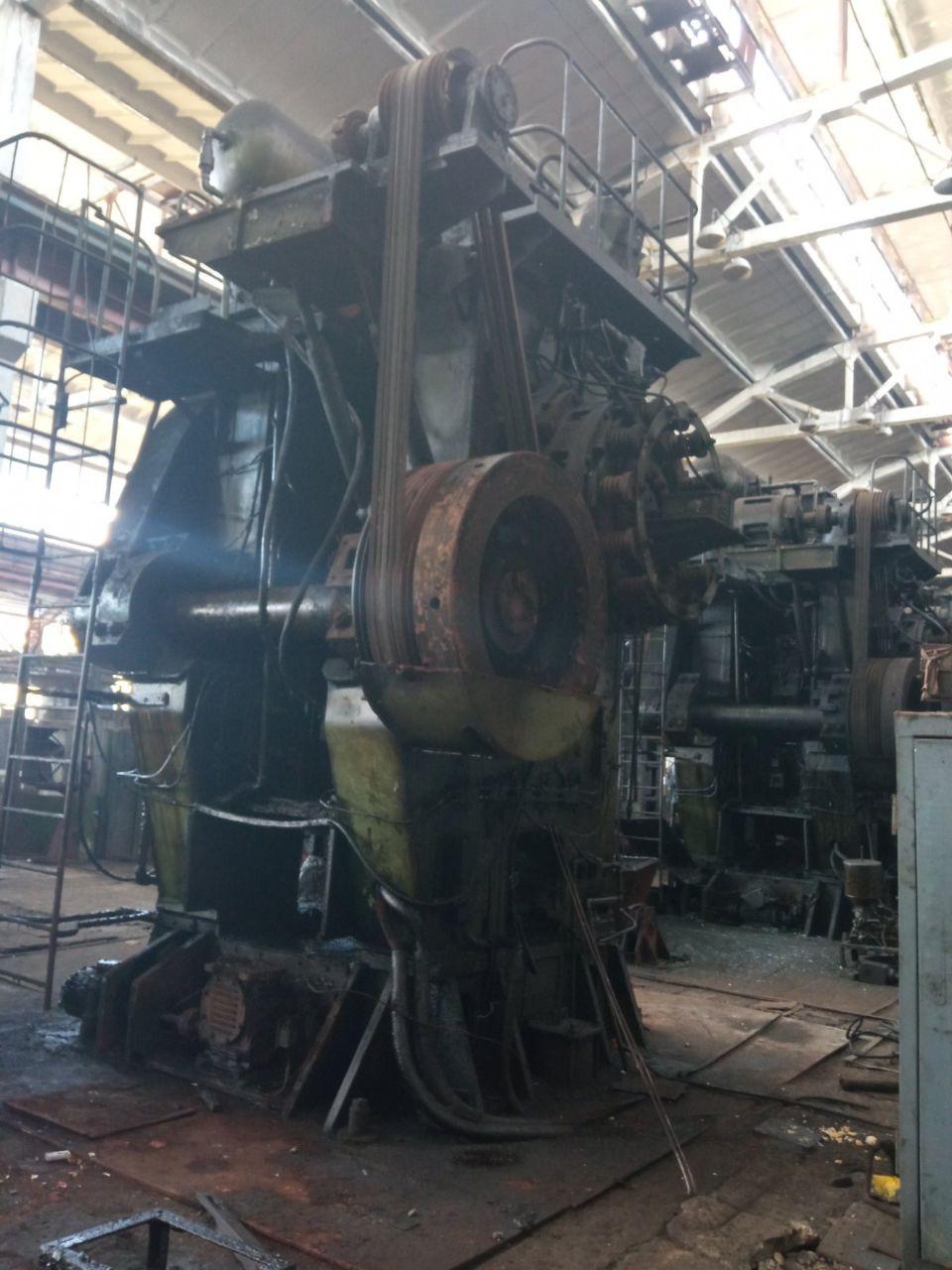

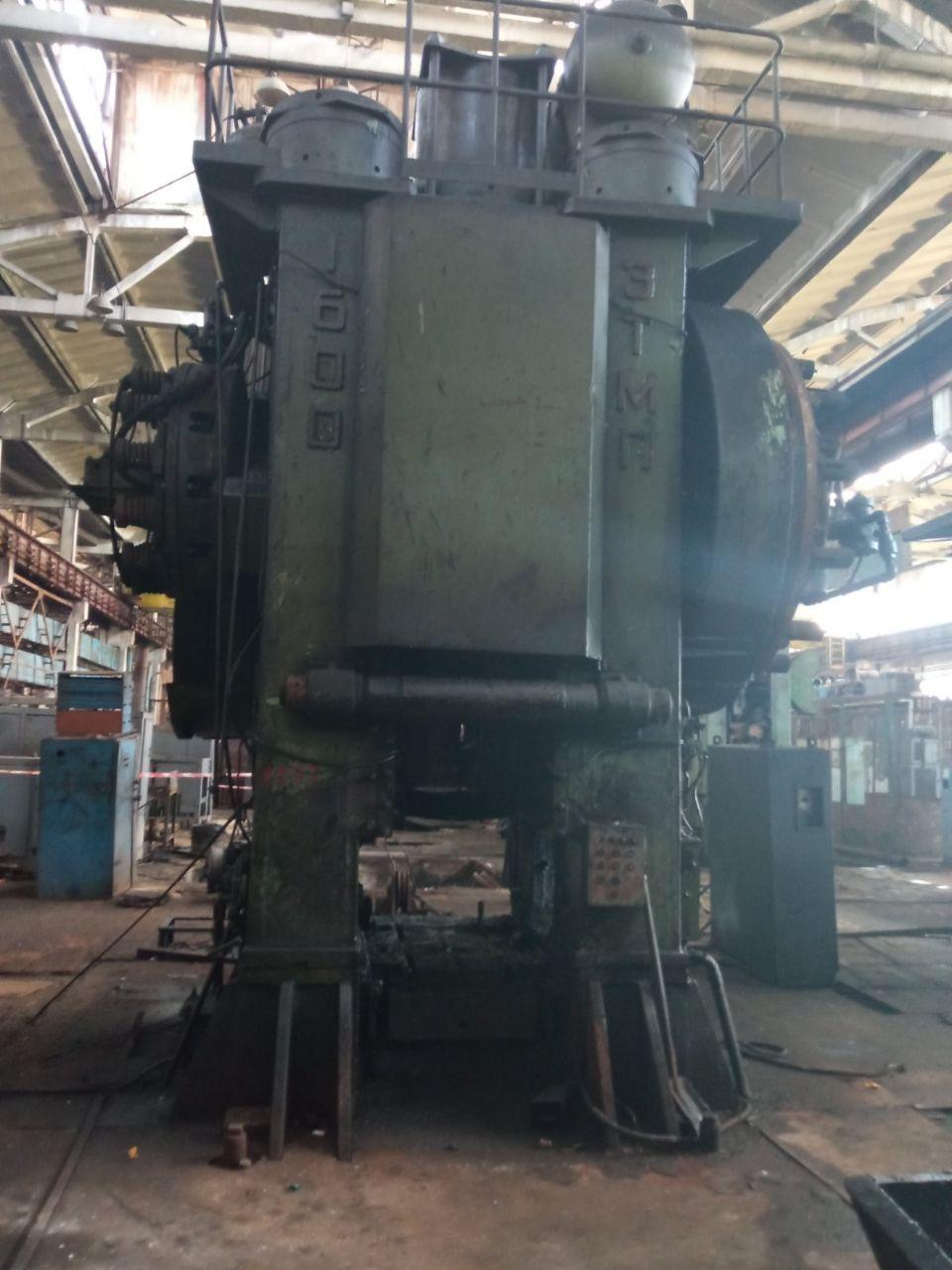

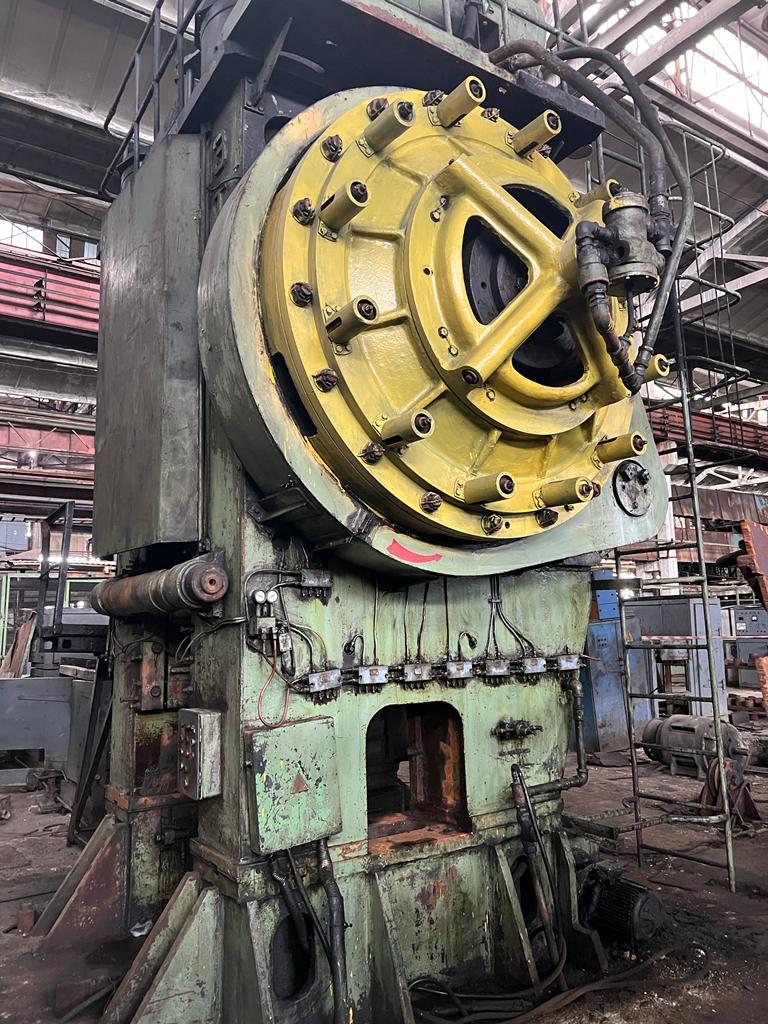

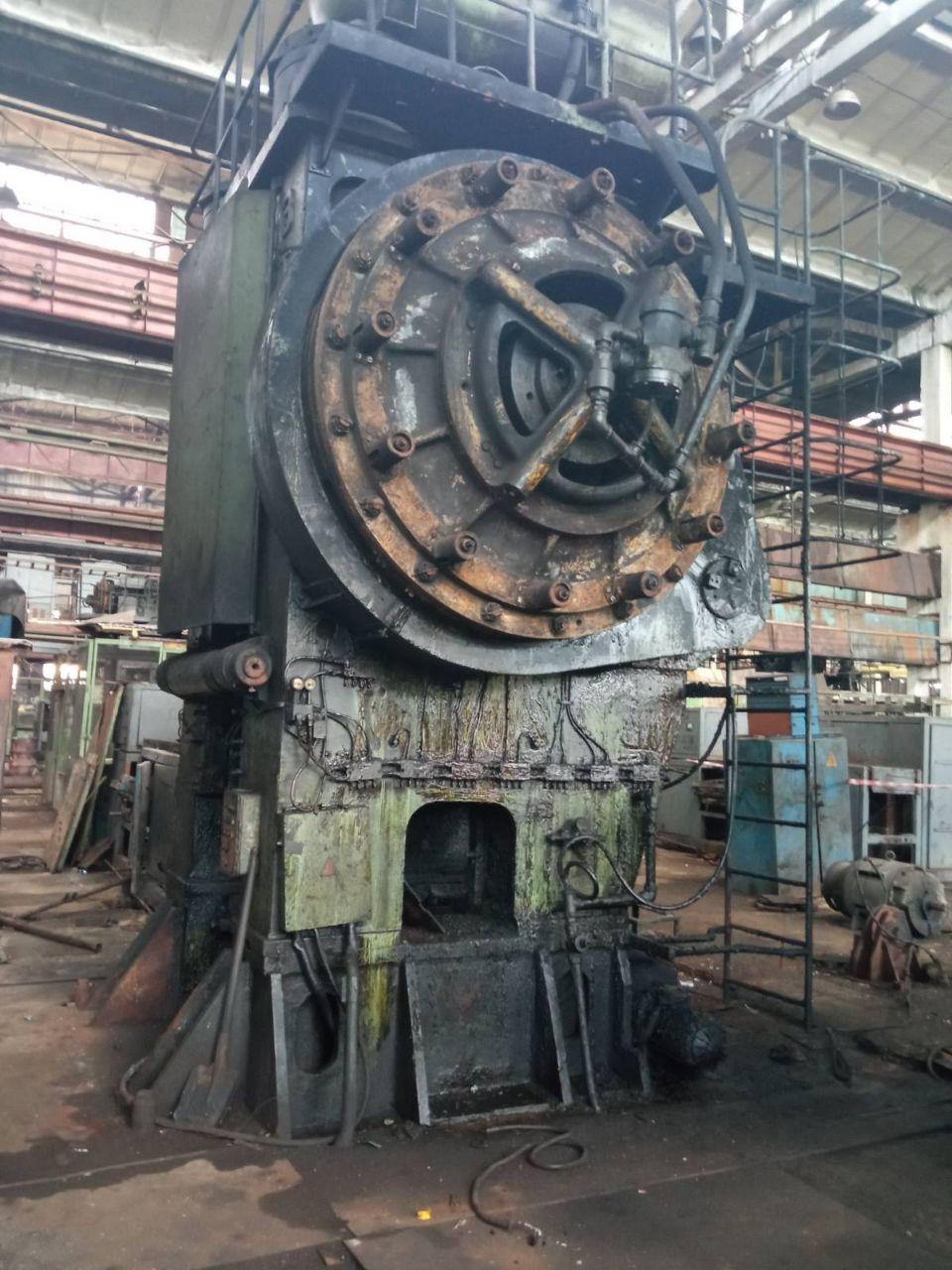

Gesemkschmiedepresse TMP Voronezh K8542 - 1600 ton
Technische Daten (EN) - Gesemkschmiedepresse TMP Voronezh K8542 - 1600 ton (ID: 75711)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8542 |
| Maximum force ton-force | 1600 tons |
| Slider stroke length | 300 mm |
| Slider strokes per minute | 75 |
| Maximum distance between table and slider (in lower position of slider) | 660 mm |
| Size of adjustment of distance between a table and slider | 10 mm |
| Length of a rod | 920 mm |
| Bed overall dimensions | 940×1200 mm |
| Slider overall dimensions | 860×910 mm |

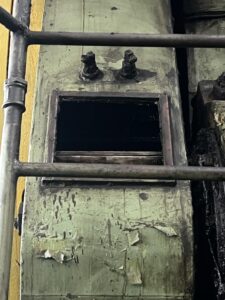

| The size of lateral windows | |
| Height | 560 mm |
| Width | 600 mm |
| Main motor | 110 kW |
| Press overall dimensions | |
| Length | 5060 mm |
| Width | 3940 mm |
| Height above floor level | 5125 mm |
| Press weight | 120 tons |
