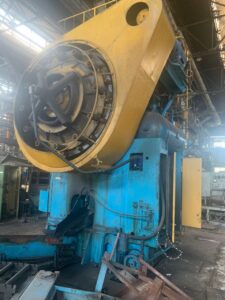

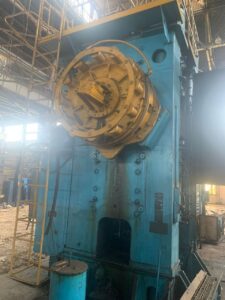

Gesemkschmiedepresse TMP Voronezh K04.038.842 - 1600 ton
Technische Daten (EN) - Gesemkschmiedepresse TMP Voronezh K04.038.842 - 1600 ton (ID: 76051)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K04.038.842 |
| Capacity | 1600 ton |
| Slide stroke | 300 mm |
| Slide stroke length at maximum force | 0,16 mm |
| Distance adjustment between table and slider | 10 mm |
| Slide stroke number in 1 min | 85 |
| Length of a rod | 920 mm |
| The closed height (the least distance between a table and a slider in his bottom position) | 660 mm |
| Table overall dimensions | 940 x 1200 mm |
| Table height above floor level | 450 mm |
| Slide overall dimensions | 860 x 910 mm |
| The size of lateral windows | |
| — Height | 560 mm |
| — Width | 600 mm |
| Main motor | 90 kW |
| Press overall dimensions | |
| — Length | 4850 mm |
| — Width | 3515 mm |
| — Height above floor level | 5570 mm |
| Press weight | 119680 kg |
