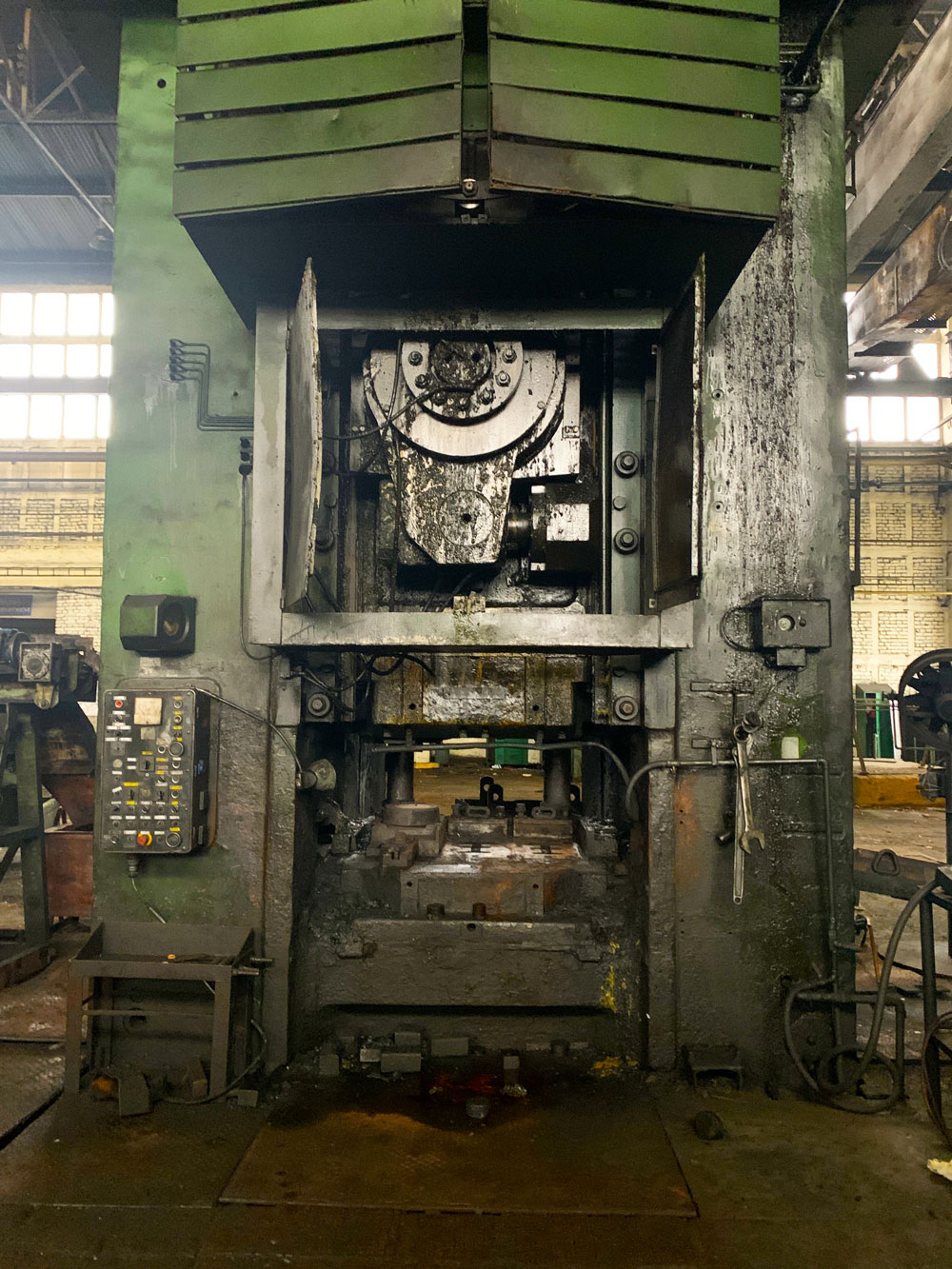

Spezifikationen (EN) - Smeral LZK 4000 A (ID: S79152)
| Type | Hot forging press |
| Manufacturer | Smeral |
| Model | LZK 4000 A |
| Rated force | 4000 ton |
| Slide stroke | 380 mm |
| Frequency of the slide strokes per min | 55 |
| Max distance between slider and bed | 1580 mm |
| Width of bed under guide lines | 1580 mm |
| Bed dimensions | 1520 x 1600 mm |
| Slider dimensions | 1470 x 1400 mm |
| Slider adjustment | 15 mm |
| Quantity of used strokes per min | 20 |
| Stroke of middle lower extractor | |
| Working | 31 mm |
| Max (for die changing) | 41,5 mm |
| Stroke of upper extractor | 70 mm |
| Working air pressure | 6 atm |
| Overall air expense | 660 l/stroke |
| Water expense | 16 l/min |
| Overall width of machine | 4700 mm |
| Overall depth of machine | 4840 mm |
| Overall height of machine | 8690 mm |
| Height of machine under floor level | 7670 mm |
| Overall weight | 250 ton |
| Drive capacity | 200 kW |
| Working voltage of main drive | 3×380 V, 50 Hz |
Kommerzielles Angebot (Verkauf) - Schmiedepresse Smeral LZK 4000 A - 4000 ton (ID:S79152). Alle Details zu diesem Angebot (Kosten, Zahlungsbedingungen und Lieferbedingungen) erhalten Sie von unserem Manager, indem Sie auf die Schaltfläche klicken "Anfrage senden" . Wir können auch bei der Suche nach anderen Geräten Ausrüstung.Anfrage senden
