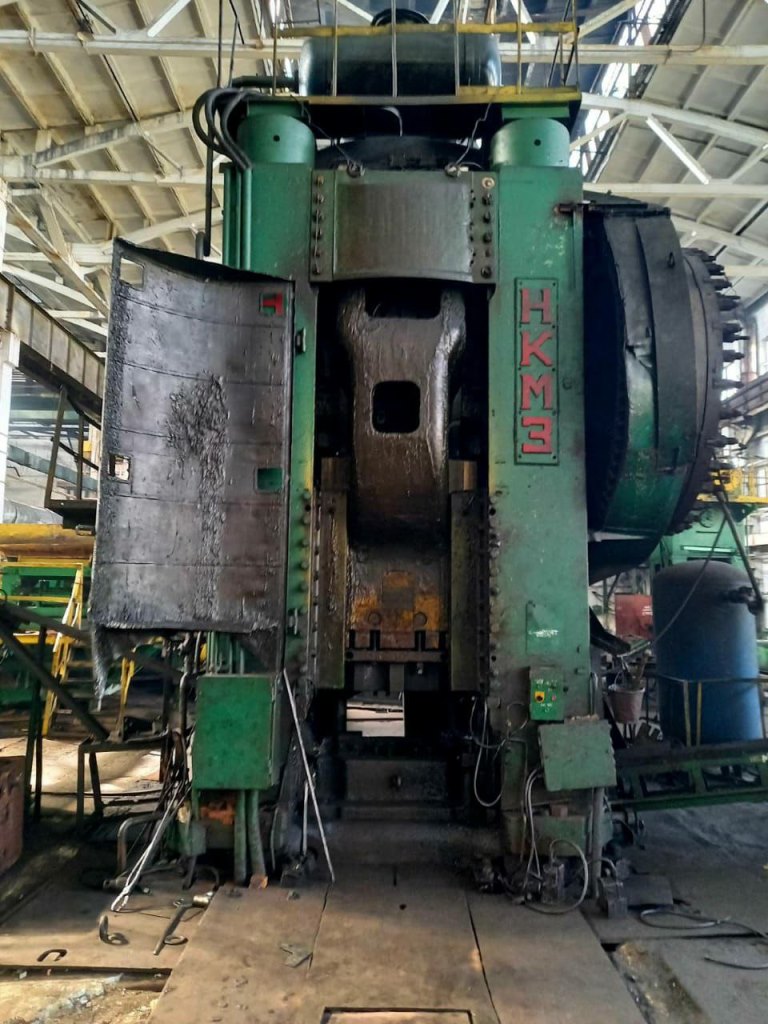

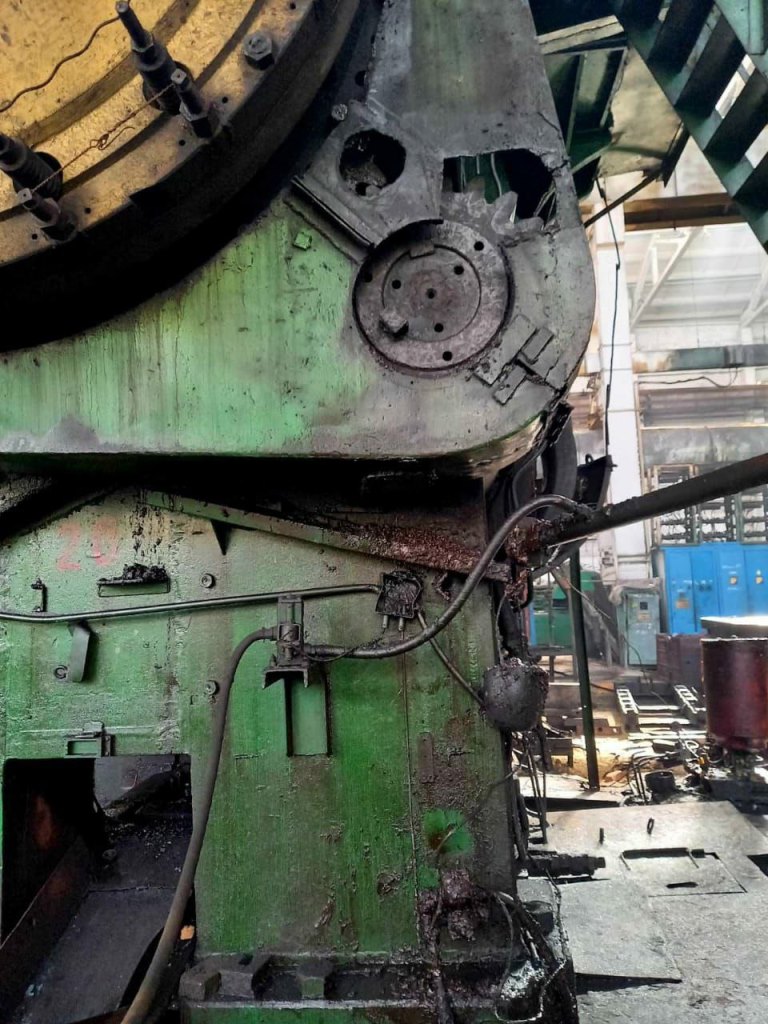

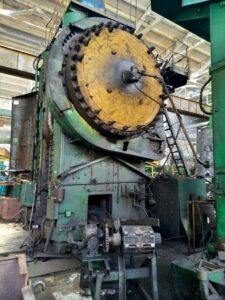

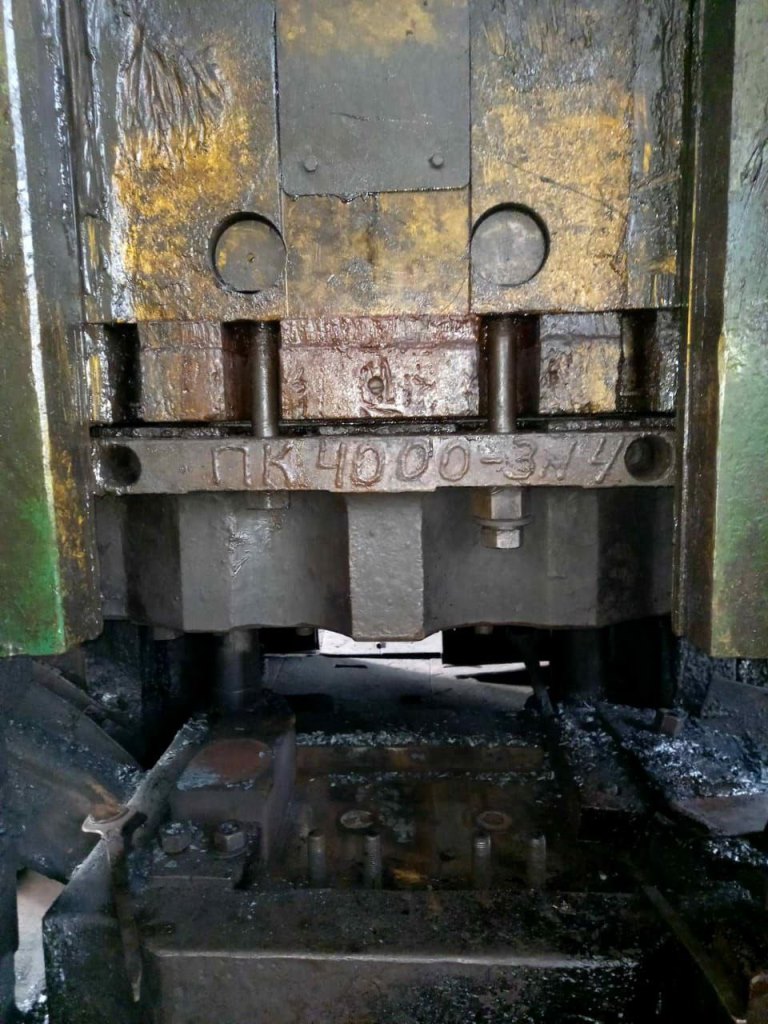

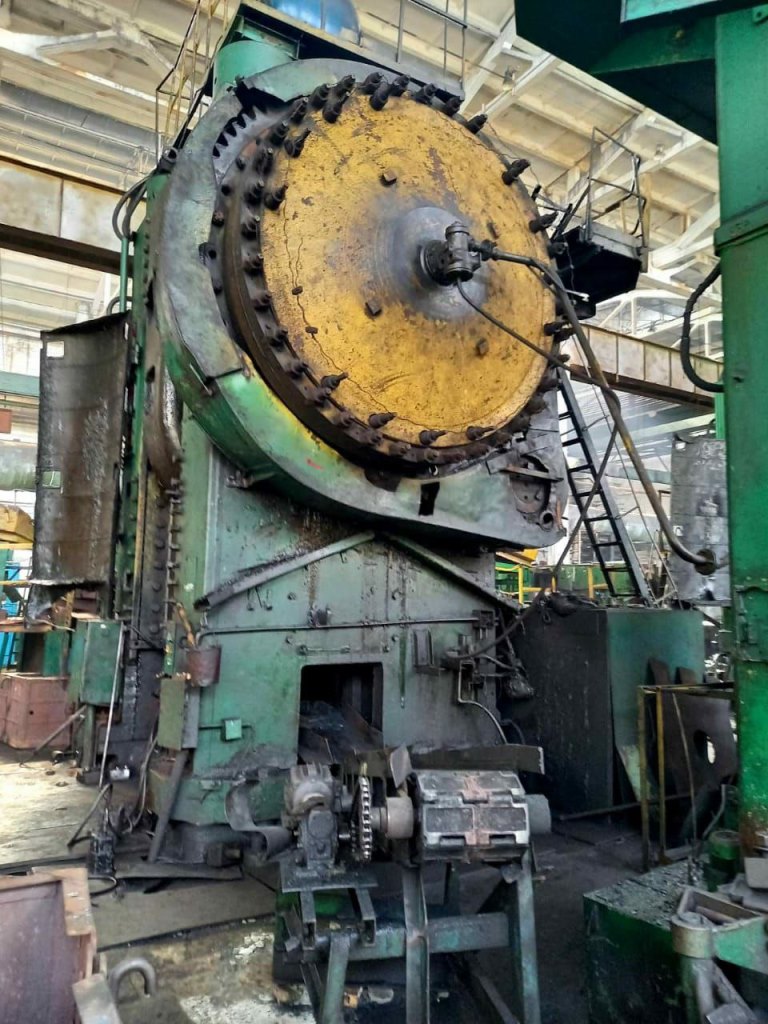

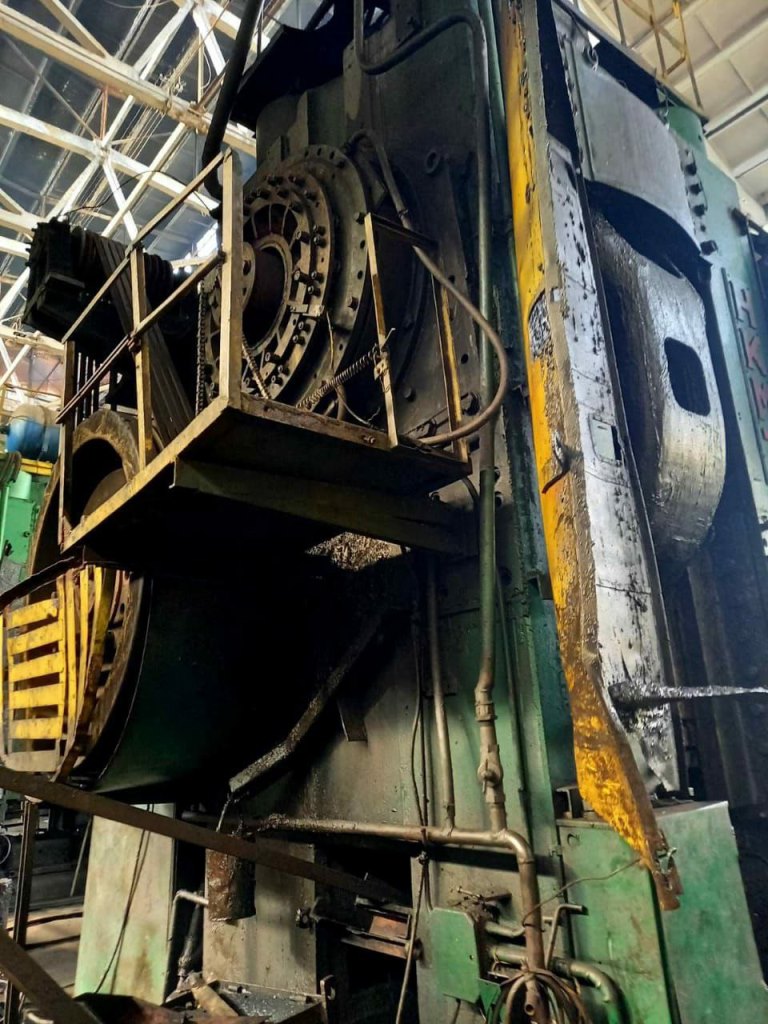

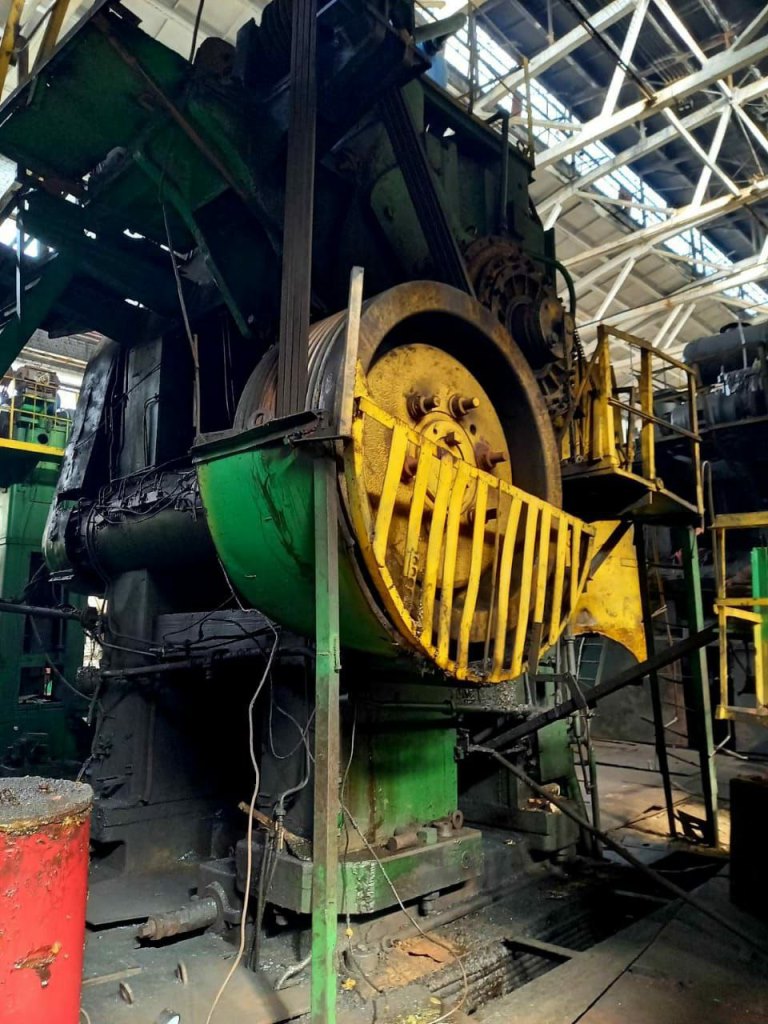

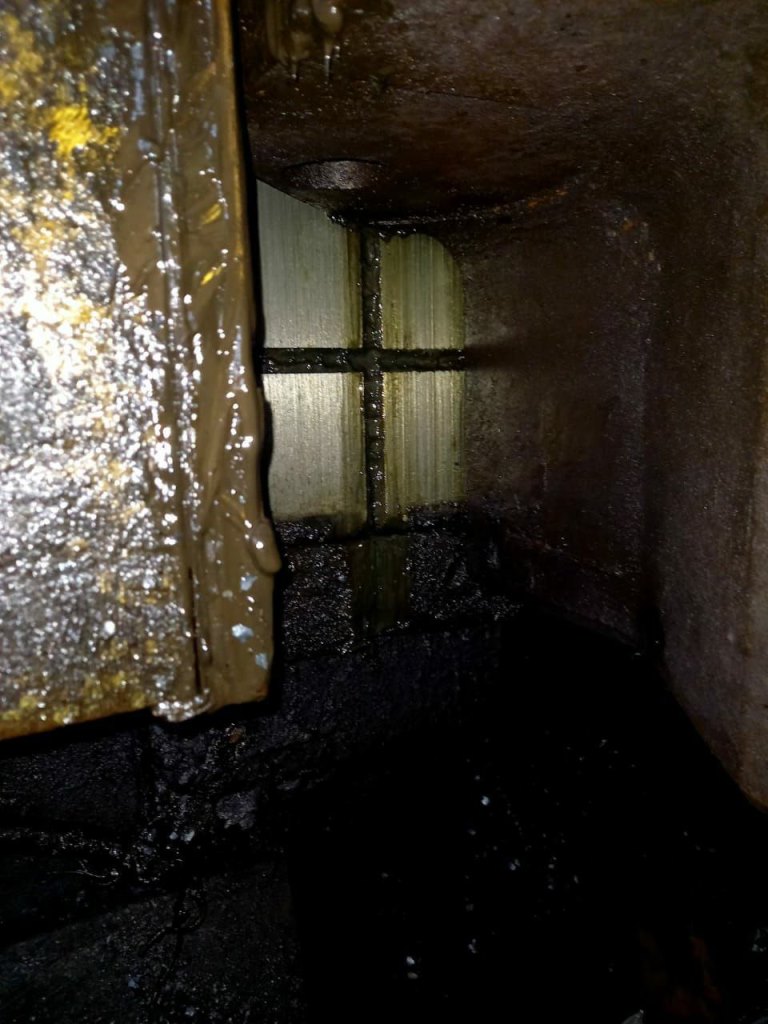

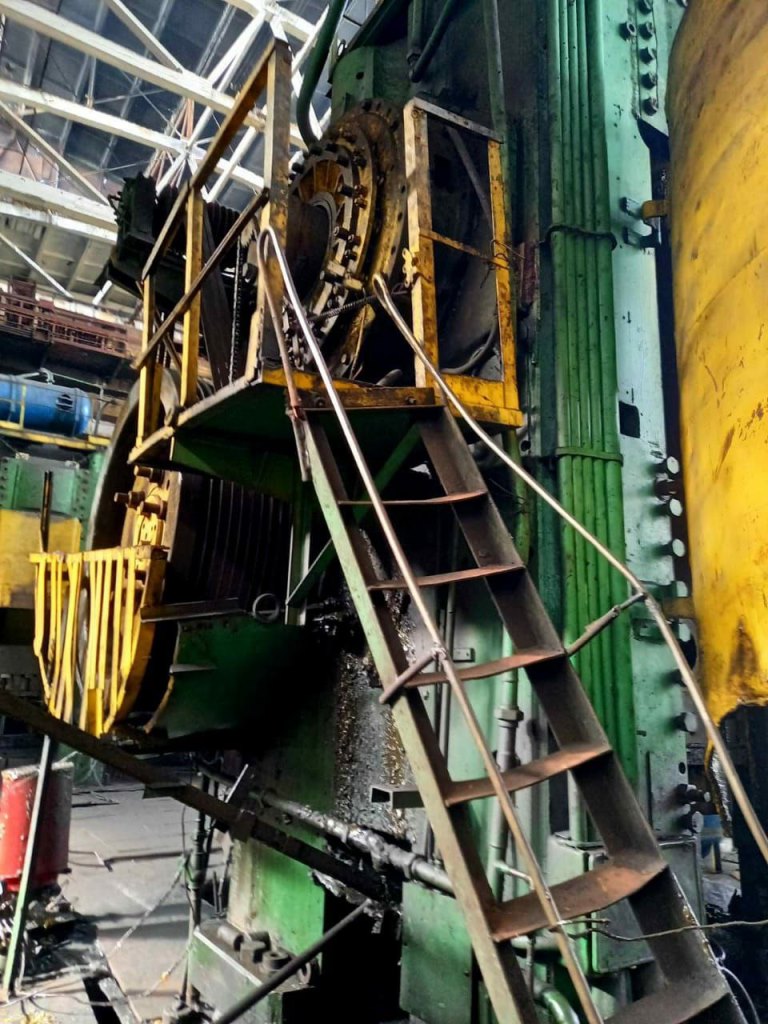

Gesemkschmiedepresse Kramatorsk NKMZ K8546 / PKKSH 4000 - 4000 ton
Technische Daten (EN) - Gesemkschmiedepresse Kramatorsk NKMZ K8546 / PKKSH 4000 - 4000 ton (ID: 75961)
| Type | Hot forging press |
| Manufacturer | Kramatorsk NKMZ |
| Model | K8546 / PKKSH 4000 |
| Force | 4000 ton |
| Slide stroke, mm 400 | |
| Number of continuous slide stroke, stroke / min | 50 |
| Closed height of stamping space | 1000 mm |
| Adjusting the table | 15 mm |
| Distance between columns in light | 1660 mm |
| Table dimensions in plan | |
| — From left to right in | 1620 mm |
| — Front-to-back in | 1570 mm |
| Dimensions in | |
| — in the plan | 6100 x 4710 mm |
| — Height above floor level | 6820 mm |
| — Press height | 8680 mm |
| Weight | 377 ton |
