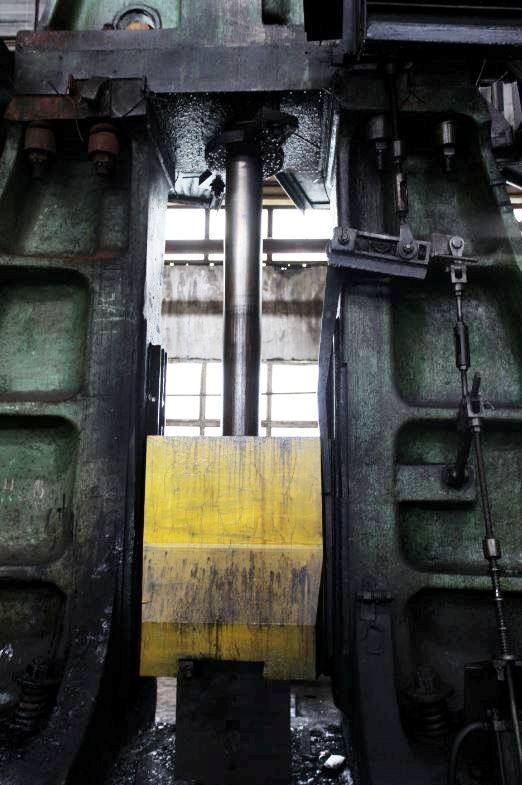

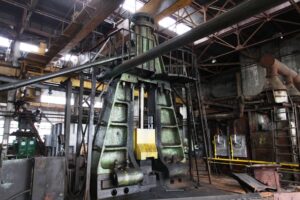

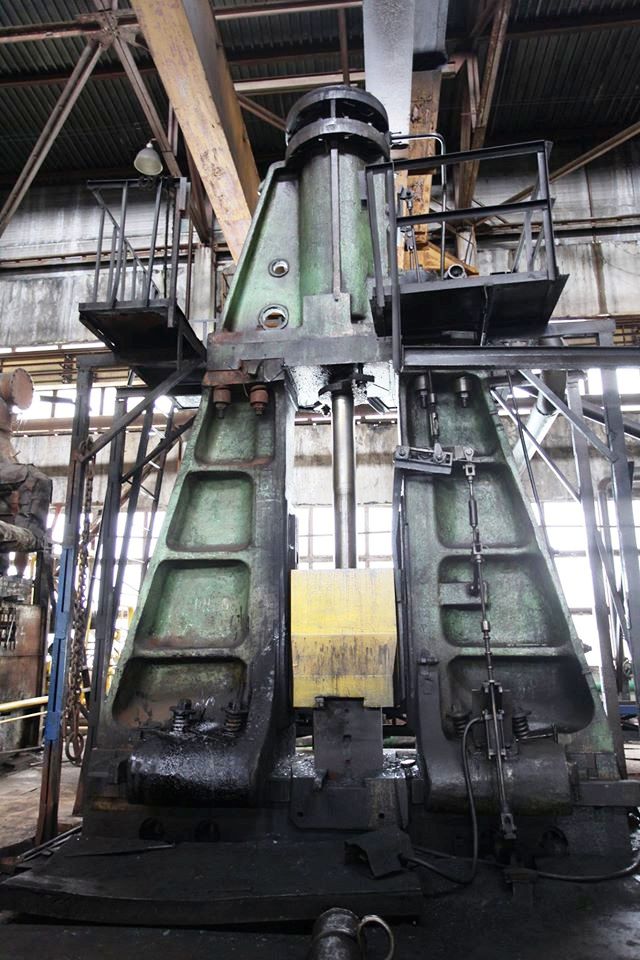

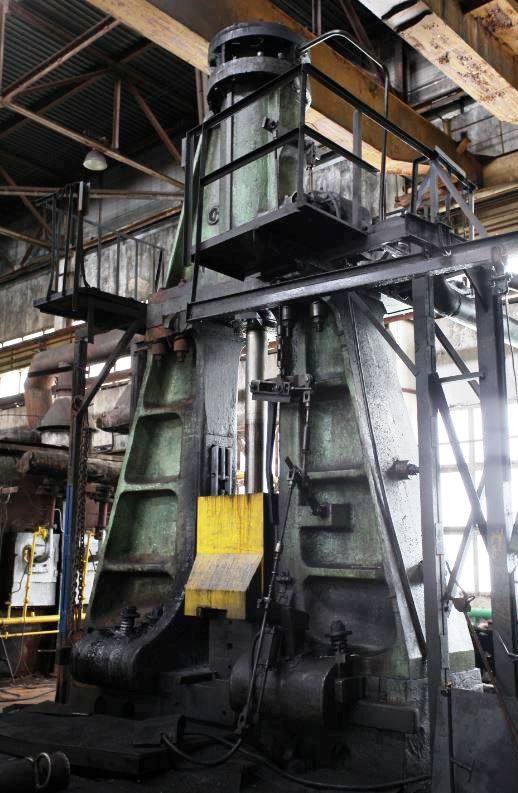

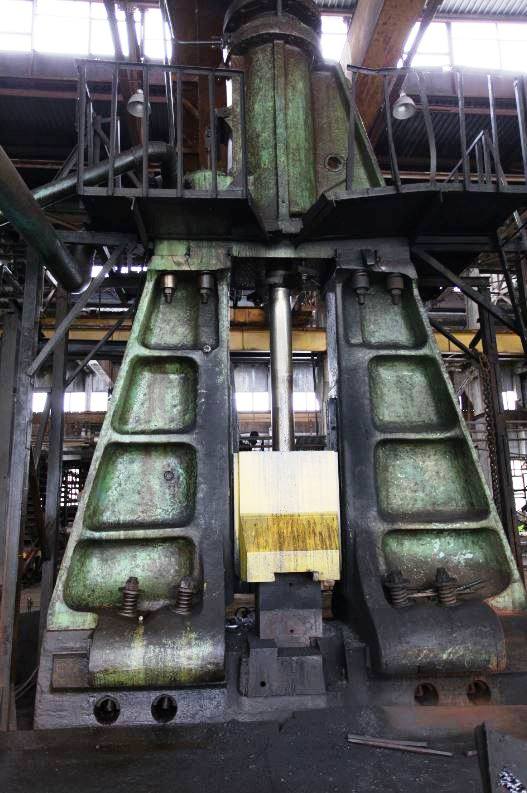

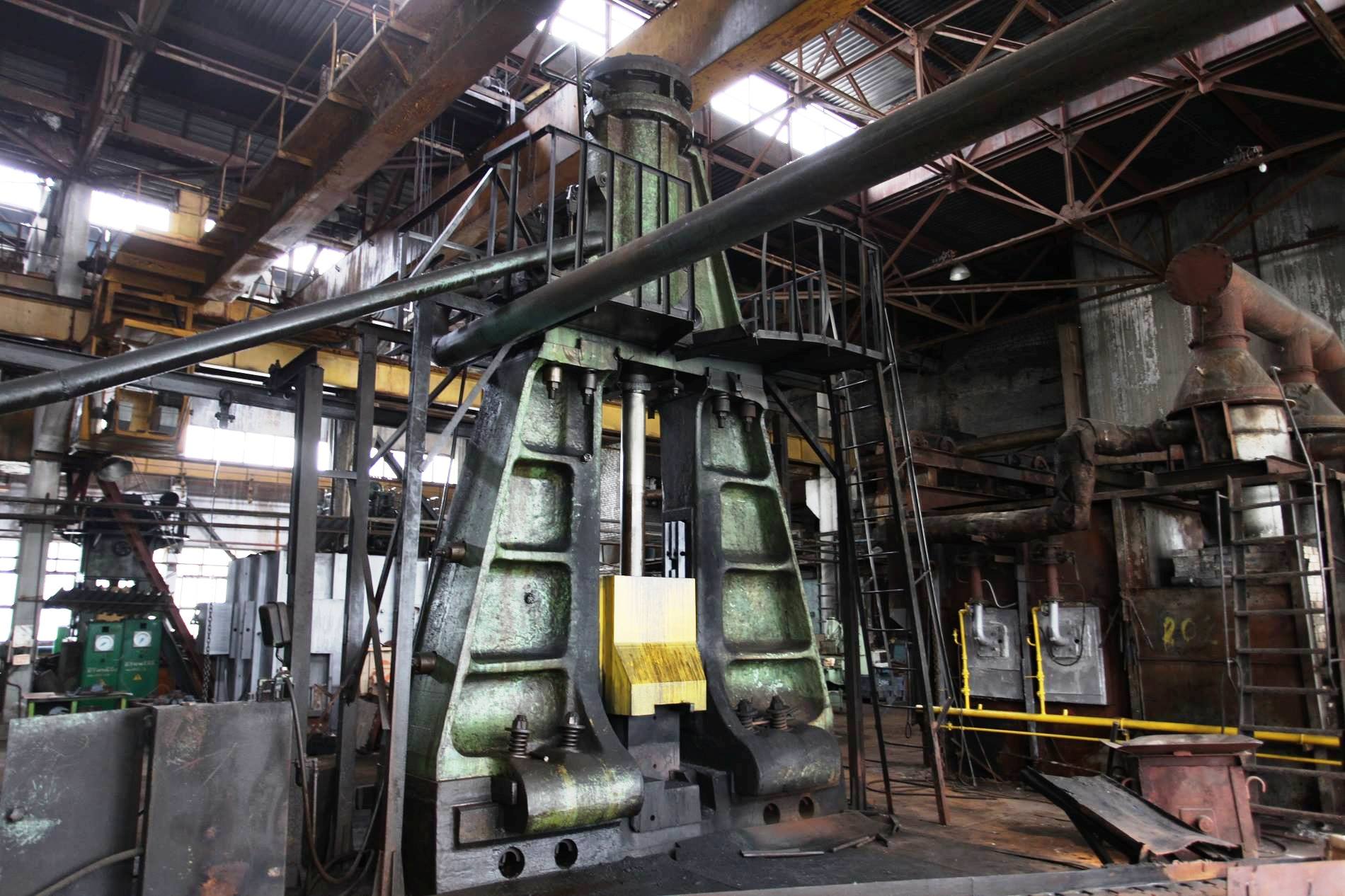

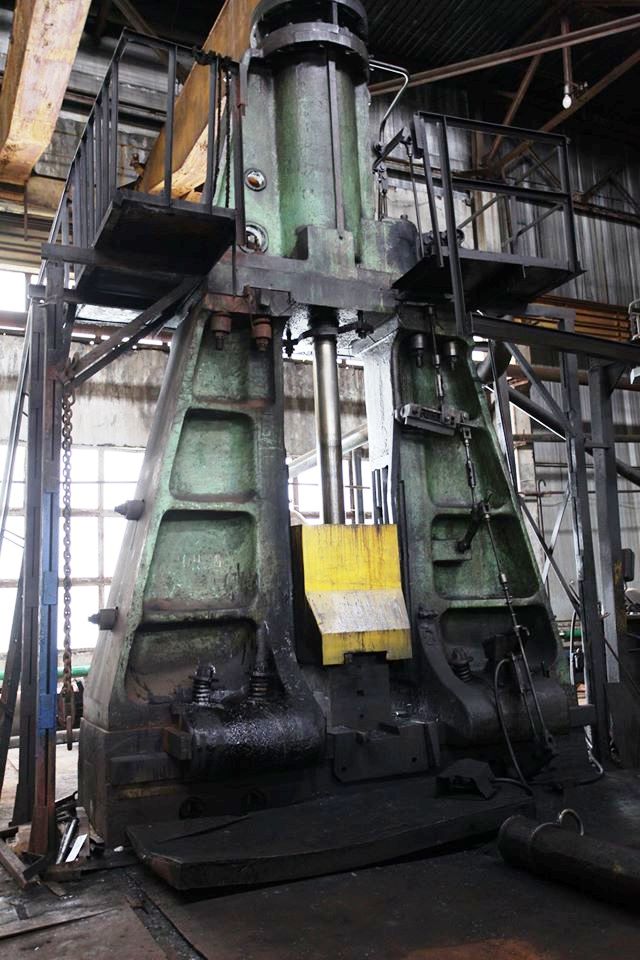

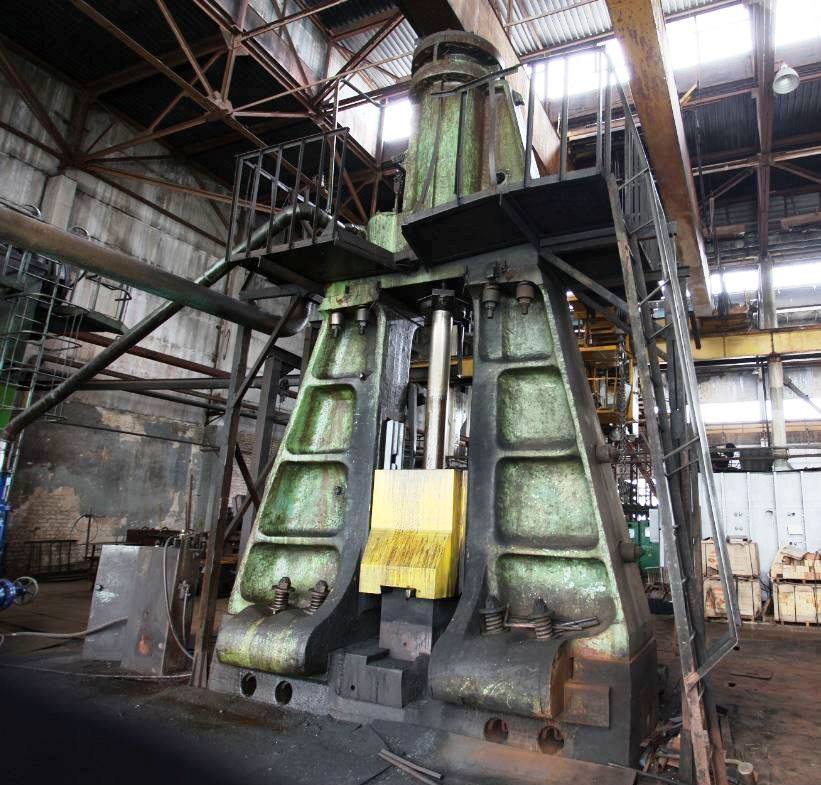

Schmiedehammer Kalinin MA2147 - 5 ton
Technische Daten (EN) - Schmiedehammer Kalinin MA2147 - 5 ton (ID: S79255)
| Type | Forging hammer |
| Manufacturer | Kalinin |
| Model | MA2147 |
| Strike energy | 125 kJ |
| Nominal weight of the falling parts | 5000 kg |
| Max. working ram stroke | 1300 mm |
| Distance between guides in daylight | 800 mm |
| Min. height of dies without shafts | 400 mm |
| Frot-to-back size | |
| Of ram | 950 mm |
| Of die holder | 1180 mm |
| Number of strokes per minute | 50 |
| Dimensions | |
| Length | 3700 mm |
| Width | 2000 mm |
| Height | 8750 mm |
| Height above floor | 6490 mm |
| Weight of hammer | 40942 kg |
| Weight of anvil block | 99422 kg |
| Overall weight | 140364 kg |
