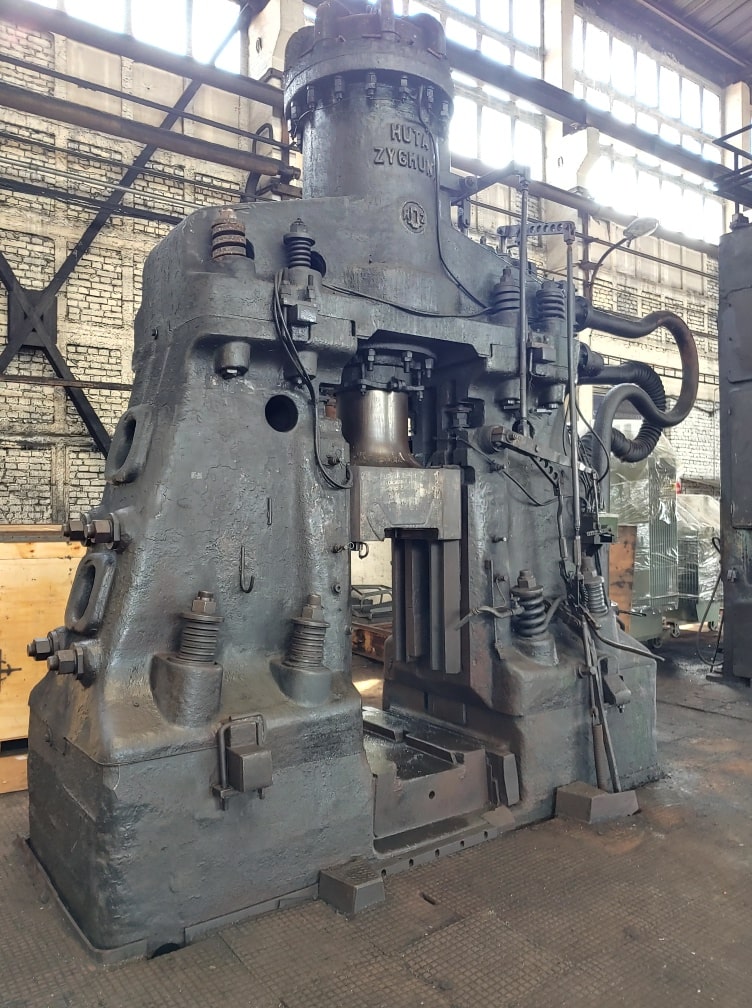

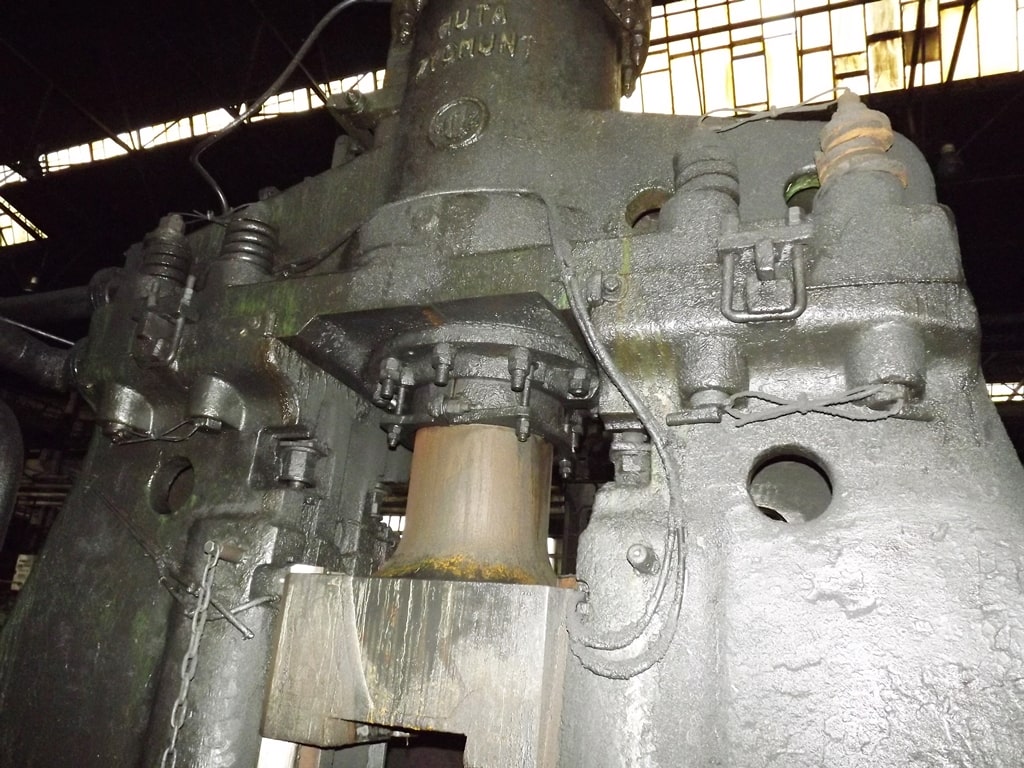

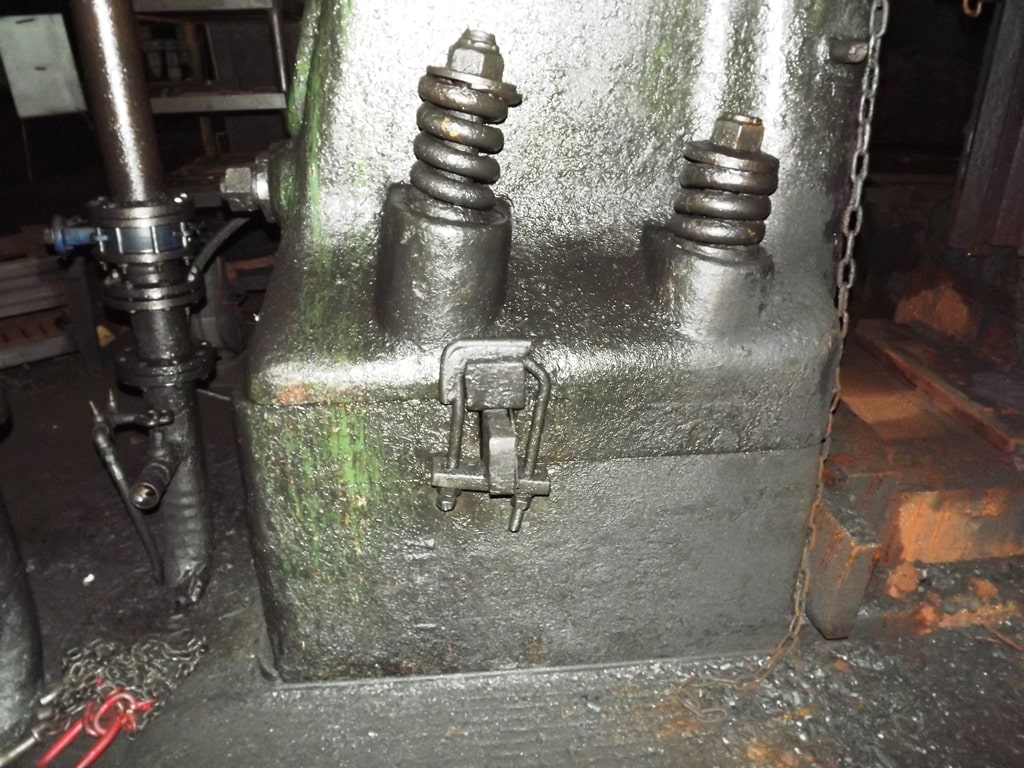

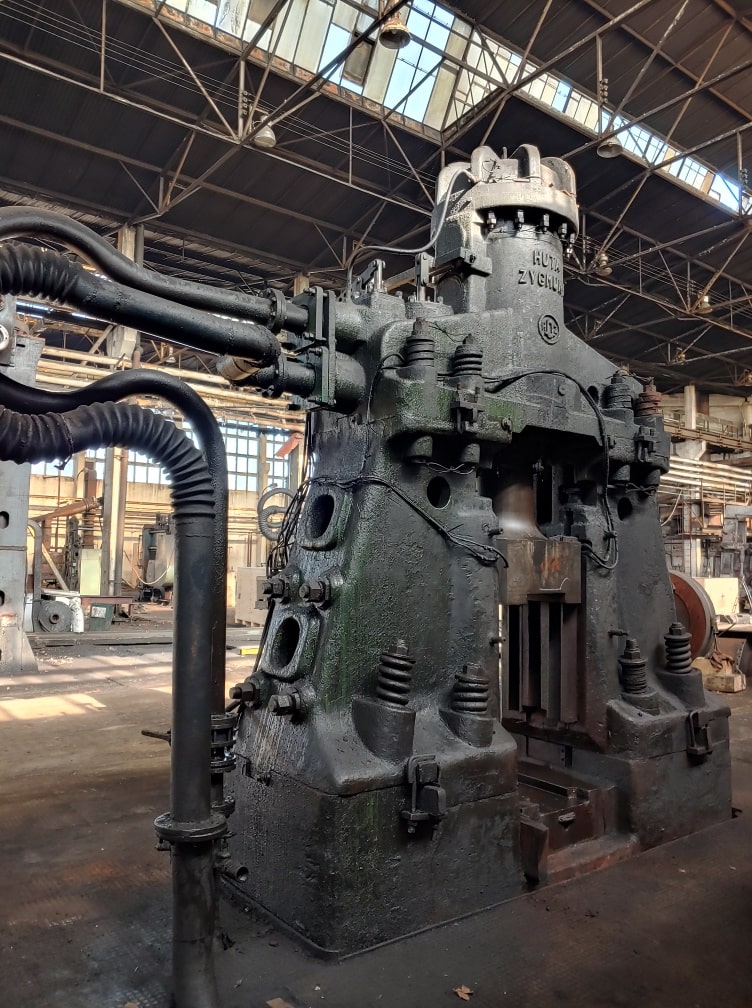

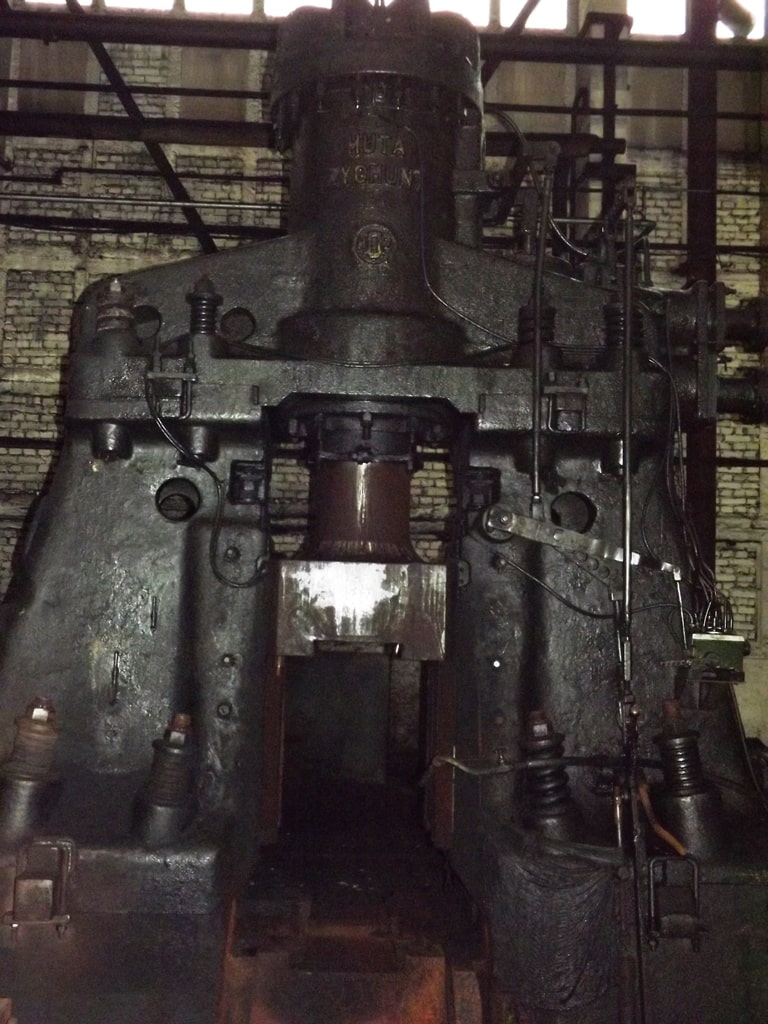

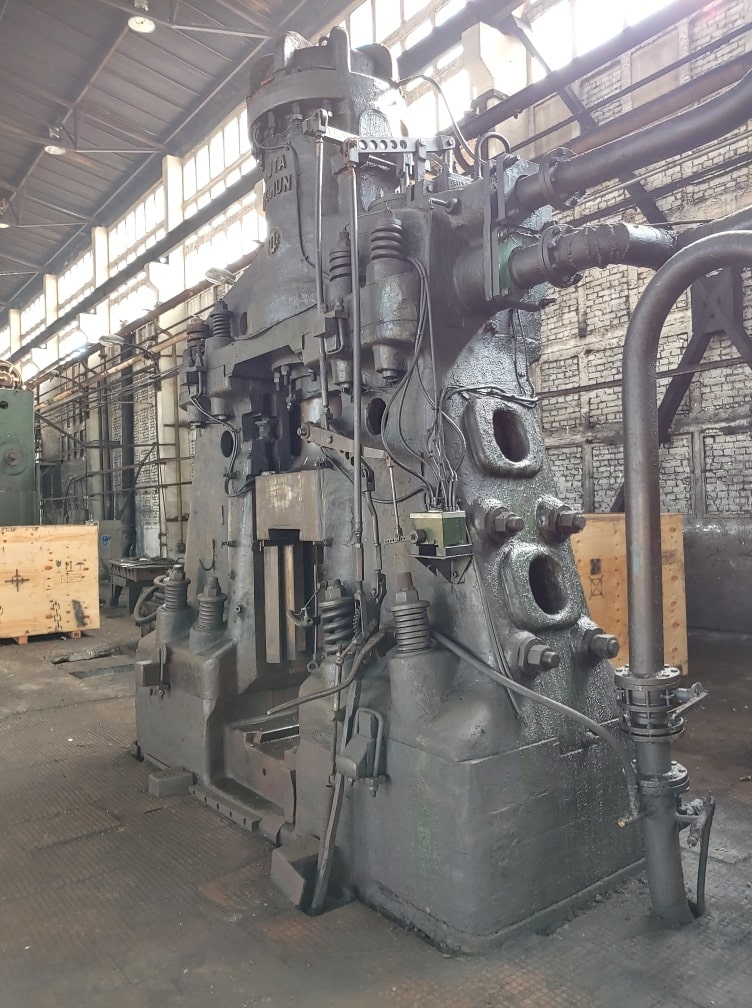

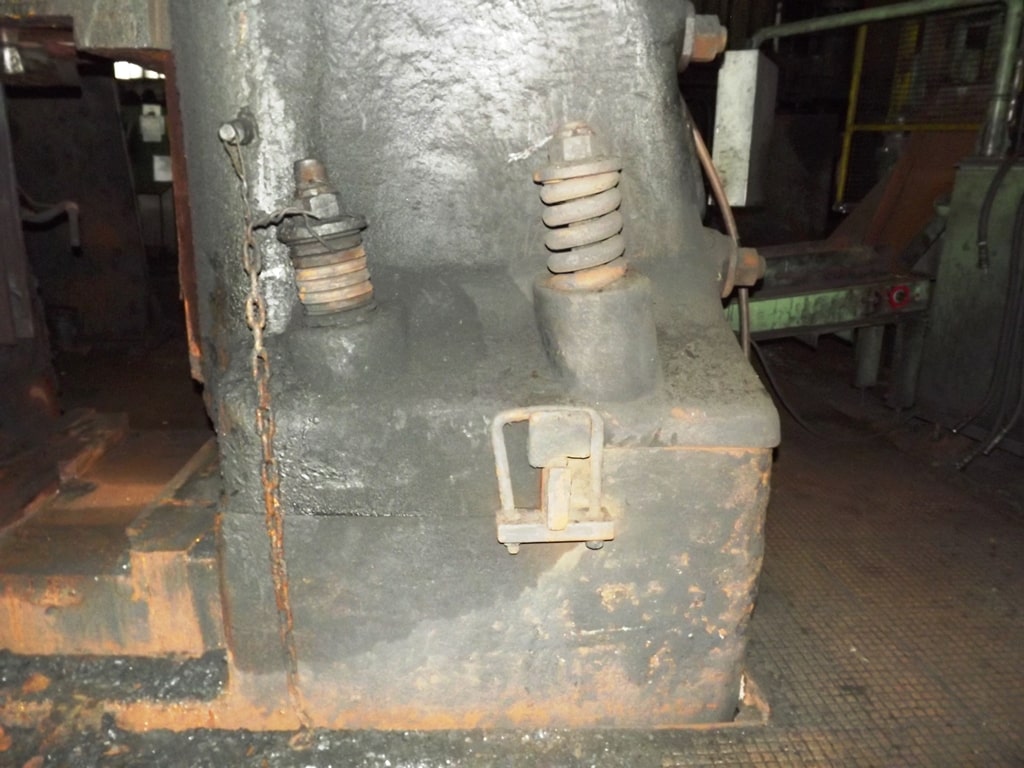

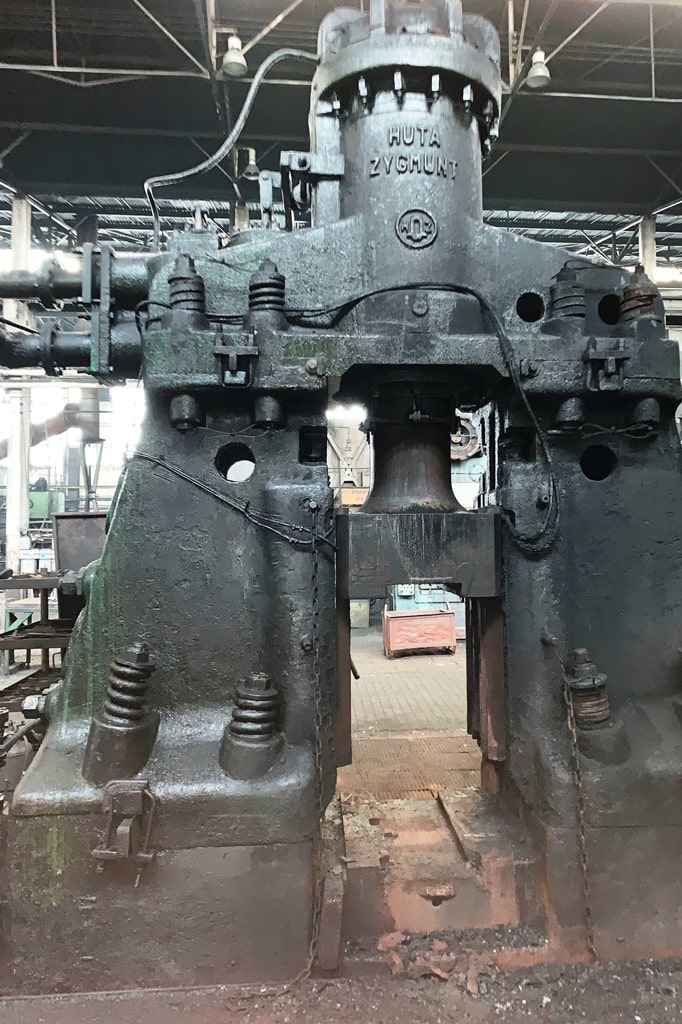

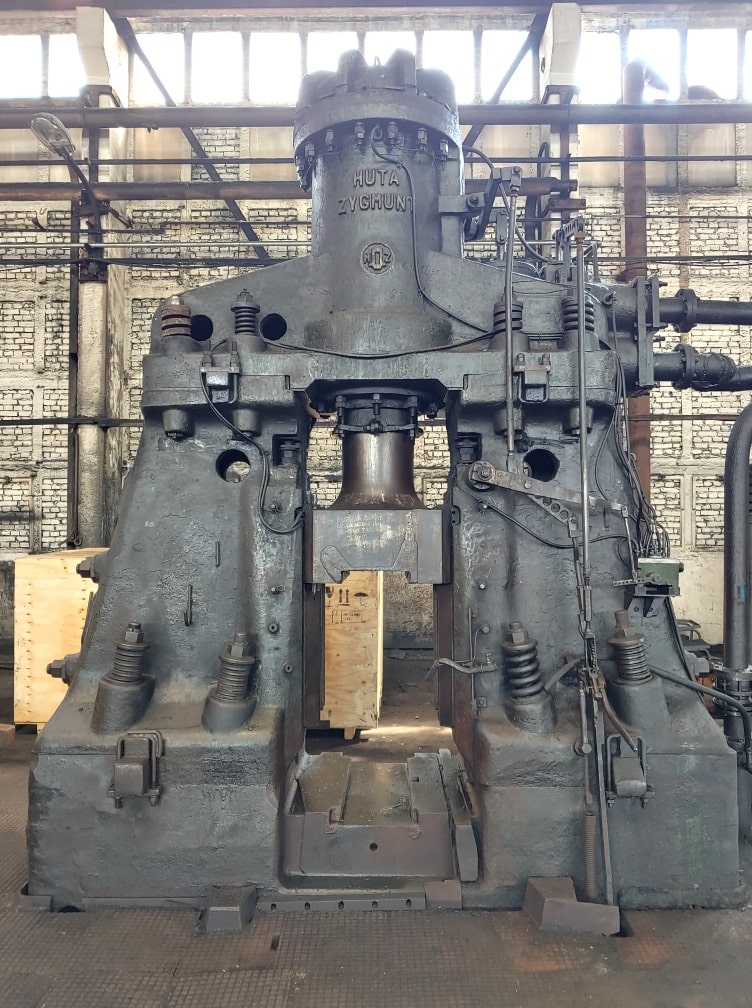

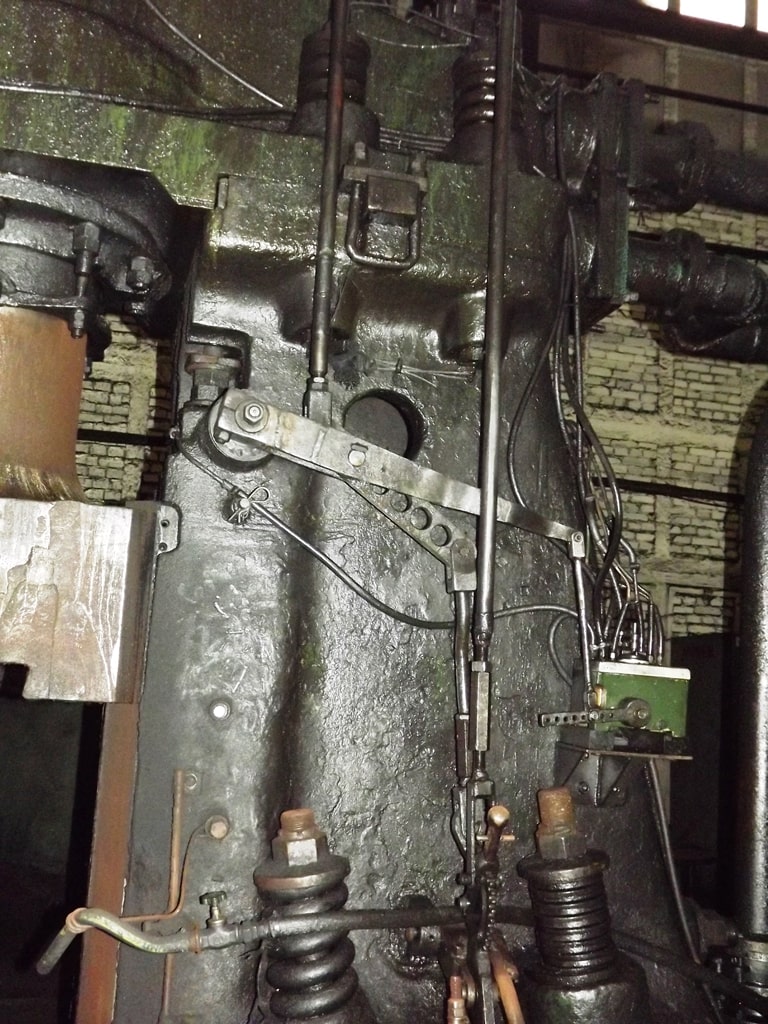

Schmiedehammer Huta Zygmunt MPM 3000 - 3.5 ton
Technische Daten (EN) - Schmiedehammer Huta Zygmunt MPM 3000 - 3.5 ton (ID: 75436)
| Type | Forging hammer |
| Manufacturer | Huta Zygmunt |
| Model | MPM 3000 |
| Max. Impact energy | 9500 kGm |
| Weight of the falling part of | 3570 kg |
| Stroke of | 1000 mm |
| Max. Number of jumps per minute | 90 |
| Length x width x height | 3620 x 2100 x 4700 mm |
| The spacing of the guides | 660 mm |
| Dimensions of anvils length x width | 550 x 450 mm |
| Weight | 100,000 kg |
| Power supply | compressed air 28 m3 / min |
| Compressed air pressure | 5-7 bar |
| The maximum weight of the forgings is | 4.0 — 24 kg |
