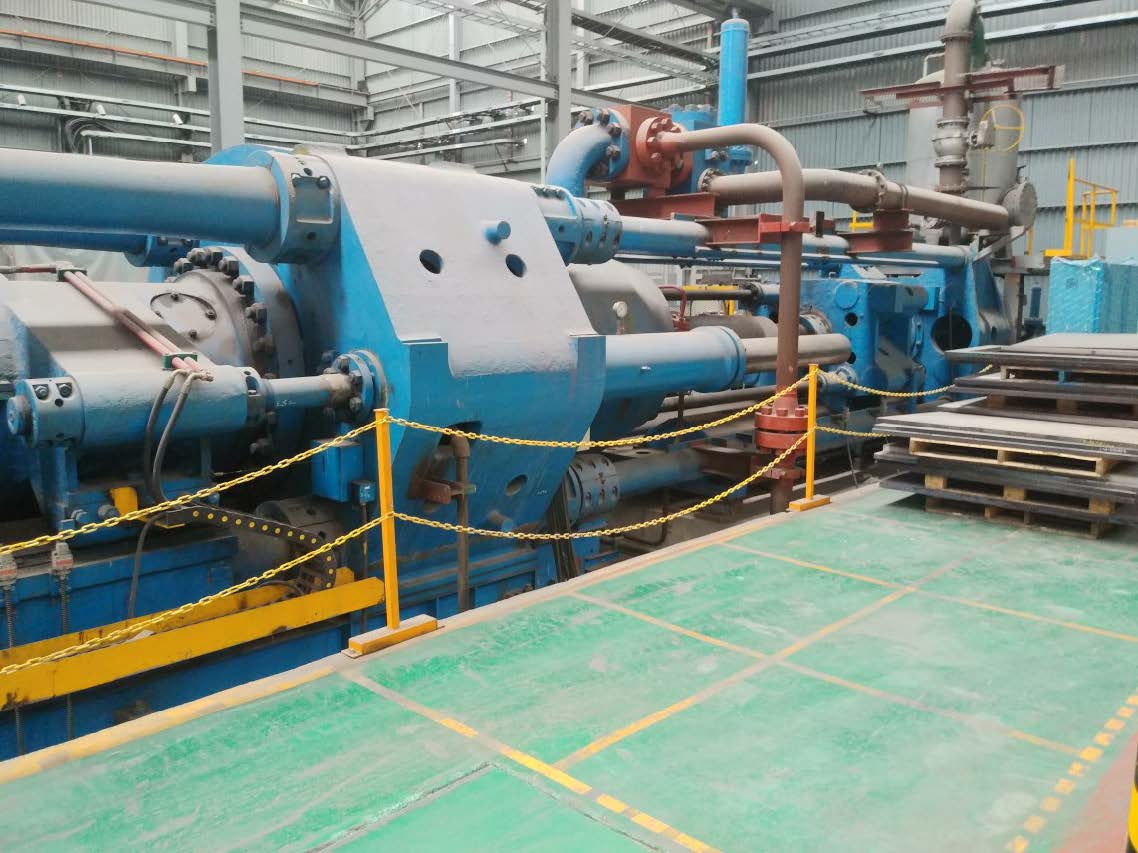

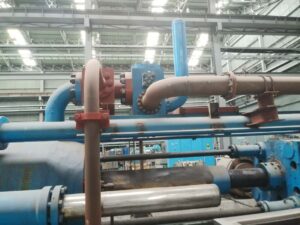

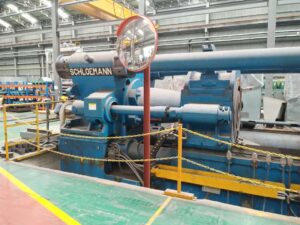

Strangpresse Schloemann Titanium 4000 MT - 4000 ton
Technische Daten (EN) - Strangpresse Schloemann Titanium 4000 MT - 4000 ton (ID: 75705)
| Type | Extrusion press |
| Manufacturer | Schloemann |
| Model | Titanium 4000 MT |
| Manufacture | Schloemann |
| Condition | Perfect working condition |
| Type | Horizontal hydraulic extrusion press |
| Force | 4000 mton |
| Cylinder dia | 110 mm |
| Stroke | 1570 mm |
| Oil pressure | 2ea (80kg/cm2) |
| Billet size | |
| Diameter | 203 mm |
| Length | 800 mm max |
| Extrusion speed | 15 mm/sec |
| Main motors | 2 x 140 kW ea |
| Pumps model | WOMA 1802-P35 |
| Pumps | 2 x 130 litres/min ea |
| Pumps | Max. 550 bar at main body |
| Ram / Pierce speeds (diameter x stroke) | |
| Main ram forward | 1289 mm x 2160 mm x 1 ea |
| Main ram return | 292 mm x 2160 mm x 2 ea |
| Pierce forward | 540 mm x 2160 mm x 1 ea |
| Pierce return | 121 mm x 2160 mm x 2 ea |
| Ram control valve | ball valve |
| Valve | on/off duration 6.5 sec |
| Container Size | 1200 mm x 1030 mm diameter |
